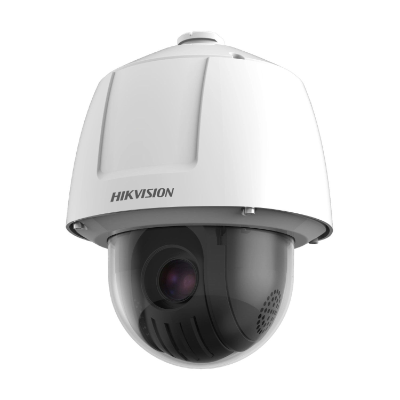

Hikvision DS-2DF6225X-AEL 2MP Outdoor Darkfighter PTZ Camera, 25x Zoom, H.265+, WDR, IK10, HiPoE

Model: DS-2DF6225X-AEL

Who This Is For

When covering large outdoor areas with a single camera position is the priority, the DS-2DF6225X-AEL is built for exactly that job. This is a camera for installers specifying perimeter protection on commercial sites, councils monitoring open public spaces, or security integrators designing systems for car parks, logistics yards, and transport hubs where pan, tilt, and 25x optical zoom need to work reliably around the clock. The Darkfighter sensor drops minimum illumination to 0.002 Lux in colour mode, meaning usable colour footage in conditions where most standard cameras have already switched to black and white. The IK10 vandal resistance and IP67 weatherproofing make it viable for exposed mounting positions - rooftops, poles, and building corners in coastal or industrial environments. For sites where one well-placed PTZ can do the work of several fixed cameras, this is the model worth specifying.

What This Camera Actually Does

Who Buys This Model

• Security integrators on commercial sites: Specifying a PTZ to reduce total camera count on large yards, car parks, or open retail precincts where a single pan-tilt-zoom unit replaces multiple fixed cameras.
• Local councils and public space operators: Monitoring parks, public squares, or transit areas where the 360-degree pan and 25x zoom allow operators to respond to and track incidents across wide, open environments.
• Industrial and logistics site managers: Installing on loading docks, fuel depots, or storage yards where IK10 vandal resistance, IP67 weatherproofing, and Darkfighter low-light performance are all required at once.
• Installers running HiPoE-capable NVRs: Sites where avoiding a separate power supply at the camera mounting point is a practical priority - the HiPoE compatibility means a single Cat6 cable run is sufficient for installation.

Honest Assessment

The DS-2DF6225X-AEL does the core PTZ job well. The Darkfighter sensor at 0.002 Lux colour / 0.0002 Lux monochrome is genuinely capable in low-light outdoor environments, the 25x optical zoom gives operators practical identification range from a distance, and the IK10 plus IP67 ratings mean it holds up on exposed mounting positions. H.265+ keeps storage manageable for a camera capable of 1080p at 60fps. This is a well-rounded outdoor PTZ supplied by Security Australia that suits medium to large commercial and public space applications.

That said, it is a 2MP camera - if your application demands 4MP or higher resolution for licence plate identification at distance or detailed facial recognition in wide-area shots, a higher-resolution PTZ would serve that requirement better. It is also a single-lens PTZ, so it does not provide continuous 180-degree or 360-degree simultaneous coverage the way a multi-sensor panoramic camera does. If the use case requires constant all-direction recording rather than active operator-directed or preset-patrol monitoring, a panoramic fixed camera is worth comparing.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a large open area - a car park, logistics yard, or public space - from a single elevated mounting point, using preset patrols and 25x optical zoom to actively cover multiple zones.
• Good match if: The installation is in a harsh outdoor environment where both weather exposure (IP67) and physical impact resistance (IK10) are required alongside Darkfighter low-light performance.
• You may need a different model if: Your primary requirement is continuous simultaneous 360-degree recording without operator input - a multi-sensor panoramic camera provides that type of always-on full-perimeter coverage that a single-lens PTZ cannot replicate.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active operator-directed PTZ coverage with 25x optical zoom, Darkfighter low-light performance, and IK10 vandal resistance on a single HiPoE cable run across a large outdoor area.
• You may need a different model if: Your use case demands continuous simultaneous full-perimeter recording without operator input - a multi-sensor panoramic camera provides always-on 180-degree or 360-degree coverage that a single-lens PTZ cannot replicate when unattended.
• Pairs well with: A HiPoE-capable NVR with onboard analytics support, allowing patrol scan scheduling, line crossing, and intrusion detection to be managed centrally without a separate analytics server.

Common Questions

1. Does this camera require a special PoE switch or NVR port?

   Yes. The DS-2DF6225X-AEL uses HiPoE, which requires a HiPoE-capable NVR port or switch port - standard Hi-PoE (15.4W) and 802.3at (30W) PoE ports do not provide sufficient power for PTZ motor operation. Before purchasing, confirm that your NVR or PoE switch includes at least one HiPoE output port. Not all Hikvision NVR models provide HiPoE on every channel, so check the port specification for the specific channel you intend to use.

2. Will this camera work for monitoring large outdoor areas at night without additional lighting?

   Yes, in most practical outdoor night conditions. The Darkfighter sensor reaches 0.002 Lux minimum illumination in colour mode and 0.0002 Lux in black and white. In environments with minimal ambient light - street lighting, car park lighting, or low-level signage - this camera produces usable colour footage where standard outdoor cameras switch to monochrome or produce noisy, low-detail images. In complete darkness with no ambient light source at all, supplemental lighting would still be required.

3. What is the pan and tilt range, and does it support auto-tracking?

   Pan is 360-degree continuous rotation. Tilt range is -5 to 90 degrees with auto-flip. Auto-flip inverts the image automatically when the camera tilts past vertical so that a subject walking directly beneath the camera is tracked without the image flipping upside down. The confirmed scanning modes are preset positions, patrol scan (cycling through presets), and pattern scan (replicating a recorded movement path). Auto-tracking behaviour beyond these confirmed scanning functions is not specified in the available product data - contact Security Australia to confirm whether auto-tracking is supported on this specific SKU before specifying it for active subject-following applications.

4. Does the 25x optical zoom provide useful identification detail at long distances?

   Yes, meaningfully so compared to fixed lens cameras. 25x optical zoom allows an operator to bring in subjects at significant distance - the practical identification range depends on mounting height and environmental conditions, but the optical zoom produces no image degradation as it is achieved through the lens rather than digitally. The additional 16x digital zoom extends reach further but at reduced image quality. For specific DORI (Detection, Observation, Recognition, Identification) distance calculations at this zoom ratio, the mounting height and angle relative to the subject need to be factored in at the design stage.

5. Is this camera rated for outdoor installation in harsh Australian conditions?

   Yes. The DS-2DF6225X-AEL carries IP67 weatherproofing, which means it is fully protected against dust ingress and against water immersion up to 1 metre - covering rain, hose-down environments, and coastal spray. The IK10 vandal resistance rating indicates the housing withstands impacts up to 20 joules, making it suitable for exposed mounting positions where physical interference is a risk. Both ratings are manufacturer-confirmed specifications on this model.

6. How does 120dB WDR affect footage quality at site entrances and backlit gates?

   120dB WDR handles scenes where the foreground subject and the background are at dramatically different exposure levels - a vehicle entering a gate with bright sky behind it is the typical example. Standard cameras in this situation either expose for the sky (vehicle silhouetted) or expose for the vehicle (sky blown out). WDR at 120dB processes multiple exposures simultaneously to retain legible detail across both bright and dark zones in the same frame. At 120dB, this camera handles more extreme lighting contrast than cameras with 100dB or lower WDR ratings.

7. Does H.265+ compression make a practical difference for storage on a PTZ running at 1080p 60fps?

   Yes, noticeably. H.265+ reduces bitrate requirements compared to H.264 by a significant margin - Hikvision's own testing data indicates up to 75% bitrate reduction versus H.264 under similar scene conditions. For a camera running 1080p at 60fps continuously, this translates directly to either more days of recorded footage on the same NVR storage, or the same retention period on smaller HDD capacity. For PTZ cameras in active patrol mode where scene content changes frequently, the efficiency gain is real though varies with scene complexity.
