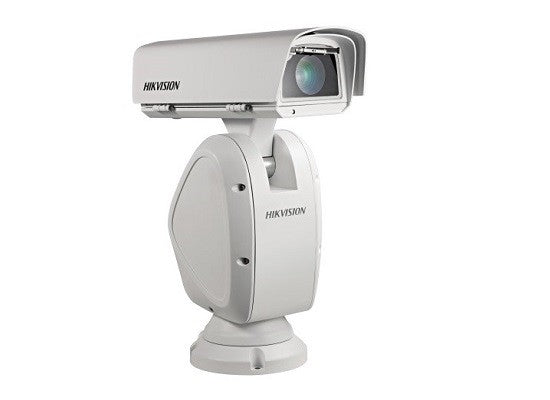

The Hikvision DS-2DY9250X-A 2MP Network Positioning System adopts a 1/2.8" progressive scan CMOS chip. With a 50× optical zoom lens, this camera offers detailed imaging over expansive areas. This series of cameras is ideal for wide-range high-definition surveillance applications, such as rivers, forests, roads, railways, airports, ports, squares, parks, scenic spots, stations, and large venues.
Key Features
Code/SKU: DS-2DY9250X-A
Quick Specs:
Suitable For: Ideal for security professionals and system integrators looking for a high-performance network positioning system for wide-range and high-definition surveillance applications.
Camera | ||
---|---|---|
Image Sensor: | 1/2.8" HD progressive scan CMOS | |
Effective Pixels: | 1920(H)x1080(V) | |
Minimum Illumination: | Color: 0.05 Lux @(F1.8, AGC ON)B/W: 0.01 Lux @(F1.8, AGC ON) | |
White Balance: | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp | |
AGC: | Auto/Manual | |
BLC: | ON/OFF | |
HLC: | Support | |
Smart defog: | Support | |
WDR: | 120dB | |
Shutter Time: | 1/1 s to 1/30,000 s | |
Day& Night: | ICR | |
Digital Zoom: | 16× | |
Privacy Mask: | 24 programmable privacy masks | |
Auto Focus: | Auto / Semi-automatic / Manual |
Lens | ||
---|---|---|
Focal Length: | 6.6 mm to 330 mm, 50× Optical | |
Zoom Speed: | Approx. 4.5 s (optical lens, wide-tele) | |
Field of View: | Horizontal field of view: 41.3° to 1.1° (wide-tele)Vertical field of view: 23.6° to 0.6° (wide-tele)Diagonal field of view: 47.4° to 1.3° (wide-tele) | |
Minimum Working Distance: | 10 mm to 1500 mm (wide-tele) | |
Aperture Range: | F1.8 to F5.5 |
Pan & Tilt | ||
---|---|---|
Pan Speed: | Configurable, from 0.1°/s to 100°/s, Preset Speed: 50°/s | |
Tilt Range: | -90°-40° (Auto Flip ) | |
Tilt Speed: | Configurable, from 0.1°/s to 50°/s, Preset Speed: 100°/s | |
Proportional Zoom: | Rotation speed can be adjusted automatically according to zoom multiples | |
Number of Preset: | 300 | |
Patrol: | 8 patrols, up to 32 presets for each patrol | |
Pattern: | 4 pattern scans, record time over 10 minutes for each scan | |
Power-off Memory: | Support | |
Park Action: | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan | |
PTZ Position Display: | ON/OFF |
Alarm | ||
---|---|---|
Alarm Input: | 7 Inputs | |
Alarm Output: | 2 |
Input & Output | ||
---|---|---|
CVBS Output: | 1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC | |
Audio Input: | 1-ch audio input | |
Audio Output: | 1-ch audio output |
Network | ||
---|---|---|
Ethernet: | 10Base-T / 100Base-TX, RJ45 connector (Fiber Connector Optional) | |
Max.Image Resolution: | 1920×1080 | |
Main Stream: | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),50fps (1920 × 1080, 1280 × 960, 1280 × 720);60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720),60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
Sub Stream: | 50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288)60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240) | |
Third Stream: | 50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) | |
Video Compression: | Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264/MJPEGThird Stream: H.265/H.264/MJPEG | |
Audio Compression: | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM | |
Protocols: | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour | |
Three-Stream: | Support | |
Storage: | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB | |
User/Host: | Up to 32 users, 3 levels: Administrator, Operator and User | |
Security Measures: | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
Fiber Optical Interface (Available for Fiber dome) | ||
---|---|---|
Fiber Type: | 1 1000 M FC interface, TX1310/ RX1550 nm wavelength, 20 km transmission distance |
General | ||
---|---|---|
RS-485 Protocols: | HIKVISION, Pelco-P, Pelco-D, self-adaptive | |
Power Supply: | 24V AC | |
Power Consumption: | Max.: 70 W | |
Working Temperature/Humidity: | Temperature: Outdoor: -40°C to 70°C (-40°F to 158°F)Humidity: ≤ 90% | |
Protection Level: | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
Material: | Aluminum alloy ADC12 | |
Dimensions: | 390 mm × 491 mm (15.35" × 19.33") | |
Weight (approx.): | Approx. 11 kg (24.25 lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2DY9250X-A 2MP 50× Network Positioning System
Hikvision DS-2DY9250X-A 2MP 50× Network Positioning System
The Hikvision DS-2DY9250X-A is a high-performance 2MP network positioning system designed for comprehensive surveillance applications. This advanced PTZ camera features an impressive 50x optical zoom, allowing users to monitor distant areas with remarkable detail. Powered by state-of-the-art imaging technology, the DS-2DY9250X-A ensures that high-quality video is captured in various lighting conditions, making it an ideal choice for critical surveillance scenarios.
Equipped with a high-performance 1/2.8" HD progressive scan CMOS sensor, this camera captures video at a resolution of 1920 x 1080 and up to 60 frames per second, ensuring smooth playback and exceptional clarity. The camera’s 360-degree endless pan and -20° to 90° tilt ranges provide comprehensive coverage and enable users to adjust the camera’s orientation to focus on essential details effectively.
The DS-2DY9250X-A integrates advanced features such as intelligent analytics, ensuring proactive security management. Coupled with its durable design for outdoor use, this camera is a reliable solution for a wide range of monitoring applications, making it a valuable asset for enhancing security infrastructure.
Features:
Functions:
Comprehensive Surveillance Coverage:
Designed for extensive area monitoring, the camera’s advanced optical zoom and robust pan-tilt capabilities ensure that no critical area is overlooked, maximizing overall security coverage.
Effective Night Surveillance:
Equipped with infrared capabilities, the camera guarantees reliable operation during nighttime, allowing clear image capture even in total darkness while maintaining image integrity.
Proactive Incident Notification:
The intelligent video analytics system can send immediate alerts based on detected movements, allowing security personnel to respond quickly to potential incidents.
Flexible Installation Options:
Designed for ease of integration within various security architectures, enabling smooth operation with existing infrastructure while allowing quick setup and adjustments.
User-Friendly Interface:
The intuitive user interface simplifies the camera’s configuration and management, making it accessible for both novice and experienced operators in security environments.
Remote Monitoring Features:
Users can access camera feeds and manage settings remotely through compatible devices, enhancing operational flexibility for effective surveillance management.
Durability for Outdoor Use:
The rugged design ensures the camera is protected against harsh environmental conditions, providing consistent performance for long-term outdoor surveillance needs.
Reliable Connectivity and Integration:
Supports various network protocols, allowing seamless integration with existing systems and ensuring robust communication for effective video transmission and monitoring.
Technical Specifications
Model | DS-2DY9250X-A |
Image Sensor | 1/2.8" HD Progressive Scan CMOS |
Resolution | 1920 x 1080 |
Minimum Illumination | Color: 0.05 Lux, B/W: 0.01 Lux |
Zoom | 50x Optical, 16x Digital |
Pan Range | 360° Endless |
Tilt Range | -90° to 40° (Auto Flip) |
Imaging Technologies | 120 dB WDR, 3D DNR, HLC, BLC, Smart Defog, EIS |
Smart Tracking | Supported |
Video Compression | H.265+/H.265/H.264+/H.264 |
Protection Level | IP66 |
Power Supply | 24V AC |
Working Temperature | -40°C to 70°C (-40°F to 158°F) |
Dimensions | 390 mm × 491 mm (15.35" × 19.33") |
Weight | Approx. 11 kg (24.25 lb) |
