8MP 4CH Hikvision CCTV Kit: 4 x Outdoor Turret Cameras with Acusense Filter + 4CH NVR
- Sku: 4x DS-2CD2386G / DS-7604NI-I1-4P
- Vendor: SecurityAustralia
$2,303.00 AUD
$1,700.00 AUD
Tax included.
Shipping calculated at checkout.
Quick Buying Summary

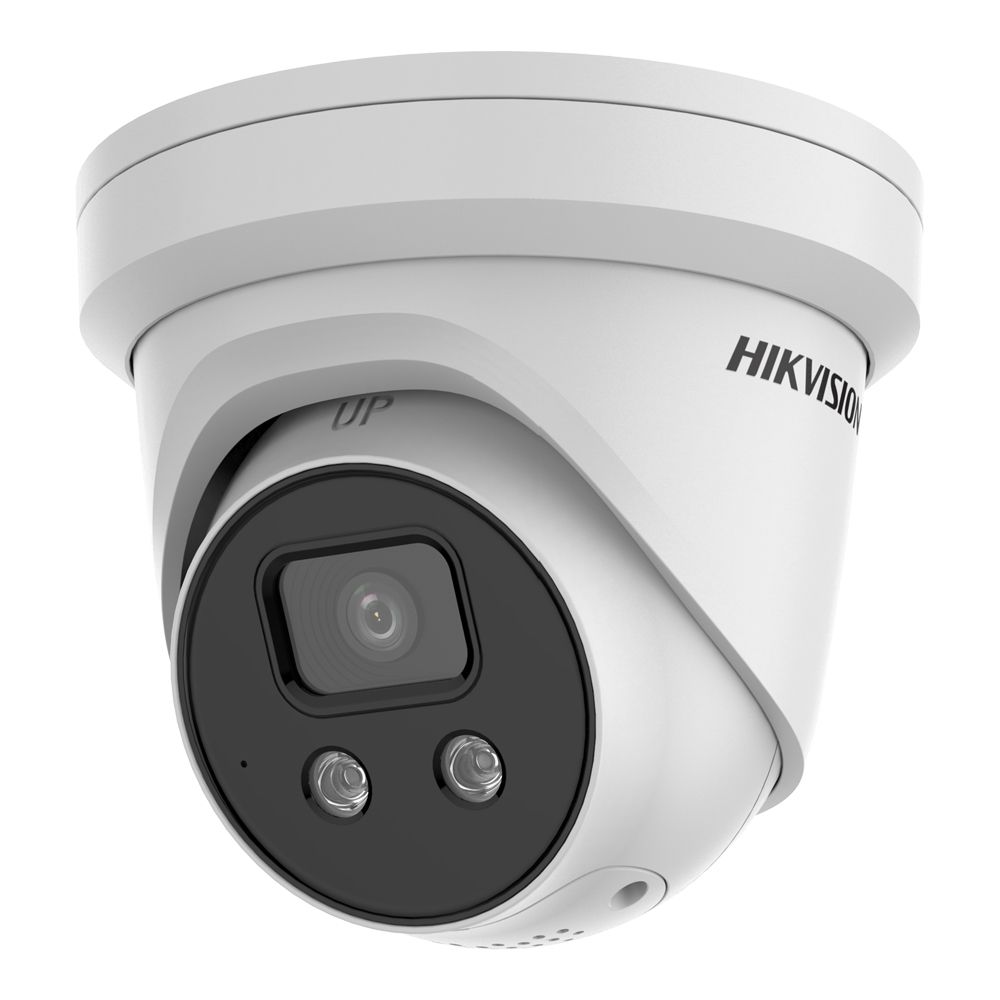

4 x 4 Hikvision Acusense DS-2CD2386G2-IU IP Camera 8MP 4K Turret Network Camera with Mic
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human or vehicle target classification alarms to front and back-end devices. The system can greatly reduce false alarms generated by targets other than humans or vehicles, vastly improving alarm efficiency and effectiveness.
Key Features:
- Image Sensor: 8MP 1/1.8" Progressive Scan CMOS
- Resolution: 3840 × 2160 @20 fps
- IR Distance: 30m
- Lens: Fixed lens options: 2.8mm, 4mm, 6mm
- Video Compression: H.265+/H.265/H.264+/H.264
- Smart Features: AcuSense for human/vehicle classification, intrusion detection, line crossing detection
- Protection: IP67 weatherproof rating
- Audio: Built-in microphone for real-time audio security
Code/SKU: DS-2CD2386G2-IU (U = mic)
Quick Specs: H.265+, IR 30m, IP67, Built-in Mic
Lens Options:
- 2.8mm: Horizontal FOV: 102°, Vertical FOV: 54°, Diagonal FOV: 121°
- 4mm: Horizontal FOV: 87°, Vertical FOV: 44°, Diagonal FOV: 101°
- 6mm: Horizontal FOV: 51°, Vertical FOV: 29°, Diagonal FOV: 58°
This camera offers exceptional surveillance capabilities with advanced motion detection and a 30m infrared range. Suitable for both residential and commercial environments, it provides reliable and accurate monitoring.
1 x 4 CH Hikvision PoE NVR
Hikvision DS-7604NI-I1-4P 4ch PoE CCTV NVR 4K 4TB Hard Drive
The DS-7604NI-I1/4P supports a variety of camera types and integrates seamlessly with Hikvision's extensive range of surveillance products. It features multiple recording modes, including continuous, motion detection, and alarm-triggered recording. Users can manage and monitor their system remotely via Hikvision’s software and mobile apps. Additionally, it supports up to 6TB of storage, providing ample space for extensive video footage. The NVR is designed with a durable and compact chassis, ideal for installations in space-constrained environments.
Key Features
- Flexible Video Formats: Supports H.265+, H.265, H.264+, H.264 video formats for efficient storage and playback.
- Multiple Camera Inputs: Capable of connecting up to 4 channels of IP camera inputs for comprehensive surveillance capabilities.
- High-Performance Encoding: 2-ch@12 MP (20 fps) or 4-ch@8 MP (25 fps) recording for superior image quality.
- Synchronous Playback: 4-channel synchronous playback at resolutions up to 8MP for easy video review and analysis.
- Ample Storage: Comes with a pre-installed 4TB hard drive, supporting up to 6TB for extensive video storage.
- Remote Management: Ability to manage and monitor the system via Hikvision’s software and mobile applications for convenience.
- Compact Design: 1U form factor makes it suitable for space-constrained environments while ensuring durability.
Code/SKU: DS-7604NI-I1/4P
Quick Specs:
- Dimension (W × D × H): 315 × 240 × 48 mm (12.4" × 9.4" × 1.9")
- Weight: ≤ 1.18 Kg (2.6 lb)
Accessories
Select options before adding this product to cart.
Free shipping - Enjoy free shipping when your order exceeds $100!
All orders are despatched within the next business day!
Best local support in Aus! We back all products with a 3 year manufacturer warranty.
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Product Overview
8MP 4CH Hikvision CCTV Kit: 4 x Outdoor Turret Cameras with Acusense Filter + 4CH NVR
Enhance your security setup with the Hikvision DS-2CD2386G2-IU, an 8MP AcuSense fixed turret network camera designed for superior surveillance capabilities. This camera accurately distinguishes between humans and vehicles, reducing false alarms from non-relevant movements.
Its advanced AcuSense technology ensures you receive reliable notifications, making this camera ideal for residential and commercial use. With ultra-clear imaging, you can rest assured every detail is accurately captured.
Equipped with DarkFighter technology, this camera provides exceptional low-light performance, delivering detailed images even in complete darkness with an infrared range of up to 30 meters.
Durably constructed with an IP67 weatherproof rating, the camera is designed to withstand adverse outdoor conditions, ensuring reliability and performance in various environmental settings.
Features:
- 8MP resolution delivers ultra-clear images, ensuring effective monitoring of crucial areas with high-definition clarity that captures every critical detail for enhanced security.
- Advanced AcuSense technology significantly reduces false alarms by accurately classifying human and vehicle targets, ensuring alerts are meaningful and relevant to security personnel.
- Exceptional low-light performance with DarkFighter technology allows for detailed day and night imaging, capturing full-color visuals even in dimly lit environments and nighttime conditions.
- Wide Dynamic Range (WDR) technology (over 120dB) enhances image quality in difficult lighting situations by balancing bright and dark areas in the same scene for improved clarity.
- Built-in microphone enables two-way audio communication, allowing security personnel to hear and interact with individuals in front of the camera for enhanced situational management.
- IP67-rated design ensures that the camera is dust-tight and can withstand immersion in water, making it durable and reliable for outdoor installations in challenging conditions.
- Supports advanced video compression formats H.265+ and H.264+, significantly reducing storage requirements and bandwidth needs while maintaining optimal video quality for effective operations.
- Equipped with a microSD card slot supporting up to 256GB for local storage of recorded footage, providing flexibility for video retention and easy access to important data.
Functions
Motion Detection:
The camera utilizes advanced algorithms for accurate motion detection, notifying users immediately when movement is detected, ensuring prompt responses to potential security breaches or incidents.
Enhanced Night Vision:
The infrared capabilities ensure clear visibility up to 30 meters in total darkness, providing round-the-clock surveillance capabilities to capture critical events occurring during nighttime.
Privacy Masking:
This feature allows users to define areas that should remain unrecorded, helping ensure compliance with privacy regulations while maintaining security integrity in monitored zones.
User-Friendly Interface:
An intuitive software interface simplifies the management of camera settings and footage access, making it easy for both novice and experienced users to navigate effectively.
Remote Access:
Experience seamless remote access via mobile applications or web platforms, providing users with real-time monitoring and management capabilities from any location at any time.
Advanced Analytics:
AI-driven analytics capabilities optimize surveillance operations by offering features like face detection, intrusion detection, and line crossing alerts for proactive security measures and monitoring.
Automated Day/Night Switching:
The camera automatically transitions between day and night modes, ensuring that video quality remains high regardless of ambient light levels for consistent performance.
Durability in Extreme Conditions:
Designed to operate within a broad temperature range, the camera remains functional in harsh weather scenarios, ensuring reliable monitoring in various climates and environments.
Technical Specifications:
| Model | DS-2CD2386G2-IU |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 (8MP) |
| Minimum Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8 mm, horizontal FOV: 107° |
| IR Distance | Up to 30 meters |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Memory Slot | Supports microSD/SDHC/SDXC, up to 256GB |
| Power Supply | 12 VDC, PoE (API 802.3af, class 3) |
| Weatherproof Rating | IP67 |
| Image Sensor: | 1/2″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.008 Lux @ (F1.2, AGC ON), 0.016 Lux @ (F1.6, AGC ON) | |
| Shutter time: | 1/3 s to 1/100,000 s | |
| Slow shutter: | Support | |
| Lens: | 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120°4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92°6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59° | |
| Adjustment Range: | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° | |
| Day& Night: | IR Cut Filter | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Focus: | Fixed |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.265+/H.265/H.264+/H.264/MJPEG | |
| Video bit rate: | 32Kbps~16Mbps | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 3840 × 2160 | |
| Sub Stream: | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Frame Rate: | 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) | |
| Third Stream: | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288)60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) | |
| Image Enhancement: | BLC/3D DNR/HLC | |
| ROI: | Support 1 fixed region for main stream and sub stream separately | |
| Day/Night Switch: | Day/Night/Auto/Schedule | |
| Network | ||
|---|---|---|
| Network Storage: | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | One-key recovery, Anti-Flicker, three streams, heartbeat, mirror, password protection, videomask, Watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G), ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection | |
| Recognition: | Face Detection | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing) | |
| Power Consumption: | 12 VDC, 0.7 A, max: 7.5 WPoE: (802.3af, 36 VDC to 57 VDC), 0.3 A to 0.2 A, max: 9 W | |
| Weather Proof: | IP67 | |
| IR Range: | Up to 30m | |
| Dimensions: | Camera: Φ 138.3 × 125 mm (5.4″ × 4.9″) | |
| Weight: | Camera: 725 g (1.6 lb.)With package: 966 g (2.1 lb.) | |
