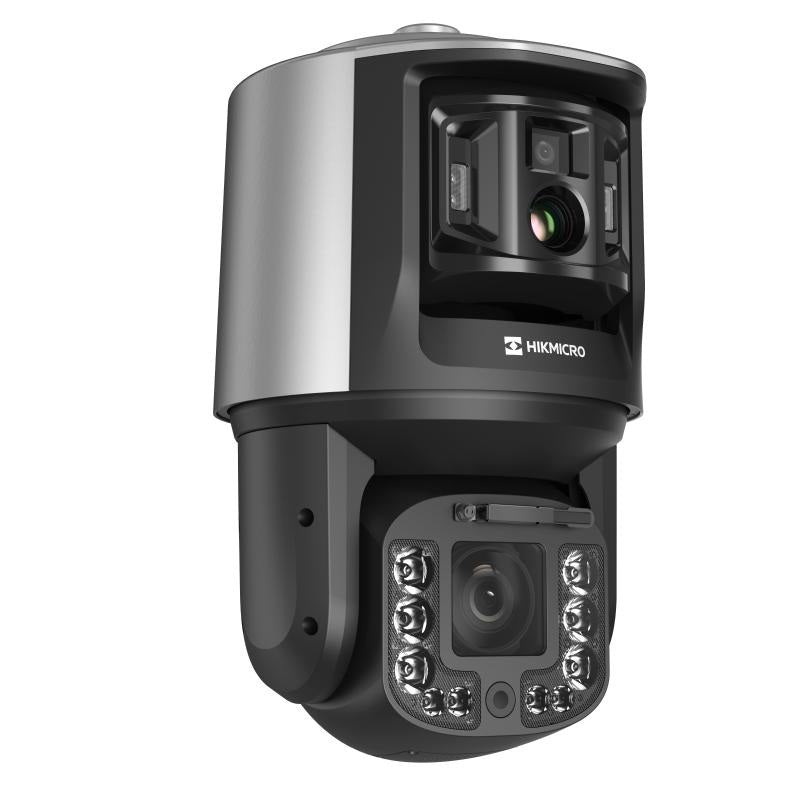

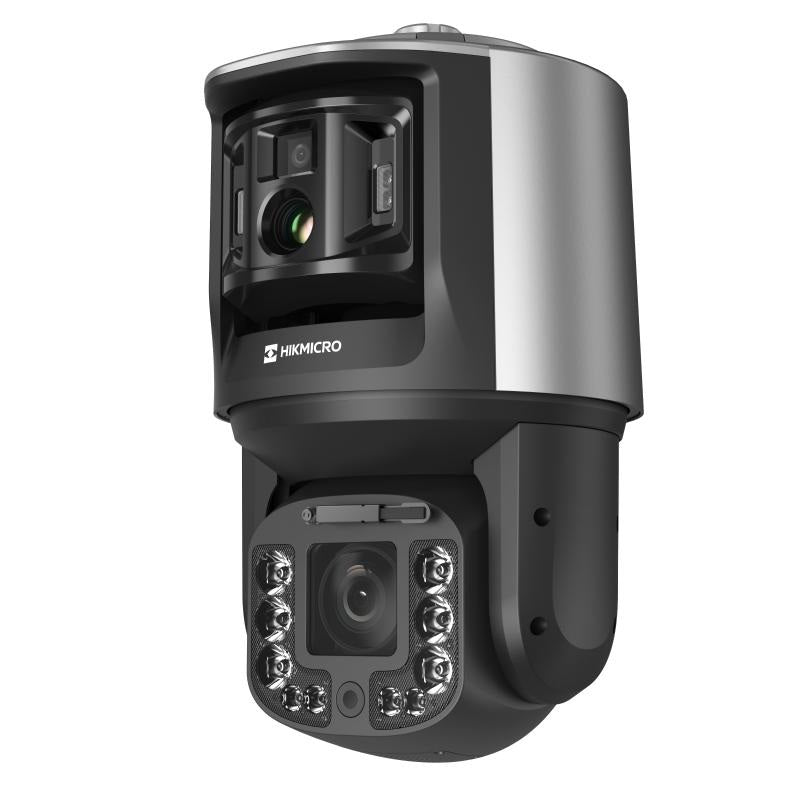

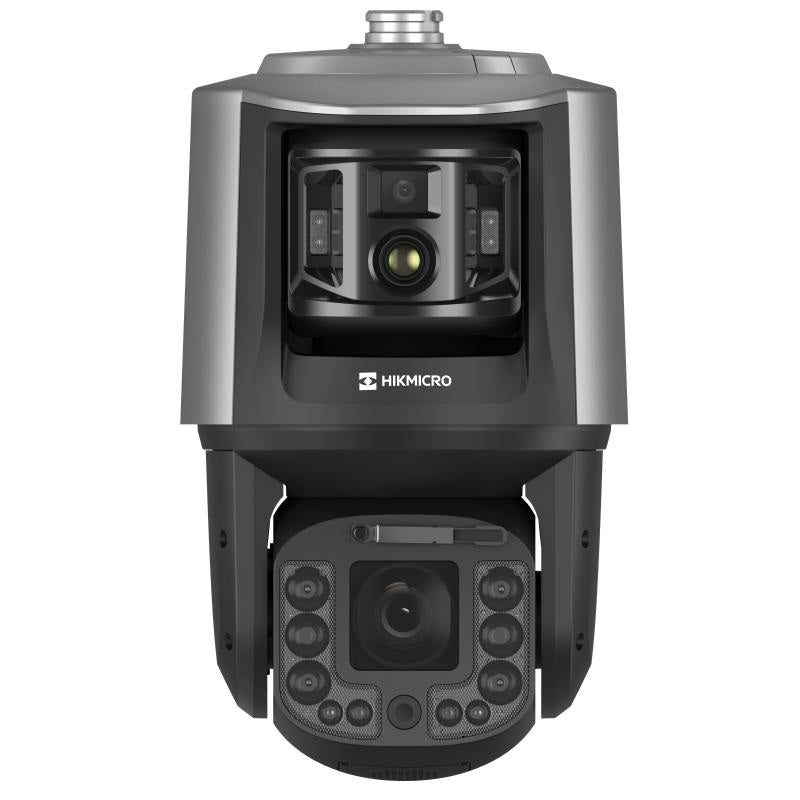

Hikvision HM-TX3840-10/G0/T1 Thermal TandemVu Bi-Spectrum Bullet Camera with Optical PTZ, Perimeter Protection & Smart Detection

Model: HM-TX3840-10/G0/T1

Who This Is For

For security engineers and site managers who need verifiable detection across wide perimeters where visible-light cameras alone are not enough. The Hikvision HM-TX3840-10/G0/T1 TandemVu combines a thermal sensor with an optical PTZ in a single bullet housing - giving operators the ability to detect movement via heat signature and simultaneously zoom in with the optical channel to confirm what is triggering an alert. This makes it relevant for critical infrastructure boundaries, water treatment facilities, remote energy sites, port perimeters, and large industrial compounds where 24-hour detection without relying on ambient or artificial light is a core requirement. The perimeter protection and smart detection functions are designed to reduce false alarms from animals or environmental movement, making it a serious tool for monitored sites rather than a general-purpose surveillance camera.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Water treatment facilities, power stations, and utility sites requiring 24-hour perimeter detection where lighting is unreliable and false alarms must be minimised before dispatching a response.
• Mining and Resource Site Security Teams: Remote sites with large boundaries and no permanent lighting where standard optical cameras cannot maintain reliable night coverage across long approaches.
• Port and Logistics Security Managers: Waterfront or terminal perimeters where fog, glare from water, and vessel lighting create conditions that make optical-only detection unreliable after dark.
• Security Integrators Designing Monitored Perimeter Systems: Installers specifying alarm-verified perimeter detection for sites with a control room or offsite monitoring centre that needs automatic thermal-triggered optical zoom to confirm events before dispatching a guard.

Honest Assessment

The HM-TX3840-10/G0/T1 occupies a specific and demanding position in the Hikvision range. The TandemVu configuration genuinely solves a real operational problem - thermal detection tells you something is there, and the auto-oriented optical PTZ tells you what it is. For unmanned perimeters where 24-hour detection integrity is non-negotiable, this combination is operationally stronger than either a standalone thermal camera or a conventional PTZ. The smart detection and perimeter protection functions are designed to keep false alarm rates manageable on sites with wildlife or environmental movement. What this camera will not do is serve as a cost-effective general-purpose CCTV solution. It is a specialist perimeter instrument with installation, commissioning, and ongoing management requirements that go beyond a standard IP camera deployment. Sites wanting basic outdoor coverage should look at optical PTZ or TiOC options available through Security Australia. This unit suits sites with defined security budgets, a monitoring capability, and a genuine detection problem that optical cameras have not resolved.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring an unmanned perimeter at night or in low-visibility conditions and need the camera to detect movement thermally and then automatically orient its optical PTZ channel toward the target for visual confirmation - exactly what the TandemVu bi-spectrum design does.
• Good match if: Your site generates unacceptable false alarm rates from conventional motion detection and you need smart detection with human and vehicle classification on the thermal channel to filter environmental triggers before alerts reach an operator or monitoring centre.
• You may need a different model if: Your requirement is general outdoor surveillance coverage of a car park, building exterior, or entry point - an optical PTZ or full-colour turret camera will serve that application better and at significantly lower cost. Browse the PTZ and outdoor camera range on Security Australia for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires 24-hour perimeter detection that does not rely on lighting or IR illumination, and you need thermal-triggered optical PTZ auto-tracking so operators can visually verify events without manually controlling a separate camera.
• You may need a different model if: Your requirement is visible-light perimeter coverage with deterrence lighting - a TiOC or full-colour PTZ camera provides that capability at considerably lower cost and complexity than a bi-spectrum thermal unit.
• Pairs well with: A compatible Hikvision NVR or VMS platform that supports dual thermal and optical stream recording, perimeter protection metadata, and PTZ auto-tracking management across multiple camera positions.

Common Questions

1. Does this camera work in complete darkness with no lights at all?

   Yes. The thermal channel operates entirely on heat signatures and has no dependence on ambient light, IR illuminators, or any artificial lighting. This is the core advantage of a thermal bi-spectrum unit over standard optical cameras - detection performance does not change between daylight and complete darkness. The optical PTZ channel does require light or IR to produce a usable visible image for verification, but detection itself is driven by the thermal sensor.

2. Will this camera automatically move the optical PTZ when it detects something on the thermal channel?

   Yes. The TandemVu design links the thermal detection output to the optical PTZ orientation. When a detection event is triggered on the thermal channel - whether by a perimeter rule or smart detection classification - the optical PTZ can be configured to auto-track toward the target location. This means the operator receives both a thermal detection event and a zoomed optical image of the target without manually operating the PTZ. The specific auto-tracking behaviour and preset configuration must be set up during commissioning.

3. What is the thermal resolution of this unit and what does that mean for detection range?

   The thermal sensor in the HM-TX3840-10/G0/T1 is 384 x 288 pixels. Combined with the 10mm thermal lens, this resolution determines the DORI (Detection, Observation, Recognition, Identification) distances across the sensor's field of view. At 384 x 288 with a 10mm lens the detection distance for a person-sized target is typically measured in hundreds of metres, though exact distances depend on atmospheric conditions and target thermal contrast. For planning perimeter coverage, map the thermal field of view angle against your boundary geometry - the 10mm lens provides a narrower, longer-range thermal view compared to shorter focal length thermal lenses.

4. Does the smart detection reduce false alarms from animals and environmental movement?

   Yes, that is what it is designed for. The smart detection function applies classification logic to thermal detections to distinguish human and vehicle targets from other heat sources such as animals, warm machinery, or vegetation moving in wind. On unmanned perimeters with wildlife activity this distinction is operationally significant - without it, thermal cameras can generate high false alarm volumes that overwhelm monitoring operators. The classification runs on the thermal channel, so it remains effective at night and in low-visibility conditions where optical-based AI detection would fail.

5. What recording and VMS platform does this camera require?

   It requires a Hikvision-compatible NVR or VMS platform that supports dual-channel thermal and optical stream recording simultaneously. Not all standard Hikvision NVRs support thermal camera metadata, perimeter protection event handling, and PTZ auto-tracking management for bi-spectrum units - confirm compatibility with your recording platform before purchase. Security Australia can assist with compatibility queries for this unit. A platform that only records the video stream without processing the thermal metadata will lose the perimeter protection and smart detection alert functionality.

6. How does thermal camera performance compare to optical cameras in fog and rain?

   Thermal cameras outperform optical cameras in fog and light rain because thermal imaging responds to temperature differences rather than reflected light. Fog scatters visible light but has a lesser effect on thermal radiation at typical perimeter detection ranges, meaning the thermal channel continues to produce detection-capable imagery in conditions that would reduce an optical camera to a white or grey image. Heavy rain and dense fog do reduce effective thermal detection range as water vapour absorbs infrared energy, but the degradation is typically less severe than the total obscuration that optical cameras experience in the same conditions.

7. Does this camera require PoE+ or a dedicated power supply?

   A bi-spectrum PTZ unit integrating a thermal sensor and a motorised optical PTZ channel exceeds the limits of both standard IEEE 802.3af PoE (15.4W) and PoE+ (IEEE 802.3at, 30W). This model draws up to 90W and requires PoE++ (IEEE 802.3bt), a DC36V feed, or an AC24V feed. Using a standard PoE switch without confirming its per-port power budget is one of the most common commissioning errors with PTZ-class cameras. Verify power requirements against your switch or injector specifications before finalising the cable run, as under-powered PTZ units may appear to function but exhibit intermittent motor or streaming failures.

Downloads & Resources

No downloads available for this product.
