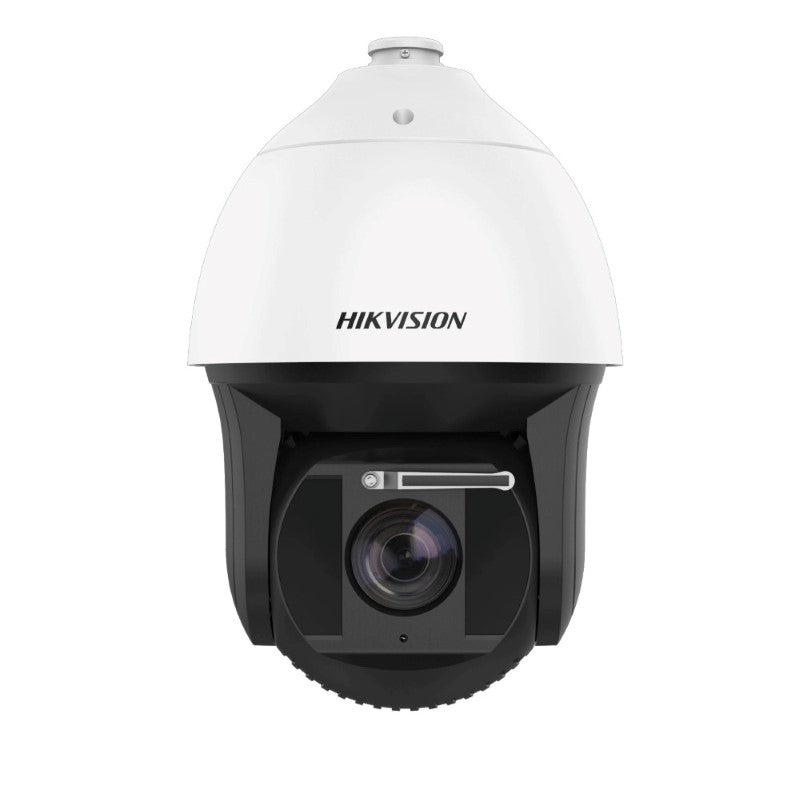

Hikvision DS-2DF8442IXS-AEL 4MP Outdoor HFR PTZ Camera, WDR, 42x Zoom, IP67, 500m IR, HiPoE

Model: DS-2DF8442IXS-AEL1

Who This Is For

When covering a large, complex outdoor site with a single camera position is the priority, the DS-2DF8442IXS-AEL is the unit most integrators reach for. This is a camera built for operators and installers who need genuine long-distance identification - not just detection - across perimeters, open yards, waterfront areas, and critical infrastructure sites. The 42x optical zoom takes the lens from a wide 4.3mm scene overview right down to 170mm telephoto detail, and the 500m IR range means that detail is still usable after dark. With 4MP resolution, DarkFighter low-light performance, and auto-tracking, a single installed unit can actively follow a subject across ground that would otherwise need 6 or more fixed cameras to cover. The IK10 and IP67 ratings mean it handles everything the Australian outdoor environment throws at it, and the -40 to 70 degree operating range makes it viable from alpine installations to coastal northern Queensland.

What This Camera Actually Does

Who Buys This Model

• Critical infrastructure operators: Ports, water treatment facilities, and power stations where a single elevated PTZ needs to cover large perimeter distances and deliver identification-quality zoom detail to a staffed control room.
• Mining and resources site managers: Remote sites with extreme temperature swings rely on the -40 to 70 degree operating range and IP67 rating; the 500m IR handles vast unlit site perimeters after dark.
• Integrators specifying large commercial perimeters: Shopping centres, logistics hubs, and distribution centres where replacing 6-8 fixed cameras with a single auto-tracking PTZ reduces cabling, NVR channels, and ongoing maintenance.
• Stadium and venue security teams: The 42x optical zoom allows operators to zoom into crowd areas or car parks from a single elevated position, with 4MP resolution maintaining usable detail at full telephoto.
• Council and public space monitoring: Town centres, parks, and public transport hubs where auto-tracking and 360-degree endless pan allow a single camera to actively follow incidents across wide open areas.

Honest Assessment

The DS-2DF8442IXS-AEL delivers where it matters most: long-distance zoom with genuine IR reach to match, and a sensor that does not fall apart after dark. The combination of 42x optical zoom, 500m IR, DarkFighter performance, and auto-tracking puts this in a tier most PTZ cameras in its form factor do not reach. IK10 plus IP67 means the housing is not a compromise for outdoor use - it is built for it. The -40 to 70 degree operating range is one of the widest in its class and genuinely matters for Australian conditions at both extremes. Where this unit will not serve you: if your requirement is permanent wide-area capture with no operator or VMS involvement, a multi-sensor panoramic camera provides continuous full-field recording without the PTZ limitation of only seeing one direction at a time. This camera is available through Security Australia and requires a HiPoE switch or injector - standard 802.3bt/at PoE is not sufficient. Budget for the correct power infrastructure before specifying.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large outdoor perimeter or open yard where targets need to be identified at distances beyond 100m at night - the 500m IR and 42x optical zoom address this directly without needing supplementary lighting.
• Good match if: Your site has extreme temperature conditions or a high vandalism risk - the IK10 rating and -40 to 70 degree operating range confirm suitability for both harsh climate and physical attack environments.
• You may need a different model if: Your requirement is for continuous full-panoramic recording of the entire scene at all times - a multi-sensor panoramic camera records every direction simultaneously, whereas a PTZ only captures the direction it is currently pointed.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to cover long distances with identification-quality zoom and active auto-tracking, particularly after dark where the 500m IR and DarkFighter sensor combination is the primary requirement.
• You may need a different model if: Continuous full-scene recording in all directions simultaneously is the core requirement - a multi-sensor panoramic camera captures 180 or 360 degrees at all times without the coverage gap that PTZ rotation creates.
• Pairs well with: A HiPoE-capable managed PoE switch to power the unit over a single Cat6 cable run, combined with a compatible Hikvision NVR or VMS platform that supports PTZ preset tours and auto-tracking event integration.

Common Questions

1. Will this camera work with a standard PoE switch?

   No. The DS-2DF8442IXS-AEL requires HiPoE (60W) and will not operate on standard IEEE 802.3bt (51 W) or IEEE 802.3at (30W) PoE ports. You need either a HiPoE-capable managed switch or a dedicated HiPoE mid-span injector on the cable run. This is a non-negotiable infrastructure requirement - confirm your switching hardware before purchasing this unit.

2. What is the actual optical zoom ratio and how does the lens range work in practice?

   The optical zoom is 42x, covering a focal length range of 4.3mm to 170mm. At 4.3mm, the field of view is wide enough to provide broad scene context. At 170mm, the telephoto end delivers magnified detail sufficient for identification at range. All zoom steps are optical - meaning no digital interpolation is applied until beyond 42x, keeping image quality consistent across the full zoom range. The IR illumination automatically adjusts its throw angle to match the zoom position, maintaining IR coverage at both wide and telephoto settings.

3. Does the auto-tracking work without a VMS or NVR running?

   Yes. Auto-tracking on the DS-2DF8442IXS-AEL operates at the camera firmware level and functions independently of any NVR or VMS connection. Once configured through the camera's web interface or Hik-Connect, the camera detects motion, locks onto the subject, and drives pan, tilt, and zoom autonomously. A VMS or NVR is not required for tracking to activate, but integration with a compatible platform allows tracking events to trigger recording, alarms, or notifications.

4. What happens when a subject walks directly under the camera?

   The auto flip tilt function handles this. When a subject moves from the tracked field of view to directly beneath the camera, the tilt range of -20 to 90 degrees combined with auto flip allows the camera to continue tracking without losing the subject or requiring a manual reset. The 360-degree endless pan ensures no mechanical stop interrupts tracking in any horizontal direction.

5. Will this camera perform in extreme heat or outback dust conditions?

   Yes. The confirmed operating temperature range is -40°C to 70°C, and the IP67 rating provides full dust ingress protection. These two specifications together confirm the unit is suitable for the harsh conditions common to remote Australian industrial sites - including those with fine silica dust and ambient temperatures that push metal enclosures well above 50°C. No additional protective housing is required for standard outdoor installations.

6. How does the PTZ pan speed affect auto-tracking performance?

   Auto-tracking adjusts pan and tilt speed dynamically based on subject movement speed and distance from the camera. At wide zoom where subjects cover more angular distance quickly, the camera moves faster to maintain lock. As the camera zooms in on a subject and the angular movement slows relative to magnification, the tracking movement is more precise. The key limitation of auto-tracking on any PTZ - including this unit - is that rapid subject movement across the extreme edges of a wide-angle view can momentarily exceed tracking response before the camera re-locks.

7. Does this camera support preset tours alongside auto-tracking?

   Yes. The DS-2DF8442IXS-AEL supports configurable preset positions and patrol tours, which allow the camera to cycle between defined positions when no motion is detected. When auto-tracking is active and a subject is detected, the camera breaks from its patrol tour, tracks the subject, and returns to the tour once tracking ends. This combination - patrol tour as the default state, auto-tracking as the triggered response - is the standard deployment mode for unstaffed perimeter monitoring. Contact Security Australia if you need guidance on configuring this behaviour for your specific VMS or NVR platform.

8. How does the 120dB WDR affect image quality at entrance points with direct sunlight?

   At 120dB, the WDR on this camera handles the contrast range you encounter at a gate or entry point where direct sunlight hits one side and a shadowed area sits opposite. Without WDR, a camera exposed to this scene either blows out the bright zone or crushes the shadow - losing usable detail in one area. At 120dB, both zones retain detail simultaneously. This is particularly relevant for vehicle entry points mid-morning or late afternoon in Australian conditions where sun angle creates extreme contrast across a single frame.

Downloads & Resources

No downloads available for this product.
