Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen 3 Cameras + 8CH M Series NVR / NO HDD

Model: DS-2CD2387G3-LIS2UY/SL (x4) + DS-7604NI M Series 8CH NVR

Who This Is For

Those stepping up from standard IR cameras and into a system that handles full-colour night vision, active deterrence, and AI-based detection in a single coherent kit will find the Hikvision 8MP ColorVu 3.0 Hybrid Liveguard Gen 3 Kit a considered match. It suits residential properties, small commercial premises, and light industrial sites where owner-operators want visible proactive protection rather than passive recording. The 4 x DS-2CD2387G3-LIS2UY/SL turret cameras each carry a built-in strobe and audible alarm triggered by AI-classified human or vehicle detections, meaning the system responds to an event rather than simply recording it. Paired with the 8-channel M Series NVR and supplied without a hard drive so the end user can select appropriate storage capacity, this kit is sized for straightforward four-zone coverage with room to expand later. Australian residential and small business installers looking for a complete ColourVu 3.0 active-deterrence solution in one order will find everything except the HDD and cabling already accounted for.

What This System Actually Does

Who Buys This Model

• Residential owner-operators: Homeowners covering front entry, rear yard, side gates, and garage access who want full-colour night footage and an active deterrence response rather than a passive recording system.
• Small retail or hospitality operators: Businesses monitoring front-of-house, car parks, and loading areas after hours where the strobe and siren serve as a first-response deterrent before security personnel or police are contacted.
• Light industrial and trade premises: Workshops, yards, and storage facilities where vehicle and human AI classification helps filter genuine after-hours intrusions from background activity such as neighbouring traffic or wildlife.
• Installers building complete packages for clients: Trade installers wanting a single-SKU order covering 4 matched AcuSense turret cameras and a compatible NVR with PoE built in - letting them specify the HDD based on the client's retention requirements separately.

Honest Assessment

This kit genuinely delivers where full-colour night vision and proactive deterrence are the primary brief. The combination of ColorVu 3.0 warm-white illumination, AcuSense AI filtering, and Liveguard active strobe and siren puts it well ahead of standard IR camera kits for sites where visibility and on-site response matter as much as recording. The 8MP resolution across all 4 cameras means usable detail across broad coverage zones, and the 8-channel NVR leaves capacity for future expansion without replacing hardware. Available through Security Australia, this kit is supplied without a hard drive - which is intentional, allowing storage to be sized to the actual retention requirement, but it does mean an additional purchase before the system records. It is also not the right choice for covert installations where the active deterrence features would be unwanted, or for sites requiring pan-tilt-zoom coverage of large open areas. For those scenarios, a different camera type is more appropriate.

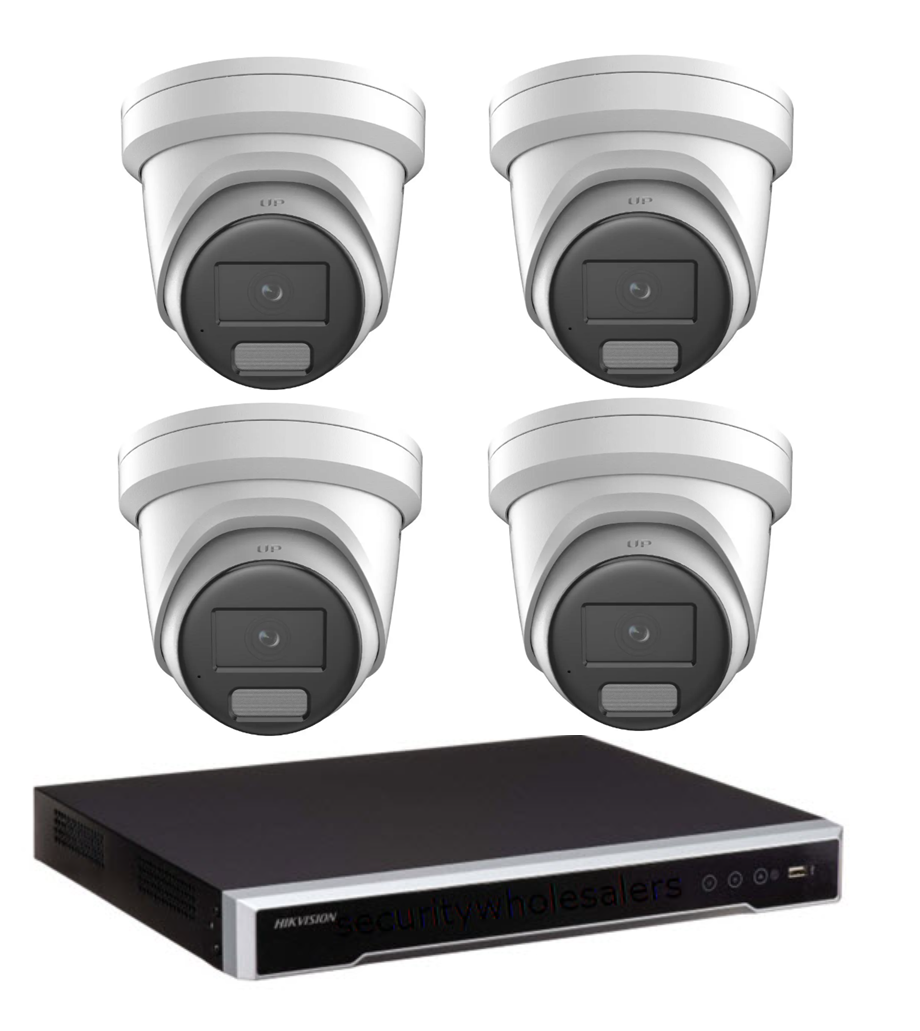

Complete Package Contents

• 4 x Hikvision DS-2CD2387G3-LIS2UY/SL Liveguard Gen 3 Turret Camera - 8MP ColorVu 3.0, AcuSense AI, active strobe and siren, two-way audio, IP67, PoE
• 1 x Hikvision DS-7604NI M Series 8-Channel PoE NVR - 8-channel, built-in PoE, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You need full-colour night footage and an on-site active deterrence response - the ColorVu 3.0 illumination and Liveguard strobe and siren address both requirements without additional hardware.
• Good match if: You are covering 4 defined zones and want a single-order solution with a compatible 8-channel NVR that can power all cameras over Cat6 without a separate PoE switch.
• You may need a different model if: Your site requires covert or low-profile cameras where active strobes and sirens are unsuitable, or if you need motorised pan-tilt-zoom coverage of a large open area - a PTZ or fixed bullet camera system would be a better fit for those applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need full-colour night footage combined with on-site active deterrence - the ColorVu 3.0 illumination and Liveguard strobe and siren together are a distinct step above standard IR-only or colour-only turret kits.
• You may need a different model if: Your site requires wide-area pan-tilt-zoom tracking across a large open space, or if a covert, low-profile camera is needed where visible active deterrence hardware is unsuitable - a PTZ or discreet dome system would serve those scenarios better.
• Pairs well with: A surveillance-grade SATA hard drive (2TB-8TB) sized to the required retention period, and Cat6 cable with appropriate outdoor-rated conduit for camera runs exceeding 30 metres.

Common Questions

1. Does this kit include a hard drive?

   No. This kit is supplied without a hard drive. The 8-channel M Series NVR accepts a standard 3.5-inch surveillance-grade SATA HDD, which you select and purchase separately based on how many days of footage you need to retain. For 4 cameras at 8MP with continuous recording, a 4TB drive is a practical starting point for approximately 7-10 days of retention.

2. Will the strobe and siren activate for every motion event?

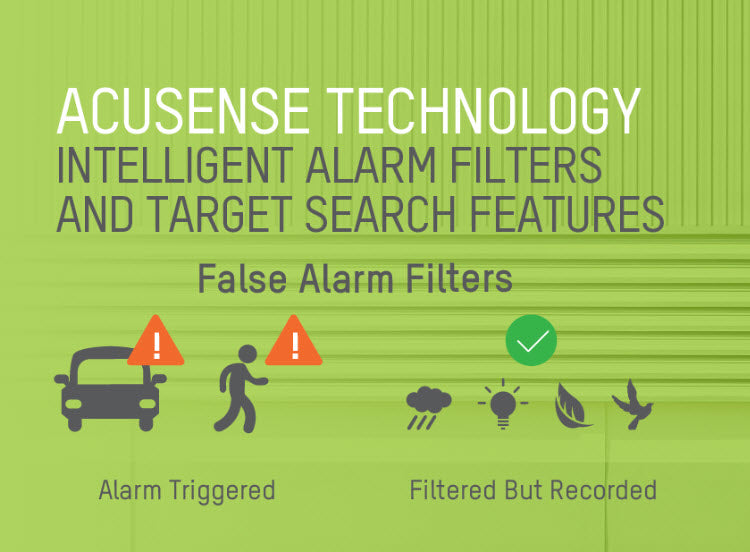

   No. The Liveguard active deterrence triggers are controlled by the AcuSense AI engine, which classifies detections as human, vehicle, or other movement before deciding whether to activate. Background motion such as trees, animals, or passing traffic that does not meet the human or vehicle classification will not trigger the strobe or siren, reducing unwanted activations significantly compared to standard motion-triggered deterrence systems.

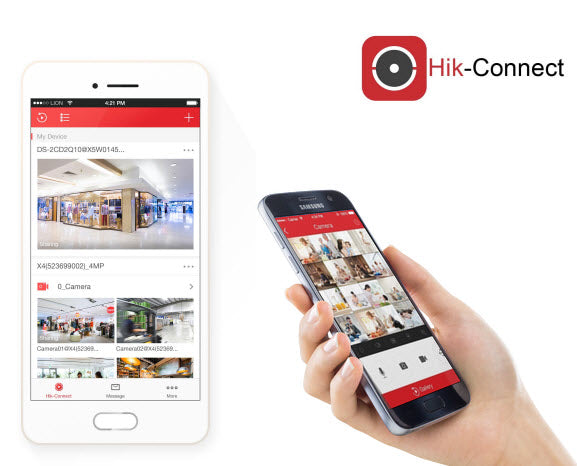

3. Does this system work with the Hik-Connect app for remote viewing?

   Yes. Both the cameras and the M Series NVR are compatible with the Hik-Connect mobile app on iOS and Android. You can view live footage, review recorded clips, receive AI-filtered push notifications, and use the two-way audio function from any location with an internet connection. The NVR handles the connection without requiring a static IP address.

4. How does ColorVu 3.0 actually produce colour at night - does it need ambient light?

   No external ambient light is required. ColorVu 3.0 cameras combine a large-aperture lens designed to capture more available light with an integrated warm-white LED illuminator built into the camera housing. The LED activates in low-light conditions and illuminates the scene sufficiently for the sensor to record in colour - independent of street lighting or other external sources. The result is colour footage even in complete darkness within the camera's effective illumination range.

5. Can I add more cameras to this system later?

   Yes. The 8-channel M Series NVR has 8 built-in PoE ports, and this kit uses 4 of them. You can connect up to 4 additional PoE cameras directly to the unused ports without purchasing a separate switch or replacing the NVR. When selecting additional cameras, confirm they are Hikvision-compatible and that the NVR's total PoE power budget accommodates the added load - particularly if adding cameras with active deterrence features that draw higher wattage.

6. Will this camera work for licence plate capture?

   It depends on the approach speed and camera placement. The DS-2CD2387G3-LIS2UY/SL at 8MP resolution provides enough pixel density to capture plate detail at controlled entry speeds where a vehicle is moving slowly or stopping - such as a driveway gate or car park entry. It is not a dedicated ANPR camera and has not been specified for free-flow traffic or high-speed capture. For dedicated licence plate recognition at a vehicle entry point, a purpose-built ANPR camera model is a more appropriate solution. The team at Security Australia can advise on the right option for your specific entry configuration.

7. What cabling does each camera require?

   Each camera requires a single Cat5e or Cat6 cable run from the camera mounting position back to the NVR PoE port. The PoE connection carries both power and data over that single cable, so no separate power supply or power cable is needed at the camera end. Maximum recommended cable run is 100 metres per cable. Use outdoor-rated or shielded cable for exposed runs subject to UV, moisture, or electrical interference.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera. Runs beyond 100 metres require a PoE extender.
• PoE Notes: The M Series NVR provides PoE power directly to each camera - no separate PoE switch or power injector is required. Confirm the NVR's total PoE budget if adding additional cameras with active deterrence features at a later stage.
• Wiring Tips: Use UV-stabilised outdoor-rated Cat6 for any exposed external runs. Where cables pass through external walls, use appropriate weatherproof conduit entry fittings to prevent moisture tracking into wall cavities. Label each camera cable at the NVR end during installation to simplify future servicing or channel assignment changes.
