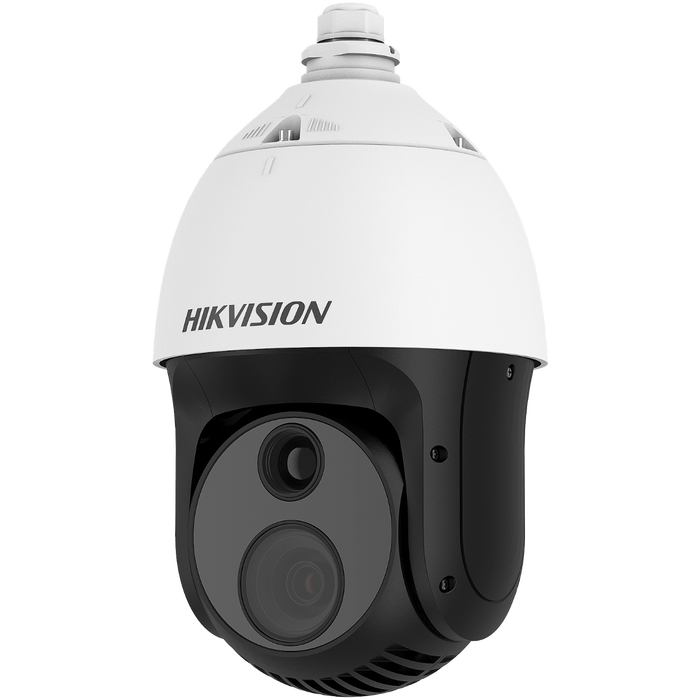

Hikvision DS-2TD4237-10/V2 Thermal & Optical Bi-Spectrum Network Speed Dome Camera 10mm

Model: DS-2TD4237-10/V2

Who This Is For

When detection in complete darkness, smoke, or total lighting failure is the priority, a standard optical camera cannot bridge the gap. The Hikvision DS-2TD4237-10/V2 is a thermal and optical bi-spectrum speed dome built for sites where intrusion or fire risk cannot rely on visible-light imaging alone. Security integrators specifying perimeter protection for industrial facilities, utilities infrastructure, fuel depots, or large outdoor yards will find this camera addresses the hardest monitoring conditions directly. The 384 x 288 thermal sensor detects heat signatures regardless of lighting, while the 4 MP optical channel provides the visual detail needed for post-event review. Dynamic fire detection, line crossing, and intrusion analytics run across both channels, making this a serious tool for sites that need verified detection before an incident escalates rather than recorded footage after the fact.

What This Camera Actually Does

Who Buys This Model

• Industrial Security Integrators: Specifying perimeter detection for manufacturing plants, chemical storage, or utilities sites where nighttime intrusion detection cannot depend on lighting infrastructure.
• Fuel and Hazardous Materials Facilities: Operators who need dynamic fire detection and temperature monitoring running continuously across storage areas, particularly where an early thermal alert changes the outcome of an incident.
• Critical Infrastructure Managers: Water treatment, power generation, and communications sites requiring detection that functions in smoke, fog, and complete darkness - conditions where optical cameras alone are insufficient.
• Large Outdoor Yard and Port Operators: Sites with long approaches and no reliable lighting where the 100 m IR optical range combined with thermal detection covers extended areas from a single elevated camera position.
• Security Consultants on High-Risk Projects: Consultants designing proactive detection systems rather than passive recording setups, where line crossing and intrusion analytics on the thermal channel provide verified alerts with lower false alarm rates than standard motion detection.

Honest Assessment

The DS-2TD4237-10/V2 does something most cameras cannot: it detects movement and heat anomalies in conditions where there is no usable visible light at all. The thermal channel with NETD below 40 mK is genuinely sensitive, and combining it with dynamic fire detection, intrusion analytics, and a 4 MP optical channel in a single IP67-rated housing is a significant capability in one unit. Temperature measurement to 150 °C adds an operational monitoring layer useful in process or electrical environments. The bi-spectrum design also reduces the number of camera positions needed on complex sites. What this camera will not do is provide the identification-level optical detail of a dedicated high-resolution PTZ with optical zoom - the 10 mm fixed optical lens is a wide overview tool, not a recognition camera. At approximately 5 kg, installation requires a rated mounting surface and proper structural support. This is a specialist product available through Security Australia, suited to professional installation on commercial and industrial projects rather than general residential or small-business applications.

Before You Buy

Quick Fit Check

• Good match if: Your site requires perimeter intrusion detection in complete darkness or smoke, and standard optical cameras have produced too many missed events or false alarms from lighting changes.
• Good match if: You need fire or hotspot detection running continuously in a fuel storage, electrical, or process environment alongside standard intrusion analytics, from a single outdoor-rated camera position.
• You may need a different model if: Your primary requirement is optical zoom for face or licence plate identification at distance - a dedicated PTZ camera with high optical zoom ratio will perform that task more effectively than this fixed 10 mm optical lens.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need detection that works in zero-light, smoke, or fog conditions, combined with fire detection analytics and temperature measurement in a single IP67-rated outdoor housing.
• You may need a different model if: Your priority is long-range optical zoom for vehicle licence plate or face identification - a dedicated PTZ camera with high optical zoom and ANPR capability will perform that function more effectively than this fixed 10 mm optical lens.
• Pairs well with: A PoE+ managed switch with sufficient budget per port for 802.3at, a compatible NVR with thermal channel support, and perimeter alarm management software capable of receiving line crossing and intrusion event notifications.

Common Questions

1. Will this camera detect intruders when there is no lighting at all on the site?

   Yes. The thermal channel detects body heat regardless of ambient lighting, so complete darkness has no impact on detection performance. The thermal sensor does not require any IR illumination or visible light - it responds to the temperature difference between a person and their background. The 100 m IR optical channel provides supplementary visible-light footage when the IR LEDs are active, but detection itself comes from the thermal module.

2. Does this camera work in smoke or heavy fog?

   Yes, for the thermal channel. Thermal imaging passes through smoke and light fog because it detects emitted heat radiation rather than reflected visible light. The optical channel will degrade in heavy smoke the same as any standard camera. For fire detection applications specifically, the thermal channel's ability to see through smoke is one of the primary reasons this type of camera is used at fuel and industrial sites.

3. What does NETD below 40 mK actually mean in practice?

   NETD (Noise Equivalent Temperature Difference) is the smallest temperature difference the sensor can distinguish from background noise. Below 40 mK at 25 °C means the DS-2TD4237-10/V2 sensor can reliably differentiate objects that are less than 0.04 °C warmer than their surroundings under those conditions. In practice this means the camera is sensitive enough to detect a person lying still against a cool background, or a very early-stage thermal anomaly in equipment, rather than only detecting obvious heat sources like open flame.

4. How accurate is the temperature measurement function?

   The specified accuracy is ±8 °C across the measurement range of -20 °C to 150 °C. This is sufficient for detecting abnormal heat events - an electrical fault developing on switchgear or a hotspot forming on a storage tank - but it is not precise enough for clinical or laboratory temperature measurement. For industrial monitoring of relative thermal anomalies rather than absolute calibrated readings, ±8 °C is a workable tolerance.

5. Does this camera require PoE+ or will a standard PoE switch work?

   This camera requires IEEE 802.3at PoE+ when powered over network cable. Standard IEEE 802.3af PoE provides a maximum of 15.4 W per port and is not sufficient. Confirm your switch or PoE injector is rated for 802.3at (up to 30 W per port) before cabling. Alternatively, the camera supports 12 VDC from a dedicated power supply if PoE+ infrastructure is not available at the mounting location.

6. How does the thermal detection distance compare to the optical IR range?

   These are different capabilities serving different purposes. The thermal channel's detection distance depends on the target size and the DORI framework - with a 10 mm lens and 384 x 288 resolution, detection of a person (larger heat signature) is possible at longer ranges than recognition or identification. The optical IR range of up to 100 m refers to the supplementary infrared illumination distance for the 4 MP visible-light channel. For site-specific detection distance planning, Hikvision's published detection distance tables for this thermal module should be reviewed against your actual perimeter geometry. Security Australia can provide access to technical documentation to assist with this.

7. Can the thermal and optical channels be viewed simultaneously?

   Yes. The bi-spectrum design allows operators to view both channels - thermal and 4 MP optical - either independently or in a combined display depending on the VMS or NVR interface being used. This is one of the practical advantages of a bi-spectrum camera over deploying separate thermal and optical units: both feeds originate from the same physical position and can be managed through a single device on the network.

8. Does the fire detection analytics function as a standalone alarm or does it require a VMS?

   Dynamic fire detection can trigger onboard alerts and send event notifications via the camera's network interface without requiring a dedicated VMS, provided the NVR or recording platform receiving the feed supports event handling from Hikvision devices. For sites requiring automated alarm dispatch, integration with a compatible NVR or VMS that can act on the camera's event output is recommended. The camera itself processes the thermal analytics onboard - the NVR or VMS role is to receive and action the alert rather than perform the detection analysis.
