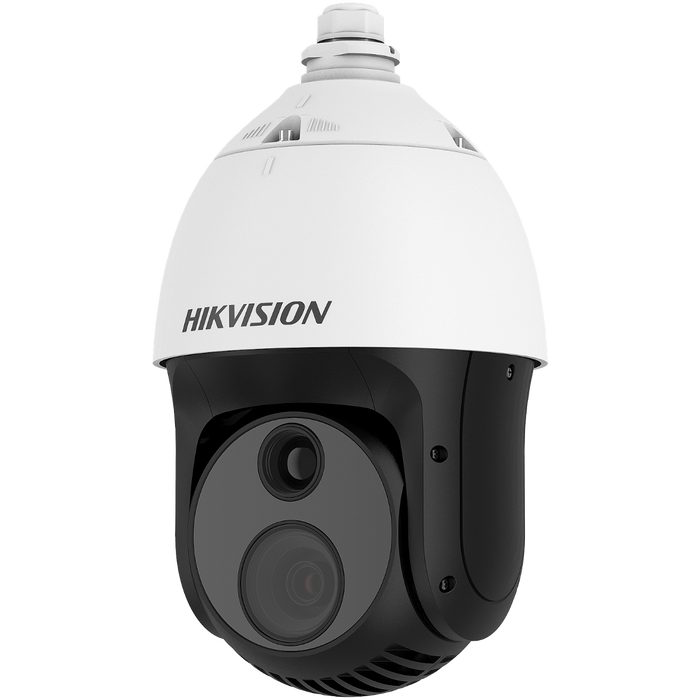

Hikvision DS-2TD4238-10/S2 4MP Thermographic Thermal & Optical Bi-spectrum Network Speed Dome

Model: DS-2TD4238-10/S2

Who This Is For

For security engineers and integrators specifying perimeter protection where visible-light cameras simply cannot do the job alone - in darkness, smoke, haze, or across long open distances - the Hikvision DS-2TD4238-10/S2 delivers a combined thermal and 4MP optical PTZ in a single speed dome housing. This is a site-level tool built for critical infrastructure, power stations, oil and gas facilities, ports, correctional facilities, and large industrial perimeters where early detection of intruders or heat anomalies matters more than conventional video quality. The thermal channel detects human presence through conditions that defeat standard cameras, while the optical channel with motorised zoom moves in for verification and detail capture. If your specification requires reliable after-dark or adverse-condition detection across a wide area with the ability to zoom in on confirmed targets, this is the product type to evaluate.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Power stations, water treatment facilities, and substations specifying perimeter detection that must function in total darkness without relying on IR illuminators or lighting upgrades.
• Oil, Gas, and Petrochemical Sites: Facilities where fire and heat anomaly detection in outdoor equipment areas is a compliance or safety requirement, combining intrusion detection with thermal process monitoring in a single unit.
• Port and Logistics Security Teams: Large perimeter sites where a small number of PTZ positions must cover extensive open areas, using thermal for initial detection and the optical zoom channel for target identification before response.
• Corrections and Detention Facility Specifiers: Applications demanding reliable after-dark perimeter coverage with zone intrusion analytics that remain consistent across shift changes and varying weather conditions.
• Security System Integrators on Tier-1 Projects: Professionals designing multi-layered detection systems for clients who need a documented thermal specification, where bi-spectrum dome technology is the preferred single-position solution over separate fixed thermal and optical PTZ units.

Honest Assessment

The DS-2TD4238-10/S2 does something no standard PTZ camera can: it detects human presence in complete darkness through heat signature alone, without needing IR illuminators or lighting infrastructure. The bi-spectrum design means one mounting position delivers both thermal detection and a 4MP optical zoom channel for verification - reducing pole and conduit runs on large perimeters. Fire detection and temperature alarming on the thermal channel add a process safety dimension that is genuinely useful in industrial environments. This is available through Security Australia as part of the Hikvision thermal range. What this camera will not do is provide the high-resolution optical detail of a dedicated 4K fixed camera, and the thermal channel resolution is not intended for face-level identification. For sites needing identification-grade imagery rather than detection-grade coverage, a dedicated high-resolution optical PTZ or fixed camera is a better fit. This unit is a detection and early-warning tool, not a forensic evidence camera.

Before You Buy

Quick Fit Check

• Good match if: You are protecting a large outdoor perimeter - port, power station, industrial site - where human intrusion must be detected in total darkness and a single speed dome position needs to cover a wide patrol arc using thermal analytics.
• Good match if: Your site requires fire point or temperature anomaly detection in outdoor equipment areas as part of a safety or compliance requirement, and you want that function integrated with your existing CCTV VMS rather than running a separate sensor system.
• You may need a different model if: Your primary requirement is face-level identification or licence plate capture at a defined choke point - a dedicated ANPR camera or a high-resolution fixed optical PTZ will deliver more appropriate detail at a lower cost for identification-focused applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires perimeter intrusion detection that must function in complete darkness and adverse conditions, combined with fire detection or temperature monitoring, from a single PTZ mounting position.
• You may need a different model if: Your primary need is identification-grade imagery for facial recognition, licence plate capture, or forensic evidence at a defined access point - a dedicated high-resolution optical PTZ or fixed camera with ANPR capability is better suited to that requirement.
• Pairs well with: A Hikvision-compatible NVR or VMS platform with Hi-PoE switching infrastructure, combined with dedicated ANPR or high-resolution fixed optical cameras at controlled access points for identity-level evidence capture.

Common Questions

1. Will this camera detect a person in complete darkness?

   Yes. The thermal channel operates independently of any ambient or artificial light. It detects body heat, not reflected light, so a person approaching a perimeter in total darkness produces a clear thermal signature. This is the primary use case for the DS-2TD4238-10/S2 - thermal detection is then used to drive the optical PTZ channel toward the target for visual confirmation.

2. What does an NETD of 40mK actually mean for detection performance?

   It means the camera's thermal sensor can differentiate temperature differences as small as 40 millikelvin. In practice, this produces a more defined image between a warm target (a human body at approximately 37°C) and a cooler background environment. A lower NETD value means better contrast in the thermal image, particularly important when detecting targets in conditions where the background temperature is close to body temperature - such as warm summer nights or heated industrial environments.

3. Does the thermal channel work in rain, fog, or dust?

   Yes, with some qualification. The thermal sensor detects infrared radiation, which passes through light fog, dust, and rain far more effectively than visible light does. Dense smoke or extremely heavy rain will reduce thermal range, but the performance advantage over an optical camera in the same conditions is significant. For most outdoor perimeter applications, the thermal channel will maintain detection capability in conditions that completely degrade a standard optical camera.

4. Can this camera trigger a fire alarm or send an alert when it detects heat?

   Yes. The DS-2TD4238-10/S2 supports fire point detection and temperature exception alarming via the thermal channel. You can define temperature thresholds for specific zones within the thermal image. When those thresholds are exceeded, the camera generates an alarm output that can integrate with your VMS, NVR alarm input, or external notification system. This requires correct configuration in the camera's settings and a compatible recording or management platform.

5. Will a standard PoE switch power this speed dome?

   No. This unit requires Hi-PoE at 60W. Standard 802.3af switches (15.4W) and standard PoE+ 802.3at switches (30W) will not supply sufficient power to run the DS-2TD4238-10/S2. You need either a Hi-PoE capable switch or injector, or an alternative 24VAC or 12VDC power supply run to the mounting location. This is one of the most common installation errors with thermal PTZ products - confirm your power infrastructure before ordering.

6. How does the optical zoom channel work alongside the thermal channel?

   The 2 channels operate simultaneously and independently. The thermal channel handles detection and analytics continuously. When an alarm is triggered, the PTZ can be configured to call a preset that directs the optical channel toward the detection zone. The operator then uses the 32x optical zoom on the 4MP optical channel to visually confirm the target. The 2 streams are recorded separately, giving you both a thermal event record and an optical detail record in your NVR. Operators can also manually switch between viewing the thermal and optical feeds at any time through the VMS interface. The thermal channel is the detection layer; the optical channel is the verification and evidence layer. If you have questions about configuring dual-stream recording for this unit, Security Australia can advise on compatible NVR platforms.

7. Does the 10mm thermal lens suit my site, or do I need a different focal length?

   It depends on the detection distances and field of view your perimeter requires. A 10mm thermal lens on a 384x288 sensor provides a wider field of view suitable for shorter to medium detection ranges - generally most useful for detecting humans within 150-300 metres depending on detection criteria. If your site has very long open approaches of 500 metres or more, a longer focal length thermal lens variant would produce a narrower but longer-range thermal image. Review the DORI (Detection, Observation, Recognition, Identification) distances published for this specific lens and sensor combination against your site plan before specifying the unit.
