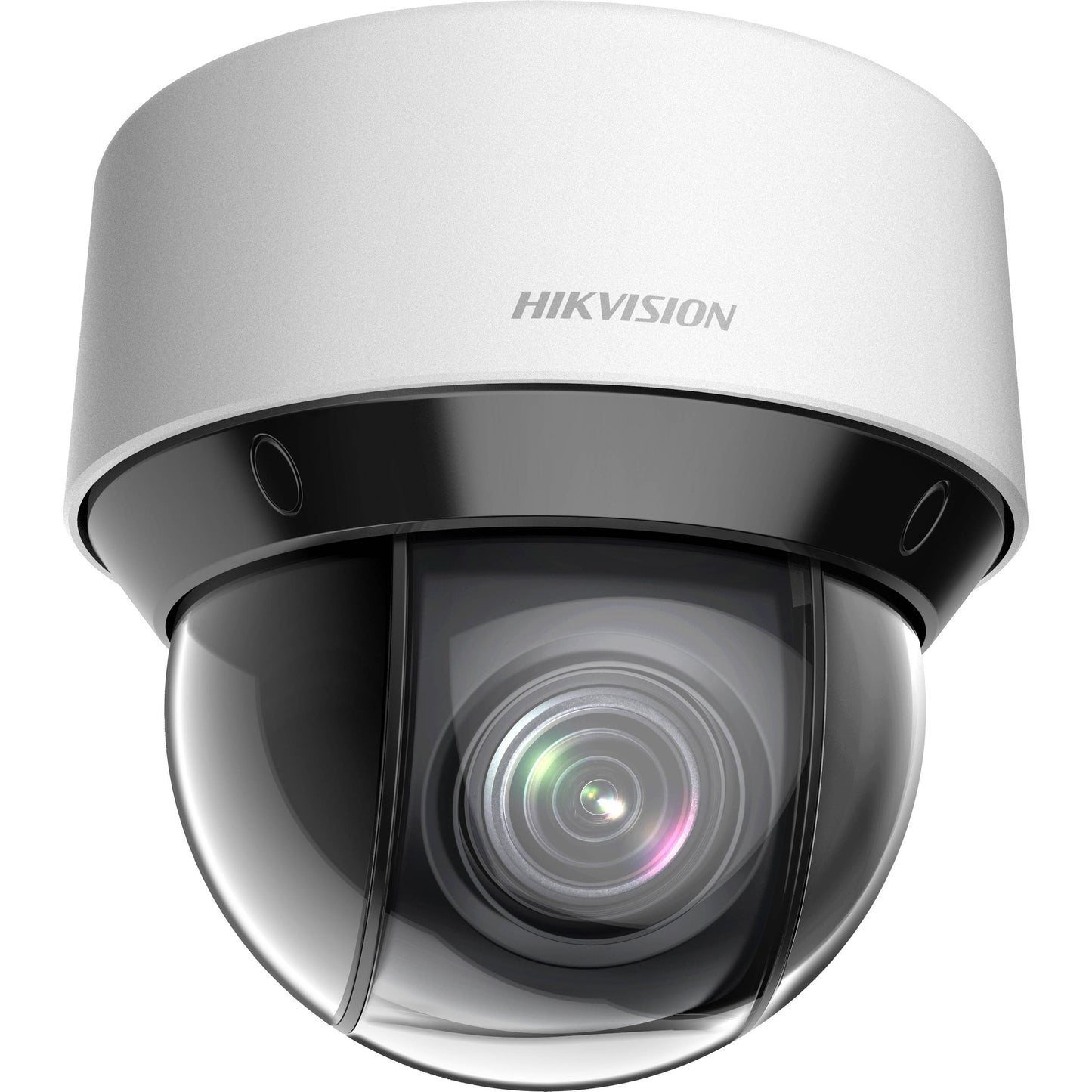

Hikvision DS-2DE4A425IW-DE 4MP Outdoor PTZ Camera, 25x Zoom, 50m IR

Model: DS-2DE4A425IW-DE

Who This Is For

For security managers and installers who need a single camera to cover large, complex outdoor areas without deploying multiple fixed units, the Hikvision DS-2DE4A425IW-DE is a 4MP outdoor PTZ camera built around 25x optical zoom and 360-degree endless pan. It suits wide perimeters - car parks, school grounds, industrial yards, retail centres - where operators need to track a subject across distance or pivot quickly between zones. The 50m IR range keeps night coverage reliable, and PoE+ (802.3at) means a single Cat6 cable handles power and data at the camera end. The combination of 4MP resolution with that optical zoom range means detail holds up when the camera is pushed to its limits, which is where most comparable units in this class start to fall apart. It is a genuine workhorse PTZ for mid-scale commercial and institutional installs.

What This Camera Actually Does

Who Buys This Model

• School and Campus Facilities Teams: Using the 360-degree pan and preset positions to run automated patrols across large grounds overnight without needing a fixed camera at every corner.
• Industrial Site Security Coordinators: Covering long perimeter fences, vehicle marshalling areas, or loading dock approaches with a single camera that can zoom in on activity at distance during a live incident.
• Retail Centre and Car Park Operators: Monitoring large open-air spaces where the 25x optical zoom lets operators investigate specific bays or entrances without deploying a separate fixed camera at each point of interest.
• Commercial Installers Reducing Camera Count: Specifying this PTZ at key vantage points to replace clusters of fixed cameras, reducing cable runs, switch ports, and licensing costs on NVR channels.
• Local Government and Council Properties: Deploying on parks, public spaces, or council facilities where PoE+ simplifies the infrastructure and IP66 weatherproofing handles year-round outdoor exposure.

Honest Assessment

The DS-2DE4A425IW-DE does several things genuinely well. The combination of 4MP resolution with 25x optical zoom is a meaningful step up from 2MP PTZ cameras at this price point - you keep more usable detail when zoomed in on a moving subject. The 120dB WDR handles difficult outdoor lighting competently, and 802.3at PoE+ makes installation practical without a separate power run. The IP66 rating is adequate for most Australian outdoor conditions. Two-way audio through the built-in microphone and speaker adds a genuine operational layer for sites where verbal deterrence or communication matters. Available through Security Australia, this model sits in the mid-range PTZ category and represents solid value for commercial installs. Where it has limits: the 50m IR range is modest for a PTZ - if your application involves tracking subjects at 80m or beyond in complete darkness, a PTZ with a stronger illuminator or an integrated white-light model would serve you better. This is not a thermal or ANPR camera, and it should not be specified where licence plate capture at speed is the primary requirement.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a large open area - car park, yard, or school grounds - from a single vantage point, and the 360-degree pan with 25x optical zoom lets you replace 3 or more fixed cameras with one PTZ position.
• Good match if: Your switch infrastructure already supports PoE+ (802.3at) and you want to avoid a separate 12V DC power run at an outdoor pole or wall mount location.
• You may need a different model if: Your primary requirement is capturing vehicle licence plates at speed at a site entry - a dedicated ANPR camera with a fixed varifocal lens is purpose-built for that task and will produce more consistent results than a PTZ in auto-tracking mode.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single outdoor camera to cover a large open area with active pan-tilt control and 25x optical zoom, and your switch infrastructure supports PoE+ (802.3at).
• You may need a different model if: Your site requires wide-area coverage from one fixed position without an operator actively controlling direction - a multi-sensor panoramic camera would deliver full 180-degree or 360-degree simultaneous coverage without relying on patrol presets or manual PTZ control.
• Pairs well with: A PoE+ managed switch with adequate power budget per port, and an NVR with PTZ control support for managing preset positions, patrol schedules, and auto-tracking configuration.

Common Questions

1. Will this camera work with a standard PoE switch?

   No - this camera requires PoE+ (802.3at, Class 4), not standard PoE (802.3at). Standard PoE switches deliver a maximum of 24 W per port, which is insufficient to power the PTZ motors, IR illuminators, and image processor simultaneously. You need a switch or injector rated for 802.3at, which provides up to 30W per port. Using a standard PoE switch will result in the camera failing to power on correctly or behaving erratically under load.

2. What is the actual pan and tilt range on the DS-2DE4A425IW-DE?

   Pan is 360-degree endless rotation with no mechanical stop point, and tilt covers -5 degrees to 90 degrees with auto-flip. The endless pan means you can set continuous patrol routes in either direction without the camera needing to reverse. The auto-flip function automatically inverts the image when the camera tilts through nadir, keeping a subject in frame as they pass directly beneath the camera - a practical feature for overhead mounting positions on poles or building overhangs.

3. How much does the 25x optical zoom actually help at night with the 50m IR?

   At night, the IR illuminators limit useful coverage to 50 metres regardless of zoom level. At maximum 25x zoom, the camera can optically resolve detail at much greater distances, but the built-in IR cannot illuminate a subject at that range in complete darkness. In practice, effective night zoom is best used up to the 50m IR boundary. Beyond that distance at night, you would need supplementary external IR illuminators or a camera with a longer-range IR system to take advantage of the full optical zoom in low-light conditions.

4. Does this camera support auto-tracking?

   Yes. The DS-2DE4A425IW-DE supports auto-tracking, which allows the camera to detect and follow a moving subject automatically without manual operator input. This is configured through compatible Hikvision NVR or VMS software. Note that auto-tracking performance depends on the subject remaining within the camera's field of view and within the IR range at night. It is not a substitute for monitored PTZ control in high-security applications but is useful for sites without a dedicated operator watching the feed continuously.

5. Will this camera handle direct rain and outdoor exposure year-round?

   Yes. The IP66 rating confirms protection against dust ingress and direct water jets from any direction. This covers Australian conditions including driving rain and wind-blown debris. IP66 does not provide submersion protection, so avoid installing in drainage paths or areas subject to flooding. The housing is designed for permanent outdoor mounting and does not require additional weatherproofing for typical eave, pole, or wall positions.

6. How many preset positions can this PTZ store, and how does patrol scheduling work?

   The number of stored presets and patrol paths is managed through the connected NVR or VMS platform rather than being a fixed hardware limit of the camera itself. Most Hikvision NVR systems support a large number of presets per PTZ camera. Patrol scheduling lets you define sequences of preset positions with configurable dwell times at each point, allowing the camera to run automated sweeps across a site at set intervals - without requiring manual operator control. Confirm your NVR's PTZ management capabilities against your specific patrol requirements before specifying the system, as this is stocked by Security Australia alongside compatible Hikvision NVR options.

7. Does H.265+ compression make a meaningful difference to storage on a PTZ camera?

   Yes - particularly for PTZ cameras, which generate larger file sizes due to motion across the full frame during patrol sweeps. H.265+ applies smart encoding that further reduces bitrate compared to standard H.265 by analysing static background areas and allocating less data to unchanged regions of the frame. For a 4MP PTZ running 24-hour patrol recording, the bitrate reduction can be significant when compared to H.264, which directly reduces the HDD capacity required on the NVR. Enable H.265+ in the camera's stream settings and confirm your NVR supports H.265+ decoding to take full advantage of this.
