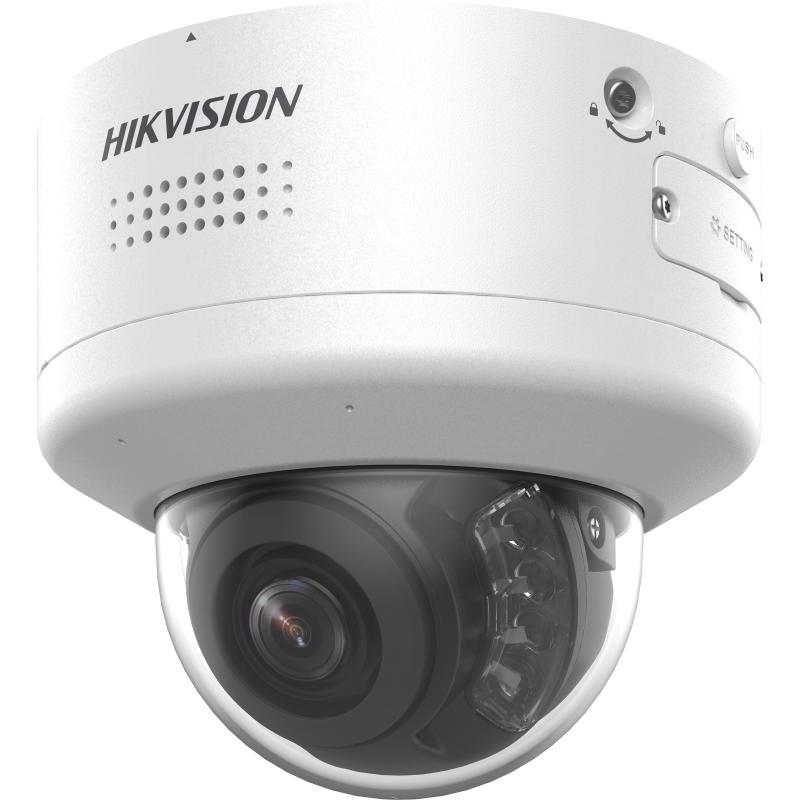

Hikvision iDS-2CD7546G2-XZHS(Y) 4MP DeepinView PTRZ Dome High-Speed Motorised Varifocal with Ultra-Low Light & AI Analytics

Model: iDS-2CD7546G2-XZHS-Y

Who This Is For

For installers and security managers who need a single ceiling-mounted dome that can be precisely aimed, zoomed, and locked off remotely - without returning to site for physical adjustments - the Hikvision iDS-2CD7546G2-XZHS(Y) DeepinView PTRZ Dome is built for exactly that scenario. The motorised PTRZ mechanism lets you dial in pan, tilt, and zoom angle from software after the head is physically mounted, which is particularly useful in high ceilings, confined ceiling voids, or installations where ladder access is disruptive. The 4MP DeepinView platform adds deep learning AI analytics suited to commercial environments where accurate detection - not pixel-counting motion alerts - is the operational requirement. Ultra-low light DarkFighter imaging means the camera remains effective in poorly lit interiors and transitional lighting zones without switching to black-and-white. This model suits corporate facilities, retail concourses, transport hubs, and any site where post-mount remote fine-tuning saves commissioning time.

What This Camera Actually Does

Who Buys This Model

• Security integrators commissioning large commercial sites: The PTRZ remote adjustment eliminates return visits to reposition cameras after initial mount, which directly reduces labour cost on projects with dozens of ceiling-mounted domes.
• Retail loss prevention teams: DeepinView AI analytics with on-camera people classification gives loss prevention staff actionable alerts rather than constant motion noise from changing light or passing trolleys.
• Facility managers in transport or hospitality: DarkFighter imaging keeps colour footage usable in transitional lighting zones - covered walkways, terminal concourses, hotel lobbies - where standard cameras degrade to monochrome at night.
• Corporate IT and security teams specifying IP systems: The DeepinView platform integrates into Hikvision NVR ecosystems with on-camera AI processing, reducing server-side analytics load while delivering deep learning classification at the edge.
• Installers working in access-restricted ceiling environments: High-bay retail, airport terminals, or heritage buildings where repeated physical access to ceiling-mounted hardware is disruptive or prohibited make remote PTRZ repositioning a practical requirement rather than a convenience.

Honest Assessment

The iDS-2CD7546G2-XZHS(Y) does two things genuinely well: it removes post-mount physical adjustment from the commissioning process through remote PTRZ, and it delivers deep learning AI analytics on-camera at 4MP resolution with DarkFighter low-light capability. For commercial interior sites where accurate detection, low false-alarm rates, and commissioning efficiency matter, that combination is hard to replicate with a standard fixed dome. The built-in microphone adds audio recording without additional cabling where NVR audio channels are available. What this camera does not do is provide continuous pan/tilt tracking like a full PTZ - PTRZ is a remote setup and repositioning mechanism, not an active patrol or auto-tracking function. If wide-area outdoor auto-tracking, long-range IR coverage, or continuous PTZ sweep is the requirement, a dedicated PTZ camera in the Security Australia range would be the correct product type. This model is an indoor ceiling dome, not an outdoor unit, and should be assessed against your IP rating requirements accordingly.

Before You Buy

Quick Fit Check

• Good match if: You are ceiling-mounting in a commercial interior where physical re-access after install is costly or difficult - the PTRZ remote adjustment lets you dial in the exact angle and zoom level from software without touching the hardware again.
• Good match if: Your site has inconsistent or low ambient lighting and standard cameras have previously dropped to black-and-white - the DarkFighter sensor is specifically engineered to hold colour at light levels where conventional sensors cannot.
• You may need a different model if: Your requirement is continuous active PTZ patrol, auto-tracking of moving subjects across a wide outdoor area, or long-range IR coverage of external perimeters - a dedicated PTZ camera with optical zoom and auto-tracking is the appropriate product type for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a ceiling dome where post-mount angle and zoom can be remotely reconfigured without physical access, combined with deep learning AI classification and DarkFighter low-light colour imaging in a single unit.
• You may need a different model if: Your requirement is continuous active PTZ patrol with auto-tracking, outdoor long-range IR coverage, or wide-area motorised sweep - a dedicated PTZ camera is the correct product type for those use cases.
• Pairs well with: A Hikvision DeepinView-compatible NVR with AI analytics channels enabled, PoE switching with sufficient per-port wattage, and a structured cabling run to ceiling mount points.

Common Questions

1. Does PTRZ mean this camera actively tracks moving subjects like a PTZ?

   No. PTRZ stands for remote Pan, Tilt, and Zoom - it is a remote installation and repositioning function, not a continuous active tracking mechanism. The motorised head allows you to adjust the camera's fixed viewing angle and zoom level from your NVR or software interface after the dome is physically mounted. Once set, the camera remains stationary at that position. If auto-tracking or continuous pan/tilt sweep is the requirement, a full PTZ camera is the appropriate product type.

2. What is the motorised varifocal zoom range on this camera?

   This is a high-speed motorised varifocal lens with remote zoom adjustment via the PTRZ system. The exact focal length range is confirmed in the Hikvision product datasheet for the iDS-2CD7546G2-XZHS(Y) - check the Downloads section below or contact us for the full specification sheet. The motorised zoom recalibrates autofocus automatically after each adjustment, so the image remains sharp across the focal range without manual refocus.

3. Will this camera work in a poorly lit space without switching to black-and-white?

   Yes, within DarkFighter operating limits. The DarkFighter sensor is engineered to maintain colour imaging at significantly lower lux levels than standard sensors. In environments with some ambient light - such as lobby feature lighting, emergency lighting, or spill from adjacent spaces - the camera will typically retain colour output where a conventional sensor would drop to monochrome. In conditions of near-total darkness with no ambient light source, colour performance will degrade as with any optical camera.

4. Does this camera require PoE+ or is standard PoE sufficient?

   Confirm your switch port wattage against the camera's specified power draw before installation. The PTRZ motorised mechanism and DarkFighter sensor can draw more power than a standard fixed dome. IEEE 802.3af (standard PoE, 15.4W) may be insufficient at the port depending on cable run length and switch efficiency - 802.3at (PoE+, 30W) ports are the safer specification to meet. Check the datasheet power consumption figure and size your PoE infrastructure accordingly. This product is available through Security Australia with compatible PoE switching options.

5. What AI analytics rules can be configured on the DeepinView platform?

   The DeepinView platform supports on-camera deep learning analytics including line crossing detection, intrusion detection, perimeter protection zone rules, and human/vehicle classification. These rules are configured in the camera interface or via the connected NVR's analytics settings. The deep learning classification engine distinguishes humans and vehicles from environmental motion, which substantially reduces false alerts compared to pixel-based motion detection. Rules are not active by default and require setup after installation.

6. Does the built-in microphone record audio alongside video footage?

   Yes. The Y suffix confirms a built-in microphone is fitted. Audio is transmitted over the same network connection as video. To record audio, the connected NVR must have audio recording enabled on the relevant channel. Confirm your NVR model supports audio input channels and that local regulations regarding audio surveillance in your jurisdiction are observed before enabling recording.

7. Can I remotely reposition the camera angle after the installation is complete and the site is handed over?

   Yes. PTRZ remote adjustment is available at any time the camera is online, not only during commissioning. If a floor layout changes, a new risk area is identified, or the original angle needs revision, the pan, tilt, and zoom can be reconfigured remotely through the NVR or Hikvision management software without physically accessing the ceiling mount. This makes the camera practical for sites where operational requirements shift over time.

8. Is this camera suitable for outdoor installation?

   No, not without confirmed outdoor-rated housing. The iDS-2CD7546G2-XZHS(Y) is a dome camera designed for indoor commercial ceiling installation. Verify the IP ingress protection rating in the product datasheet before specifying for any environment with moisture, condensation, or exposure. For outdoor perimeter coverage with AI analytics and low-light performance, a dedicated outdoor-rated AI camera in the Hikvision range is the appropriate product type.
