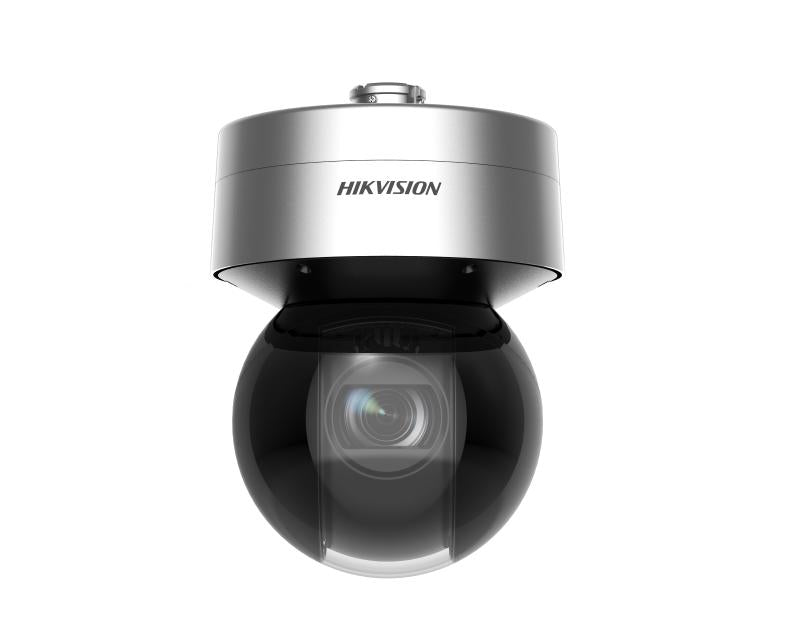

Hikvision DS-2DF7A436IXG-EL 4MP 36× IR Network Speed Dome (Ultra Series)

Model: DS-2DF7A436IXG-EL(Y)

Who This Is For

For security integrators and facilities managers who need a single camera to cover what would otherwise require multiple fixed units, the Hikvision DS-2DF7A436IXG-EL is built around that exact problem. The 36x optical zoom and 4MP sensor let operators pull in distant detail across large open areas - car parks, perimeter fences, port facilities, industrial yards, and sports precincts - without deploying a bank of cameras to compensate for limited reach. The Ultra Series designation reflects a build standard suited to demanding environments: IP66 weatherproofing and IK10 impact resistance make it a practical choice for exposed rooftop and pole installations where lesser PTZ housings wear out quickly. The long-range IR illumination extends usable night coverage well beyond what most mid-tier speed domes can reach. This model suits sites where active operator monitoring or scheduled patrol tours replace the passive approach of fixed camera arrays.

What This Camera Actually Does

Who Buys This Model

• Mining and Industrial Site Security Teams: Large open yards and access roads require long zoom reach and IR capability at distances that rule out most fixed cameras - the 36x optical zoom and long-range IR address both requirements from a single pole-mounted position.
• Port and Logistics Operators: Container yards, loading docks, and vessel berths benefit from a camera that can cover the full area in wide angle and then zoom into a specific container number, vehicle plate, or personnel incident in real time.
• Commercial Property and Strata Security Managers: Large car parks and open-air retail precincts where a single PTZ on a central pole replaces multiple fixed cameras, reducing cable runs, NVR channels, and ongoing maintenance points.
• Security Integrators Specifying Monitored Sites: Installations linked to a control room where operators actively use PTZ controls benefit from auto-tracking and preset patrol tours to maintain coverage between operator interventions.
• Local Government and Infrastructure Managers: Parks, sporting ovals, transit hubs, and public spaces where a vandal-resistant IK10 housing is a specification requirement alongside broad area coverage from minimal mounting points.

Honest Assessment

The DS-2DF7A436IXG-EL does what a PTZ in this class is supposed to do: it delivers genuine long-range zoom with 4MP detail, IR performance that tracks with the lens, and a housing robust enough for permanent outdoor use. The 36x optical zoom is a meaningful step above the 25x units common in the mid-market, and the IK10 rating is a real differentiator for exposed or publicly accessible mounting positions. Auto-tracking with deep learning classification reduces reliance on continuous operator attention, which matters on sites where the PTZ is one of many inputs to a control room. What this camera will not do is replace a multi-sensor or panoramic camera where simultaneous 180-degree or 360-degree recording is the requirement - a PTZ records where it is pointed, and any direction it is not facing is unrecorded at that moment. It also requires more careful NVR channel and bandwidth planning than a fixed camera. The team at Security Australia can advise on NVR compatibility and PoE+ power budgets before you commit to an installation design.

Before You Buy

Quick Fit Check

• Good match if: Your site has long open approaches - perimeter fencing, access roads, or large car parks - where you need to zoom in and positively identify individuals or vehicles at distance, and a fixed camera at that zoom level would be too narrow to monitor the full area.
• Good match if: You are specifying a monitored site where control room operators will use active PTZ control or where automated patrol tours and auto-tracking need to cover a large zone from a single mounting point with IK10 vandal resistance.
• You may need a different model if: Your primary requirement is simultaneous full-area recording with no coverage gaps - in that case, a multi-sensor panoramic camera or a fixed camera array is a better fit, as a PTZ cannot record in multiple directions at the same time. Browse the panoramic and multi-sensor range on securityaustralia.com.au for alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single camera to cover a large area with operator-controlled or auto-tracked zoom, and long-range IR performance at night is a core requirement - the 36x optical zoom and up to 200m IR range set this apart from mid-tier 25x PTZ units.
• You may need a different model if: Simultaneous full-area recording with no directional gap is the priority - a multi-sensor panoramic camera captures the full 180 or 360-degree view continuously, which a PTZ cannot do. Explore the panoramic camera range on securityaustralia.com.au for that application.
• Pairs well with: Fixed wide-angle cameras at key chokepoints - entry gates, reception areas, or loading docks - so the PTZ handles open area zoom and tracking while fixed cameras provide continuous uninterrupted recording at specific positions.

Common Questions

1. Will this camera work with a standard PoE switch?

   No. The DS-2DF7A436IXG-EL requires PoE+ (IEEE 802.3at) delivering up to 30W, or 24V AC, or HiPoE - standard IEEE 802.3af switches at 15.4W will not power this unit. Before installation, confirm your switch or midspan injector is rated for 802.3at as a minimum. On cable runs exceeding 60 metres, account for power loss across the Cat6 run and consider a higher-rated injector positioned closer to the camera.

2. Does this camera record when it is panning or zooming?

   Yes. The camera records continuously regardless of pan, tilt, or zoom movement - wherever the lens is pointed, that view is recorded to the NVR or MicroSD card. The important distinction is that the camera only records what it is currently aimed at. Any area outside its current field of view is not captured at that moment, which is why PTZ cameras on large sites are often paired with fixed cameras at critical fixed points.

3. How does the 36x optical zoom behave at maximum magnification at night?

   At maximum 36x zoom the field of view narrows significantly, and the IR illuminator automatically concentrates its beam to match. This adaptive IR behaviour is designed specifically for long-zoom PTZ operation - rather than a fixed-width IR beam that becomes effectively useless at high magnification, the illuminator narrows in step with the lens to maintain useful light intensity on the subject. At distances beyond the IR system's rated range, low-light performance will degrade regardless of zoom level.

4. How does auto-tracking work and can it be limited to a defined zone?

   Yes, tracking zones can be defined. The deep learning auto-tracking classifies detected objects as human or vehicle and locks the camera onto the target, following it with continuous pan, tilt, and zoom adjustments. Detection zones can be configured in the camera's interface to restrict where tracking triggers - preventing the camera from chasing movement outside your monitored area such as passing traffic on an adjacent road. When the tracked subject leaves the defined zone or the track is lost, the camera can be set to return to a home position or resume a patrol tour automatically.

5. What pan and tilt speeds does this unit support, and how many preset positions can be stored?

   The DS-2DF7A436IXG-EL supports pan speeds up to 400 degrees per second in manual mode and up to 200 degrees per second in auto mode, with proportional speed control that slows movement automatically as zoom level increases for precise framing. The unit supports up to 300 preset positions, 8 patrol tours, and 4 pattern recordings, giving integrators significant flexibility when programming automated coverage sequences for large or complex sites. The team at Security Australia can advise on programming best practice for specific site layouts.

6. Is this camera compatible with third-party VMS platforms?

   Yes, with ONVIF-compliant systems. The DS-2DF7A436IXG-EL supports ONVIF Profile S, Profile G, and Profile T, which covers the majority of professional VMS platforms used in Australia. Full PTZ control, preset management, and event-triggered actions are natively available in Hikvision iVMS-4200 and Hik-Connect. On third-party platforms, PTZ control functionality depth varies by VMS - confirm PTZ command support with your VMS vendor before specifying this unit for a non-Hikvision platform.

7. Will this camera handle Australian coastal or high-humidity environments?

   Yes, within the IP66 rating's scope. IP66 certification confirms protection against powerful water jets and complete dust ingress prevention, making it suitable for coastal installations, exposed rooftop positions, and high-humidity environments. Salt air acceleration and UV exposure affect all camera housings over time - the Ultra Series build standard is designed for demanding conditions, but physical inspection of seals and cable entry points on an annual basis is recommended in harsh coastal environments to maintain long-term performance.

Downloads & Resources

No downloads available for this product.
