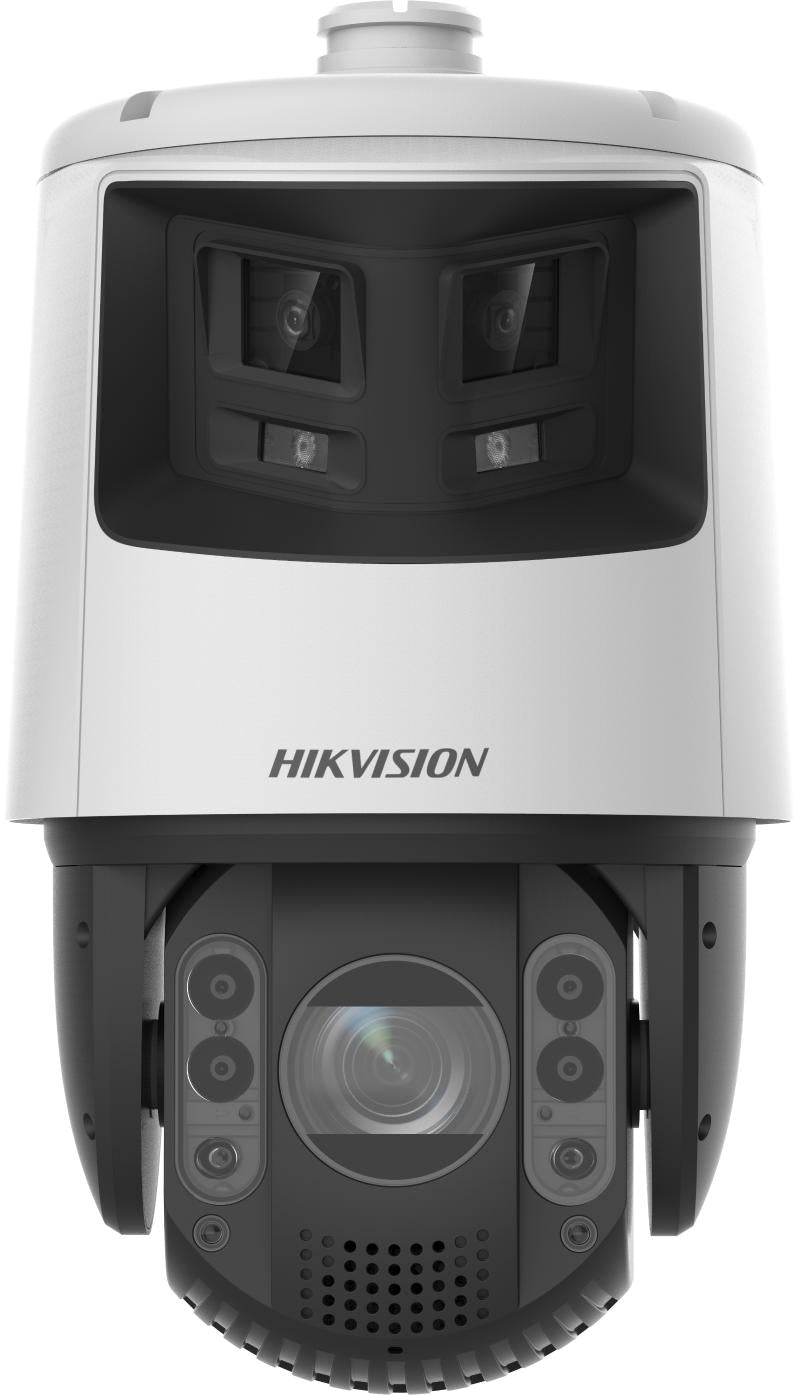

Hikvision DS-2SE7C432MWG-EB-26 6MP+4MP TandemVu Outdoor PTZ Camera, Acusense 32x Zoom

Model: DS-2SE7C432MWG-EB-26

Who This Is For

When simultaneous wide-area overview and close-up PTZ detail from a single camera position is the priority, the Hikvision DS-2SE7C432MWG-EB-26 TandemVu addresses that challenge directly. This camera runs two independent imaging channels at once - a 6MP panoramic sensor holds continuous context across the full scene while a separate 4MP PTZ channel with 32x optical zoom locks onto specific targets without interrupting the overview feed. That dual-channel architecture is what separates TandemVu from a standard PTZ. Installers specifying large outdoor sites - transport hubs, logistics yards, stadium perimeters, campus grounds - will find the combination of 200 m IR range, AcuSense human and vehicle classification, IP66 and IK10 construction, and DC12V or PoE power options makes this a serious candidate wherever a single mounting position needs to carry real investigative weight.

What This Camera Actually Does

Who Buys This Model

• Transport and logistics operators: Freight yards, intermodal terminals, and transport depots where a single elevated camera needs to cover a large yard with panoramic overview while the PTZ tracks specific vehicles or personnel at 32x zoom.
• Large campus security teams: Universities, hospital campuses, and industrial parks where camera positions are expensive to add and each mounting point needs to carry maximum coverage responsibility across open grounds.
• Perimeter security installers: Rural and semi-rural sites with long fence lines and no ambient lighting, where the 200 m IR range and IK10 housing handle both the distance and the exposure.
• Monitoring centre operators: Sites feeding a staffed control room where AcuSense classification reduces the nuisance alarm load and the dual-channel stream lets operators maintain situational awareness without toggling between views.
• Integrators specifying premium single-point solutions: Projects where the brief requires one camera position to replace what would otherwise need both a fixed wide-angle camera and a separate PTZ unit.

Honest Assessment

The TandemVu architecture is the genuine differentiator here. Running 6MP panoramic and 4MP PTZ streams simultaneously without one interrupting the other is a practical operational advantage that a standard PTZ cannot replicate - the panoramic record does not pause when an operator or auto-tracking function moves the PTZ. The 32x optical zoom, 200 m IR, AcuSense classification, IK10 housing, and -30 to +60 degree operating range all add up to a camera built for serious outdoor deployments rather than light commercial use. At approximately 3.8 kg, mounting infrastructure needs to be rated accordingly - a standard eave bracket is not appropriate. This camera is not a substitute for ANPR or thermal detection, and the panoramic channel's fixed field of view means it will not suit every layout. For tighter budgets or simpler sites, a fixed PTZ or a multi-camera fixed layout available through Security Australia may deliver better value.

Before You Buy

Quick Fit Check

• Good match if: Your site requires continuous wide-area panoramic recording while simultaneously tracking specific targets under PTZ zoom - the dual-channel architecture means both streams run without interrupting each other.
• Good match if: The installation is an exposed outdoor site with no existing lighting infrastructure across long distances - 200 m IR range and IP66/IK10 housing cover both the coverage gap and the environmental exposure.
• You may need a different model if: Your primary requirement is licence plate capture or thermal perimeter detection - a dedicated ANPR or thermal camera type will outperform a general PTZ for those specific tasks.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need uninterrupted panoramic overview and independent PTZ zoom operating simultaneously from a single mounting point - no standard PTZ camera can maintain a fixed wide-angle record while the PTZ channel is tracking a target.
• You may need a different model if: Your priority is licence plate recognition or thermal detection rather than general scene awareness - dedicated ANPR camera types or thermal camera types are purpose-built for those tasks and will outperform a general PTZ at them.
• Pairs well with: A multi-channel NVR with sufficient storage for dual-stream recording from each TandemVu unit, and a PoE+ managed switch capable of delivering adequate power per port for this class of PTZ.

Common Questions

1. Does the panoramic channel keep recording when the PTZ is in use?

   Yes. The TandemVu architecture runs the 6MP panoramic channel and 4MP PTZ channel as independent simultaneous streams. When an operator or auto-tracking function moves the PTZ to follow a target, the panoramic feed continues recording the full scene without interruption. This is the core operational difference between TandemVu and a standard PTZ camera, which has only a single sensor that moves with the lens.

2. What are the pan, tilt, and zoom ranges on the PTZ channel?

   The 32x optical zoom on the PTZ channel is confirmed. Full pan range, tilt range, and maximum preset positions are not detailed in the available specification data for this model - confirm these parameters directly with the supplier or refer to the Hikvision datasheet before finalising the camera position layout, particularly where coverage arcs are critical to the design.

3. Will standard PoE work with this camera?

   Standard Hi-PoE PoE (42 W) may not be sufficient for this camera under full operating load. The DS-2SE7C432MWG-EB-26 is a dual-sensor PTZ with active IR illuminators - power draw during PTZ movement and night operation can exceed what Hi-PoE delivers. PoE+ (802.3at, 30W) switch ports are the recommended specification. DC12V via a dedicated power supply is the alternative if switch budget is a constraint.

4. How does AcuSense reduce false alarms compared with standard motion detection?

   AcuSense uses deep learning to classify detected objects as human or vehicle rather than triggering on any pixel change in the scene. Standard motion detection responds to any movement - animals, tree branches, shadows, reflections, headlights. AcuSense filters those out and generates alerts only for confirmed human or vehicle targets, which significantly reduces overnight nuisance alarm volume on large outdoor sites where environmental movement is constant.

5. Will this camera work in extreme outdoor temperatures?

   Yes. The operating temperature range is -30 degrees C to +60 degrees C, which covers Australian conditions from alpine winter installations through to exposed rooftop or metal structure mounts in northern Australia where surface temperatures can be extreme during summer.

6. Does this camera work for sites with no external lighting?

   Yes, for the PTZ channel. The PTZ sensor reaches 0 Lux operation with IR active, and the IR illuminators have a confirmed range of 200 m. The panoramic channel's low-light performance in the absence of IR illumination should be confirmed against the full datasheet for your specific scene conditions. For sites with zero ambient light across large open areas, the 200 m IR range on the PTZ channel is the primary night coverage tool.

7. How much storage does the dual-stream recording require?

   More than a single-channel PTZ. The DS-2SE7C432MWG-EB-26 generates 2 simultaneous streams - a 6MP panoramic and a 4MP PTZ feed. Storage requirements depend on compression settings, frame rate, and scene activity, but plan for approximately double the storage allocation of a single 4MP camera at equivalent settings. Use an NVR with sufficient channel capacity and confirm storage calculations at the NVR specification stage. The team at Security Australia can assist with storage planning for multi-camera TandemVu deployments.
