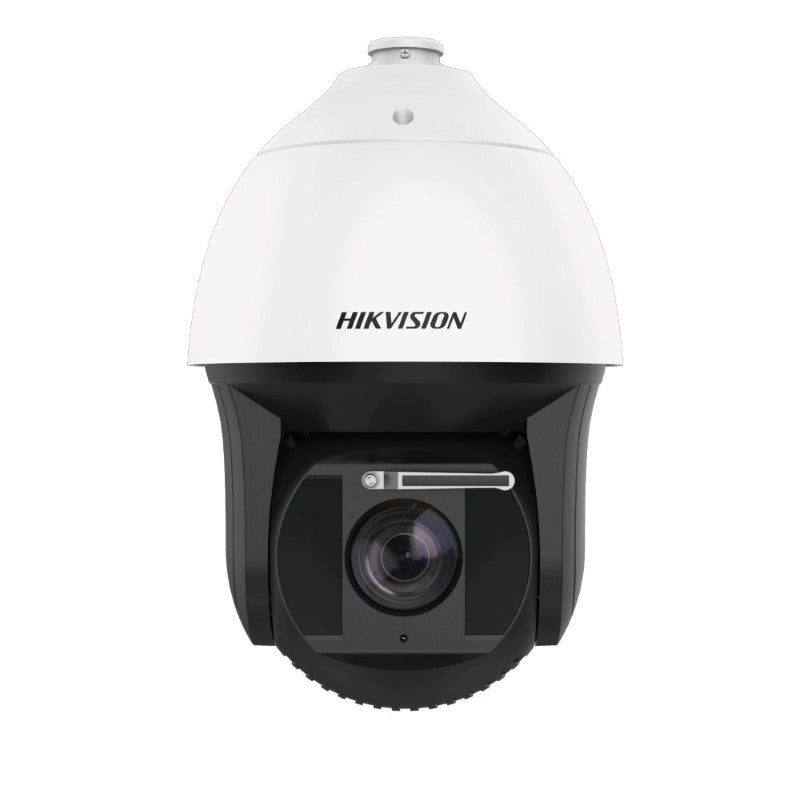

Hikvision Acusense PTZ, 4MP, 6-252MM, 42X OPTICAL, 16 X DIGITAL, 400M IR, IP67, FACE CAPTURE, WHITE

Model: DS-2DF8442IXS-AELWY(T5)

Who This Is For

When long-range identification across a large open site is the priority, fixed cameras rarely stretch far enough. The Hikvision DS-2DF8442IXS-AELWY(T5) is a professional-grade 4MP PTZ speed dome built for exactly this challenge - a 42x optical zoom spanning 6mm to 252mm, paired with 400m IR range, means a single camera position can actively track and identify subjects across distances that would otherwise require multiple fixed units. Security integrators specifying perimeter surveillance for logistics facilities, water treatment plants, ports, and large commercial campuses will find the combination of IK10 vandal resistance, IP67 weather sealing, and Hi-PoE support matches the demands of exposed, heavy-use installations. The face capture analytics capability adds forensic value at checkpoints and access points. Operating across -40°C to 70°C, this camera is suited to Australian conditions from alpine infrastructure to coastal industrial sites.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Water treatment facilities, energy substations, and utilities needing a single camera to actively patrol a large perimeter with 400m IR coverage across an unlit site overnight.
• Port and Logistics Security Teams: Loading dock and yard managers who need to zoom in on container numbers, vehicle registrations, or individuals at distance without walking the site - the 42x optical zoom handles this from a fixed elevated position.
• Commercial Campus Integrators: Installers designing surveillance for large multi-building sites where reducing overall camera count matters - this unit can actively track and cover ground that would otherwise need 4 or 5 fixed cameras.
• High-Security Entry Point Managers: Facilities requiring face capture at controlled access points - corporate headquarters, data centres, or correctional facilities where logged facial imagery supports access event records.
• Exposed Outdoor Installs in Harsh Climates: Sites in tropical North Queensland, alpine regions, or coastal industrial zones where the -40°C to 70°C operating range and IK10 impact rating address both environmental and vandalism risk.

Honest Assessment

The DS-2DF8442IXS-AELWY(T5) genuinely delivers where long-range PTZ performance matters most. The 42x optical zoom with 400m IR is a meaningful combination - most PTZ cameras in this class top out at 25x to 30x optical, so the extra reach here is real and useful for perimeter detection on large sites. The 130dB WDR handles challenging lighting conditions at gates and entry points, and IK10 plus IP67 means it is built for unprotected outdoor mounting. The 1/1.8" sensor is larger than the 1/2.8" found in lower-tier PTZs, which translates to better low-light colour retention before IR kicks in. Where this camera will not serve well: it is not a substitute for high-density fixed camera coverage in a small indoor space, and the face capture function is not a real-time face recognition or watchlist-matching system - it captures and stores facial imagery for review rather than triggering live alarms on matched identities. Hi-PoE power draw also means standard 802.3af switches will not work. The team at Security Australia can advise on compatible Hi-PoE switch options for your installation.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large open site - a port yard, industrial perimeter, or rural facility - where 400m IR range and 42x optical zoom let a single mounted camera actively monitor a long approach or track subjects across distance.
• Good match if: You need forensic face capture at a controlled entry point and already have a Hikvision NVR infrastructure - the on-board face capture analytics and H.265 compression integrate directly with compatible Hikvision recording platforms.
• You may need a different model if: Your site requires real-time watchlist-based face recognition with live alarm triggers, or you need to cover multiple fixed zones simultaneously - a multi-sensor panoramic camera or dedicated AI face recognition camera would be more appropriate for those use cases.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need the longest practical IR range (400m) and deepest optical zoom (42x) in a PTZ speed dome that still meets IP67 and IK10 standards for unprotected outdoor mounting.
• You may need a different model if: Your application requires simultaneous wide-area coverage across multiple fixed zones without active operator control - a multi-sensor panoramic camera or fisheye unit would deliver persistent 180° or 360° coverage that a single-lens PTZ cannot replicate when actively zoomed in on one target.
• Pairs well with: A Hi-PoE capable NVR or Hi-PoE network switch that supports 60W per port, combined with a compatible Hikvision video management system that can receive face capture metadata and integrate preset patrol programming for automated site monitoring.

Common Questions

1. Will this camera work on a standard PoE switch?

   No. The DS-2DF8442IXS-AELWY(T5) requires Hi-PoE at up to 50W, which exceeds both 802.3af (15.4W) and 802.3at PoE+ (30W) switch output. A standard PoE or PoE+ switch will not power this camera. You need a Hi-PoE switch or injector rated for 60W per port, or a dedicated 24VAC transformer rated at 60W minimum. Confirm your switch specification before purchasing cabling and mounting hardware.

2. What does the 42x optical zoom actually look like in practice - how far can it read detail?

   At 42x optical zoom the horizontal field of view narrows to 1.7°, which at 200 metres produces a very tight frame suitable for reading facial features, number plates in good light, or container markings. The 6mm wide-angle end gives a 59° horizontal field for general scene awareness. The 16x digital zoom extends beyond optical range but introduces image degradation - for identification purposes rely on the optical range rather than digital extension. The camera does not have built-in auto-tracking in the confirmed spec data; preset patrol positions should be programmed via the connected NVR or VMS for automated coverage.

3. Does the face capture function trigger real-time alarms if a specific person is detected?

   No. Face capture on this camera logs facial imagery as people pass through the monitored zone - it does not perform watchlist matching or generate live alarms based on identified individuals. The captured images are stored for forensic review and post-event investigation. For live face recognition with watchlist-based alarm triggers, a dedicated AI face recognition camera or server-side VMS with face matching capability would be required.

4. Will this camera perform in very hot Australian outdoor conditions?

   Yes. The operating temperature range is confirmed at -40°C to 70°C, which covers the full range of Australian outdoor conditions from alpine winters to northern Australian summer heat loads on exposed metal structures. The IP67 rating also means humidity and rain ingress from tropical wet seasons will not affect the camera internally. For direct sun mounting, ensure the bracket and housing colour (white) are considered in your thermal load estimate for the mount structure itself.

5. How does the 400m IR range interact with the zoom level - does IR also extend at full zoom?

   The 400m IR rating reflects the maximum effective range of the IR illuminator. At higher zoom levels the camera is optically focused on a narrower field, and the IR illuminator on a speed dome of this type typically adjusts (zoom-linked IR) to concentrate illumination in line with the narrowing field of view. This means the IR remains effective at long zoom distances rather than washing out. The confirmed specification states 400m IR range - the effectiveness at maximum zoom over 400m will be subject to environmental conditions including atmospheric haze and target reflectivity.

6. Does this camera have two-way audio?

   The confirmed specification includes audio compression support (G.711a, G.711u, G.722.1, G.726, MP2L2, PCM, AAC) but does not confirm a built-in microphone and built-in speaker in the available spec data. The audio compression support indicates audio input and output capability, but whether this camera ships with both microphone and speaker integrated in the housing has not been confirmed in the available product data. Check the full datasheet or contact Security Australia to confirm audio hardware before specifying for an intercom or two-way communication application.

7. How much storage does a 4MP PTZ at 25fps consume?

   At 4MP (2560x1440) and 25fps using H.265 compression, continuous recording typically consumes approximately 150-250GB per camera per 24-hour period depending on scene complexity and motion levels. H.265 is significantly more efficient than H.264 for the same image quality - enabling H.265 on both camera and NVR is important for managing storage at this resolution. For a 30-day retention target, budget approximately 4.5TB to 7.5TB per camera position. A compatible NVR with adequate channel licensing and storage capacity should be sized accordingly.

Downloads & Resources

No downloads available for this product.
