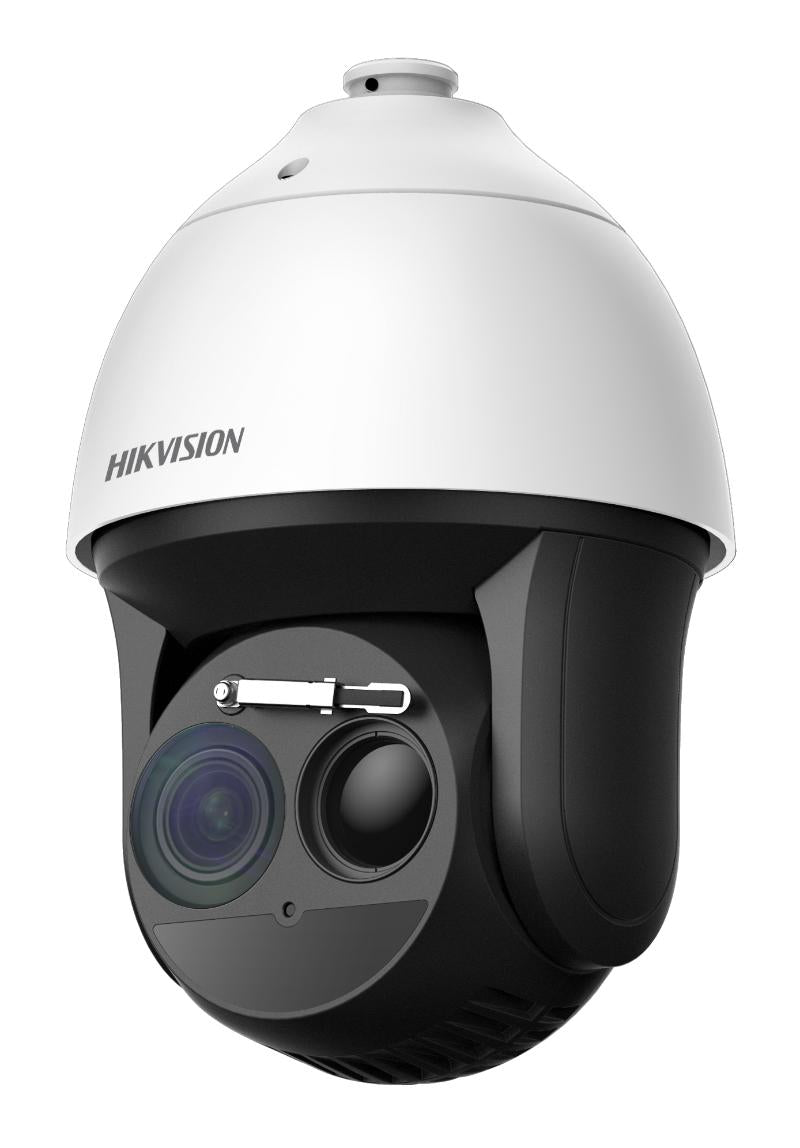

Hikvision DS-2TD4137T-9W Thermographic Thermal & Optical Bi-spectrum Network Speed Dome

Model: DS-2TD4137T-9W

Who This Is For

When detecting heat sources, fire risk, and perimeter intrusions across large open areas is the priority, a standard optical PTZ falls short. The DS-2TD4137T-9W is built for critical infrastructure - think fuel storage facilities, manufacturing plants, substations, logistics yards, and mine sites where both temperature anomalies and physical intrusion carry serious consequences. This bi-spectrum speed dome pairs a 384 x 288 thermal sensor capable of measuring temperatures from -20 degrees C to 550 degrees C with a 4 MP optical channel and 40x optical zoom, giving operators both the thermal sensitivity to catch a heating motor bearing or smouldering material and the optical detail to visually confirm what triggered an alarm. With 200 m IR range and IP66 construction, it is designed for permanent outdoor deployment in environments where standard surveillance cameras simply cannot provide the detection layer required.

What This Camera Actually Does

Who Buys This Model

• Industrial Facilities and Manufacturing Plants: Sites running continuous processes - welding bays, furnaces, chemical lines - where a temperature exception alarm on the thermal channel provides early warning of equipment failure or fire risk that optical cameras cannot detect.
• Fuel Storage and Energy Infrastructure Operators: Tank farms, substations, and solar/wind facilities where fire detection across open ground is a compliance requirement and a single dome covering wide area with thermal and visual confirmation reduces the total camera count needed.
• Mine Sites and Remote Industrial Properties: Large perimeters with no ambient lighting where 200 m IR range and thermal detection working in complete darkness replace multiple fixed cameras along a boundary fence line.
• Security Integrators Specifying Critical Infrastructure Projects: Installers working on projects that require AS documentation, thermal fire detection, and Hikvision ecosystem integration into existing VMS platforms using H.265+ compression to manage recording bandwidth.
• Port and Logistics Yard Operators: Facilities managing vehicle movements, container storage, and shift-based staffing who need smart tracking to follow intrusions automatically and patrol presets to cycle through key zones without dedicating a full-time operator to the PTZ.

Honest Assessment

The DS-2TD4137T-9W does two things well that no optical-only PTZ can match: it measures real surface temperatures across an extremely wide range using a thermally sensitive 384 x 288 sensor, and it applies fire and smoke detection algorithms independently of visible light conditions. The 40x optical zoom and 4 MP resolution mean the visual confirmation layer is genuinely capable at distance, and smart tracking reduces the operator workload during active events. H.265+ compression keeps storage and bandwidth requirements manageable for a dual-channel device running continuous recording. Where this camera is not the right fit: it is not a cost-effective solution for standard perimeter surveillance where thermal detection is unnecessary - a conventional PTZ or multi-sensor camera available through Security Australia will deliver better value in those scenarios. The specialist thermal and fire detection functionality justifies the investment only where those capabilities are a genuine operational requirement.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring an outdoor industrial site where detecting heat anomalies, fire signatures, or temperature exceptions on machinery and stockpiles is a core requirement alongside visual surveillance - the -20 to 550 degree C measurement range and onboard fire detection algorithms address this directly.
• Good match if: Your site has a large unlit perimeter requiring automated tracking of intruders at night - the 200 m IR range on the optical channel combined with deep learning smart tracking means the dome can follow a moving target without operator intervention once a VCA rule is triggered.
• You may need a different model if: Your application is general outdoor perimeter surveillance without any thermal or fire detection requirement - a standard optical PTZ speed dome or multi-sensor panoramic camera will cover more ground per dollar and avoid paying for thermal capability that will not be used.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires temperature measurement, fire and smoke detection via thermal imaging, and motorised optical zoom for visual verification in a single mounted unit - no optical-only PTZ can replicate the thermal detection capability this provides.
• You may need a different model if: Your requirement is wide-area perimeter surveillance without any thermal or temperature monitoring need - a multi-sensor panoramic camera or standard optical PTZ will cover more effective ground at lower cost and complexity.
• Pairs well with: A compatible Hikvision NVR or VMS platform that supports dual-channel thermal bi-spectrum device management, ensuring both the thermal and optical streams are recorded, alarms are integrated, and patrol presets can be managed centrally.

Common Questions

1. Will this camera detect a fire before there are visible flames?

   Yes. The thermal channel runs dedicated fire and smoke detection algorithms that analyse heat signatures independently of visible light or visible flame. Because the 384 x 288 thermal sensor with a NETD of 35 mK can distinguish very small temperature differentials, it can identify thermal anomalies consistent with smouldering or early ignition before the event becomes visible to an optical camera or human observer.

2. Does this camera work for perimeter security in complete darkness?

   Yes. The thermal channel operates entirely independently of ambient light - it detects heat emitted by people, vehicles, and animals regardless of lighting conditions. The optical channel adds 200 m IR illumination for visual detail in dark environments. Together they provide detection and identification capability across unlit perimeters that optical-only cameras cannot achieve.

3. What temperature range can this camera actually measure?

   The thermal sensor measures surface temperatures from -20 degrees C to 550 degrees C (-4 degrees F to 1022 degrees F). This range covers most industrial monitoring applications including ambient environmental monitoring at the low end, through to high-temperature industrial processes, furnace surfaces, and fire detection scenarios at the upper end. Alarm thresholds are configurable within this range.

4. How accurate is the thermal sensor, and what does NETD 35 mK mean in practice?

   NETD (Noise Equivalent Temperature Difference) of 35 mK means the sensor can distinguish temperature differences as small as 0.035 degrees C between adjacent areas of a scene. In practice, this level of sensitivity allows the camera to detect subtle heating in equipment - such as a motor bearing running 3 to 4 degrees hotter than normal - well before the temperature reaches a point of failure or fire risk. It also reduces false alarms from benign thermal variation, because the sensor resolves genuine anomalies more precisely than lower-sensitivity thermal devices with higher NETD values.

5. Does the smart tracking work from the thermal channel or the optical channel?

   Smart tracking uses the thermal channel for detection - identifying a heat-emitting target crossing a defined perimeter rule - and then the PTZ mechanism drives the optical channel to follow and maintain visual coverage of that target. This means tracking initiates even when there is no visible light and no optical detection possible, with the optical zoom providing the visual record once the dome has oriented to the subject.

6. What NVR or VMS is required to record both the thermal and optical streams?

   The DS-2TD4137T-9W outputs 2 independent streams - one from the thermal sensor and one from the 4 MP optical channel. Your recording platform needs to support dual-channel ingestion from a single device, which is standard in Hikvision's own NVR and iVMS platforms but should be confirmed for third-party VMS integrations before purchasing. The team at Security Australia can advise on compatible recording platforms based on your existing infrastructure.

7. Does the thermal camera perform well in fog, rain, or dust?

   Yes, significantly better than optical cameras in those conditions. The thermal sensor detects heat radiation rather than reflected light, which means heavy rain, dust haze, and low-lying fog that severely degrade optical image quality have a much smaller impact on thermal detection performance. This is a key reason thermal cameras are specified for industrial outdoor sites in Australia's varied climate conditions.

8. Does the 40x optical zoom affect how the patrol presets behave?

   Yes. Each preset position stores both the pan/tilt orientation and the zoom level, so a patrol configured to cover a distant loading dock at 20x zoom and a nearby gate at 4x zoom will replicate those settings consistently on every cycle. When configuring patrols for large industrial sites, setting appropriate zoom levels per position during commissioning is important - a preset left at maximum 40x zoom with a narrow field of view will miss movement outside that very tight framing.
