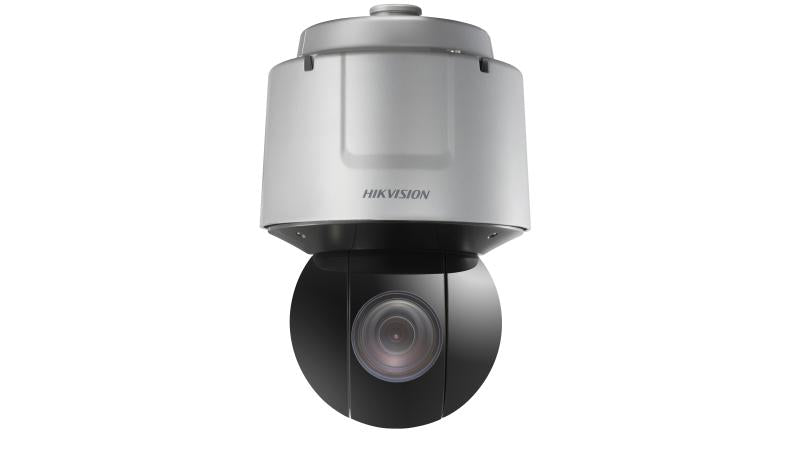

HIKVISION DS-2DF6A436X-AEL PTZ 4MP, 5.7-305MM 36X DEEP-LEARNING, Vehicle & Human Tracking

Model: DS-2DF6A436X-AEL

Who This Is For

When wide-area coverage with deep-learning tracking accuracy is the priority, the DS-2DF6A436X-AEL is the unit installers reach for. This is a 4MP PTZ built for demanding outdoor applications - perimeter monitoring at airports, ports, and logistics precincts, large carparks, river corridors, road approaches, and any site where a single camera must cover ground that would otherwise need multiple fixed units. The 36x optical zoom reaches from wide-scene context down to tight identification detail without switching cameras, and the AI-based vehicle and human tracking keeps moving subjects centred in frame automatically. DarkFighter technology pushes usable colour imaging to 0.001 Lux, which means coverage continues long after ambient lighting drops. IP67 and IK10 ratings make this suitable for exposed mounting positions. If your site needs a camera that can both watch a large zone and respond intelligently when something moves through it, this is the product category to be in.

What This Camera Actually Does

Who Buys This Model

• Infrastructure Security Teams: Airports, ports, and rail precincts where a single PTZ must cover large apron or yard areas and automatically track identified vehicles or personnel without operator input.
• Local Government and Traffic Monitoring: Road corridors, bridge approaches, and river monitoring installations that need continuous wide-view coverage with the ability to zoom in on specific incidents as they occur.
• Industrial and Logistics Facilities: Large warehousing, mining access roads, and freight terminals where perimeter depth exceeds what fixed cameras can handle and AI tracking reduces the monitoring burden on control room staff.
• Integrators Specifying Critical Site Projects: Consultants and security integrators building systems for high-value or regulated sites that require Hikvision-native integration, H.265+ compression for storage efficiency, and demonstrated IP67/IK10 compliance for exposed positions.

Honest Assessment

The DS-2DF6A436X-AEL does a specific job well: it replaces multiple fixed cameras in a wide outdoor zone, uses AI to classify and track targets without false-triggering on environmental movement, and delivers usable footage at 4MP across a genuine 36x zoom range in very low light. The 120dB WDR handles mixed-lighting scenes that cause problems for standard cameras, and the -40°C to 65°C operating range makes it suitable for Australian conditions from alpine to tropical. Where it is not the right tool: if your requirement is simply covering a doorway or small retail space, the cost and complexity of a PTZ is unjustified and a fixed turret or dome camera serves better. This unit is also not a substitute for dedicated ANPR cameras where plate capture accuracy at speed is the primary requirement. Available through Security Australia with full Hikvision warranty backing.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to cover a large outdoor area - carpark, perimeter fence line, road approach - and want it to automatically lock on and track vehicles or pedestrians when detected, reducing the need for manual PTZ operator control.
• Good match if: Your site has challenging lighting conditions - low ambient light at night, or high-contrast scenes with direct sun and deep shadow - where DarkFighter's 0.001 Lux colour threshold and 120dB WDR are needed to maintain usable footage around the clock.
• You may need a different model if: Your primary requirement is capturing vehicle number plates at speed on a multi-lane road - a dedicated ANPR camera with a fixed lens optimised for that distance and trigger speed will outperform a PTZ in that specific application. Browse the ANPR range on securityaustralia.com.au for purpose-built options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single outdoor unit to cover a large zone with motorised zoom and AI-driven auto-tracking that keeps detected vehicles and people centred in frame without manual PTZ operation.
• You may need a different model if: Your site requires coverage of multiple distinct zones simultaneously - a multi-sensor panoramic camera provides persistent wide-area coverage of several directions at once without the single-scene limitation of a PTZ, and may suit installations where tracking one target at a time is insufficient.
• Pairs well with: A Hikvision-compatible NVR with AI event management capabilities, allowing smart search, track replay, and perimeter alarm configuration that takes full advantage of the camera's deep-learning detection output.

Common Questions

1. Does this camera require a PoE+ switch, or will a standard PoE switch work?

   It requires PoE+ (IEEE 802.3at) - a standard Hi-PoE switch will not supply enough power. Standard PoE delivers up to 15.4W, while 802.3at delivers up to 30W. PTZ cameras with motorised lenses and IR illuminators draw significantly more than a fixed camera. Use a confirmed 802.3at-rated switch port or a dedicated PoE+ injector on the cable run. Alternatively, a 12VDC supply at the mounting point is a reliable option for locations with a local power source.

2. How does the auto-tracking actually work - will it follow a person across the entire scene?

   Yes. Once a human or vehicle target is detected within a configured detection zone, the camera's deep-learning engine classifies the target and the PTZ mechanism steers the camera to keep it centred in frame as it moves. The tracking continues until the subject exits the scene or stops moving for a set dwell time, at which point the camera returns to its home position or continues its patrol. Classification-based tracking means the camera distinguishes people and vehicles from background movement such as foliage, reducing unnecessary tracking triggers.

3. Will this camera work in extremely hot or cold Australian conditions?

   Yes. The operating temperature range is -40°C to 65°C, which covers all Australian climate zones from alpine environments in the Snowy Mountains through to the peak ambient temperatures recorded in northern and central Australia. The IP67 rating also ensures no moisture ingress during heavy rainfall or humidity, which is relevant for tropical north Queensland and coastal installations.

4. Does this camera support two-way audio?

   Two-way audio support is listed as optional for this model - it is not confirmed as built-in with an onboard speaker and microphone. If two-way audio is a requirement for your installation, confirm whether the specific unit you are purchasing includes that hardware or requires an external audio accessory. Contact the team at Security Australia before ordering if audio is a critical specification.

5. What is the optical zoom range and what distance can it realistically identify a person?

   The optical zoom runs from 5.7mm (wide) to 205mm (telephoto) - a 36x range. At the telephoto end, the 4MP sensor resolves enough detail at substantial distances for identification purposes, though the practical identification distance depends on lighting, atmospheric conditions, and camera height. The zoom is optical, meaning image quality does not degrade as you zoom in, unlike digital zoom. Use the wide end for area surveillance and zoom in to the telephoto end only when detail on a specific subject or vehicle is needed.

6. What pan/tilt range does this PTZ cover and how many preset positions can it store?

   The confirmed specification data for this listing does not include the pan/tilt degree range or the maximum number of preset positions. For a PTZ at this specification level in the Hikvision DS-2DF6A series, it is standard practice to verify these values in the full Hikvision datasheet before specifying for a site where patrol patterns or full 360-degree coverage are critical. The datasheet link is included in the Downloads section below.

7. Will this camera work as a standalone unit or does it need a Hikvision NVR?

   It works as a standalone IP camera and can be viewed and configured directly via a web browser or Hikvision's iVMS-4200 software without a Hikvision NVR. However, to access AI event search, smart playback, and tracking event logs, a compatible Hikvision NVR or VMS that supports deep-learning events from this camera series will provide significantly more functionality than third-party recording software that may not decode the AI metadata correctly.
