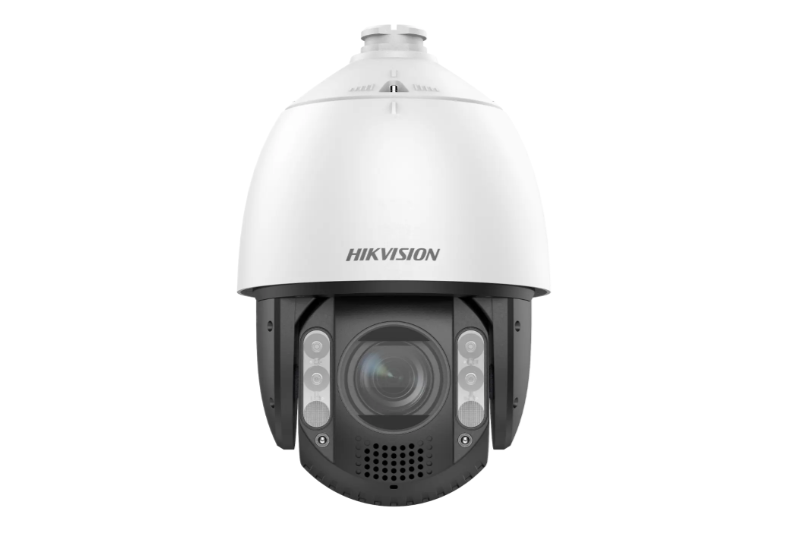

Hikvision DS-2DE7A412MCG-EB 4MP 7-inch 4 MP 12X ColorVu Network Speed Dome

Model: DS-2DE7A412MCG-EB

Who This Is For

For security integrators and site managers who need a single camera to cover large, poorly lit outdoor areas without sacrificing colour detail at night, the Hikvision DS-2DE7A412MCG-EB is a 4MP ColorVu speed dome built around that specific challenge. A 12X optical zoom with a focal range of 6.7mm to 80.4mm lets operators move between wide situational awareness and tight close-up detail on the same unit - covering entry points, car parks, perimeters, and loading areas without repositioning. ColorVu's 0.0005 Lux minimum illumination means colour footage is maintained in near-darkness, which matters for identifying clothing, vehicle colour, and licence plate context. The IK10-rated, IP67 housing handles exposed pole or rooftop mounting in Australian conditions from -30°C to 60°C. This is a camera specified for councils, logistics facilities, large retail centres, and industrial estates where a fixed camera simply cannot do the job.

What This Camera Actually Does

Who Buys This Model

• Logistics and Warehousing Operators: Sites with long vehicle approaches, large yards, and after-hours activity where the 12X optical zoom and 400m IR cover ground that would otherwise require 4 or more fixed cameras.
• Council and Public Space Managers: Parks, civic precincts, and transport hubs where a single PTZ with auto-tracking can follow incidents across a wide area and maintain colour identification overnight via ColorVu.
• Industrial Site Security Teams: Manufacturing plants and mining support facilities running 24-hour operations where IK10 vandal resistance and a -30°C to 60°C operating range are baseline requirements for exposed outdoor mounting.
• Large Retail and Commercial Centre Installers: External car parks and loading areas where line crossing and intrusion detection provide after-hours perimeter alerts without requiring continuous operator monitoring.
• Security Integrators Reducing Camera Count: Consultants specifying systems where a single DS-2DE7A412MCG-EB on a pole replaces multiple fixed cameras, reducing cabling runs and NVR channel usage across a wide outdoor zone.

Honest Assessment

The DS-2DE7A412MCG-EB delivers where wide-area outdoor coverage and colour night imaging need to come from one device. The 1/1.8" sensor is meaningfully larger than the 1/2.8" sensors common in entry-level PTZ units, and that translates directly into better low-light performance. ColorVu's 0.0005 Lux colour threshold, combined with 400m IR reach and 12X optical zoom, gives this camera genuine utility on large sites where other models run out of reach or switch to monochrome too early. The IK10 housing makes it appropriate for locations where tampering is a realistic risk.

Where it has limits: this is not a substitute for dedicated ANPR - licence plate capture at speed requires purpose-built ANPR cameras and specific positioning. Two-way audio is also not confirmed as no built-in speaker is specified. At 3.3kg, mounting structure needs to be planned for. Supplied by Security Australia, the DS-2DE7A412MCG-EB is best suited to professional installation on prepared infrastructure rather than basic DIY setups.

Before You Buy

Quick Fit Check

• Good match if: You need a single camera to cover a large outdoor area at night in colour - the ColorVu sensor and 400m IR make this viable for car parks, yards, and open perimeters where fixed cameras would require multiple positions.
• Good match if: Your site requires active incident tracking without a dedicated operator - the auto-tracking function follows moving subjects automatically once triggered, keeping subjects in frame across the PTZ's full pan and tilt range.
• You may need a different model if: Your primary requirement is high-accuracy licence plate capture on vehicles moving through an entry lane - a dedicated ANPR camera with fixed focal length and optimised IR is a more reliable fit for that specific task; browse the ANPR range on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need colour night imaging combined with long-range IR and optical zoom on a single PTZ - the 1/1.8" ColorVu sensor and 400m IR range is a meaningful step up from standard-sensor PTZ units in genuine low-light outdoor environments.
• You may need a different model if: Your site requires wide-area simultaneous coverage from a fixed position without blind spots during PTZ movement - a multi-sensor panoramic camera covers 180 or 360 degrees all at once without the rotation gap a PTZ creates during tracking.
• Pairs well with: A compatible Hikvision NVR with PTZ control support and sufficient storage for 4MP continuous recording across multiple channels.

Common Questions

1. Does this camera produce colour footage at night or does it switch to black and white?

   Yes, it produces colour footage in near-darkness. ColorVu technology with a 1/1.8" sensor achieves a minimum colour illumination of 0.0005 Lux - that is well below the threshold at which standard cameras switch to monochrome. In practice, across a lit car park or a yard with any ambient light source, the DS-2DE7A412MCG-EB will retain colour. At 0 Lux with supplemental light active, the sensor still captures usable imagery.

2. What is the actual optical zoom ratio and what does it mean for how far away I can identify a person?

   The optical zoom is 12X, covering a focal range of 6.7mm to 80.4mm. At the wide end, the horizontal field of view is 51.5 degrees - suitable for situational awareness across a large open area. At the telephoto end, the horizontal FOV narrows to 7.9 degrees, which allows detail capture at significant range. The 4MP sensor at maximum zoom provides meaningful subject detail at distances that would reduce a 2MP image to an unusable smear. Exact identification distance depends on scene lighting and subject size.

3. Will this camera work for licence plate capture on vehicles entering a car park?

   Not as a primary ANPR solution. While the 12X zoom and 4MP resolution can capture a vehicle at distance in good conditions, reliable licence plate reading on moving vehicles requires a dedicated ANPR camera with a fixed focal length lens, narrow field of view, and high-speed shutter optimised for that task. This camera is better suited to wide-area coverage and tracking than fixed-point ANPR at a controlled entry lane.

4. How does auto-tracking work and can it be turned off when not needed?

   Yes, auto-tracking can be toggled. When active, the camera detects a moving object and the PTZ mechanism follows that object as it moves through the scene, keeping it in frame without manual joystick input. This is useful for unmanned overnight monitoring. When disabled, the camera operates from preset positions or manual control only. For sites with scheduled patrol patterns during business hours and auto-tracking after hours, both modes can be configured independently through the camera's interface or a compatible NVR.

5. Does this camera support PoE and will a standard PoE switch be sufficient?

   Yes, PoE is supported via Hi-PoE. Standard Hi-PoE delivers up to 42 W, which is the rated input for this unit. However, under full operating load - IR illumination active, PTZ motors running, zoom engaged - the actual draw should be verified against the switch's per-port budget. If your installation uses a managed PoE switch with per-port power monitoring, confirm the port can sustain consistent output. Where power stability is a concern, 24 VAC from a local transformer is the more straightforward option. The DS-2DE7A412MCG-EB is available through Security Australia with full specifications for pre-installation planning.

6. What is the pan and tilt range on this speed dome?

   This is a 7-inch network speed dome. Speed dome models of this type typically support 360-degree continuous pan and a tilt range that allows the camera to look from horizontal down to near-vertical depending on the scene. Exact pan speed and tilt limits for the DS-2DE7A412MCG-EB should be confirmed against the Hikvision product datasheet - the confirmed specifications in the listing do not include a published pan/tilt degree range, so confirm this before specifying for applications where tilt angle to ground level is critical.

7. Does this camera have two-way audio?

   No. The DS-2DE7A412MCG-EB has a built-in microphone for audio capture, but no built-in speaker is confirmed in the specifications. That means audio can be recorded, but audio output from the camera itself is not available. If you need to broadcast warnings or communicate through the camera, a PTZ model with a confirmed integrated speaker would be required.
