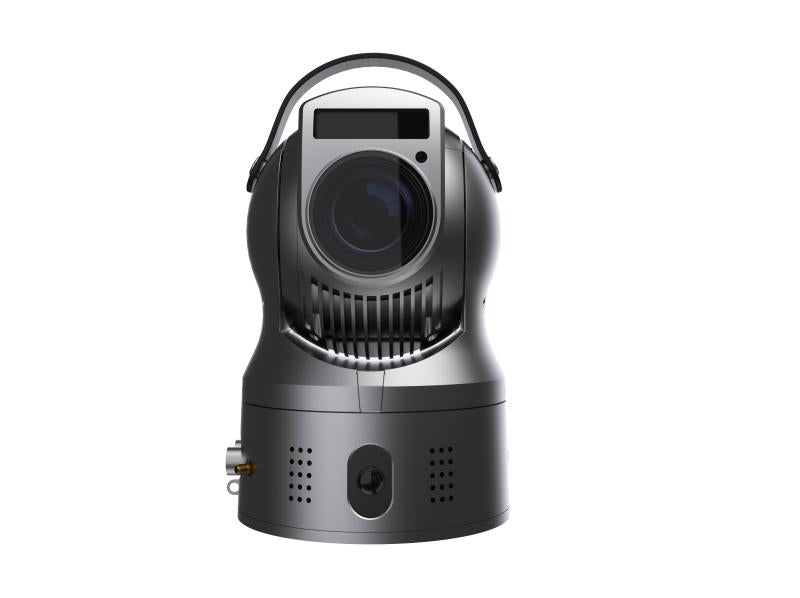

Hikvision iDS-MCD402-E | 4G Dual-lens ANPR Portable Speed Dome with 36× Zoom & AI Detection

Model: iDS-MCD402-E

Who This Is For

For traffic management teams, infrastructure contractors, and law enforcement agencies who need ANPR and PTZ capability at locations where fixed network infrastructure is not available. The Hikvision iDS-MCD402-E is a portable 4G speed dome built around two distinct problems: capturing usable number plate images at distance while simultaneously providing wide-area situational awareness with 36x optical zoom - all over a cellular data link. Because it operates over 4G rather than a fixed LAN, it suits temporary deployments such as roadworks corridors, event perimeters, border crossing checkpoints, and remote construction sites that change location regularly. The dual-lens arrangement keeps the ANPR capture feed and the PTZ observation feed independent, so operators are not forced to choose between plate acquisition and scene coverage. DarkFighter technology extends usable low-light performance into conditions where standard sensors struggle.

What This Camera Actually Does

Who Buys This Model

• Traffic Management Contractors: Deploying temporary ANPR at roadworks sites where a fixed network connection is unavailable and the camera location changes as works progress along the corridor.
• Local Councils and Road Authorities: Running mobile enforcement operations that need verified number plate capture with simultaneous PTZ observation at school zones, construction zones, or event-day road closures.
• Event Security Managers: Monitoring vehicle access points at large outdoor events or festivals where no fixed CCTV infrastructure exists and the setup must be operational within hours of arrival on site.
• Mining and Resource Site Operators: Monitoring remote access roads and gate points where fibre or fixed LAN is not installed and 4G coverage is the only available connectivity option.
• Law Enforcement and Tactical Units: Requiring rapidly deployable ANPR with PTZ capability for surveillance operations at locations that cannot be pre-wired and where the unit may need to be relocated at short notice.

Honest Assessment

The iDS-MCD402-E solves a specific and difficult problem: delivering both ANPR and long-range PTZ observation from a single portable unit with no fixed network dependency. The dual-lens design is a genuine engineering advantage - it avoids the compromise that single-lens ANPR PTZ units face when an operator needs to track a subject while simultaneously capturing plates on approaching vehicles. DarkFighter performance gives the unit meaningful overnight capability without the plate washout risk of saturating IR. The 36x optical zoom provides real identification reach from a single mounting point. What this unit will not do is replace a fixed multi-camera ANPR gantry system on a permanent high-volume thoroughfare - where sustained throughput, redundancy, and integration with fixed traffic management systems are the priority, a fixed-infrastructure ANPR solution available through Security Australia will serve better. 4G data plan costs and cellular coverage quality at the deployment site are also real operational factors that need to be confirmed before specifying this unit.

Before You Buy

Quick Fit Check

• Good match if: Your deployment site has no fixed network infrastructure and you need ANPR with simultaneous PTZ coverage - the 4G connectivity and dual-lens design are built precisely for this scenario.
• Good match if: Your monitoring point moves regularly across different sites - the portable form factor combined with 4G means the unit can be redeployed without new cabling or network provisioning at each location.
• You may need a different model if: You need permanent high-volume ANPR on a fixed infrastructure site with multi-lane throughput and integration into a wider traffic management platform - a fixed-mount ANPR camera system will be more appropriate for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need ANPR and PTZ from a single portable unit over 4G with no fixed network - no other configuration achieves all three requirements simultaneously.
• You may need a different model if: Your application is a permanent, fixed-infrastructure ANPR installation with high-volume multi-lane throughput - a dedicated fixed-mount ANPR camera system will deliver better sustained accuracy and integration for that scenario.
• Pairs well with: A 4G-capable NVR or cloud VMS platform that accepts direct device connection without requiring a local network recorder on site.

Common Questions

1. Does this camera work without a Wi-Fi network or fixed internet connection on site?

   Yes. The iDS-MCD402-E connects via 4G cellular, so no on-site Wi-Fi, LAN, or fibre connection is required. You insert a SIM card from a 4G carrier with suitable data coverage at the deployment location. Remote access to live feeds and ANPR event data is then available over the cellular link from any authorised device.

2. Will this camera read number plates at night without additional lighting?

   Yes, to a practical degree. DarkFighter sensor technology is engineered for usable colour imaging in low ambient light conditions. For ANPR specifically, dedicated ANPR lenses typically incorporate their own near-infrared illumination optimised for plate capture without washing out the image - confirm the specific IR arrangement in the product datasheet to match it to your site lighting conditions.

3. What vehicle approach speeds does the ANPR support, and does it work on free-flowing traffic?

   This is a critical specification to confirm against your deployment scenario. ANPR systems have rated capture speed ranges - typically expressed in km/h - and performance differs significantly between controlled low-speed approaches (site entry gates, parking barriers) and free-flow traffic on open roads where vehicles may approach at 80 km/h or more. The iDS-MCD402-E is positioned as a portable deployment unit, which commonly suits controlled-approach applications. Contact Security Australia to confirm the rated capture speed range and whether your specific approach condition falls within it before specifying this unit for high-speed free-flow environments.

4. How does the dual-lens design actually work - do both lenses record simultaneously?

   Yes. The dual-lens architecture runs both the ANPR capture lens and the PTZ observation lens as independent, simultaneous streams. The ANPR lens holds a fixed field of view optimised for plate acquisition while the PTZ lens can pan, tilt, and zoom independently to track subjects or survey the broader scene. Neither lens interferes with the operation of the other, which is the key practical advantage over single-lens ANPR PTZ units where zooming in on a subject moves the lens away from the plate capture zone.

5. What does 36x optical zoom mean in practice for a site like this?

   36x optical zoom means the lens physically adjusts to magnify the scene 36 times without any degradation in image quality. In practical terms this allows an operator to read facial features, vehicle markings, or signage at distances that a standard fixed lens cannot reach from a single mounting point. For a portable unit covering an open road approach, construction perimeter, or remote gate, this reduces the number of camera positions needed to achieve visual identification at distance.

6. Does the ANPR processing happen on the camera itself or does it require a server?

   On-board. The iDS-MCD402-E uses edge AI processing, meaning number plate recognition runs locally on the camera's own processor. This is particularly relevant for a 4G-connected deployment - because plates are read at the device level, only event data and alerts need to be transmitted over the cellular link rather than a full raw video stream, reducing data usage and ensuring ANPR continues to function even if the 4G connection is temporarily degraded.

7. Can this camera work with watch lists to alert on specific number plates?

   Yes. The on-board AI supports watch list functionality where specific number plates can be loaded into the system and the camera triggers an alert when a matched plate is detected. This is relevant for site access control, enforcement operations, or security monitoring where known vehicles of interest need to be flagged in real time without requiring a human operator to review every plate read manually.

Downloads & Resources

No downloads available for this product.
