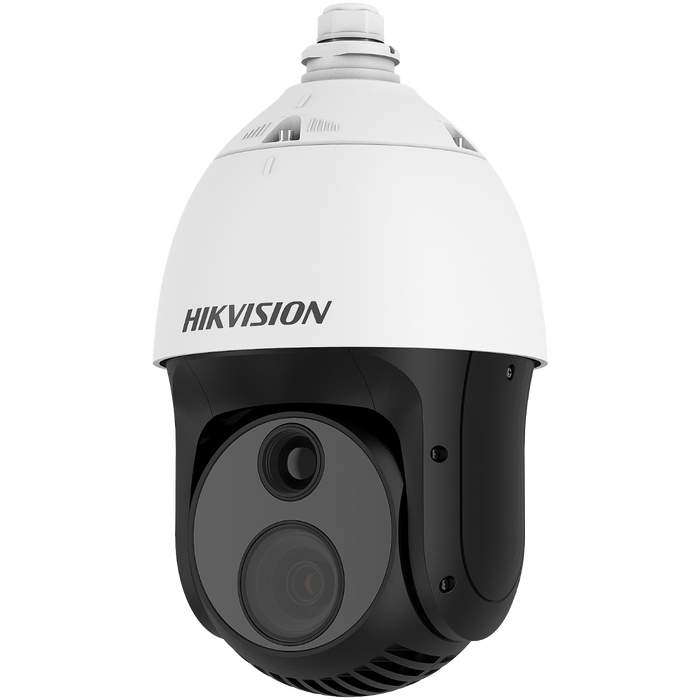

Hikvision DS-2TD4228T-10/S2 Thermal & Optical Bi-spectrum Speed Dome – Dual-Spectrum PTZ with Temperature Alarm & Fire Detection

Model: DS-2TD4228T-10/S2

Who This Is For

Property managers specifying fire detection and perimeter monitoring for high-risk outdoor environments will find the Hikvision DS-2TD4228T-10/S2 designed precisely for that brief. This bi-spectrum PTZ combines a 256x192 thermal sensor with a 2MP optical camera and 32x optical zoom in a single speed dome housing - so operators get both heat-source detection and detailed visual verification from one mounting point. The thermal channel detects elevated surface temperatures and fire signatures without relying on visible light, making it effective across day, night, fog, and smoke conditions where standard optical cameras lose performance. The 10mm thermal lens and continuous 360-degree pan coverage make it suited to wide open sites including storage yards, fuel depots, utility infrastructure, and large industrial compounds where early fire detection and automated temperature alarms need to operate around the clock.

What This Camera Actually Does

Who Buys This Model

• Fuel and chemical storage operators: Sites storing flammable liquids or gases need early fire detection before visible flame develops. The thermal sensor's temperature alarm triggers on heat sources at configurable thresholds, allowing a response before ignition becomes catastrophic.
• Utility and power infrastructure managers: Substations, transmission yards, and solar farms require monitoring of equipment for thermal anomalies such as overheating switchgear or failing cable joints - conditions the thermal channel detects without contact measurement.
• Waste management and recycling facilities: Spontaneous combustion in compacted waste or recycling stockpiles is a known risk. A thermal PTZ scanning preset positions across a yard detects subsurface heat build-up before visible smoke appears.
• Security integrators specifying remote-monitored sites: For sites monitored by a central station rather than on-site staff, automated temperature alarms with linked optical zoom verification reduce false alarm dispatches and deliver actionable alerts to monitoring operators.
• Port and logistics terminal operators: Large open yards with vehicle movement, container storage, and equipment require wide-area coverage. The continuous pan and 32x optical zoom allow a single camera to cover approaches, verify incidents, and monitor equipment bay temperatures.

Honest Assessment

The DS-2TD4228T-10/S2 does two things well that no single-sensor camera can replicate: it detects heat sources and fire signatures through conditions that defeat optical cameras, and it combines that detection with 32x optical zoom for immediate visual confirmation - from one housing, one cable run, one NVR channel pair. The temperature alarm configuration gives operators genuine automated monitoring capability rather than passive recording. For industrial fire risk management and perimeter monitoring on large open sites, this is a technically sound choice. Where it will not serve well: it is not a cost-effective substitute for conventional PTZ cameras on sites with no fire risk or temperature monitoring requirement. The thermal sensor resolution of 256x192 is appropriate for detection and alarm functions but does not produce identification-quality imagery - the optical channel handles that role. Budget accordingly for compatible PoE+ infrastructure or 24VAC power supply. Available through Security Australia with full Hikvision warranty coverage.

Before You Buy

Quick Fit Check

• Good match if: You need automated fire or temperature alarm monitoring on an industrial site and want optical zoom verification built into the same unit - the dual-sensor design handles both functions without separate camera positions.
• Good match if: Your site has wide-open areas requiring pan/tilt coverage and the threat profile includes heat sources, spontaneous combustion risk, or equipment thermal anomalies that an optical camera cannot detect in darkness or low-visibility conditions.
• You may need a different model if: Fire detection is not a requirement and you simply need wide-area PTZ coverage - a standard optical PTZ camera will deliver higher optical resolution and significantly lower cost per camera position. Browse the PTZ range at securityaustralia.com.au to compare optical-only options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires automated fire detection, temperature alarm monitoring, and optical verification from a single camera position - no optical-only PTZ combines those capabilities.
• You may need a different model if: Fire and temperature monitoring are not requirements. A standard optical PTZ will provide higher visible-light image quality and lower total cost per position for general-purpose pan/tilt surveillance. Browse the optical PTZ range at securityaustralia.com.au for a direct comparison.
• Pairs well with: A compatible Hikvision NVR with sufficient channel capacity to record both the thermal and optical streams simultaneously, plus a PoE+ managed switch or 24VAC power supply matched to the camera's power draw at maximum zoom speed.

Common Questions

1. Will this camera detect a fire in complete darkness?

   Yes. The thermal sensor operates entirely independently of visible light, detecting heat signatures and fire events based on surface temperature rather than reflected light. This means fire detection performance does not degrade at night, in fog, or in conditions where smoke has already reduced optical camera visibility to nil.

2. What is the temperature measurement range and how accurate is it?

   The thermal sensor measures surface temperatures from -20°C to +550°C. This range covers most industrial monitoring requirements from cold-environment equipment checks through to high-temperature process monitoring. Temperature alarm thresholds are configurable per defined zone within the camera's field of view, allowing tailored alarm rules for different areas within the same scene.

3. Does the thermal sensor produce identification-quality images?

   No. The thermal channel resolution of 256x192 is optimised for detection and alarm - it will show the presence, location, and relative heat intensity of a source, but does not produce images suitable for identifying faces, number plates, or fine detail. That function is handled by the 2MP optical channel with 32x zoom, which is designed to work in conjunction with the thermal alarm to deliver visual verification once a heat event is flagged.

4. What does NETD ≤40mK mean in practical terms?

   NETD (Noise Equivalent Temperature Difference) is the smallest temperature difference the sensor can reliably distinguish from background thermal noise. At ≤40mK, the DS-2TD4228T-10/S2 can detect temperature differences of less than 0.04°C between adjacent objects. In practical terms, this means the camera can resolve subtle heat variations - such as a warm object moving through a cooler environment - that a less sensitive sensor would display as noise rather than a usable signal.

5. Does this camera work with a standard PoE switch?

   No. The DS-2TD4228T-10/S2 requires PoE+ (IEEE 802.3at), which delivers up to 30W per port. Standard PoE (IEEE 802.3af) provides a maximum of 15.4W, which is insufficient to power the pan/tilt mechanism and dual-sensor operation simultaneously. Confirm your switch or midspan injector is 802.3at rated before installation, or use 24VAC power at the camera end for longer cable runs where voltage drop on PoE could be a concern.

6. How many NVR channels does this camera use?

   2 channels - one for the thermal stream and one for the optical stream. If your NVR is near capacity on an existing system, add 2 channels per DS-2TD4228T-10/S2 installed. Also account for the increased bandwidth demand of dual concurrent streams when checking your NVR's maximum incoming bandwidth specification. The team at Security Australia can help confirm NVR compatibility before you commit to a configuration.

7. Does this work for perimeter detection as well as fire monitoring?

   Yes. The thermal channel detects the heat signature of people and vehicles against cooler backgrounds regardless of lighting conditions, making it effective for perimeter intrusion detection at night or in environments where visible-light cameras are unreliable. The PTZ functionality allows the camera to respond to alarm events by moving to a preset or tracking a detected heat source, with the optical zoom used for visual confirmation of any intrusion detected by the thermal sensor.

Downloads & Resources

No downloads available for this product.
