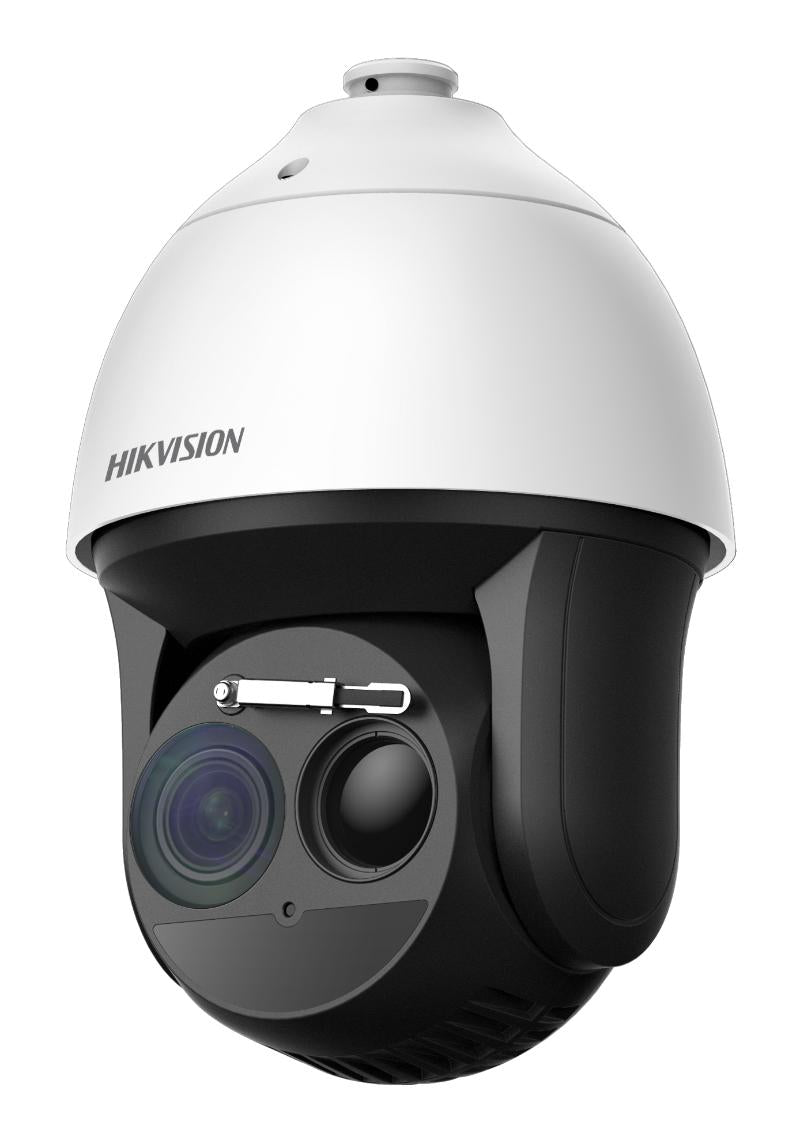

Hikvision DS-2TD4167-50/WY Anti‑corrosion Thermal & Optical Bi-spectrum Network Speed Dome

Model: HM-TD4167-50/WY

Who This Is For

For security engineers and project managers who need continuous wide-area thermal surveillance in demanding outdoor environments - particularly coastal, marine, petrochemical, or industrial sites where corrosion is an active concern. The Hikvision DS-2TD4167-50/WY is a bi-spectrum PTZ speed dome that pairs a 640x512 uncooled thermal sensor with a 50mm thermal lens alongside an optical visible-light channel, giving operators the ability to detect heat signatures and visually verify in the same unit. The anti-corrosion housing makes it a practical fit for port facilities, offshore platforms, water treatment plants, and coastal perimeter monitoring where standard housings deteriorate rapidly. If your site requires reliable after-dark detection across long distances without dependence on ambient light, and where salt air or chemical exposure rules out standard-grade cameras, this is the model worth evaluating.

What This Camera Actually Does

Who Buys This Model

• Port and maritime security operators: Need perimeter detection in salt-laden air across long unlit waterfront approaches where standard cameras corrode and lose night performance within 12-18 months.
• Petrochemical and oil and gas facility managers: Require fire and smoke detection with temperature measurement across large outdoor process areas where conventional smoke detectors have no practical coverage.
• Critical infrastructure protection teams: Specifying thermal PTZ units for water treatment plants, power substations, or utility corridors where after-dark detection must function regardless of lighting or weather conditions.
• Remote asset and rural property operators: Monitoring large unfenced perimeters, forestry assets, or rural infrastructure where thermal detection range from a single PTZ position replaces multiple fixed cameras.
• Security integrators on government and defence contracts: Specifying bi-spectrum PTZ systems where a single unit must deliver thermal detection, optical verification, and corrosion-resistant housing from one mounting point.

Honest Assessment

The DS-2TD4167-50/WY does two things particularly well: it detects human and vehicle heat signatures in conditions that defeat standard cameras, and it does so from a housing built to survive corrosive environments that would degrade a conventional PTZ within a short service life. The 50mm thermal lens delivers meaningful detection range for wide perimeter work, and the bi-spectrum design means operators get both detection sensitivity and visual confirmation from the same unit without a secondary camera. What this camera will not do is provide facial identification or fine optical detail at long range - thermal imaging shows heat profiles, not recognisable faces or licence plates. For high-resolution optical zoom on moving subjects, a standalone optical PTZ camera will outperform the optical channel in this unit. Budget-conscious projects also need to account for the price premium a bi-spectrum anti-corrosion PTZ carries over a standard IP speed dome. This model is available through Security Australia and suits sites where the operating environment genuinely demands this specification level.

Before You Buy

Quick Fit Check

• Good match if: Your site is in a coastal, marine, or chemically corrosive environment and you need thermal perimeter detection from a PTZ that can mechanically steer to cover a wide area from a single mounting point.
• Good match if: Your application requires fire and smoke detection or temperature measurement across a large outdoor zone - such as an industrial yard, open storage facility, or bushland perimeter - where point detectors provide no practical coverage.
• You may need a different model if: Your priority is high-resolution optical zoom for licence plate capture or facial identification at distance - a dedicated optical PTZ with high zoom ratio and ANPR analytics will serve that requirement better than a bi-spectrum thermal unit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site is in a corrosive environment and requires thermal-based detection across a wide outdoor area, with the ability to pan and tilt to cover multiple zones from a single camera position.
• You may need a different model if: Your primary goal is high-optical-zoom tracking of vehicles or people for identification purposes - a dedicated optical PTZ with a high-ratio zoom lens and ANPR or facial detection analytics will deliver sharper identification capability than the optical channel in a bi-spectrum thermal unit.
• Pairs well with: A compatible Hikvision NVR or VMS platform with sufficient channel licences and decoding capacity to handle dual-stream bi-spectrum recording, plus a PoE+ managed switch rated for outdoor or cabinet installation at the camera run distance.

Common Questions

1. Does this camera work in complete darkness with no lighting installed?

   Yes. The thermal channel detects heat radiation emitted by people, vehicles, and objects and does not require any ambient light, artificial illumination, or IR LEDs to produce a usable detection image. In total darkness the 640x512 thermal sensor continues to function at the same detection capability as daylight conditions - unlike standard CCTV cameras that rely on reflected light or active IR illumination to see anything.

2. Will this camera work in a coastal or salt-air environment long term?

   Yes, specifically because of the /WY anti-corrosion housing designation. Standard PTZ camera housings use materials that degrade in sustained salt-spray exposure - seals fail, metal components corrode, and optical surfaces deteriorate. The anti-corrosion specification on this model addresses the material and sealing requirements for coastal, marine, and chemically aggressive environments, making it a practical long-term installation choice where a standard housing would not last.

3. What does NETD ≤40mK mean and why does it matter for detection?

   NETD (Noise Equivalent Temperature Difference) is the thermal sensor's sensitivity rating - it represents the smallest temperature difference the sensor can resolve against background noise. At ≤40mK, the DS-2TD4167-50/WY can distinguish a target that is just 0.04 degrees Celsius warmer than its surroundings. In practical terms, this translates to reliable detection of human and vehicle heat signatures even when ambient temperature is close to body temperature - conditions where less sensitive thermal sensors produce noisy, unreliable images.

4. Does this camera require PoE+ or will a standard PoE switch port work?

   No, standard PoE (IEEE 802.3af, 15.4W maximum) is not sufficient for this unit. The DS-2TD4167-50/WY requires PoE+ (IEEE 802.3at, up to 30W) as a minimum to power both the thermal sensor, optical channel, and PTZ motor drive simultaneously. Some installations use 24VAC or HiPoE supply instead. Using an under-powered PoE port will result in the camera failing to initialise or operating erratically - confirm your switch port specification before planning cable runs.

5. Can the thermal fire detection analytics replace traditional smoke or heat detectors on site?

   No - and this is an important distinction. The thermal fire and smoke detection analytics in this camera are designed for open outdoor areas where fixed-point detectors are impractical, such as large storage yards, waste facilities, or bushland perimeters. They are not a certified replacement for AS 1670-compliant fire detection systems within buildings or structures. The camera provides early visual and thermal warning of developing fire conditions in outdoor zones; it operates alongside, not instead of, any required building fire detection and alarm infrastructure.

6. How many NVR channels does a bi-spectrum camera like this consume?

   2 channels minimum - one for the thermal video stream and one for the optical video stream. Some VMS platforms count each stream as a separate channel licence; others handle bi-spectrum units differently depending on the software version. Before specifying NVR capacity for a deployment that includes this camera, confirm with your VMS supplier exactly how dual-stream bi-spectrum cameras are counted in your chosen platform. Storage planning also needs to account for both streams running at your chosen resolution and frame rate. The stocked by Security Australia range includes compatible Hikvision NVR platforms that support bi-spectrum camera management natively.

7. What is the pan and tilt range, and can preset positions be programmed?

   Yes, preset positions can be programmed. The DS-2TD4167-50/WY supports 360-degree continuous pan with no hard stop, meaning it can track movement around a full perimeter without reversing direction. The motorised tilt covers the range expected of a speed dome class unit. Preset positions allow operators to steer the camera instantly to defined locations - such as gate entrances, fence lines, or equipment areas - via the control interface or automated patrol tours, which is how a single camera position manages wide-area coverage efficiently.
