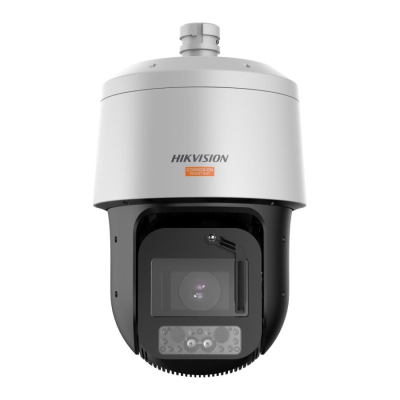

Hikvision DS-2DT8C442MXG-LWT 4MP PTZ Dome Camera, Anti-Corrosion Polymer Hybrid Light, 42x Zoom, 36 VDC

Model: DS-2DT8C442MXG-LWT

Who This Is For

For infrastructure security managers and integrators who need a single camera to cover long distances across wide, open sites without installing multiple fixed positions - the DS-2DT8C442MXG-LWT is built for exactly that job. With 42x optical zoom, up to 500m IR range, and an anti-corrosion polymer housing rated to IP67 and NEMA4X, this PTZ dome is specified for demanding environments where standard cameras simply don't reach: river monitoring installations, rail corridors, airports, port precincts, and large urban open spaces. The 36 VDC power requirement means it suits infrastructure cabling where 12V or PoE+ is not available. Operators get intelligent analytics including line crossing and intrusion detection, EIS for stable imagery during movement, and 120dB WDR to handle the mixed lighting conditions common on large open sites. This is a project-grade camera for integrators and end-users who know exactly what the site demands.

What This Camera Actually Does

Who Buys This Model

• Port and Maritime Security Teams: The anti-corrosion polymer housing and NEMA4X rating make this a realistic long-term choice for wharves and coastal perimeters where salt air rapidly deteriorates standard metal-housing PTZs.
• Rail and Transport Infrastructure Integrators: Specifying a 42x zoom with 500m IR on corridor approaches allows a single camera position to monitor long sections of track or access road without multiple fixed camera installations.
• Airport and Airfield Security Managers: Wide-area perimeter monitoring with intelligent intrusion detection analytics and EIS suits high-wind pole-mount installations at airfield boundaries where stable imagery at high zoom is operationally essential.
• Waterway and Utilities Monitoring Operators: River crossings, dam sites, and utility easements with no PoE infrastructure benefit from the 36 VDC power input and long IR range for unmanned remote monitoring.
• Project Integrators Specifying against NEMA4X Requirements: Where a tender or site specification explicitly calls for NEMA4X environmental rating on PTZ equipment, this model is one of the few in its class to confirm that rating.

Honest Assessment

The DS-2DT8C442MXG-LWT does a specific job well: long-range PTZ coverage in environments that would corrode or overwhelm a standard housing. The combination of 42x optical zoom, 500m IR, DarkFighter low-light performance, and IK10 impact resistance in a NEMA4X-rated polymer dome is not commonly available in a single unit, and that makes it genuinely useful for infrastructure, port, and corridor applications where site conditions are harsh and coverage distances are large. H.265 compression also keeps recording storage manageable given the 4MP resolution and typical continuous-record requirements on these site types. What it will not do is replace a multi-sensor panoramic camera where 360-degree simultaneous coverage without operator pan control is the priority - a fisheye or multi-sensor unit serves that use case better. It also requires 36 VDC power, so existing PoE-only switch infrastructure will not run this camera. Available through Security Australia, it is a project-specification product suited to integrators rather than a plug-and-play consumer install.

Before You Buy

Quick Fit Check

• Good match if: Your site is a coastal, port, or chemical-adjacent environment where standard aluminium-housing PTZs have corroded prematurely - the anti-corrosion polymer housing and NEMA4X rating directly address that failure mode.
• Good match if: You need to monitor a long corridor, river bank, or perimeter approach from a single camera position - the 42x optical zoom and 500m IR range give genuine identification capability at distances most PTZs cannot reach.
• You may need a different model if: Your requirement is simultaneous 360-degree coverage without an operator actively controlling pan and tilt - a multi-sensor panoramic or fisheye camera delivers full-perimeter awareness without relying on preset patrol patterns or manual PTZ operation.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site is corrosive or exposed and requires NEMA4X-rated housing alongside long-range PTZ capability that standard outdoor PTZs with aluminium housings cannot sustainably provide.
• You may need a different model if: The priority is simultaneous full-perimeter awareness without PTZ control dependency - a multi-sensor panoramic camera provides all-direction live coverage in a single field of view without requiring patrol presets or operator intervention.
• Pairs well with: A dedicated 36 VDC power supply unit and a network video recorder with adequate channel capacity and storage for continuous 4MP H.265 recording across the expected retention period.

Common Questions

1. Does this camera work on a standard PoE network switch?

   No. The DS-2DT8C442MXG-LWT requires 36 VDC power and is not compatible with PoE or PoE+ switches. A dedicated 36 VDC power supply must be run to the mounting location. This is standard for heavy-duty PTZ cameras of this class, but it is a critical infrastructure planning point - confirm your site power provision before specifying this unit.

2. Will the 42x optical zoom actually deliver usable footage at long range, or does image quality drop off?

   Yes, the 42x zoom is optical - not digital - meaning image quality is maintained at full zoom using the 1/1.8" CMOS sensor at 4MP resolution. Digital zoom degrades quality by cropping and interpolating a lower-resolution source. At maximum optical zoom on this camera, you are still using the full sensor resolution, which is why it is suited to identification tasks at distance rather than just general scene awareness.

3. Does this camera work in very cold or hot environments?

   Yes. The confirmed operating temperature range is -30°C to +60°C, which covers the most demanding Australian climate conditions - from alpine sites in winter to exposed industrial rooftop installations in summer. No additional heating or cooling accessories are required within that range.

4. What does the IK10 rating mean in practice for a PTZ dome this size?

   IK10 is the highest impact resistance rating under the IEC 62262 standard, confirming the housing can withstand a 20-joule impact. For a camera installed in a public or semi-public area, this means the dome cover and housing are significantly more resistant to deliberate interference or accidental impact than an unrated unit. Combined with IP67 ingress protection, it confirms the housing is built for exposure rather than shelter.

5. How does the PTZ patrol and preset system work - does it require constant operator control?

   No. The camera supports configurable preset positions and automated patrol routes, meaning it cycles through defined positions without requiring an operator at the controls. Analytics such as line crossing and intrusion detection can also trigger the camera to move to a specific preset when an event is detected. Effective deployment requires those presets and patrol routes to be configured during commissioning - the camera does not self-configure coverage patterns.

6. Does the electronic image stabilisation make a real difference at high zoom ratios?

   Yes, particularly from 20x zoom upward where small physical vibrations become visually significant. EIS applies digital compensation to counteract frame movement caused by wind load, pole flex, or structural vibration. Without EIS at 42x optical zoom on an exposed mast, footage would be effectively unusable during moderate wind. The tradeoff is a small reduction in field of view as the EIS needs image margin to work with - this is a standard characteristic of electronic stabilisation.

7. Is the anti-corrosion polymer housing actually rated for coastal and chemical environments, or is it a marketing term?

   The NEMA4X rating is a confirmed, independently defined standard - not a marketing description. NEMA4X specifically requires protection against corrosion in addition to the ingress and washdown requirements of standard NEMA4. That makes it a confirmed baseline for coastal salt air and many industrial chemical environments. For highly aggressive chemical exposure beyond general corrosive atmospheres, always verify the specific chemical compatibility with the manufacturer for your site conditions.

8. What storage and bandwidth should I plan for with 4MP H.265 continuous recording?

   H.265 compression reduces bitrate by approximately 50% compared to H.264 at equivalent quality settings, which is a meaningful saving at 4MP continuous resolution. Actual storage requirements depend on scene complexity, frame rate, and bitrate settings configured in your NVR. As a planning baseline, budget approximately 40-70 GB per camera per day for 4MP H.265 at standard quality - but calculate this precisely using your NVR's storage estimator with your specific frame rate and quality settings. This camera is part of the Security Australia range and is compatible with Hikvision NVR systems that support H.265 decoding.
