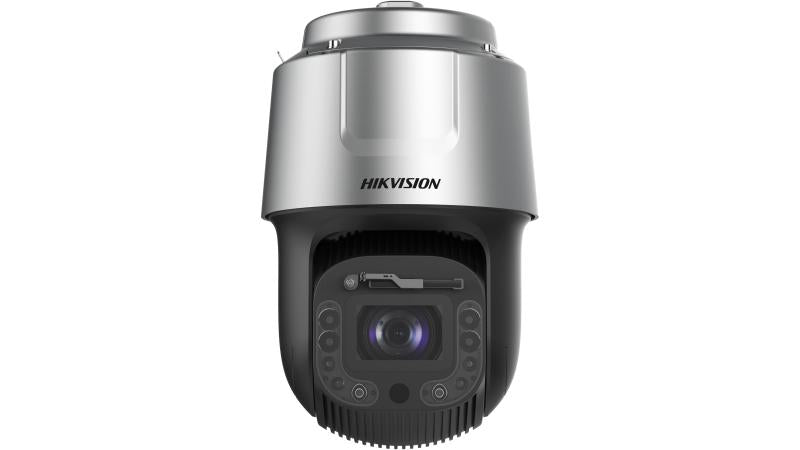

Hikvision DS-2DF8C442IXG-ELW 8C Series 4MP 42X DarkFighter IR Network Speed Dome PTZ

Model: DS-2DF8C442IXG-ELW

Who This Is For

For integrators and security managers who need to cover large open areas from a single camera position without sacrificing image detail, the Hikvision DS-2DF8C442IXG-ELW is a long-range PTZ built for demanding outdoor installations. The 42x optical zoom combined with a 1/1.8" DarkFighter sensor and 400 m IR range makes it a serious tool for monitoring perimeters, transport corridors, car parks, and open public spaces where fixed cameras simply cannot follow an incident as it develops. The IP67 and IK10 ratings mean it handles coastal exposure, industrial dust, and deliberate interference without degradation. Installers specifying sites like airports, rail precincts, large retail centres, ports, or council infrastructure will find that this camera's PTZ capability - 360-degree pan, auto-flip tilt, 300 presets, and face capture - replaces multiple fixed cameras and supports the kind of active monitoring that static systems cannot provide.

What This Camera Actually Does

Who Buys This Model

• Council and Infrastructure Managers: Specifying single-point coverage across parks, public plazas, or transit hubs where the 360-degree pan and 300 presets allow one device to cover what would otherwise require a fixed camera array.
• Port and Logistics Integrators: Installing perimeter surveillance along long fence lines or loading corridors where the 400 m IR range and 42x optical zoom allow meaningful detail capture after dark without supplementary lighting.
• Transport and Road Authority Contractors: Deploying along arterial roads, rail precincts, or interchange points where vehicle detection and the narrow field of view at full zoom support incident response and vehicle tracking.
• Airports and Large Venue Operators: Running active monitoring control rooms where face capture automates the flagging of persons of interest across large pedestrian flows, reducing operator workload during peak hours.
• Industrial Site Security Teams: Installing on process facilities, mine sites, or power infrastructure where IP67 and IK10 ratings are mandatory and long-range visibility across open ground is a core operational requirement.

Honest Assessment

The DS-2DF8C442IXG-ELW delivers genuinely capable long-range PTZ performance. The combination of a 1/1.8" DarkFighter sensor, F1.2 aperture, 42x optical zoom, and 400 m IR puts it in a category where most competing units either sacrifice low-light performance or zoom range to hit a price point. For active monitoring applications - where an operator or VMS needs to follow an incident across a large area in real time - this camera earns its place. The IK10 and IP67 ratings are legitimate, not nominal, and the 300-preset capacity is practical in multi-operator control room deployments. What it will not replace is a multi-sensor panoramic camera or a fixed wide-angle array where continuous full-scene recording across all angles simultaneously is the primary requirement. A PTZ, by nature, only captures detail in the direction it is pointing. If your brief requires both active tracking and continuous wide-area recording, pair this with fixed wide-angle cameras. The DS-2DF8C442IXG-ELW is available through Security Australia for integrators and end users.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a large open area - car park, perimeter fence line, or public space - from a single elevated position and require both wide situational awareness and the ability to zoom in on specific incidents in real time using 42x optical zoom.
• Good match if: Your installation is unlit or partially lit at night and you cannot add supplementary lighting - the DarkFighter sensor at 0.001 Lux colour sensitivity and 400 m IR range provide actionable footage in near-zero ambient light conditions.
• You may need a different model if: Your primary requirement is continuous panoramic recording across a full 180-degree or 360-degree scene simultaneously - a multi-sensor panoramic camera will deliver always-on wide coverage that a PTZ cannot replicate, and Security Australia stocks panoramic models suited to that use case.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active operator-controlled or VMS-driven tracking across a large area with genuine detail retrieval at range - the 42x optical zoom and 400 m IR is a specific capability that lower-tier PTZ units do not match.
• You may need a different model if: Your site requires continuous simultaneous recording of all angles at all times - a multi-sensor panoramic camera captures the full scene passively without depending on where the camera is currently pointing, which is a fundamentally different use case.
• Pairs well with: Fixed wide-angle turret or bullet cameras to provide constant scene context while this unit handles active tracking and zoomed detail capture - a common pairing on large outdoor sites.

Common Questions

1. What is the pan and tilt range on the DS-2DF8C442IXG-ELW?

   The pan range is 360 degrees continuous with no mechanical stop, and the tilt range is -20 degrees to 90 degrees with auto-flip. Auto-flip means the camera automatically rotates 180 degrees on the pan axis when a tracked subject passes directly beneath the unit, eliminating the blind spot that affects PTZ models without this function. This makes it suitable for tracking subjects moving in any direction without manual intervention.

2. How does the 42x optical zoom perform compared to digital zoom, and when does it matter?

   Optical zoom uses the physical lens to magnify the image with no resolution loss, while digital zoom crops and enlarges the sensor output. At 42x optical, the field of view narrows from 56.6 degrees to 1.7 degrees - a significant reduction that delivers genuine detail at long distances. Digital zoom beyond this point does reduce resolution. For identification-quality footage at range, the optical zoom is doing the meaningful work. The additional 16x digital is useful for quick review but not for evidentiary-quality detail.

3. Does this camera support auto-tracking?

   The confirmed features include vehicle detection and face capture - these are detection and flagging functions. For confirmed auto-tracking behaviour specific to this model, consult the full Hikvision datasheet or contact the supplier directly, as auto-tracking implementation varies by firmware version and VMS integration. Do not assume auto-tracking is active by default based on detection capability alone.

4. Will this camera work in complete darkness without external lighting?

   Yes. The built-in IR illuminator provides 0 Lux capability at up to 400 metres, meaning the camera produces monochrome footage in total darkness at that range. For shorter distances where partial ambient light exists - street lighting, facility lighting - the DarkFighter sensor at 0.001 Lux colour and 0.0005 Lux monochrome means the camera will often retain colour detail without activating IR. The camera manages this automatically based on ambient conditions.

5. How many preset positions does the DS-2DF8C442IXG-ELW support, and how are they used in practice?

   Up to 300 preset positions can be programmed. In practice, presets store a specific pan angle, tilt angle, and zoom level so an operator or VMS can recall any defined position instantly rather than manually navigating each time. On a site with multiple areas of interest - entry points, loading areas, pedestrian zones - presets allow rapid cycling between positions during an incident, or automated patrol patterns that revisit each position on a timed sequence.

6. What power supply does this camera require?

   A high-specification speed dome of this class requires PoE+ (IEEE 802.3at, up to 30W) or a dedicated 24VAC or 12VDC power supply - the exact requirement should be confirmed against the full Hikvision datasheet for this model. Standard PoE at 802.3af (15.4W) is insufficient to power both the IR array and PTZ drive motors simultaneously. Installers should verify switch or injector output capacity and account for cable run length when calculating available power at the camera end.

7. Does the face capture function work like facial recognition?

   No. Face capture detects and extracts face images from the scene - it flags that a face is present and provides a cropped image for downstream use. Facial recognition, which matches captured faces against a database to identify individuals, is a separate function and is not confirmed for this model. Face capture feeds into VMS platforms or watchlist systems that handle the matching process, and the accuracy of any identification depends entirely on the downstream software, not the camera.

8. Is the DS-2DF8C442IXG-ELW suitable for coastal or harsh industrial environments?

   Yes, the IP67 and IK10 ratings confirm suitability for outdoor environments with full dust ingress protection, resistance to water jets, and the highest standard vandal resistance rating. For coastal installations with salt air exposure, additional corrosion protection on brackets and mounting hardware is recommended - the camera housing itself is rated for environmental ingress, but mounting hardware is often the first point of failure in marine environments. This model is part of the Hikvision 8C Series and is stocked by Security Australia for infrastructure and industrial projects.
