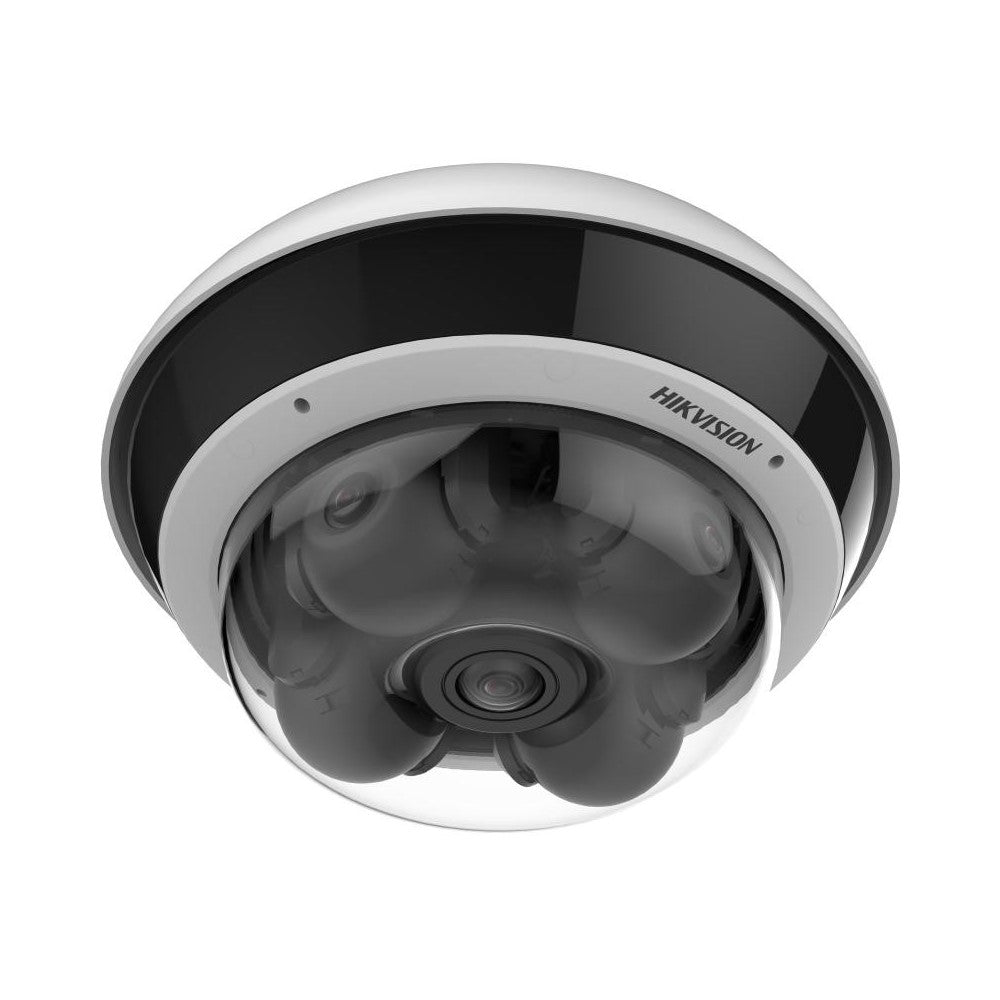

Hikvision DS-2CD6D552IZHS 5x 5MP Outdoor Multi-directional PTRZ Camera, 360 PanoVu, 2mm

Model: DS-2CD6D55G2-IZHS-8MM

Who This Is For

For security integrators and facility managers who need full 360-degree perimeter coverage from a single mounting point, the Hikvision DS-2CD6D552IZHS PanoVu Multi-directional PTRZ Camera is built to eliminate the camera-count problem on complex sites. Rather than deploying 4 separate cameras across a roofline or corner position, this unit combines 5 individual 5MP sensors into one weatherproof housing, each independently adjustable via PTRZ mechanics during installation. It suits applications where coverage planning is constrained by conduit runs, mounting positions, or budget - commercial carparks, building perimeters, school grounds, transport depots, and large retail forecourts. The PTRZ adjustment system means lens direction is locked in at commissioning rather than relying on bracket repositioning, and the IP67 and IK10-rated enclosure handles exposed outdoor placements without compromise. Sites running PoE infrastructure can power the unit from a single cable run.

What This Camera Actually Does

Who Buys This Model

• Commercial Security Integrators: Specifying a single pole-top or roofline camera to replace 3-4 discrete cameras on a carpark or building perimeter, reducing cabling runs and NVR channel usage without sacrificing resolution per direction.
• Transport and Logistics Facility Managers: Monitoring depot yards, bus terminals, or freight loading areas where multiple approach vectors need simultaneous 5MP coverage and a single conduit drop is the only practical cabling option.
• School and Campus Security Coordinators: Covering open courtyard areas, main entry forecourts, or oval perimeters where one camera position needs to watch multiple pedestrian paths and the AI classification reduces the volume of low-priority motion alerts.
• Retail Centre and Forecourt Operators: Deploying wide-area coverage at fuel canopies, service lanes, or outdoor dining precincts where a 360-degree 5MP view from a single overhead point is more practical than camera clusters on individual poles.
• Local Government and Council Infrastructure Teams: Installing on street furniture, park infrastructure, or public space poles where the IK10 rating and IP67 sealing justify use in high-exposure, low-maintenance-access positions.

Honest Assessment

The DS-2CD6D552IZHS does the specific job of wide-area multi-directional coverage from one mounting point genuinely well. Five independent 5MP sensors with individual PTRZ adjustment give integrators a level of installation flexibility that bracket-mounted camera clusters cannot match - each lens direction is locked in precisely without mechanical repositioning. The IP67 and IK10 ratings are not box-ticking specs here; they reflect a housing designed for genuinely exposed outdoor positions. The 120dB WDR on each sensor handles the kind of high-contrast outdoor lighting that commonly degrades panoramic cameras with single-sensor fisheye designs.

Where it will not serve well: at roughly 4.7kg this is not a lightweight eave or soffit camera - it needs a solid pole or structural mount. The 30m IR range per lens is adequate for general perimeter use but short for long-approach monitoring; sites needing 60m-plus coverage per direction should look at dedicated bullet or varifocal turret cameras available through Security Australia. This model also does not replace a motorised PTZ where operator-driven live tracking of a specific target is the primary requirement.

Before You Buy

Quick Fit Check

• Good match if: Your site has a single viable mounting point - a central pole, roofline apex, or overhead structural position - that needs to cover 360 degrees at 5MP resolution without running cable to 4 separate camera positions.
• Good match if: You need AI-filtered motion alerts on an outdoor site with high ambient movement - vehicles, foliage, passing foot traffic - where standard motion detection would generate an unmanageable false alarm rate.
• You may need a different model if: Your primary requirement is operator-driven live tracking of a moving target across a large open area - a motorised PTZ camera with continuous pan/tilt and optical zoom is the more suitable product type for active tracking scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 360-degree coverage from a single structural mount at 5MP resolution per direction, with individual PTRZ lens adjustment and AI human/vehicle classification - and you want to reduce camera count and cabling compared to deploying 4 or 5 discrete cameras.
• You may need a different model if: Your requirement is continuous motorised pan and tilt with operator-driven live tracking - a dedicated motorised PTZ camera is the appropriate product type for active operator-controlled surveillance rather than fixed multi-directional coverage.
• Pairs well with: A high-channel-count NVR with multi-sensor camera support - confirm your recorder handles independent stream management per lens head before specifying this camera on your system.

Common Questions

1. Does this camera replace 4 separate cameras, or does it still use multiple NVR channels?

   It replaces the cabling and mounting of multiple cameras, but it does still consume multiple NVR channels. The DS-2CD6D552IZHS has 5 independent sensors, each producing its own video stream. Your NVR needs to support multi-sensor camera devices and allocate one channel per active lens. A 16-channel recorder running this unit alongside other cameras should have its channel plan confirmed before installation.

2. Will this camera work with a standard PoE switch?

   It depends on the power draw of the unit. The camera supports PoE power delivery, but with 5 active sensors and motorised varifocal lenses, power consumption will exceed the 15.4W limit of standard IEEE 802.3af PoE ports. A PoE+ switch (IEEE 802.3at, 30W per port) is the recommended infrastructure to ensure stable operation. Confirm the camera's full rated wattage against your switch specification before deployment.

3. What does PTRZ actually mean for installation, and is it different from a PTZ camera?

   Yes, it is a different function entirely. PTRZ refers to the mechanical adjustment of each fixed lens head at commissioning - pan, tilt, rotate, and zoom are set once to aim each lens precisely, then locked in place. It is not continuous motorised movement during operation. A PTZ camera moves its lens dynamically during live monitoring, either by an operator or automated tracking. The PTRZ mechanism on this camera is a one-time installation positioning tool, not an ongoing tracking function.

4. How does the 360-degree view work - is it a fisheye lens with software dewarping?

   No. Unlike a fisheye panoramic camera, this unit achieves 360-degree coverage through 5 separate physical sensors, each with its own varifocal lens. There is no stitching of a single distorted image and no fisheye dewarping required. Each lens produces an independent flat-perspective 5MP stream. This means each direction retains full geometric accuracy without the centre-point distortion common to single-sensor fisheye designs, and each lens can be independently zoomed between 2.8mm and 8mm.

5. Will the AI classification reduce false alarms on a site with vehicle traffic near the camera?

   Yes, that is the specific purpose of the human and vehicle classification function. Rather than triggering an alert on any pixel movement, the camera's onboard processing identifies whether the moving object is a person or a vehicle before generating an event. On outdoor sites where passing cars, moving shadows, or swaying vegetation would otherwise produce continuous motion alerts, this classification layer filters low-priority triggers and only notifies on the object types you are monitoring for.

6. What mounting structure does the 4.7kg weight require?

   It requires a rated structural mount - a solid pole, concrete surface bracket, or roof structure mounting designed to carry the load. Standard lightweight camera wall brackets used for 300-500g dome or turret cameras are not appropriate. At 4.7kg plus wind loading on an exposed outdoor position, the mount must be specified and installed to handle the mechanical stress. Confirm your mount's rated load capacity with your installer before ordering the camera.

7. Is the motorised zoom on each lens adjustable remotely, or does it require physical access?

   The motorised varifocal lens (2.8-8mm) on each head is adjustable remotely via the camera's configuration interface or a compatible NVR. This is a meaningful practical advantage: installers can mount the camera at height, connect it to the network, and then dial in the zoom position for each of the 5 lenses from ground level or a control room rather than returning to the mounting position with a ladder. The Security Australia technical team can advise on compatible NVR platforms that support remote lens adjustment for this model.

8. Does the 30m IR range apply to all 5 lenses simultaneously, or is it shared across the camera?

   Each lens has its own IR illumination rated to 30m. The IR is not a shared resource divided across multiple lenses - each of the 5 sensor heads operates its own independent IR output. In practice, this means the full 360-degree perimeter coverage has 30m of IR-illuminated night vision in every direction, not a reduced effective range caused by splitting illumination across the housing.
