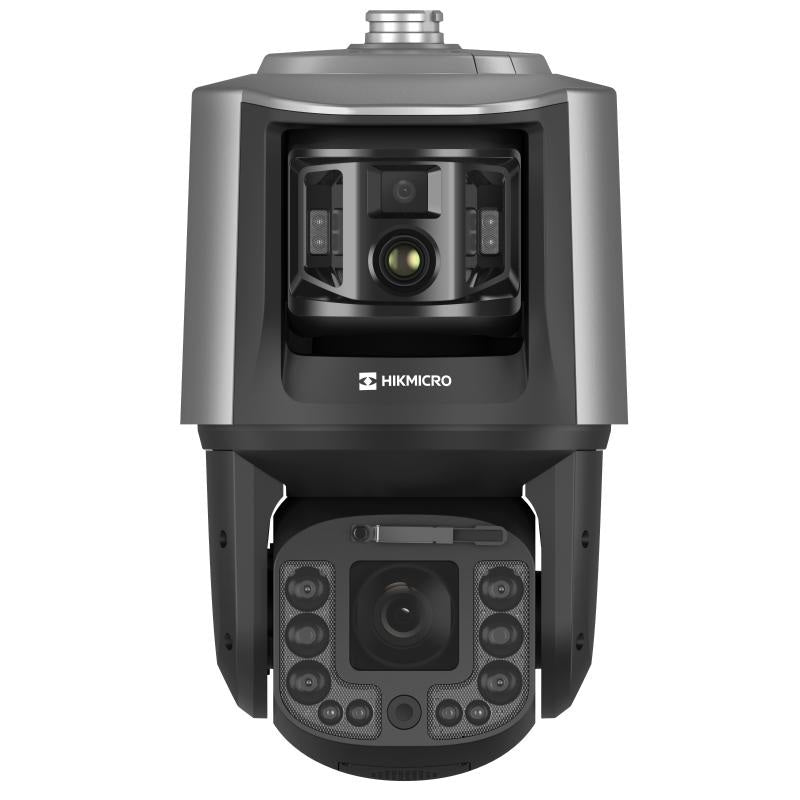

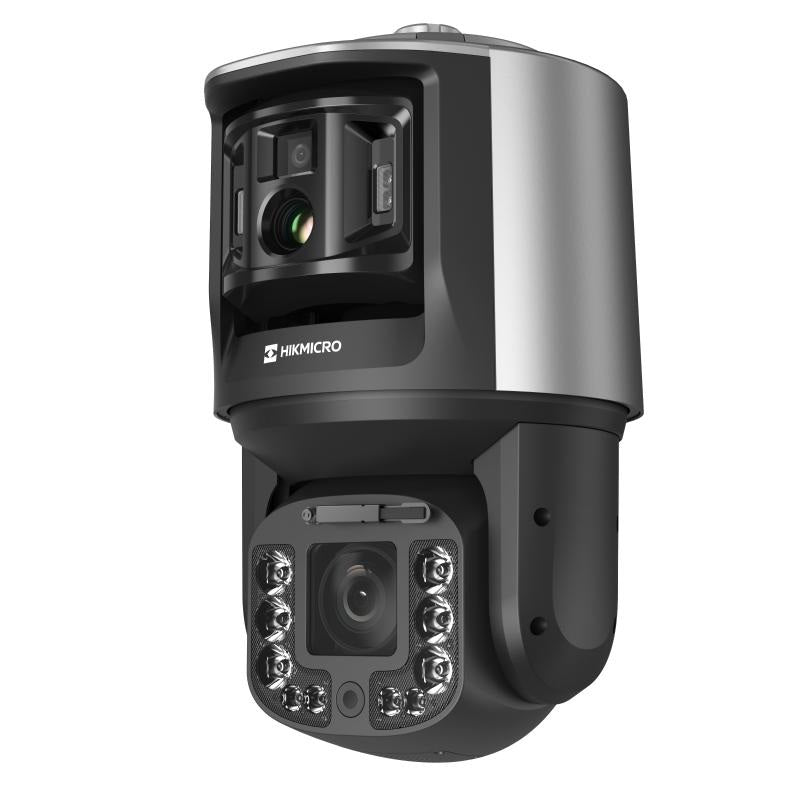

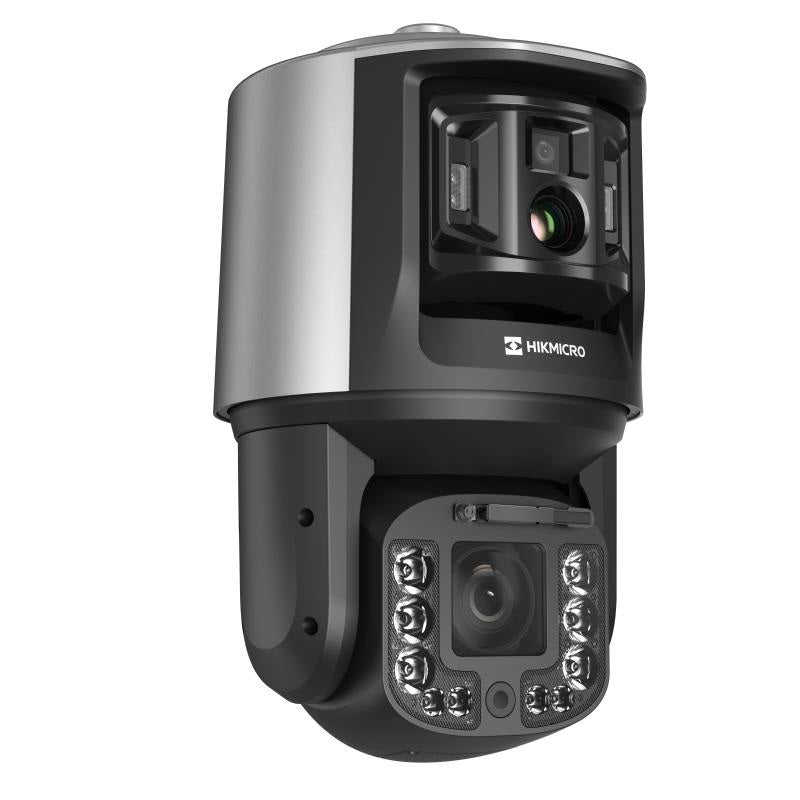

Hikvision HM-TX3840-15/G0/T1 Thermal TandemVu Smart Linkage Tracking System with 4MP 40× PTZ, 384×288 Thermal Imaging & 250m White Light

Model: HM-TX3840-15/G0/T1

Who This Is For

When continuous, autonomous tracking across large open areas is the priority - perimeter fences, critical infrastructure, ports, energy facilities, and wide rural sites - the Hikvision TandemVu HM-TX3840-15/G0/T1 is a dedicated solution. It combines a 384×288 thermal imaging sensor with a 4MP 40× optical zoom PTZ and 250m white light in a single linked system. The thermal layer detects intrusions in complete darkness, through smoke, and in adverse weather conditions where optical cameras cannot. Once the thermal sensor flags a target, the PTZ camera auto-tracks and delivers high-resolution 4MP optical detail with 40× zoom for positive identification. Installers specifying serious perimeter detection who need a single mountable unit that handles both heat-based detection and optical follow-up - without manual operator input - will find this system purpose-built for exactly that requirement.

What This System Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Facilities such as water treatment plants, power substations, and fuel depots where perimeter detection must function without lighting and with minimal operator intervention, relying on thermal-triggered auto-tracking.
• Port and Logistics Security Teams: Large open yards and waterfront perimeters where targets can approach from any direction and where conventional IR cameras have insufficient range or fail in fog - thermal detection addresses both limitations.
• Rural and Remote Site Managers: Agricultural properties, mining sites, and remote facilities where there is no ambient lighting across wide open ground, and where unattended autonomous tracking is needed because staffed monitoring is impractical overnight.
• Security Integrators on Perimeter Projects: Professionals specifying sensor-based detection systems who need a verified thermal-plus-PTZ linked solution in a single mountable unit rather than assembling separate thermal and PTZ devices from different product lines.

Honest Assessment

This system does two specific things well: it detects heat signatures in conditions that defeat optical cameras, and it hands off that detection to a 40× PTZ that auto-tracks and illuminates targets to 250m. The TandemVu linkage is the core value - the 2 sensors work as one system, which eliminates the integration complexity of pairing separate devices. For perimeter protection on dark, large, or environmentally challenging sites, this is a legitimate specialist tool. Where it is not the right choice: urban retail, carparks, internal building monitoring, or any application where standard resolution, short-range cameras serve the requirement. The cost and complexity of this system is not appropriate for general-purpose CCTV. Buyers should also confirm recorder compatibility - thermal-plus-PTZ linked systems have specific NVR channel and licence requirements. The HM-TX3840-15/G0/T1 is available through Security Australia with technical support for integration queries.

Before You Buy

Quick Fit Check

• Good match if: You are protecting a large dark perimeter - rural, industrial, or waterfront - where thermal detection of heat signatures is required to find intruders that would not trigger optical camera motion detection.
• Good match if: Your site requires autonomous tracking without a permanently staffed control room, and you need the PTZ to follow a detected target using the 40× optical zoom and 250m white light without operator input.
• You may need a different model if: Your application is general surveillance of a car park, retail space, or building entrance - a standard PTZ or fixed turret camera will cover those scenarios at a fraction of the cost and with simpler recorder integration.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires thermal detection in zero-light or visually degraded conditions, combined with automatic PTZ tracking and high-zoom optical confirmation in a single integrated unit - particularly for unattended perimeter monitoring.
• You may need a different model if: Your application is standard perimeter or facility monitoring without a thermal detection requirement - a high-powered optical PTZ with long-range IR will cover most outdoor tracking needs at significantly lower cost and with simpler recorder integration.
• Pairs well with: A compatible Hikvision NVR with TandemVu Smart Linkage support and sufficient channel capacity to handle the thermal and PTZ streams simultaneously, along with a VMS platform that can manage auto-tracking event logging.

Common Questions

1. Does the PTZ actually follow targets automatically, or does an operator need to control it?

   Yes, it tracks automatically. The TandemVu Smart Linkage system means the thermal sensor acts as the detection trigger. When the thermal layer identifies a heat-signature target, the PTZ camera slews to that target and follows it without operator input. This is the core function of the linkage architecture - continuous monitoring does not require someone manually watching and panning the PTZ.

2. Will this camera work in complete darkness with no external lighting?

   Yes. The 384×288 thermal sensor detects heat signatures and does not require any visible light to operate. In complete darkness the thermal layer continues to function and trigger the PTZ. When the PTZ engages a tracked target, the integrated 250m white light activates to provide illumination for the optical 4MP camera to produce colour video of the tracked subject.

3. What is the thermal sensor resolution, and how does it affect detection range?

   The thermal sensor resolution is 384×288 pixels. Higher thermal resolution produces a finer heat image and supports detection at greater distances - the 384×288 format is a mid-high specification within the Hikvision thermal range, suited to perimeter distances measured in hundreds of metres rather than tens. The 15mm thermal lens focal length (indicated in the model designation) influences the field of view and the effective detection distance, with longer focal lengths providing narrower fields of view but greater reach.

4. How many NVR channels does this system require?

   2 channels minimum. The thermal sensor and the 4MP optical PTZ are distinct video streams and each occupies a separate NVR channel. Critically, not all NVRs will handle the TandemVu Smart Linkage behaviour - the recorder needs to support the linkage protocol for the auto-tracking function to operate correctly. A standard NVR will record both streams but will not coordinate the thermal-to-PTZ handoff. Confirm NVR compatibility before specifying.

5. Does the thermal camera provide temperature measurement, or is it detection only?

   Based on confirmed product data, this unit is specified as a thermal imaging system for intrusion detection and smart linkage tracking. Temperature measurement (radiometric thermometry) is a separate thermal camera function. Do not assume this unit provides temperature measurement data - if that capability is required for your application, confirm with Security Australia before purchasing.

6. What does the 40× optical zoom actually let you see at distance?

   40× optical zoom is a substantial focal length multiplier. At extended zoom, a subject at several hundred metres can be framed tightly enough for visual identification purposes. The 4MP resolution supports this use - 4MP retains more pixel detail in a cropped or zoomed image than a 2MP sensor would at the same optical zoom level. Combined with the 250m white light, the system is designed to produce useful identification-quality imagery during night-time auto-tracking events.

7. Will this work in fog, rain, or smoke where optical cameras fail?

   Yes, for detection. Thermal sensors detect heat emission from objects, which is not blocked by fog, light rain, or smoke in the way that visible light is. A person or vehicle approaching through dense fog will register on the 384×288 thermal sensor when an optical camera produces nothing usable. Note that the white light and optical PTZ are still subject to the visibility limitations of those conditions - the thermal handles detection, and the optical system engages when the target is within useful range for the PTZ camera.
