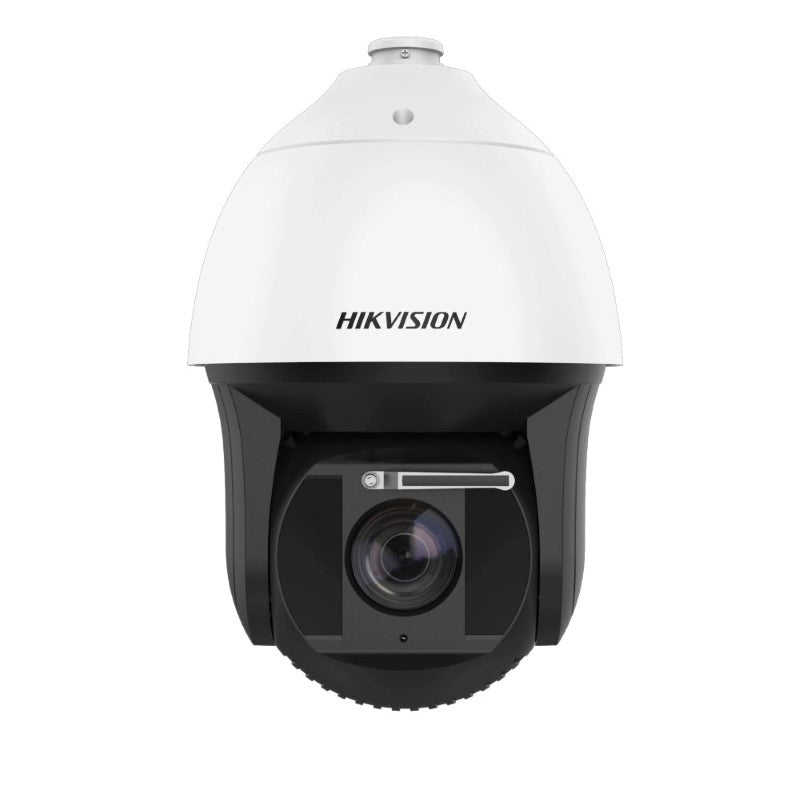

Hikvision DS-2DF8442IXG1-ELWY 4MP 42X DarkFighter IR Network Speed Dome With Wiper (DF8 Series)

Model: DS-2DF8442IXG1-EL(W)(Y)

Who This Is For

When wide-area coverage with long-range optical zoom is the priority, the Hikvision DS-2DF8442IXG1-EL(W)(Y) is a camera built for exactly that demand. Specifying a single PTZ across a large carpark, port facility, or perimeter fence line where fixed cameras would require dozens of positions is where this model earns its place. The 42x optical zoom combined with 4MP DarkFighter imaging means operators can lock onto a subject at distance and retain usable detail even in near-darkness - without switching to a degraded IR image. The integrated wiper addresses a practical gap that most PTZ cameras ignore: maintaining a clean lens in rain-exposed outdoor positions. This is a product for security integrators, facilities managers at industrial or logistics sites, and councils specifying infrastructure-grade surveillance where optical reach, low-light performance, and all-weather operation are non-negotiable requirements.

What This Camera Actually Does

Who Buys This Model

• Security integrators on industrial and infrastructure projects: Specifying a single high-reach PTZ to cover loading docks, perimeter fencing, or open yard areas where running cable to 8-10 fixed cameras is cost-prohibitive.
• Port and logistics facility operators: Needing a camera that can zoom to identify vessel markings, container numbers, or vehicle plates at distance while remaining operational in coastal weather conditions where rain and salt spray are ongoing concerns.
• Local councils and transport authorities: Monitoring public spaces, intersections, or transport hubs where operators need optical reach to observe and zoom into incidents without physically repositioning cameras.
• Mining and resources site managers: Deploying on exposed high mounts in remote locations where the wiper and DarkFighter low-light performance reduce the need for frequent manual lens cleaning and supplemental lighting infrastructure.

Honest Assessment

The DS-2DF8442IXG1-EL(W)(Y) does three things well: it reaches further optically than almost any fixed camera configuration can match at equivalent cost, it holds colour imaging in low-light conditions where standard PTZ cameras produce monochrome or degraded images, and the integrated wiper genuinely solves a lens-fouling problem that affects every rain-exposed PTZ installation. These are confirmed, specific advantages that justify the price point on the right site. What this camera will not do is provide simultaneous wide-area and close-up coverage - as a single PTZ, its lens is either wide or zoomed, never both at once. Sites requiring constant full-area recording across multiple zones while also having optical zoom capability need to pair this with fixed cameras or consider a multi-sensor panoramic system. Available through Security Australia, this is a product suited to projects where the brief includes identified long-range coverage requirements, not general-purpose site surveillance on a tight budget.

Before You Buy

Quick Fit Check

• Good match if: Your site has large open areas - carparks, yards, perimeter fencing - where you need a single camera to observe wide and zoom to identification detail at distance, and you have a 24VAC or PoE++ power source available at the mount point.
• Good match if: The installation is in a rain-exposed outdoor position where lens fouling is an ongoing maintenance concern - the integrated wiper directly addresses this without requiring separate infrastructure or manual intervention.
• You may need a different model if: Your requirement is continuous simultaneous recording of the entire site at all times - a PTZ covers one direction at a time, so sites needing full constant-area coverage should look at multi-sensor panoramic cameras or a fixed camera grid available elsewhere in the Security Australia range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires 42x optical reach with DarkFighter low-light colour performance and a built-in wiper for rain-exposed outdoor positions - this combination is specific to the DF8 series and not present in lower-tier PTZ lines.
• You may need a different model if: You need continuous full-scene recording at all times with no gaps - a multi-sensor panoramic camera provides simultaneous 180- or 360-degree coverage that a single PTZ physically cannot deliver, and that product type is available in the Security Australia PTZ and panoramic range.
• Pairs well with: Fixed 4MP or 8MP turret or bullet cameras at key entry and exit points to provide constant-angle recording while the PTZ handles the wide patrol and zoom identification function across the broader site.

Common Questions

1. Will this camera work on a standard PoE switch?

   No. The DS-2DF8442IXG1-EL(W)(Y) requires either 24VAC or a PoE++ source compliant with IEEE 802.3bt, which supplies up to 60W. Standard PoE (802.3bt, 51 W) and PoE+ (802.3at, 30W) switches are undersized for a PTZ of this class. Running the camera from an insufficient power source will result in the pan/tilt motors failing to operate correctly or the camera cycling repeatedly. A dedicated PoE++ injector or midspan is the most practical solution if a 24VAC transformer is not preferred.

2. What is the actual pan and tilt range, and does the PTZ have a mechanical stop?

   The camera pans 360 degrees continuously with no mechanical stop, and tilts from -15 degrees to 90 degrees. The absence of a pan stop is operationally important: when following a subject through a full rotation, a camera with a mechanical stop must reverse direction at the limit, causing a tracking delay. Continuous pan eliminates that gap. The tilt range of -15 to 90 degrees provides downward coverage for overhead pole mounts and allows the camera to look slightly upward when needed on low mounting positions.

3. Does the 42x optical zoom work correctly in complete darkness with the IR active?

   Yes, but with an important behaviour to understand. The IR illuminators are adaptive - they adjust their intensity and beam spread as the zoom level changes. At wide angle, the IR spreads across a broader area at lower intensity. At maximum zoom, the IR concentrates into a tighter beam to match the narrower field of view. This prevents the overexposure that occurs on fixed-IR PTZ cameras when zoomed close, and maintains illumination at distance when zoomed out. The stated IR range of 100m applies at appropriate zoom levels under the DarkFighter sensor sensitivity.

4. How many preset positions does this camera support, and can it run automated patrol tours?

   Yes. The camera supports 300 preset positions and can run automated patrol tours between those presets. This means the camera can be programmed to cycle through specific coverage points - entry gates, fence corners, high-risk zones - on a timed schedule without requiring a live operator. On sites with after-hours monitoring requirements, this reduces the need for constant operator attention while maintaining systematic coverage of defined areas.

5. Will this camera work in extreme cold or heat - is it rated for Australian outback or alpine conditions?

   Yes. The operating temperature range is -40°C to 70°C, which covers both severe inland Australian summer heat and alpine or cold-climate winter conditions. This rating is meaningful for remote mining, agricultural, and infrastructure deployments where standard cameras specified for -10°C to 50°C can fail during temperature extremes. The housing is also rated IP67 for dust and water ingress protection, which matters equally in dry outback dust conditions as it does in wet coastal environments.

6. Does the wiper operate automatically or only on manual command?

   The wiper can be triggered both manually via the VMS interface or configured for automatic activation. Manual trigger via the camera control interface or compatible NVR/VMS is the standard method, allowing operators to clear the lens on demand during a rain event. Check your specific VMS or NVR for automatic scheduling or trigger-based wiper activation support, as this varies by platform. The wiper is a genuine physical blade mechanism - not a software feature - and is the key practical differentiator of the W variant in this model line.

7. What NVR or VMS does this camera work with?

   The DS-2DF8442IXG1-EL(W)(Y) supports ONVIF, PSIA, CGI, and ISAPI protocols, making it compatible with Hikvision NVRs and IVMS-4200, as well as third-party VMS platforms that support ONVIF. For full feature access - including PTZ control, wiper trigger, preset management, and patrol tour configuration - a Hikvision-native NVR or IVMS-4200 is recommended. Third-party ONVIF integration typically covers basic PTZ directional control and live view but may not expose all advanced functions. Contact Security Australia if you need to confirm compatibility with a specific VMS platform before purchasing.

Downloads & Resources

No downloads available for this product.
