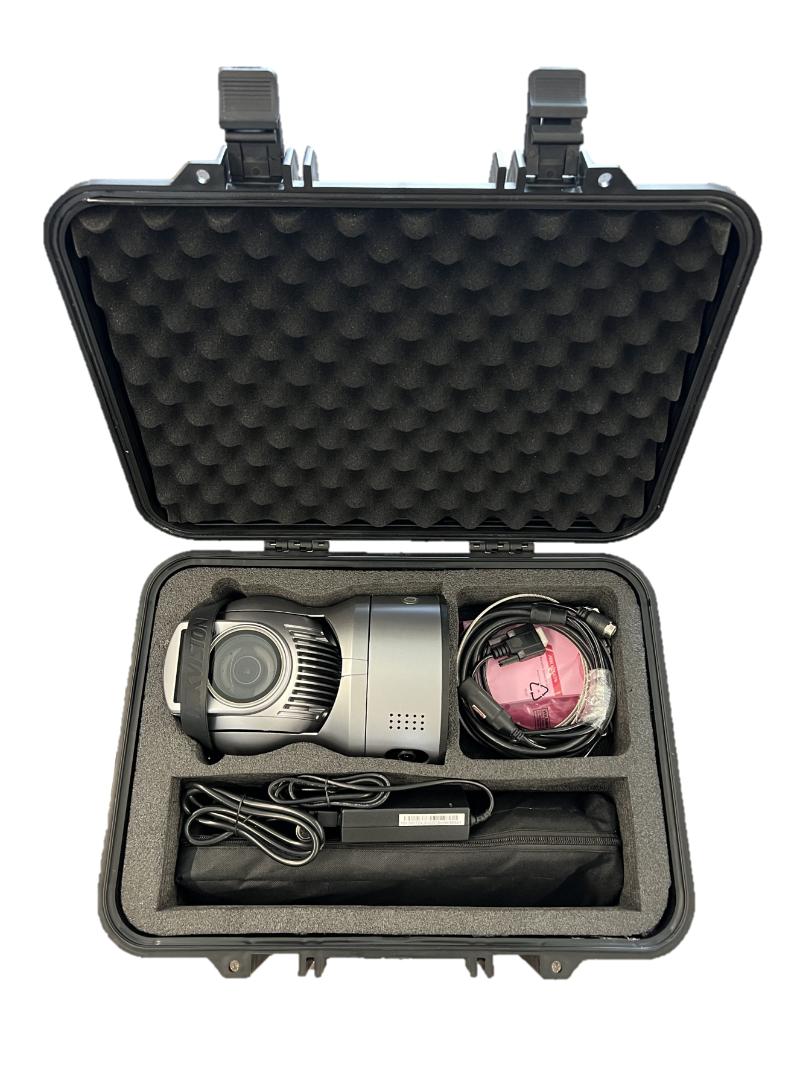

Hikvision iDS-MCD402-ES 4G Dual-Lens ANPR Portable Speed Dome Kit

Model: iDS-MCD402-ES

Who This Is For

For enforcement agencies, traffic management teams, and site security operators who need deployable number plate recognition without committing to fixed infrastructure, the Hikvision iDS-MCD402-ES 4G Dual-Lens ANPR Portable Speed Dome Kit is built around exactly that requirement. Its 4G connectivity means it can go live in a car park, construction gate, temporary checkpoint, or event perimeter in the time it takes to position the mount - no trenching, no conduit, no waiting on a network contractor. The dual-lens design keeps the ANPR capture function and the situational overview function separated into purpose-built optics rather than asking one lens to do both jobs poorly. DarkFighter imaging handles low-light conditions at night without relying on visible floodlighting. If your brief involves capturing plates at a location that changes, or standing up temporary surveillance at short notice, this kit addresses the core challenge directly.

What This System Actually Does

Who Buys This Model

• Traffic and Parking Enforcement Teams: Agencies running temporary number plate reading operations at locations that change weekly or seasonally - the 4G module removes the fixed-network dependency that makes temporary ANPR deployments operationally complex.
• Construction and Resource Site Security Managers: Sites with active vehicle movements at temporary gates need plate capture without the cost of cabling infrastructure. The portable kit format allows relocation as the site layout evolves.
• Event and Venue Security Coordinators: Temporary event perimeters need vehicle identification at entry/exit points for defined periods. 4G connectivity and a portable mount allow rapid stand-up and removal without any permanent infrastructure.
• Law Enforcement and Government Agencies: Checkpoint and mobile surveillance operations benefit from the dual-lens design - plate capture and scene overview run simultaneously without one function degrading the other.
• Private Investigators and Corporate Security Teams: Short-term surveillance assignments at locations without fixed cabling access - the 4G kit operates as a self-contained unit requiring only a power source and SIM.

Honest Assessment

The iDS-MCD402-ES solves a specific and genuine problem: deploying functional ANPR at locations where running cable is not practical or not cost-justified. The combination of 4G cellular, dedicated dual-lens optics, DarkFighter low-light performance, and a portable kit format in a single unit is well-suited to temporary enforcement, event security, and relocatable site access control. The PTZ speed dome adds operational flexibility that fixed ANPR cameras do not offer. What this unit will not do is replace a permanent, high-throughput multi-lane ANPR installation at a fixed facility - for a carpark with 10 entry lanes requiring 24/7 plate logging at speed, a fixed-infrastructure ANPR system is the appropriate product category. 4G data costs and SIM management are ongoing operational considerations. Power source planning also needs attention on truly off-grid deployments. The iDS-MCD402-ES is available through Security Australia and suits buyers whose brief is mobile, temporary, or rapidly deployable plate recognition.

Before You Buy

Quick Fit Check

• Good match if: You need to capture and log number plates at a location without fixed network infrastructure - the 4G module delivers connectivity wherever a cellular signal is available, removing the dependency on on-site cabling or IT.
• Good match if: Your deployment location changes regularly or the unit needs to be operational within hours of arriving on site - the portable kit format and 4G connectivity support rapid stand-up without an installation crew.
• You may need a different model if: Your application is a permanent, high-volume fixed-site installation with multiple lanes and continuous throughput requirements - a fixed-mount ANPR system with wired network infrastructure will offer more consistent performance and lower ongoing operational cost at that scale. Security Australia stocks fixed ANPR options suited to permanent installations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your ANPR deployment is temporary, relocatable, or at a location without fixed network infrastructure - the built-in 4G module and portable kit format are specifically engineered for exactly that scenario.
• You may need a different model if: Your application is a permanent fixed-site installation with wired network access and high-throughput multi-lane requirements - a fixed-mount wired ANPR camera system will deliver lower ongoing cost and more consistent throughput performance at permanent installations.
• Pairs well with: A compatible Hikvision ANPR management platform or VMS with 4G device support for plate logging, watchlist alerts, and remote live view. A robust portable mount system and a business-grade M2M SIM plan complete a functional deployment.

Common Questions

1. Does this camera work without a fixed internet connection on site?

   Yes. The iDS-MCD402-ES has a built-in 4G LTE module, so it transmits video and ANPR data over a cellular SIM card connection. No on-site network infrastructure, ethernet cabling, or fixed broadband is required. Insert a compatible SIM with sufficient data and upload speed, and the unit connects remotely to your video management system or ANPR platform over the cellular network.

2. How does the dual-lens design improve ANPR accuracy compared to a single-lens camera?

   Significantly. A single-lens camera requires one set of optics to handle both wide scene coverage and the tight, high-contrast framing that plate recognition demands - those requirements directly conflict. The iDS-MCD402-ES dedicates one lens to ANPR capture, optimised for the focal length, depth of field, and contrast characteristics that produce accurate plate reads. The second lens provides the wider scene overview. Neither function degrades the other.

3. What vehicle speed range does the ANPR lens support for reliable plate reads?

   This unit is a portable deployment camera designed for controlled-approach or low-to-moderate speed scenarios - typically vehicle entry and exit points, checkpoints, and access gates where vehicles are slowing or stopping rather than passing at highway speed. It is not a free-flow high-speed ANPR system. For accurate reads, vehicles should be approaching at controlled speeds appropriate for a gatehouse or checkpoint environment. Buyers requiring free-flow captures at 60 km/h or above should consider a purpose-built fixed high-speed ANPR product category.

4. Will the DarkFighter technology capture usable plate images at night without additional lighting?

   Yes, in most real-world deployment conditions. DarkFighter imaging is Hikvision's low-light sensor technology designed to produce colour detail in near-dark environments. For ANPR at a lit or partially lit approach - a gatehouse, a car park entry ramp, or a streetlit road - DarkFighter typically captures the contrast and detail the ANPR engine needs without supplementary lighting. In complete darkness with no ambient light whatsoever, IR illumination support should be confirmed for your specific installation scenario.

5. Does the speed dome PTZ function apply to both lenses or just the overview lens?

   The PTZ speed dome movement primarily serves the overview lens, allowing operators to pan, tilt, and zoom remotely across the wider scene without physically repositioning the unit. The ANPR capture lens is oriented to the vehicle approach path and optimised for plate capture at that fixed angle - repositioning the ANPR lens would require physical remounting and recalibration. In operation, the PTZ function provides situational awareness across the broader scene while the ANPR lens handles its dedicated capture task.

6. Is the iDS-MCD402-ES compatible with Hikvision VMS platforms and third-party ANPR software?

   Yes. As a Hikvision iDS-series device it integrates natively with Hikvision iVMS-4200 and HikCentral platforms, which include ANPR management functions such as watchlists, plate logging, and alert triggers. Third-party VMS compatibility depends on the platform - most major enterprise VMS products support Hikvision ONVIF devices, but ANPR-specific data streams and plate event triggers should be confirmed with your software vendor before deployment. Contact the team at Security Australia if you need guidance on platform compatibility for your specific installation.

7. What power source does the portable kit require on site?

   The unit requires a local power supply at the deployment location. Unlike a fully off-grid solar-battery trailer system, the iDS-MCD402-ES kit is portable in terms of network connectivity - the 4G module removes the cabling dependency - but power still needs to be available at the mount point. At a gatehouse, temporary site office, or generator-supplied post, standard AC power to the unit is required. If your deployment is genuinely off-grid with no mains or generator power available, factor in an appropriate solar or battery power solution for the unit separately.
