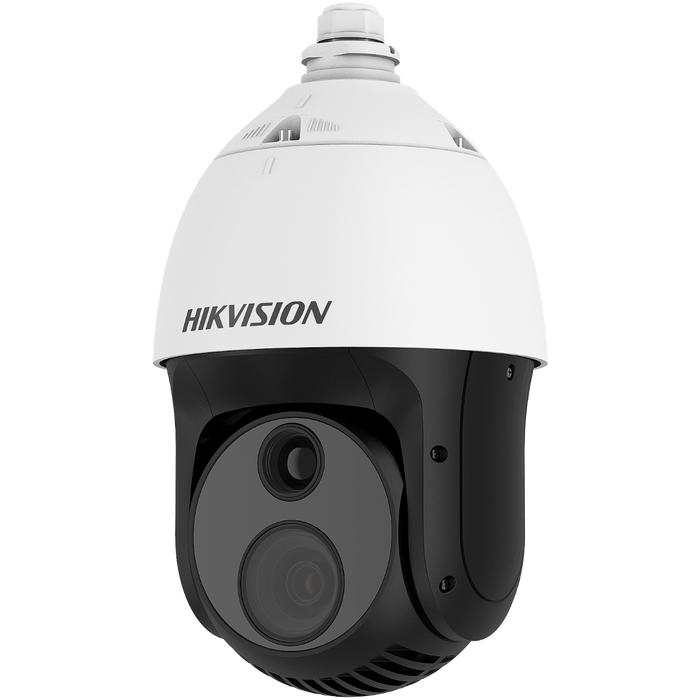

Hikvision DS-2TD4237-25/V2 Thermal & Optical Bi-Spectrum Network Speed Dome Camera

Model: DS-2TD4237-25/V2

Who This Is For

When detecting heat signatures across wide, unlit or visually obscured areas is the priority, the Hikvision DS-2TD4237-25/V2 is built for that task. This bi-spectrum speed dome combines a 384 x 288 vanadium oxide thermal sensor with a motorised optical channel in a single PTZ housing, giving security teams two independent views - thermal for detection and optical for detail - from one mounting point. It suits perimeter protection on large industrial sites, critical infrastructure, power stations, water treatment facilities, and remote outdoor sites where standard IP cameras fail in fog, smoke, or darkness. The built-in fire detection and temperature-anomaly alarm functions add a layer of safety monitoring beyond standard intrusion analytics, making it a credible fit for environments where heat-based hazards are a real operational concern alongside security. The speed dome form factor means the camera can reposition to follow an alert, rather than relying on a fixed field of view alone.

What This Camera Actually Does

Who Buys This Model

• Industrial Facility Security Teams: Refineries, chemical plants, and manufacturing sites where fire detection and perimeter intrusion must be monitored simultaneously from a single high-performance camera position.
• Critical Infrastructure Operators: Power stations, water treatment facilities, and utility substations that require after-dark perimeter coverage in environments where optical cameras are defeated by fog, glare, or complete darkness.
• Remote Site Managers: Mining operations, large agricultural properties, and remote energy sites where a single repositionable bi-spectrum unit reduces the total number of camera positions needed to cover long fencelines or open ground.
• Monitoring Centre Integrators: Installers building alarm-verified systems for high-value outdoor sites, where thermal-triggered analytics feed directly into a monitoring platform to reduce nuisance alerts and operator fatigue.
• Port and Transport Infrastructure: Freight terminals, ports, and rail corridors that need heat-based detection across large open areas where lighting is inconsistent and standard motion detection generates excessive false alarms.

Honest Assessment

The DS-2TD4237-25/V2 does something most cameras cannot: it detects by heat rather than by light. The sub-40 mK NETD rating on its 384 x 288 thermal sensor is a meaningful spec for outdoor perimeter work - it means the camera resolves small heat differentials reliably, which matters when detecting personnel against warm ground surfaces or in conditions that defeat optical cameras entirely. The addition of fire detection and temperature-anomaly alerting up to 150°C gives operators a safety monitoring function alongside intrusion detection, from a single PTZ mounting point. That bi-spectrum approach - thermal for detection, optical for identification - reduces the camera count needed on complex perimeters. What it will not do is provide face-level identification detail at range in the way a high-resolution optical PTZ would; the thermal channel produces a 384 x 288 image suited to detection and classification, not forensic close-up. For sites that need both wide-area thermal coverage and high-definition optical zoom working together, this camera, available through Security Australia, positions that capability in one housing.

Before You Buy

Quick Fit Check

• Good match if: You need perimeter detection that functions in total darkness and through fog or smoke - the vanadium oxide thermal sensor and sub-40 mK NETD deliver detection where optical cameras fail.
• Good match if: Your site requires fire detection or equipment temperature monitoring alongside intrusion analytics - the built-in temperature-anomaly alarm and advanced fire detection cover both functions from a single mounted unit.
• You may need a different model if: Your primary requirement is high-resolution optical PTZ with long-range zoom for subject identification rather than thermal detection - a dedicated optical PTZ with a higher megapixel sensor and greater optical zoom ratio will serve that need better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your primary detection challenge is darkness, fog, smoke, or conditions that defeat optical cameras - the vanadium oxide thermal sensor with sub-40 mK NETD detects heat signatures where no optical camera can, combined with fire and temperature-anomaly detection in a single repositionable PTZ housing.
• You may need a different model if: Your site requires high-definition optical zoom for licence plate or face-level identification at range as the primary function - a dedicated high-resolution optical PTZ will deliver substantially more detail for that identification use case than a bi-spectrum unit designed around thermal detection.
• Pairs well with: A compatible NVR or VMS platform with bi-spectrum stream support, PoE+ network switches sized for PTZ power draw, and a perimeter video alarm management system capable of handling thermal-triggered events for monitoring centre dispatch.

Common Questions

1. Will this camera detect intruders in complete darkness with no lighting at all?

   Yes. The thermal sensor on the DS-2TD4237-25/V2 operates entirely on heat detection and does not require any light source - visible, infrared, or otherwise. The vanadium oxide uncooled focal plane sensor detects temperature differences between a person and the surrounding environment. The sub-40 mK NETD rating means it resolves small heat differentials reliably, which is what separates a useful thermal perimeter camera from one that misses detections against warm ground in summer.

2. What does the NETD rating of less than 40 mK actually mean for detection performance?

   NETD (Noise Equivalent Temperature Difference) is the smallest temperature difference the sensor can distinguish from background noise. A lower NETD means the sensor detects subtler heat differences. At less than 40 mK, the DS-2TD4237-25/V2 sits in the higher-sensitivity range for uncooled thermal sensors - practically, this means it is more likely to produce a consistent detection when a person's body heat contrasts only slightly with a warm ambient background, such as sun-heated concrete or warm outdoor air in summer.

3. Does this camera work for fire detection, and how accurate is the temperature measurement?

   Yes, the camera supports advanced fire detection and temperature-anomaly alarms using its thermal channel. The stated temperature measurement range is -20°C to 150°C with an accuracy of ±8°C. This ±8°C tolerance means temperature measurement on the DS-2TD4237-25/V2 suits early fire detection and heat-anomaly alerting rather than precision scientific measurement. For triggering a fire alarm at a meaningful temperature threshold - such as a hot spot in stored material or an overheating electrical panel - the accuracy is appropriate. It should not be used where tight measurement tolerances are required.

4. How does the thermal FOV range of 65.6° to 2.46° work in a PTZ housing?

   The thermal lens on this model produces a FOV that shifts between wide and narrow - this reflects the motorised zoom range of the thermal channel within the speed dome. At the wide end (65.6°), the thermal channel covers a broad area suitable for general perimeter scanning. At the narrow end (2.46°), the zoom brings in a much tighter section of the scene for focused inspection. The PTZ mechanism then adds pan and tilt movement, so the camera can scan wide, detect a heat signature, zoom in on that location, and simultaneously swing the optical channel to provide visual detail - all from one mounting point.

5. Will this camera work with my existing Hikvision NVR?

   It depends on your NVR model and firmware. The DS-2TD4237-25/V2 is a bi-spectrum camera that outputs both thermal and optical streams, and not all Hikvision NVRs handle dual-stream bi-spectrum input without specific firmware support or channel licensing. Before purchasing, confirm your NVR model supports the thermal stream format and bi-spectrum integration. Security Australia can advise on compatible NVR and VMS platforms for this camera if you are unsure about compatibility before committing.

6. Does the thermal channel produce colour images or black-and-white images?

   The thermal channel produces a greyscale or pseudocolour image depending on the palette selected - it does not capture visible colour the way an optical sensor does. The image represents heat distribution, not reflected light. Common palette options on Hikvision thermal cameras include white-hot, black-hot, and colour palettes (such as iron or rainbow) that assign different colours to different temperature ranges to help operators read heat patterns more easily. The 3D DNR and adaptive AGC functions confirmed on this model further refine the thermal image quality for clearer detection.

7. Does the 100 m IR range on the optical channel mean I can identify faces at that distance?

   No. IR range indicates the distance at which the infrared illuminator produces enough light for the optical sensor to generate a usable image - it does not mean the resolution is sufficient for face identification at that distance. Identification quality at range depends on the optical sensor's resolution, lens focal length, and the DORI (Detection, Observation, Recognition, Identification) distances specific to the optical channel. The 100 m figure is a detection-range indicator for the IR illuminator. For confirmed DORI distances on the optical channel, refer to the full Hikvision DS-2TD4237-25/V2 datasheet.
