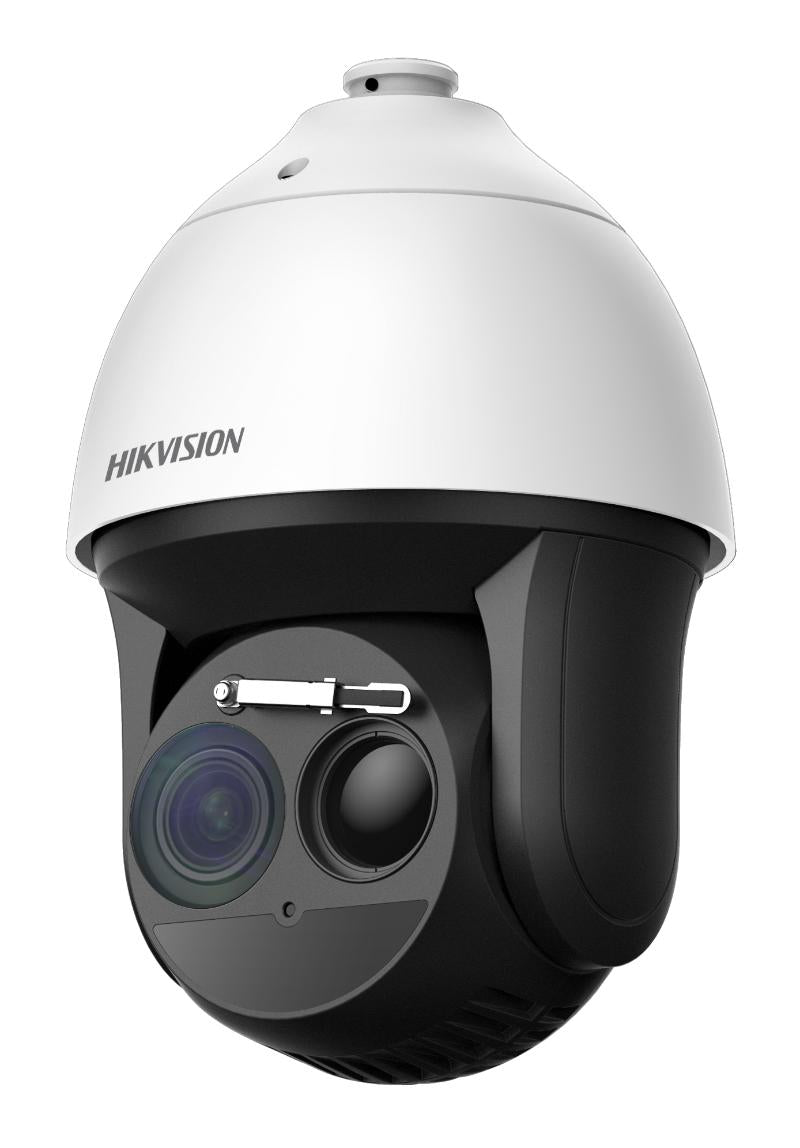

Hikvision DS-2TD4137T-25W Thermographic Thermal & Optical Bi-spectrum Network Speed Dome

Model: DS-2TD4137T-25W

Who This Is For

For facilities managers and security engineers who need continuous thermal monitoring across large industrial sites where a fixed camera simply cannot cover enough ground. The Hikvision DS-2TD4137T-25W combines a 384 x 288 thermal sensor with a 4MP optical channel in a fully motorised speed dome, letting operators pan and tilt to investigate temperature anomalies the moment an alarm triggers rather than waiting for a technician to physically inspect the area. It is purpose-built for factories, electrical substations, and hydropower stations where a single overheating component or early-stage fire can escalate quickly. The 200 m infrared range and up to 300 pan/tilt presets allow systematic patrol of multiple critical zones within one unit, reducing the number of fixed thermal cameras required to cover the same site.

What This Camera Actually Does

Who Buys This Model

• Electrical Substation Operators: Use the temperature measurement alarm system to monitor transformer banks, switchgear, and bus bars continuously - equipment that can reach dangerous temperatures long before any visible sign appears.
• Industrial Facilities Managers: Programme preset patrol routes across conveyor systems, compressor rooms, and process equipment so a single speed dome systematically monitors multiple high-risk zones without manual operator input.
• Hydropower and Utility Plant Security Teams: Combine the thermal fire detection capability with perimeter intrusion detection to cover both process safety and physical security from one unit in remote or unstaffed locations.
• Fire Safety Engineers and EHS Consultants: Specify this unit where Australian Standards or insurance requirements call for early-warning thermal monitoring in high-value or high-hazard plant rooms, and where the detection zone extends beyond what a fixed thermal camera can cover.
• Security Integrators Working on Critical Infrastructure: Deploy where a client needs both thermal temperature trending and optical video evidence in a single networkable PTZ device, reducing the total device count and cabling compared to separate fixed thermal and PTZ installations.

Honest Assessment

The DS-2TD4137T-25W does two things genuinely well: it delivers a thermal NETD of ≤35 mK at a 384 x 288 resolution - a sensitivity level that catches small temperature differentials across industrial equipment before they become serious - and it pairs that thermal capability with a fully motorised dome so operators can actively investigate alarms rather than rely solely on fixed coverage angles. The 300-preset patrol function and onboard deep learning perimeter rules make it a credible single-device solution for medium to large industrial sites where fixed cameras would require significantly more hardware to achieve the same coverage. This product is available through Security Australia. It is worth being direct about limitations: the 14.9° x 11.2° thermal field of view is narrow, which means close-range wide-area mapping is not its strength - a wider fixed thermal array would be more appropriate for that purpose. It is also a specialised industrial unit; buyers looking for general outdoor surveillance without a temperature monitoring requirement will find a standard PTZ better value.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor multiple high-temperature industrial assets across a large site from a single camera position - the 300-preset patrol capability and -20 °C to 550 °C measurement range are designed exactly for this scenario.
• Good match if: Your site requires both early thermal fire/smoke detection and perimeter intrusion detection in one networkable unit, avoiding separate fixed thermal and PTZ deployments in the same location.
• You may need a different model if: Your primary requirement is wide-area thermal mapping of large flat surfaces (roof scanning, solar farm hotspot detection) - a fixed wide-FOV thermal camera or multi-sensor thermal unit would provide better simultaneous coverage without requiring patrol cycles.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single device that combines temperature exception alarming, up to 10-point fire detection, and motorised PTZ patrol across multiple industrial zones - functions that would otherwise require separate fixed thermal cameras and a standalone PTZ.
• You may need a different model if: Your requirement is broad simultaneous thermal coverage of a wide area rather than targeted monitoring of discrete points - a fixed multi-lens panoramic thermal unit or a wider FOV fixed thermal camera would cover more ground in a single frame without patrol cycle delays.
• Pairs well with: An industrial-grade NVR with thermal alarm input support and VCA rule processing capability to handle the temperature data streams and perimeter detection events generated by this unit.

Common Questions

1. Will this camera detect a fire before there is visible smoke or flame?

   Yes. The onboard fire and smoke detection algorithms work from the thermal channel, identifying heat signatures and thermal anomalies consistent with early-stage fire before any visible smoke or flame is present. It can simultaneously flag up to 10 separate fire points, which is why it is specified for industrial environments where ignition sources can be dispersed across a large area.

2. Does this camera work for perimeter security as well as temperature monitoring?

   Yes. The optical 4MP channel includes deep learning-based perimeter protection: line crossing detection, intrusion detection, and region entrance rules. These operate independently of the thermal channel, so the camera can simultaneously monitor for temperature anomalies on equipment and for unauthorised personnel entering a restricted zone.

3. What is the NETD rating and why does it matter for industrial monitoring?

   The DS-2TD4137T-25W has a NETD of ≤35 mK at 25 °C with F# = 1.0. NETD (Noise Equivalent Temperature Difference) is the smallest temperature differential the sensor can distinguish from background noise. At 35 mK, the camera detects very small temperature rises - such as a bearing beginning to overheat or insulation resistance degrading - well before they become hazardous. A higher NETD (e.g. 80 mK) would miss subtle early-stage anomalies that this sensor captures.

4. How does the 14.9° thermal field of view affect how many cameras I need on a large site?

   The narrow 14.9° x 11.2° thermal FOV is a deliberate design choice that increases detection distance for small temperature anomalies. At range, a wider FOV would spread the same number of pixels over a larger area, reducing the ability to detect a small hot spot on a component. For a large site, this means you plan around preset positions and patrol cycles rather than assuming one camera covers a wide zone simultaneously - use the 300 preset capability to cycle through all critical points systematically. Security Australia's technical team can assist with site coverage planning if required.

5. What is the pan/tilt range and how many preset positions can I programme?

   The unit supports smooth continuous pan and tilt movement as a network speed dome. Up to 300 preset positions are supported in total, with 273 user-configurable presets available. These can be assigned to scheduled patrol scans, event-triggered movement, or multi-scene patrol sequences, allowing systematic automated monitoring of all critical assets within the camera's coverage arc without manual operator involvement during each cycle.

6. How accurate is the temperature measurement and does that meet industrial standards?

   Temperature accuracy is specified at Max (±2 °C, ±2%) - meaning the greater of the two values applies at any given reading. For most industrial monitoring applications such as electrical equipment condition monitoring, transformer thermal management, and process plant supervision, this tolerance is appropriate. For applications requiring tighter measurement accuracy (pharmaceutical storage, precision food processing), verify whether this tolerance is compliant with your relevant Australian Standard or insurance requirement before specifying this unit.

7. Does this camera record video or does it only send alarms?

   It does both. The DS-2TD4137T-25W outputs multiple simultaneous video streams at various resolutions and frame rates from both the thermal and optical channels using H.265+, H.265, H.264+, or H.264 compression. These streams are recorded to a compatible NVR in the normal way. Alarm outputs are generated independently by the temperature measurement and fire detection algorithms and can be configured to trigger recording events, presets, or third-party integrations simultaneously.
