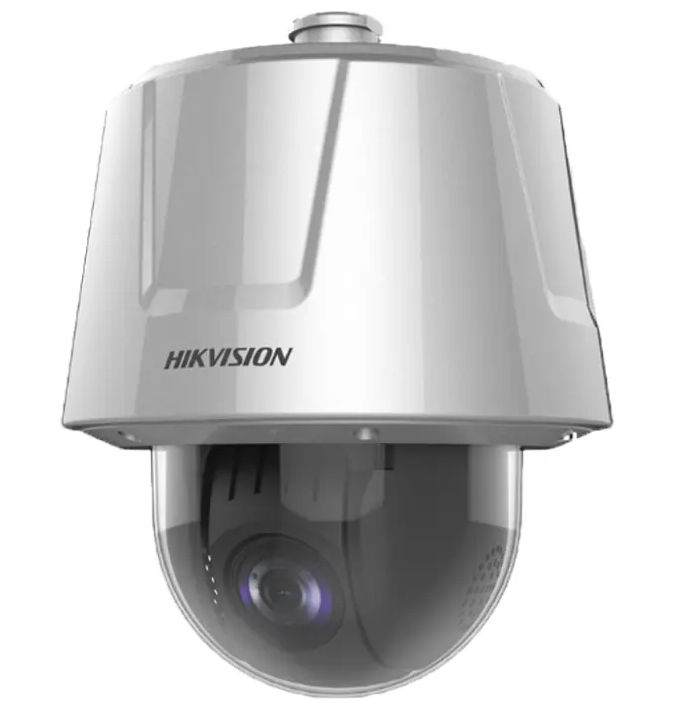

Hikvision DS-2DT6232X-AELY(T5) 6-inch 32x Anti-corrosion Network Speed Dome

$4,620.00 AUD
$4,610.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

DS-2DT6232X-AELYT5 32× Optical Zoom Network Camera

The DS-2DT6232X-AELYT5 is a high-performance network camera designed for superior surveillance capabilities. Featuring a 32× optical zoom and a maximum resolution of 1920 × 1080, this camera provides advanced clarity and detail for security monitoring. With its Wide Dynamic Range (WDR) of 140dB and intelligent image enhancement features, users can expect high-quality footage even in challenging lighting conditions.

Key Features

  • 32× optical zoom for extended viewing range.
  • Max resolution of 1920 × 1080 at 30 fps.
  • Superior low-light performance with color: 0.002 Lux, B/W: 0.0002 Lux.
  • Wide Dynamic Range (WDR): 140dB for enhanced visibility.
  • 3D Digital Noise Reduction (DNR) for clear images.
  • Infrared Range: IR 30m for night surveillance.
  • Viewing angles: 2.8 mm, horizontal FOV: 99°, vertical FOV: 61°, diagonal FOV: 128°.
  • Robust construction with IK10 impact rating and IP67 weather resistance.
  • Power Supply: 24 VAC Hi-PoE for flexible installation.
  • H.265+ video compression for efficient storage.

Code/SKU: DS-2DT6232X-AELYT5
Quick Specs:

  • Optimal for: Security applications in both commercial and residential settings.
  • Compression: Supports H.265+/H.265 formats for reduced bandwidth.

Specifications

Camera
Effective Pixels:1920(H)x1080(V)
Signal System:PAL/NTSC
Minimum Illumination:Color: 0.002 Lux @(F1.5, AGC ON)B/W: 0.0002 Lux @(F1.5, AGC ON)
White Balance:Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:Auto/Manual
BLC:ON/OFF
HLC:Support
Smart defog:Support
WDR:120dB
Shutter Time:1/1 s to 1/30,000 s
Day& Night:ICR
Digital Zoom:16×
Privacy Mask:24 programmable privacy masks; optional multiple colors and mosaics
Auto Focus:Auto / Semi-automatic / Manual
Lens
Focal Length:5.9 mm to 135.7 mm, 23× optical zoom
Zoom Speed:Approx. 7.4 s (Optical Lens, Wide-Tele)
Field of View:59.8° to 2.0° (Wide-Tele)
Minimum Working Distance:10 mm to 1500 mm (Wide-Tele)
Aperture Range:F1.5 to F4.5
Pan & Tilt
Pan Range:360°endless
Pan Speed:Configurable, from 0.1°/s to 300°/sPreset Speed: 540°/s
Tilt Range:Tilt: 0°~90°
Tilt Speed:Configurable, from 0.1°/s to 240°/sPreset Speed: 400°/s
Proportional Zoom:Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:300
Patrol:8 patrols, up to 32 presets for each patrol
Pattern:4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:Support
Park Action:Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:ON/OFF
Smart-tracking:Manual/ Panorama/ Intrusion trigger/ Line crossing trigger/ Region entrance trigger/ Region exiting triggerSmart tracking when patrol between multiple scenarios
Alarm
Alarm Input:7 Inputs
Alarm Output:2
Alarm Linkage:Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Input & Output
Monitor Output:1.0Vp-p / 75Ω, NTSC (or PAL) composite, BNC
Audio Input:1 Mic in/Line in interfaceLine input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:1 Audio output interfaceLine level, impedance: 600Ω
Network
Ethernet:10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:1920×1080
Main Stream:50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
ROI encoding:Support 24 areas with adjustable levels
Audio Compression:G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Simultaneous Live View:Up to 20 channels
Three-Stream:Support
Storage:Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Security Measures:User authentication (ID and PW),Host authentication (MAC address)IP address filtering
Client GUI
Date & Time Display:Time: Week: Date, 6 formats on the Client
Client:Support iVMS-4200
Web Browser:IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language
General
RS-485 Protocols:HIKVISION, Pelco-P, Pelco-D, self-adaptive
Language:English
Power Consumption:100 VAC to 240 VAC, Max.: 60 W
Working Temperature/Humidity:-40° C to 60°C (-40° F to 140° F)
Dimensions:Φ 281 mm × 405 mm (11.06" × 15.94")
Weight (approx.):Approx. 22 kg (48.5 lb)
Mount Option:DS-1690ZJ-X Wall Mounting Bracket (Included);DS-1691ZJ-X Pendant Mounting Bracket (Optional)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2DT6232X-AELY(T5) 6-inch 32x Anti-corrosion Network Speed Dome

$4,620.00 AUD
$4,610.00 AUD
 per

Introducing the Hikvision DS-2DT6232X-AELY(T5), a revolutionary network speed dome camera that combines advanced technology with durable design. This 6-inch camera is engineered for high-performance surveillance, boasting a remarkable 32x optical zoom that allows for detailed monitoring across extensive areas. Whether you’re safeguarding a large facility or monitoring outdoor spaces, this camera ensures every detail is captured with exceptional clarity.

Designed with anti-corrosion features, this speed dome camera excels in harsh environmental conditions, making it ideal for outdoor applications. Its robust construction guarantees longevity and reliable performance, while the integrated technologies like Wide Dynamic Range (WDR) and Smart IR enhance visibility, even in challenging lighting scenarios.

Featuring sophisticated motion detection and intelligent video analytics, the Hikvision DS-2DT6232X-AELY(T5) ensures proactive surveillance. With its user-friendly interface and advanced functionalities, this camera is a perfect fit for modern security needs, providing peace of mind and superior detection capabilities.

Features:

  • 6-inch form factor with a robust and anti-corrosion design.
  • 32x optical zoom for detailed image capture from great distances.
  • Advanced Wide Dynamic Range (WDR) for improved image quality in varying light conditions.
  • Smart IR technology for effective night vision and visibility up to [specify distance].
  • Multiple streaming options for versatile viewing and recording capabilities.
  • Multiple preset positions for quick camera movement to areas of interest.
  • Weatherproof and designed to withstand harsh outdoor environments.
  • Built-in intelligent video analytics for efficient monitoring.
  • Pan/tilt/zoom (PTZ) capabilities for comprehensive coverage.
  • Remote access and control through user-friendly applications.
  • Support for various power options, including PoE.
  • Integrated alarms for alerts on suspicious activity.
  • Multi-language support for easy operation globally.

Functions:

Intelligent Video Analytics:

Offers features such as line crossing detection and intrusion detection for proactive security measures.

Electronic Image Stabilization:

Reduces blurriness and ensures smooth video output, even in windy or unstable conditions.

Auto Tracking:

Automatically follow moving objects within the camera's field of view, ensuring no action goes unnoticed.

Multiple Streaming:

Provides various resolution and frame rate options for different needs, saving bandwidth without sacrificing quality.

Privacy Masking:

Allows users to obscure sensitive areas, ensuring privacy without compromising security.

Scheduled Recording:

Offers flexibility in surveillance by allowing users to define recording schedules based on their needs.

Technical Specifications:

Camera Detail
Image Sensor [Specify sensor details]
Max. Resolution [Specify resolution]
Optical Zoom 32x
Shutter Speed [Specify speed range]
Min. Illumination [Specify illumination values]
Field of View [Specify FOV]
Pan/Tilt Range [Specify ranges]
Weather Rating IP67
Power Supply 12V DC / PoE
Working Temperature -30°C to +60°C
