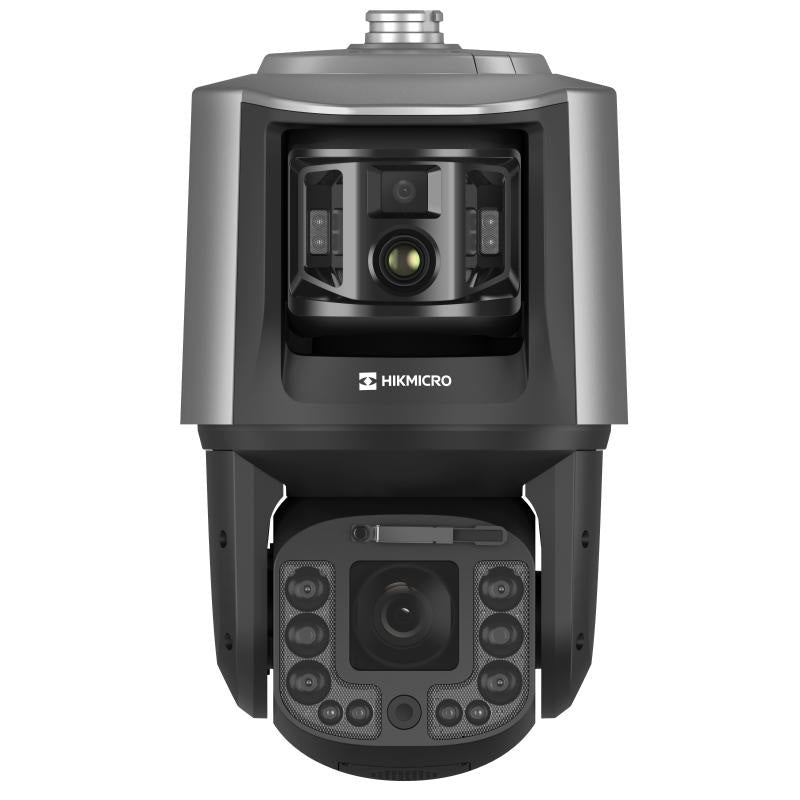

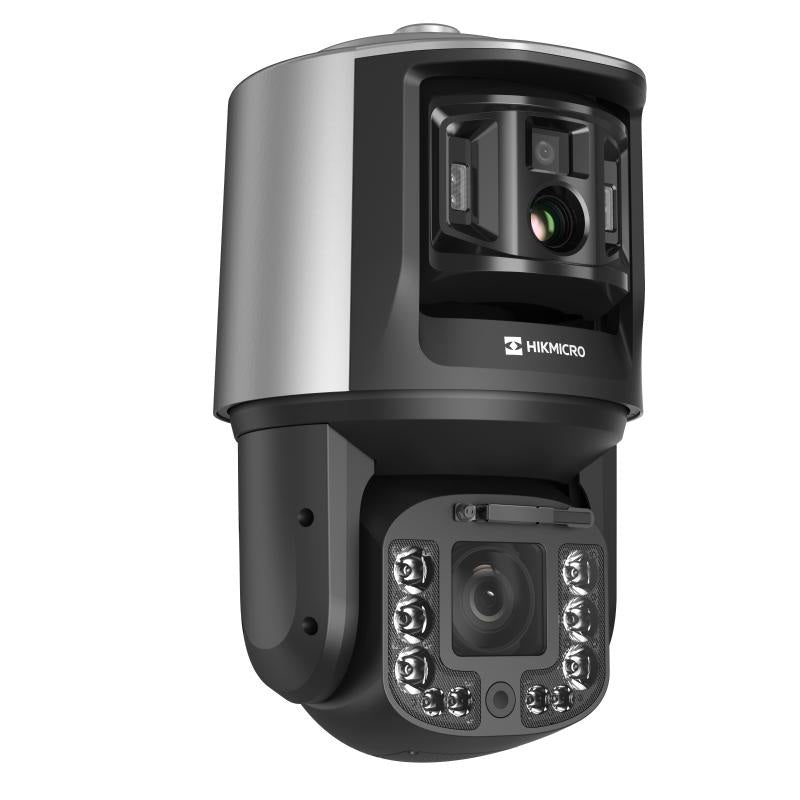

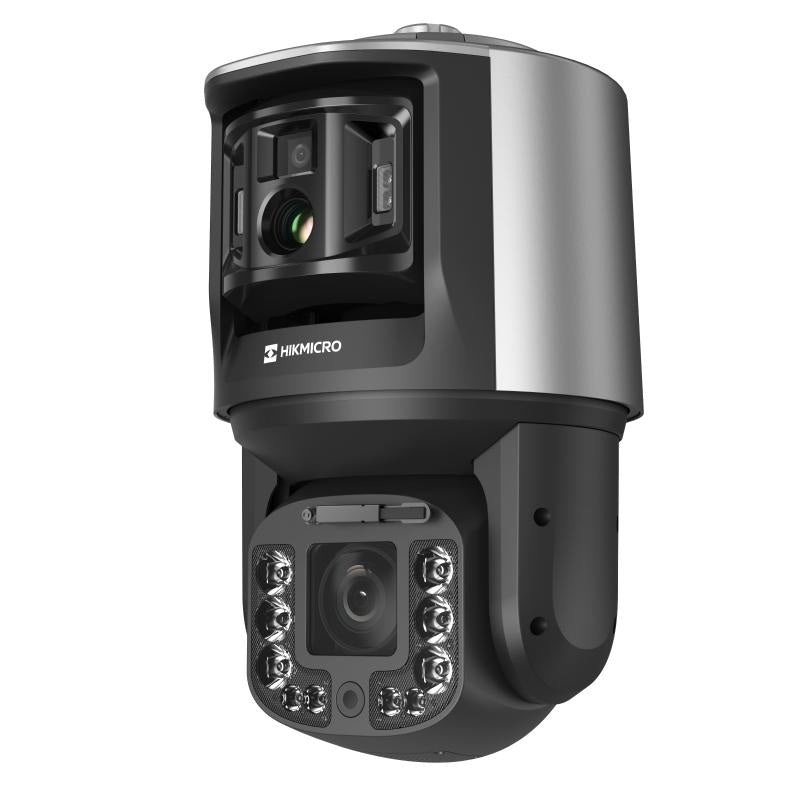

Hikvision HM-TX3840-25/G0/T1 Thermal TandemVu Smart Linkage Tracking System with 4MP 40× PTZ, 384×288 Thermal Imaging & Audible Alarm

Model: HM-TX3840-25/G0/T1

Who This Is For

For security teams and integrators who need to detect and track moving targets across large, unlit perimeters without relying on visible light, the Hikvision TandemVu HM-TX3840-25/G0/T1 is a professional-grade dual-sensor system built for that task. The thermal imager detects human and vehicle presence in complete darkness, smoke, or light fog, then hands off the target lock to the 4MP 40x optical zoom PTZ to deliver close-up visual detail and verification - all automatically. The built-in audible alarm lets the system respond in real time without a control room operator initiating a separate action. This is a perimeter protection system designed for defence facilities, critical infrastructure, ports, water treatment plants, large industrial estates, and similar sites where early-warning detection across hundreds of metres of unlit terrain is an operational requirement, not a preference.

What This System Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Power stations, water treatment plants, and utilities where perimeter intrusion at night must be detected and verified without dependence on artificial lighting or IR illuminators.
• Port and Logistics Security Teams: Shipping terminals and freight yards with long unlit fence lines where thermal early-warning combined with 40x optical zoom supports both detection and evidential-quality footage.
• Defence and Government Facility Integrators: Projects requiring a single mounting point to deliver both thermal intrusion detection and high-resolution optical tracking without pairing two separate camera systems.
• Large Agricultural and Mining Operations: Remote sites with no external lighting across hectares of open ground, where the thermal channel detects heat signatures the moment a target enters the detection zone.
• Security System Integrators on Complex Projects: Experienced integrators specifying a unified detect-classify-verify-alert workflow in a single unit to reduce mounting infrastructure and simplify NVR channel management.

Honest Assessment

The HM-TX3840-25/G0/T1 is a serious perimeter protection instrument. The TandemVu architecture genuinely closes the gap between detection and identification - thermal picks up the target, the 40x PTZ locks on and follows it, and the audible alarm fires without operator intervention. For sites where lighting-based IR is impractical or where targets must be detected before they are close enough for a visible-light camera to register them, this is the right category of tool. What it will not do is replace a conventional PTZ for general-purpose daytime surveillance where optical coverage alone is sufficient - this system is priced and specified for perimeter security applications, not for monitoring a shopfront or car park. It also requires a compatible NVR platform and careful mounting position planning to maximise the thermal sensor's detection geometry. Buyers comparing systems available through Security Australia should verify NVR compatibility and confirm the detection range their specific installation geometry demands before ordering.

Before You Buy

Quick Fit Check

• Good match if: You need to detect human or vehicle intrusion across a large unlit perimeter at night and require automatic PTZ verification of every thermal alert - the TandemVu linkage handles that without manual operator input.
• Good match if: Your site requires a single mounting position to deliver both early-warning detection and 40x optical zoom identification, reducing the number of pole or tower positions needed across a long fence line.
• You may need a different model if: Your requirement is general wide-area optical surveillance without a thermal detection layer - a standard PTZ or multi-sensor panoramic camera from the Security Australia range will deliver better value for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires detection in zero-light or low-visibility conditions and automatic PTZ verification of every thermal alert - no other camera type combines thermal early-warning with 40x optical tracking in a single mounting unit.
• You may need a different model if: Your requirement is daytime wide-area coverage across a medium-sized site without a thermal detection requirement - a standard PTZ or multi-sensor panoramic system will cover that application at a significantly lower cost and with simpler NVR integration.
• Pairs well with: A professional-grade NVR with dedicated thermal channel support and sufficient storage for continuous 4MP PTZ recording alongside the thermal stream - confirm compatibility before specifying the recorder.

Common Questions

1. Does the PTZ track targets automatically or does an operator need to control it?

   Automatically. The TandemVu Smart Linkage system is designed so the thermal channel detects the target and the PTZ slews and locks on without any operator input. The linkage between the 384×288 thermal sensor and the 4MP 40x PTZ is handled internally - the control room sees the tracking footage appear on screen as the event unfolds, with no joystick action required to initiate it.

2. Will this camera detect people in complete darkness?

   Yes. The thermal sensor detects heat signatures, not reflected light, so total darkness has no effect on its detection capability. Visible-light cameras and even IR-illuminated cameras depend on some form of light reaching the sensor - the thermal channel on the HM-TX3840-25/G0/T1 does not. Detection range will depend on the target's thermal contrast against its background, ambient temperature conditions, and the geometry of the specific installation.

3. What does the 384×288 thermal resolution mean for detection range?

   384×288 is a mid-range thermal resolution that provides a usable detection zone across open terrain at significant distances. Exact detection range depends on the 25mm focal length, the target size (human vs vehicle), and the thermal contrast of the scene. For formal site planning, use the standard DORI methodology with the manufacturer's thermal DORI figures - Security Australia can assist with this for complex projects. Higher-resolution thermal sensors (640×512 or above) extend identification range further but at increased cost.

4. Does the 40x optical zoom mean the PTZ can identify faces at long range?

   At close to maximum zoom, yes - for targets within its effective tracking range. The 4MP sensor combined with 40x optical zoom brings distant targets to a frame size where facial or vehicle detail is visible in the recorded footage. However, identification quality depends on lighting at the target location (the PTZ channel is an optical camera, not thermal), PTZ tracking smoothness, and the distance involved. At very long range, the thermal channel detects the target but optical identification may still require supplementary lighting.

5. Does the thermal channel perform differently in rain or fog compared to a standard IR camera?

   Yes, and in the thermal camera's favour for light fog and atmospheric haze. Thermal imaging detects radiated heat, which passes through light fog and smoke that blocks or scatters the near-infrared light used by standard IR cameras. The 384×288 thermal sensor on this system will continue to detect heat signatures in conditions where an IR-illuminated camera produces a washed-out or completely unusable image. Heavy rain does reduce thermal performance, and the 25mm focal length provides a relatively narrow field of view, so placement planning for rain-prone sites is important.

6. What NVR is required to run both the thermal and PTZ channels from a single unit?

   A Hikvision NVR with TandemVu protocol support is required to enable the full Smart Linkage tracking function. Not every Hikvision NVR supports this - confirm your NVR model and firmware version against Hikvision's compatibility list before specifying the system. Connecting the unit to an unsupported recorder will still provide video from both channels, but the thermal-triggered PTZ auto-tracking workflow requires the correct NVR-side support to operate as designed.

7. When does the audible alarm trigger and can it be configured?

   The audible alarm triggers when the thermal detection logic classifies an intrusion event - typically a human or vehicle entering a defined detection zone. Configuration of alarm trigger conditions, sensitivity thresholds, and response actions is managed through the camera's settings interface and the connected NVR platform. This allows sites to set different alarm behaviours for different zones or time schedules, and to suppress nuisance alerts from small animals or environmental movement depending on the thermal detection rules applied.
