  • Sku: DS-2CD7A46G0-IZS
  • Vendor: SecurityAustralia

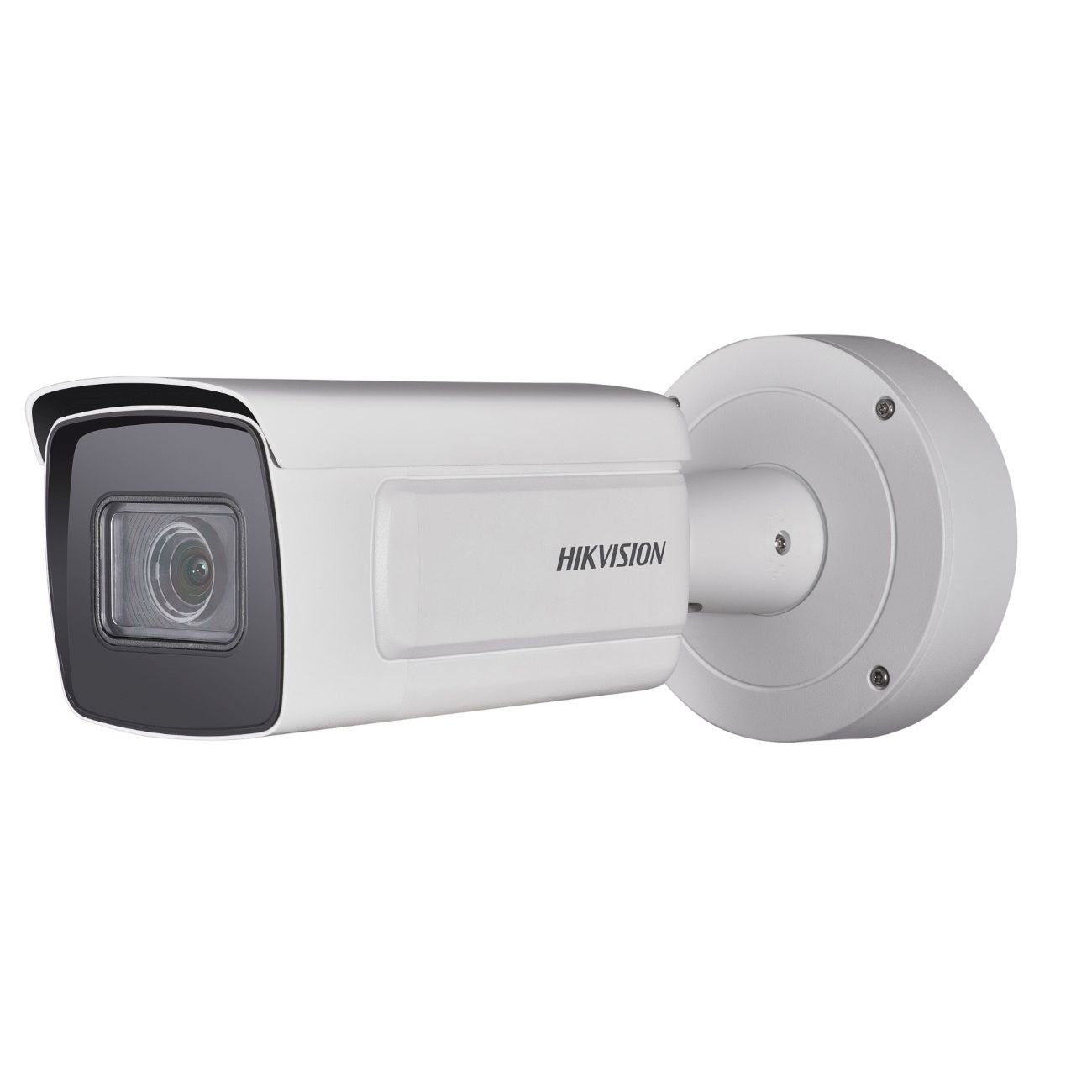

Hikvision DS-2CD7A46G0-IZS Outdoor DeepInView Bullet AI Camera, NEMA 4X, IP67, IK10, 2.8-12mm

$1,288.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

4 MP DeepinView Moto Varifocal Bullet Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light thanks to LightFighter technology
  • Intelligent functions based on deep learning
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Advanced streaming technology enables smooth live view and data self-correction in poor network
  • 5 streams and up to 5 custom streams to meet a wide variety of applications
  • 6 behavior analyses, 3 exception detection, and face detection
  • Water and dust resistant and vandal proof (IP67 and IK10).
DS-2CD7A46G0-IZHS_datasheet_V5.6.0 Bullet Network Camera Quick Start Guide

Specifications

Image Sensor:1/1.8" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.002 Lux @ (F1.2, AGC ON), 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter time:1 s to 1/100,000 s
Slow shutter:Yes
Lens:2.8 to 12 mm
Lens Mount:Integrated
Auto Iris:DC drive, P-iris
Adjustment Range:Bracket, pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night:IR Cut Filter
Wide Dynamic Range:140dB
Focus:Auto, semi-auto, manual
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
H.264 code profile:Baseline Profile/Main Profile/High Profile
Video bit rate:256Kbps~16Mbps
Dual Stream:Yes
Triple Streams:Yes
Max. Image Resolution:2560 × 1440
Sub Stream:50Hz: 25fps (704 × 576, 640 × 480)60Hz: 30fps (704 × 480, 640 × 480)
Third Stream:50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Image Enhancement:BLC, HLC, 3D DNR, Defog, EIS
Image Settings:Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Target Cropping:Yes
BLC:Support
HLC:Support
Smart Defog:Support
EIS:Support
3D DNR:Support
Picture Overlay:LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Day/Night Switch:Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Security:Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Network Storage:Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function:Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
System Compatibility:ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Intelligent
Behavior analysis:Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Communication Interface:1 RJ45 10M/100M/1000M Ethernet port
Alarm:2 inputs, 2 outputs (up to 24 VDC 1A or 110 VAC 500 mA)
Alarm Input:2
Alarm Output:2
Video Output:1Vp-p composite output (75 Ω/CVBS)
On-board storage:Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Button:Yes
Smart Feature-set
Behavior Analysis:Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Region Entrance:Enter a pre-defined virtual region from the outside place
Region Exiting:Exit from a pre-defined virtual region
Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:Scene change detection, defocus detection
Recognition:Face Detection
Statistics:Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
IR Range:Up to 50 m
Operation Condition:-30 °C to 65 °C (-22 °F to 149 °F), -H: -40 °C to 65 °C (-40 °F to 149 °F)Humidity 95% or less (non-condensing)
Power Supply:12 V DC ± 20%, PoE (802.3at, class 4)
Power Consumption:-IZS: 12 VDC, 1.08 A, max. 13 W; PoE (802.3at, 42.5 V to 57 V), 0.31 A to 0.23 A, max. 13 W-IZHS: 12 VDC, 1.13 A, max. 13.5 W; PoE (802.3at, 42.5 V to 57 V), 0.42 A to 0.32 A, max. 18 W
Impact Protection:IK10
Weather Proof:IP67
Dimensions:Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″)With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight:Camera: approx. 2.45 kg (5.40 lb.)With package: approx. 2.7 kg (5.95 lb.)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2CD7A46G0-IZS Outdoor DeepInView Bullet AI Camera, NEMA 4X, IP67, IK10, 2.8-12mm

Product Overview:

Explore the cutting-edge capabilities of the Hikvision DS-2TD2137-6/PA Thermal & Optical Bi-spectrum Network Bullet Camera. This advanced surveillance solution integrates thermal and optical technologies to deliver unparalleled performance in various environmental conditions.

Key Features:

  • Thermal Imaging: Detects heat signatures with high sensitivity, ensuring reliable surveillance even in challenging lighting conditions.
  • Optical Imaging: Delivers crisp visual clarity with detailed resolution up to 2560 × 1440 pixels.
  • Deep Learning: Employs advanced AI algorithms for enhanced target classification and accurate alarm triggers, minimizing false alerts.
  • IR Range: Up to 50 meters for the 2.8-12 mm lens option; up to 100 meters for the 8-32 mm lens option.
  • Viewing Angles: For the 2.8-12 mm lens: Horizontal FOV 109.2°, Vertical FOV 56.2°, Diagonal FOV 134.5°; for the 8-32 mm lens: Horizontal FOV 37.7°, Vertical FOV 21°, Diagonal FOV 43.3°.
  • Video Compression: Supports efficient H.265+ and H.264+ encoding for optimized bandwidth and storage utilization.
  • Environmental Durability: Built to withstand extreme temperatures (-40°C to 65°C) and harsh weather conditions with IP67 and IK10 ratings.

Specifications:

Image Sensor: 1/1.8ʺ Progressive Scan CMOS
Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed: 1 s to 1/100,000 s
Wide Dynamic Range: 140 dB
Day/Night: IR cut filter
Lens Type: Motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Max. Resolution: 2560 × 1440
Video Streams: 5 defined streams and up to 5 custom streams
IR Range: 2.8 to 12 mm: up to 50 m; 8 to 32 mm: up to 100 m
Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Network Interface: 1 RJ45 10M/100M/1000M Ethernet port
Power Supply: 12 VDC ± 20%, PoE (802.3at, class 4)
Operating Conditions: -30 °C to 65 °C (-22 °F to 149 °F), Humidity 95% or less
Dimensions: Camera: Φ144 × 347 mm (Φ5.7″ × 13.7″); With package: 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Weight: Camera: approx. 2.45 kg (5.40 lb.); With package: approx. 2.7 kg (5.95 lb.)
