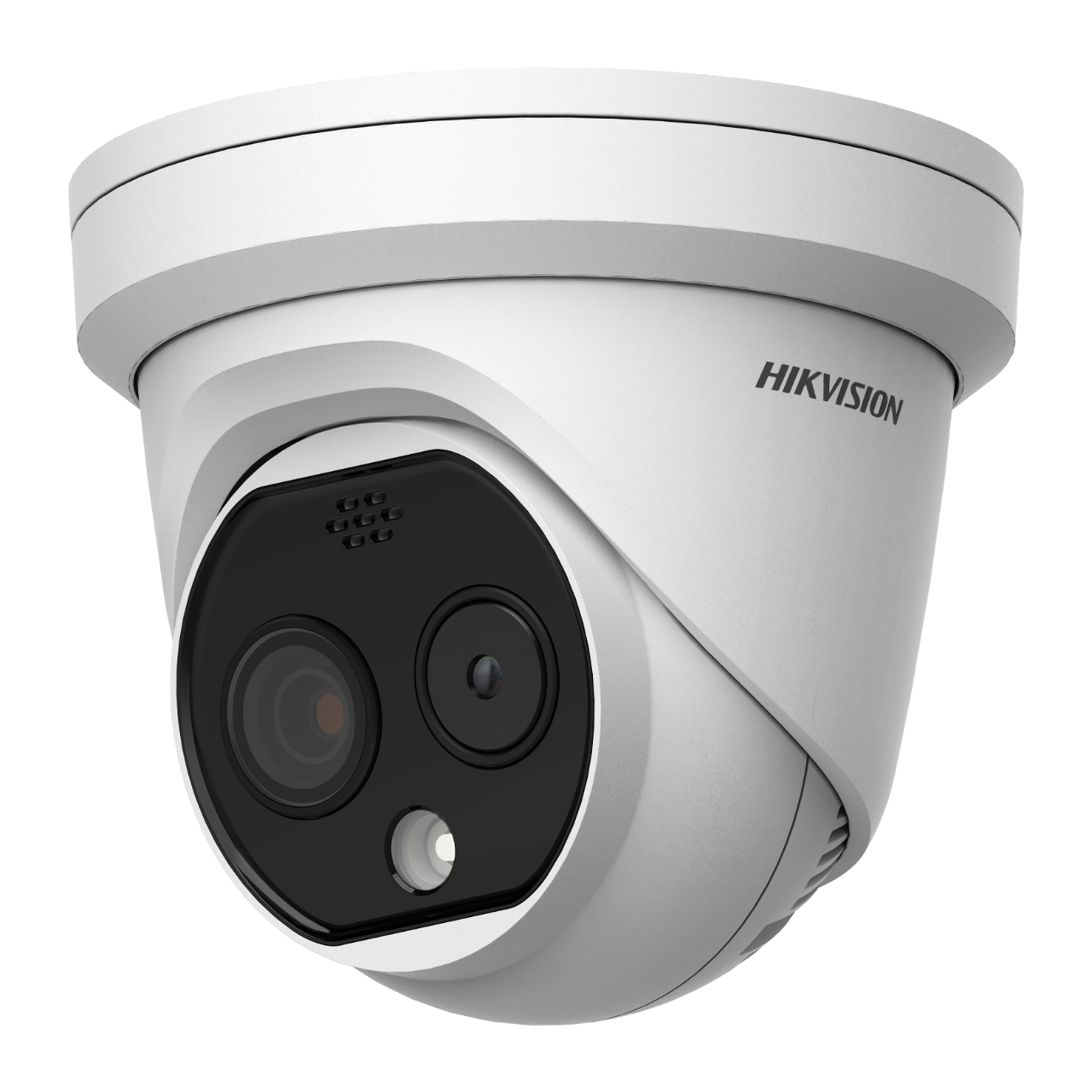

Hikvision DS-2TD1217-2/QA Thermographic Network Turret Camera 2mm HeatPro

Model: DS-2TD1217-2/QA

Who This Is For

Property managers specifying perimeter detection for sites where standard optical cameras fall short after dark or in obscured conditions will find the DS-2TD1217-2/QA HeatPro a practical fit. This bi-spectrum turret combines a 160 × 120 thermal sensor with a 4MP optical module in a single IP67-rated housing, giving security teams heat-based detection alongside visible detail without deploying 2 separate cameras. The ultra-wide 90° thermal field of view suits compact outdoor zones - entry points, courtyard perimeters, and gate approaches where you need to catch a heat signature before a subject moves into the lit optical zone. The built-in strobe and audio alarm means the camera can actively deter as well as record. It suits facilities managers, integrators commissioning outdoor perimeter upgrades, and security consultants designing cost-effective thermal coverage for mid-size commercial or light industrial sites.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Commercial Perimeter Projects: Specifying a single bi-spectrum camera to replace paired thermal-plus-optical setups at entry points, reducing hardware count and cabling without losing detection capability.
• Facilities Managers at Industrial or Warehousing Sites: Needing after-dark coverage of outdoor yards, loading areas, or equipment compounds where IR optical cameras alone are triggered constantly by insects, headlights, and shadows.
• Government and Critical Infrastructure Sites: Requiring perimeter detection that works reliably in smoke, dust, or low-visibility conditions that routinely defeat standard CCTV - common in utilities, water treatment, or rural infrastructure sites.
• Property Managers at Strata or Mixed-Use Complexes: Adding active deterrence via the built-in strobe and alarm at after-hours access zones, car parks, or bin areas where passive recording alone is not reducing repeat incidents.

Honest Assessment

The DS-2TD1217-2/QA does thermal perimeter detection well at a compact form factor. The VOx sensor with sub-40 mK NETD genuinely detects heat signatures in conditions that defeat optical cameras entirely, and the bi-spectrum fusion means operators are not left interpreting a thermal blob - they get an optical reference in the same frame. The 25 Hz thermal frame rate keeps motion smooth, and the deep learning classification cuts the nuisance alarm problem that makes many thermal deployments impractical. Active deterrence via strobe and audio adds a response layer without additional hardware. Where this camera has limits: the 160 × 120 thermal resolution is entry-level thermal - adequate for detection and basic classification at short range, but it will not deliver the target detail needed for forensic thermal analysis or long-range detection at extended perimeter distances. For larger sites requiring detection beyond 40-50 m, a higher-resolution thermal module would be more appropriate. Available through Security Australia, this model suits compact perimeter zones where detection accuracy and deterrence matter more than long-range thermal reach.

Before You Buy

Quick Fit Check

• Good match if: You need perimeter detection that works in complete darkness or poor visibility conditions at a compact entry point - the VOx thermal sensor with sub-40 mK NETD detects heat signatures where IR optical cameras produce no usable image.
• Good match if: Your site has a history of nuisance alarms from a purely optical system - the deep learning human and vehicle classification on the thermal channel filters irrelevant heat sources and reduces false triggers before an alert is sent.
• You may need a different model if: Your detection zone extends beyond 40-50 m or you require forensic-grade thermal detail for post-event analysis - a higher-resolution thermal camera with a larger sensor array would better serve long-range or high-detail thermal applications.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single compact camera that covers both thermal detection and 4MP optical recording with active deterrence in one IP67 outdoor housing - eliminating the need to pair a separate thermal sensor with an optical camera at the same mounting point.
• You may need a different model if: Your perimeter detection zone extends beyond 40-50 m or you need higher thermal resolution for detailed target analysis at range - a higher-resolution thermal camera with a larger sensor array and longer focal length would be more appropriate for those applications.
• Pairs well with: A PoE NVR or network video recorder with deep learning event management capabilities, allowing thermal alarm events to be logged, reviewed, and escalated alongside the 4MP optical recordings from the same camera.

Common Questions

1. Will this camera detect people in complete darkness with no IR illumination?

   Yes. The thermal sensor operates entirely independently of light - it detects the heat emitted by a human body rather than reflected light. In complete darkness with no IR illuminator active, the thermal channel will still produce a detection and trigger alarms. The 15 m IR illuminator on the optical module supports visible-detail recording once a subject is within range, but thermal detection is not dependent on it.

2. Does this camera work as a standard PoE camera, or does it need a special power supply?

   Yes, it runs on standard IEEE 802.3af PoE. A single Cat5e or Cat6 cable carries both power and data, so a standard PoE switch port or injector is sufficient - no PoE+ (802.3at) is required. It also accepts 12 VDC if PoE is not available at the install point.

3. What does an NETD of less than 40 mK actually mean in practice?

   NETD (Noise Equivalent Temperature Difference) is the smallest temperature difference the sensor can distinguish from background noise. At less than 40 mK, this sensor can separate a human body from a background that is less than 0.04°C different in surface temperature. In practical terms, it means the camera will detect a person standing against a wall, crouching in vegetation, or partially obscured by an obstacle in conditions where lower-sensitivity sensors produce a noisy or indistinct thermal image. It is a meaningful specification for outdoor perimeter use where target-to-background contrast is often low at night.

4. How accurate is the temperature measurement function, and is it suitable for fever detection?

   The thermographic accuracy is ±8°C across a range of -20°C to 150°C. This level of accuracy is suitable for equipment monitoring and hot-spot detection - for example, triggering an alarm when an electrical cabinet surface exceeds a defined threshold. It is not suitable for human body temperature screening or fever detection, which requires a calibrated reference source and a measurement accuracy of ±0.3°C or better. This camera is not rated or marketed for that application.

5. Does the 160 × 120 thermal resolution limit how far away the camera can detect someone?

   Yes, the resolution directly affects detection range. At 160 × 120 with a 17 μm pixel pitch and 90° FOV, the camera is optimised for short to mid-range detection - typically up to 20-30 m for reliable human detection using deep learning classification. Beyond that, the number of pixels covering a human-sized target drops below the level needed for consistent classification. For longer detection ranges, a higher-resolution thermal module with a narrower lens is the appropriate choice. The stocked range at Security Australia includes higher-resolution thermal options for sites with extended detection zone requirements.

6. Will the strobe and alarm fire for every motion event, or can it be configured to trigger only on specific detections?

   The active deterrence output is configurable - it is tied to the detection rules you set in the camera, including the deep learning classification filters for human and vehicle targets. You can configure the strobe and alarm to fire only when the AI confirms a human detection within a defined zone, not for every thermal event. This prevents the deterrence from triggering on animals, blowing foliage, or vehicle heat during authorised hours, making the response proportionate and reducing unnecessary activations.

7. Does this camera record both thermal and optical streams simultaneously?

   Yes. The DS-2TD1217-2/QA supports dual streaming, so thermal and optical video can be recorded simultaneously in H.265, H.264, or MJPEG. Both streams can be saved to the onboard Micro SD card (up to 256 GB) or to a connected NVR. Bi-spectrum fusion view - overlaying both streams - is also available for live monitoring, giving operators a single combined image rather than requiring them to switch between 2 separate feeds.
