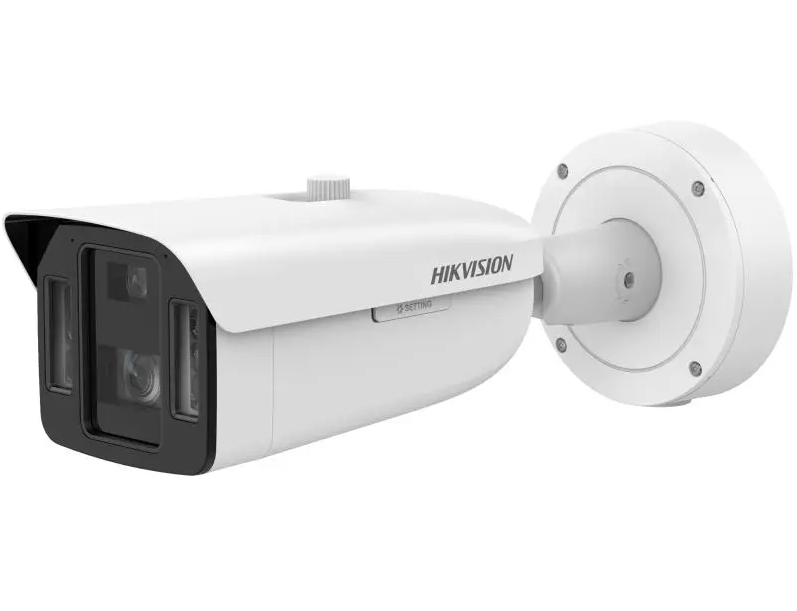

Hikvision iDS-2CD8A46G0-XZ(H)S(Y) 4MP Outdoor TandemVu Bullet Camera, ColorVu, ANPR, IP67, 8-32mm

Model: iDS-2CD8A46G0-XZ(H)S(Y)

Who This Is For

When capturing both a usable licence plate read and a clear overview of the surrounding scene from a single camera position is the priority, the Hikvision iDS-2CD8A46G0-XZ(H)S(Y) TandemVu bullet is the purpose-built answer. This is a dual-channel camera that runs 2 independent image streams simultaneously - Channel 1 handles the ANPR function through an 8-32mm motorised varifocal lens aimed at the plate zone, while Channel 2 uses a fixed 4mm lens to capture the wider approach context. Installers specifying entry points for car parks, gated estates, fuel stations, drive-throughs, and industrial facility gates will find this camera solves the traditional problem of choosing between a tight plate shot and a usable scene image. Both channels deliver colour imaging in near-darkness, and the IK10-rated housing holds up in unprotected outdoor positions exposed to both weather and physical contact.

What This Camera Actually Does

Who Buys This Model

• Car park operators and management companies: Need a confirmed plate read and a scene image at boom gate or entry boom positions, without mounting 2 separate cameras on a single arm. The TandemVu dual-channel layout solves this in a single housing.
• Industrial and logistics facility managers: Require ANPR at site entry and exit points to log contractor and delivery vehicle movements, with the 8-32mm varifocal providing the reach needed across wide access roads.
• Fuel retailers and drive-through operators: Need colour low-light imaging and plate capture in the same frame to support both drive-off incident investigation and after-hours site monitoring, covered by ColorVu on both channels.
• Security integrators specifying gated estate and strata access: The IK10 housing withstands exposure at unsheltered gate columns, and PoE+ (802.3at) simplifies cable runs to existing network infrastructure without a separate power supply.

Honest Assessment

The iDS-2CD8A46G0-XZ(H)S(Y) does something genuinely useful: it eliminates the trade-off between a tight ANPR shot and a usable scene overview by running both simultaneously in the same housing. The motorised 8-32mm varifocal on Channel 1 makes commissioning straightforward compared to fixed-lens ANPR cameras, and the IK10 rating adds protection that matters at unsheltered gate columns. ColorVu on both channels is a practical advantage at unmanned entry points where colour detail aids identification overnight. Available through Security Australia, this is a product aimed squarely at professional installation rather than DIY deployment. It will not replace a full free-flow multi-lane ANPR system handling high-speed traffic across multiple lanes simultaneously - for those applications, a dedicated ANPR appliance with overhead gantry mounting is more appropriate. The PoE 802.3at requirement also means standard 802.3af switches will not power it; verify your switch specification before ordering.

Before You Buy

Quick Fit Check

• Good match if: You need both a licence plate read and a scene context image at a single access point - the TandemVu dual-channel design delivers both from one mounting position without combining 2 separate cameras.
• Good match if: Your site runs overnight without staffing and colour identification matters - ColorVu on both channels maintains colour imaging down to near-zero lux rather than falling back to greyscale IR.
• You may need a different model if: Your application is a high-speed multi-lane freeway or toll-road environment with traffic moving above 120 km/h across 3 or more lanes simultaneously - that scenario calls for a dedicated multi-lane ANPR system rather than a single-point bullet camera, and Security Australia carries dedicated ANPR appliances suited to those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need confirmed on-board ANPR and a simultaneous scene overview image from one camera mounting position, with colour imaging on both channels in low light.
• You may need a different model if: Your requirement is wide-area general surveillance across an open outdoor site without ANPR - a standard 4MP or 8MP varifocal bullet without TandemVu complexity is better suited and more cost-effective for that application.
• Pairs well with: A PoE+ capable NVR with ANPR event search and licence plate database management, or a standalone PoE+ switch feeding into an existing VMS platform that supports Hikvision ANPR event streams.

Common Questions

1. Does this camera record 2 separate video streams at the same time?

   Yes. The TandemVu design runs Channel 1 and Channel 2 as completely independent image streams simultaneously. Channel 1 uses the 8-32mm motorised varifocal sensor optimised for the ANPR tight shot, and Channel 2 uses the 4mm fixed lens for the wider scene. Both streams record independently to the connected NVR and can also write to the onboard microSD card up to 256 GB.

2. Will this camera work on my existing PoE switch?

   Only if your switch delivers IEEE 802.3at (PoE+) on that port. Standard 802.3af PoE ports supply a maximum of 15.4W, which is insufficient for this camera's dual-channel sensor, motorised lens, IR, and processing load. The iDS-2CD8A46G0-XZ(H)S(Y) requires 802.3at (up to 30W). Check your switch port specification before installing - a PoE+ injector is the straightforward solution if your switch is 802.3af only.

3. What is the maximum vehicle speed for reliable ANPR capture with this camera?

   The confirmed detection range for Channel 1 extends to 400m at tele setting, which indicates it is designed for fixed-approach or low-to-moderate speed scenarios rather than free-flow highway traffic. ANPR accuracy is directly dependent on plate size in the frame, approach angle, and vehicle speed at the moment of capture. For stationary or slow-moving entry points (car parks, boom gates, site access, fuel forecourts), the 8-32mm varifocal allows precise framing of the capture zone. For high-speed applications above approximately 80-100 km/h, a dedicated free-flow ANPR solution with a higher shutter speed and specifically rated approach geometry is more appropriate.

4. Does the ANPR on Channel 1 and the scene image on Channel 2 need to be managed in separate software?

   No, provided you are using a compatible Hikvision NVR or VMS platform that supports TandemVu dual-channel cameras. Both channels appear as a single camera entity within the management software, and ANPR plate events from Channel 1 can be linked to the corresponding Channel 2 scene image using the same timestamp. This makes event retrieval straightforward - a plate search pulls the associated scene frame without requiring cross-referencing between 2 separate camera records.

5. Does the camera maintain colour imaging overnight or does it switch to black and white?

   It maintains colour imaging in near-zero light conditions. Channel 1 reaches colour at 0.0005 Lux and Channel 2 at 0.0003 Lux, with both dropping to 0 Lux when supplemental light is active. This is the ColorVu function - the camera does not switch to greyscale IR-illuminated imagery the way a standard camera does at low light thresholds. In practice this means driver clothing, vehicle colour, and scene context remain visible on both channels throughout the night.

6. Is the IK10 rating sufficient for an unsheltered outdoor gate column installation?

   Yes. IK10 is the highest impact protection rating in the IEC 62262 standard, rated for 20 joules of impact resistance - equivalent to a 5 kg mass dropped from 400mm, or direct manual strike. Combined with the IP67 dust and water ingress rating, the housing is built for unprotected outdoor positions. The IP67 rating confirms full protection against dust ingress and sustained water immersion, making it suitable for exposed gate column, car park entry, and loading dock soffit installations subject to rain, dust, and vehicle exhaust.

7. Will this camera work with non-Hikvision NVRs or third-party VMS platforms?

   Partially. The camera streams standard RTSP/ONVIF video, so basic dual-channel recording is achievable on many third-party NVRs and VMS platforms. However, the ANPR plate event data, TandemVu linked-stream event search, and on-board VCA analytics are delivered through Hikvision's proprietary SDK and event structure. Full ANPR functionality including plate search, whitelist/blacklist management, and linked Channel 1-Channel 2 event retrieval requires a Hikvision-compatible NVR or VMS. If your platform is non-Hikvision, confirm ANPR event integration with your VMS vendor before specifying this camera. The team at Security Australia can advise on compatible recording platforms for this model.
