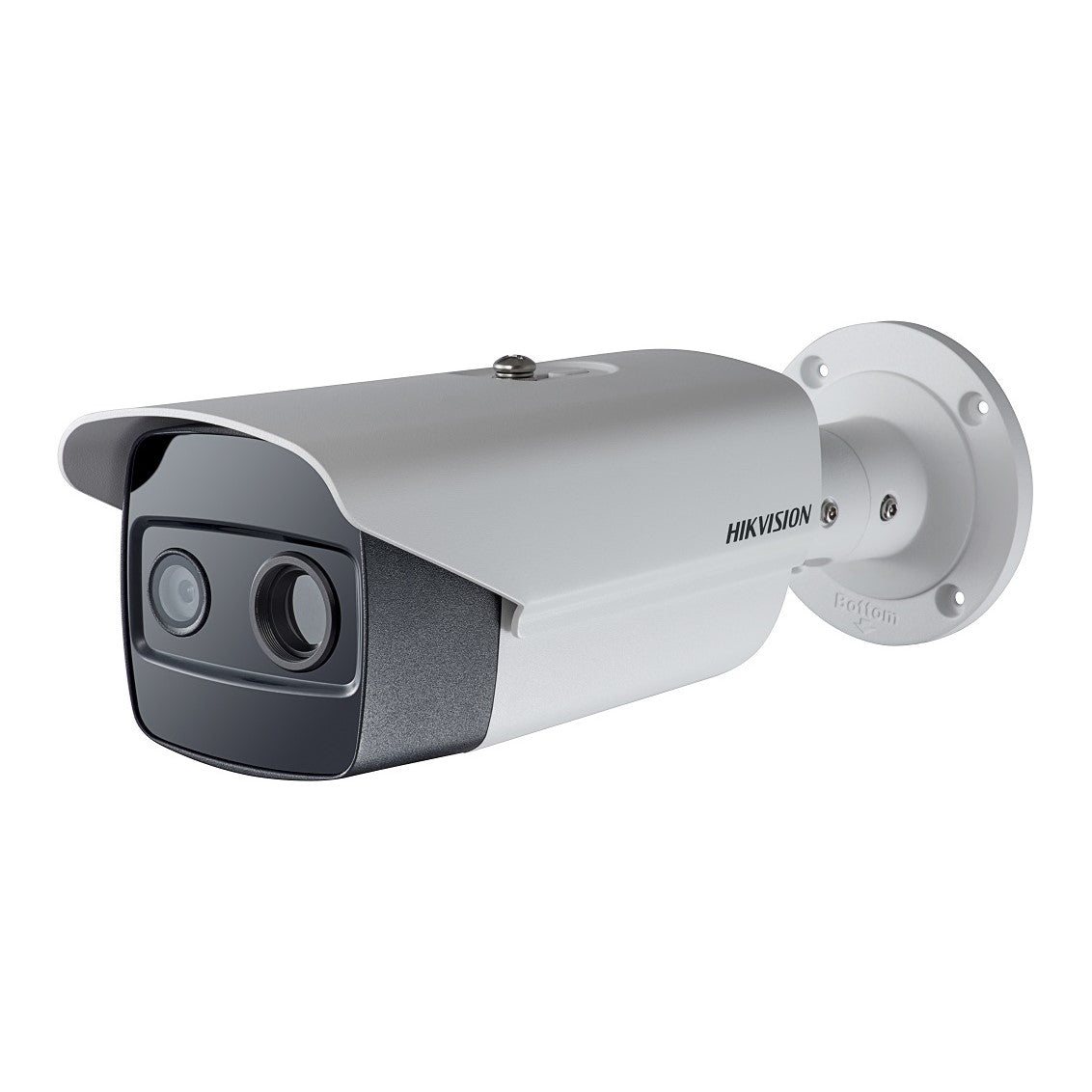

Hikvision DS-2TD2636-15 DeepInView Bi-Spectrum Thermal Bullet Camera, 40m IR, 384x288, 15mm

$6,259.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

Smart Function (Thermal Imaging)

  • Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD < 40mk (@25°C,F#=1.0)
  • Powerful behavior analysis algorithm: Line crossing, Intrusion, Region Entrance & Exit
  • Reliable temperature exception alarm function
  • Advanced fire detection algorithm
  • Bi Spectrum Image Fusion, Picture in Picture Preview

Thermal Imaging Module Function

  • 384*288 resolution, high sensitivity sensor, support contrast adjustment
  • Shutter adjustment in various modes
  • 3D DNR, 15 palettes of color adjustable, image detail enhancement
  • Mirror image, digital zoom ×2, ×4, ×8, and local output

This device is not a medical device and not TGA approved.

CURRENTLY IN STOCK - PLEASE CONFIRM BEFORE ORDERING

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2TD2636-15 DeepInView Bi-Spectrum Thermal Bullet Camera, 40m IR, 384x288, 15mm

$6,259.00 AUD
 per

Hikvision DS-2TD2636-10/15 Thermal and Optical Network Bullet Camera

This Hikvision DS-2TD2636-10/15 is a state-of-the-art thermal and optical network bullet camera designed for advanced surveillance needs. Please note, this camera is not for detecting fevers. For fever detection cameras, please visit here.

Thermal Module:

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 384 × 288
Detector Pitch 17um
Response Waveband 8um to 14um
NETD < 40mk (@25°C, F#=1.0)
Lens (focal length) 15mm
MRAD 1.13 mrad
Field of View 24.2° × 18.4°
Min. Focusing Distance 2.5m
F number 1.0

Optical Camera:

Image Sensor 1/2.8’’ Progressive Scan CMOS
Min. Illumination Color: 0.002 lux @ (F1.5, AGC On); B/W: 0.0002 lux @ (F1.5, AGC On)
Field of View 40.0° - 22.4° (Wide-Tele)
WDR Digital
Shutter Speed PAL: 1-1/30,000s / NTSC: 1-1/30,000s
Day & Night IR Cut Filter with Auto Switch

Image Function:

  • Bi-spectrum Image Fusion: Fusion view of thermal view and overlaid details of the optical channel
  • Picture in Picture: Combines details of thermal and optical image PIP, overlay thermal image on optical image

Smart Function:

  • VCA: Support 4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), 8 VCA rules
  • Temperature Measurement: Support 3 temperature measurement rule types, 21 rules (10 points, 10 regions, and 1 line)
  • Temperature Range: -20°C to 150°C (-4°C to 302°F)
  • Temperature Accuracy: ±8°C (14.4°F)
  • Fire Detection: Support 10 fire points

Infrared:

  • IR Distance: Up to 500m
  • IR Intensity and Angle: Auto Adjust

Network:

Main Stream Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720); Thermal: 50fps (384×288)
Sub Stream Optical: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); Optical: 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 ×720); Thermal: 50fps (384×288)
Video Compression H.264/MJPEG, H.264+ encoding with Baseline/Main/High Profile
Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous live view Up to 20-ch
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering

Integration:

  • Alarm Input: 2-ch Inputs (0-5V DC)
  • Alarm Action: SD recording/Relay output/Smart capture/FTP upload/Email linkage
  • Alarm Output: 2-ch relay outputs, alarm response actions configurable
  • Audio Input: 1-ch 3.5mm Mic in/Line in interface. Line input: 2-2.4 V[p-p], output impedance:1KΩ±10%
  • Audio Output: Linear Level; Impedance: 600Ω
  • Onboard Storage: Built-in Micro SD/SDHC/SDXC Card Slot, Up to 128GB, Support Manual/Alarm Recording
  • Ethernet: 1 RJ45 10M/100M Self-adaptive Ethernet interface
  • Analog Video Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC
  • Application Programming: Open-ended API, support ISAPI; Support HIKVISION SDK and Third-party Management Platform
  • Client: iVMS-4200
  • Web Browser: IE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+; Multiple Languages

General:

Power Consumption 24 VAC± 25%: 0.84 A, 12 VDC ± 20%: 1.6 A, max. 10W (20 W with De-icing Heater On), PoE (802.3at, class 4): 42.5 V to 57 V, 0.35 A to 0.47 A
Power 24 VAC± 25%, 12 VDC± 20%, two-core terminal block PoE (802.3at, class 4)
Menu Language English
Working Temperature/ Humidity From -40
