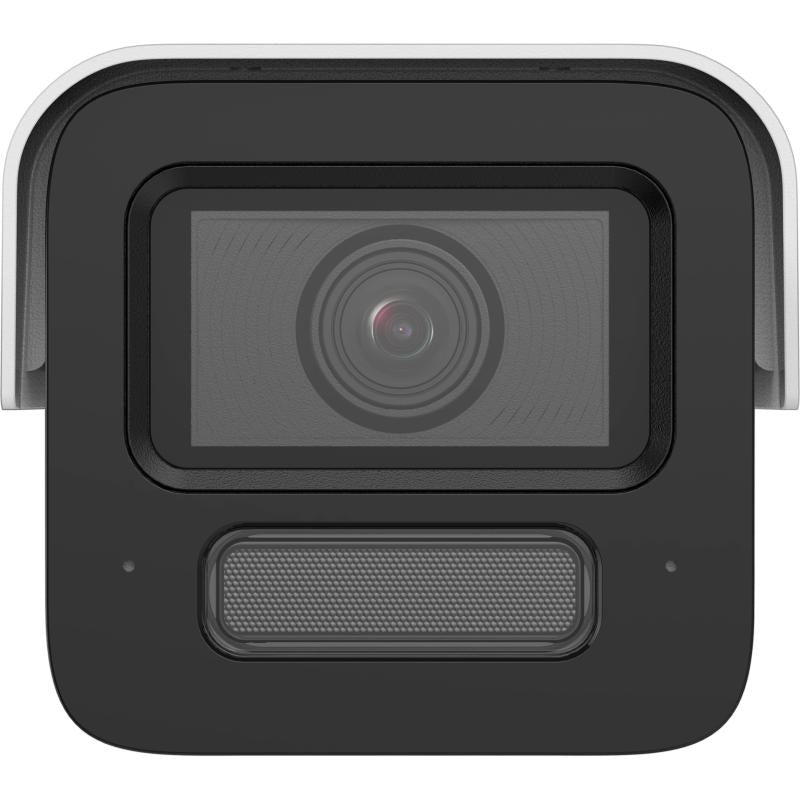

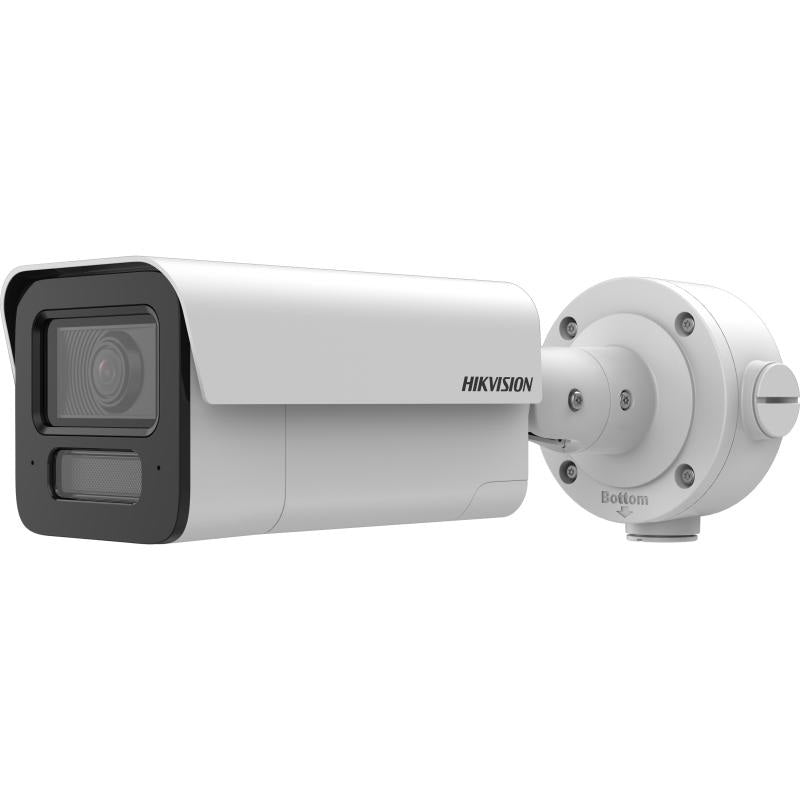

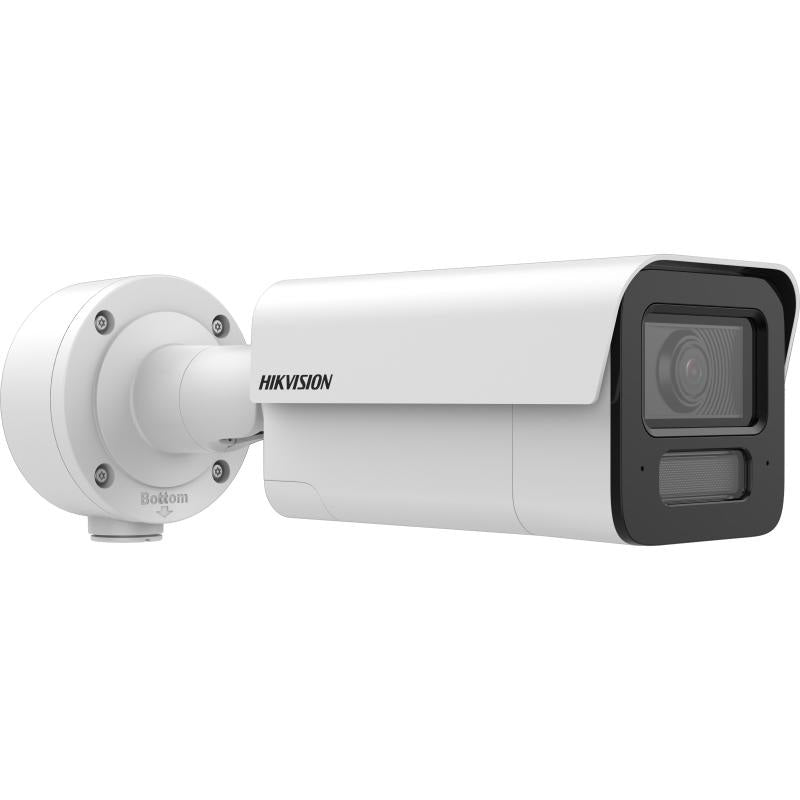

Hikvision iDS-2CD5T87G2/V-X(H)S(Y) 8MP DeepinViewX Fixed Bullet Camera with DarkFighter 2.0 & Perimeter Protection

Model: iDS-2CD5T87G2/V-X(H)S(Y)

Who This Is For

When perimeter detection accuracy and low-light imaging performance are the non-negotiable priorities, the Hikvision DeepinViewX iDS-2CD5T87G2 is the camera specifiers reach for. Designed for demanding outdoor environments - think industrial yards, logistics facilities, correctional perimeters, data centres, and critical infrastructure sites - this 8MP fixed bullet pairs DarkFighter 2.0 sensor technology with deep learning AI analytics to deliver classification-based alerts rather than pixel-change triggers. Installers working on sites where false alarms carry a real operational cost will appreciate the Perimeter Protection engine that distinguishes humans from vehicles from background movement. The motorised varifocal lens allows precise focal adjustment post-installation without physical lens access, and the optional built-in heater variant keeps the camera operational in sub-zero conditions. This is a purpose-built tool for sites where image quality, detection reliability, and environmental resilience all need to be ticked at once.

What This Camera Actually Does

Who Buys This Model

• Industrial Security Managers: Specifying perimeter coverage for manufacturing yards, logistics hubs, and warehousing sites where classification-based alerts need to connect to an existing alarm management platform without a flood of false triggers overnight.
• Security Integrators on Critical Infrastructure Projects: Installing at water treatment facilities, substations, and data centres where the combination of 8MP resolution, deep learning analytics, and environmental ratings meets the elevated specification requirements of the brief.
• Cold Storage and Refrigeration Facility Operators: Selecting the (H) heated variant specifically to maintain reliable imaging in dock areas and external cold-room perimeters where standard cameras fog out or fail during temperature cycling.
• Correctional and Detention Facility Contractors: Needing IK10 impact resistance and deep learning line-crossing alerts on exterior fence lines where camera housings must withstand physical interference and nuisance alarms must be kept to a minimum for control room operators.
• Mining and Resources Site Installers: Deploying along long site access roads and equipment yards where motorised varifocal adjustment is essential when cameras are mounted at height on masts or gantries that are impractical to re-access for lens tuning.

Honest Assessment

The iDS-2CD5T87G2 genuinely delivers where it matters for high-end perimeter work. DarkFighter 2.0 produces colour-useful images in ambient light conditions that would defeat most 8MP competitors. The deep learning Perimeter Protection engine is meaningfully more accurate than pixel-based motion detection - human and vehicle classification reduces the after-hours alert volume that causes monitoring stations to tune out. Motorised varifocal lens adjustment via the interface removes a real on-site friction point for elevated installs. The heated variant is one of the few fixed bullets suited to genuine cold-environment deployment without adding an external enclosure. What this camera will not do: it does not pan, tilt, or zoom in real time - for active operator tracking across a wide scene, a PTZ camera is the right tool. It also does not provide optical zoom beyond the fixed varifocal range, so very long-range identification beyond the IR distance needs a dedicated long-range or PTZ unit. Available through Security Australia as part of the DeepinView range for integrators and commercial operators.

Before You Buy

Quick Fit Check

• Good match if: You need AI-classified perimeter alerts - human and vehicle detection - on a fixed outdoor approach, fence line, or yard where false alarms from standard motion detection are a known problem.
• Good match if: The camera position is elevated or difficult to access after installation and motorised varifocal remote adjustment will save a return site visit for lens tuning.
• You may need a different model if: Your site requires active operator-controlled tracking across a large open area - a PTZ camera with optical zoom and auto-tracking better suits that monitoring requirement than any fixed bullet.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 8MP fixed bullet coverage with deep learning AI classification and DarkFighter 2.0 low-light imaging in a single ruggedised outdoor housing - particularly where the motorised varifocal remote adjustment or the heated variant is operationally necessary.
• You may need a different model if: Your application requires an operator to actively pan, tilt, and zoom to follow subjects across a large open area in real time - a PTZ camera with auto-tracking capability is the appropriate product type for that use case.
• Pairs well with: A Hikvision DeepinView-compatible NVR or VMS that can receive and act on AI event metadata - standard NVRs will record video but may not surface the classification-based alert rules that make this camera most useful operationally.

Common Questions

1. Does this camera work on a standard PoE switch, or do I need PoE+?

   It depends on the variant. The standard (non-heated) version operates on IEEE 802.3af PoE, which most commercial PoE switches support natively over Cat5e or Cat6. The (H) heated variant requires IEEE 802.3at PoE+, which delivers up to 30W per port - confirm your switch or injector supports PoE+ before running cable to avoid the camera rebooting under load when the heater activates in cold conditions.

2. Will this camera reduce false alarms compared to a standard motion detection camera?

   Yes, meaningfully so. The DeepinView deep learning engine classifies detected objects as humans or vehicles before an alert is generated. Standard pixel-based motion detection triggers on any scene change - passing headlights, wind-blown foliage, shadows. Perimeter Protection line crossing and intrusion zone detection on this camera fires only when the AI engine confirms the correct target type has entered the defined zone.

3. What does the motorised varifocal lens actually allow me to do that a fixed lens cannot?

   It allows you to adjust zoom level and focus from the camera web interface or a compatible NVR after the camera is physically installed and sealed - without touching the camera body again. For cameras mounted on poles, masts, or high wall brackets, this removes the need to return to the install position with a ladder. The focal length can be set precisely to the scene once you can actually see the live image, rather than estimating during the physical mount.

4. Does the Perimeter Protection AI work without an NVR, or does it need specific hardware?

   The deep learning processing runs on-camera - the iDS-2CD5T87G2 handles AI classification at the edge without requiring a dedicated AI NVR. Detection rules (line crossing zones, intrusion areas, target type filters) are configured via the camera web interface or through a compatible Hikvision NVR. To receive AI event metadata and act on it within a VMS, your NVR or software platform needs to support Hikvision smart event integration - basic ONVIF connections will receive motion events but may not carry classification-specific metadata.

5. How does DarkFighter 2.0 differ from standard IR night vision on a regular bullet camera?

   Standard IR night vision illuminates the scene with infrared light and captures a monochrome image - useful for detecting presence but limited for identification detail. DarkFighter 2.0 uses a large 1/1.8" CMOS sensor optimised for colour capture at very low lux levels, producing colour-useful images in near-darkness using ambient light rather than IR alone. In practice, this means a lit yard, car park, or approach road at night renders with recognisable colour detail - vehicle colour, clothing colour - rather than washed-out black and white.

6. Is this camera suitable for use at a site that needs to meet AS 4806 or similar CCTV standards for evidentiary image quality?

   The 8MP resolution and large sensor provide a strong foundation for meeting identification-grade image requirements at appropriate distances - but compliance with AS 4806 or specific evidentiary standards depends on the complete system design, including lens selection, mounting height, scene lighting, and frame rate configuration, not camera resolution alone. Confirm the installed DORI distances for your specific lens choice against the required identification zone dimensions for the site, and engage a qualified security consultant for compliance verification. Stocked by Security Australia for integrators working on compliant system designs.

7. Can the Perimeter Protection intrusion zones be drawn to match irregular shapes, or are they limited to rectangular areas?

   Yes - intrusion zones on the DeepinView Perimeter Protection engine support polygon zone drawing, allowing the detection area to follow irregular shapes such as angled fence lines, L-shaped yards, or exclusion areas around legitimate movement paths like driveways. This is important for reducing residual false alerts from activity outside the intended detection area. Zone configuration is done through the camera web interface or a compatible Hikvision NVR interface after installation.
