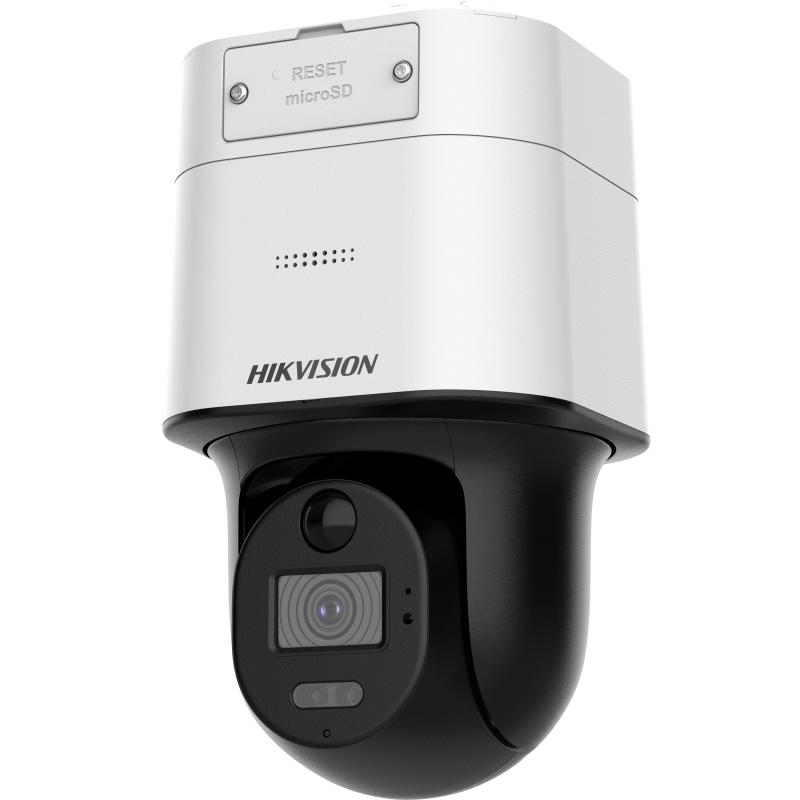

Hikvision DS-2XS3Q47G1-LDW(H)/C18S40 4MP ColorVu Solar-powered Security Camera PT kit

Model: DS-2XS3Q47G1-LDW(H)/C18S40

Who This Is For

When running mains power to a remote location is the core challenge, the Hikvision DS-2XS3Q47G1-LDW(H)/C18S40 4MP ColorVu Solar PT Kit is built specifically for that problem. This is the camera for installers deploying surveillance at rural properties, large agricultural sites, construction sites, caravan parks, mining access roads, or any outdoor location where trenching cable is impractical or cost-prohibitive. The integrated solar panel and built-in battery keep the unit operational without a grid connection, while the 340-degree pan and adjustable tilt give operators repositionable coverage across wide open areas. ColorVu delivers full-colour imaging day and night, and 25x optical zoom lets operators pull in detail from considerable distances - useful when monitoring large perimeters from a single mounting point. This kit suits security integrators and property owners who need to get a camera running where infrastructure simply does not exist.

What This System Actually Does

Who Buys This Model

• Rural and Agricultural Property Owners: Farms, stations, and rural hobby blocks where the nearest power point is hundreds of metres from the gate or paddock entry that needs watching.
• Construction Site Managers: Temporary surveillance on active builds where site power is unreliable or not yet commissioned, and where pan-tilt lets one unit cover shifting high-risk zones like material storage and site access.
• Security Integrators Serving Remote Commercial Sites: Installers who need a camera that goes in cleanly without civil works, with remote zoom and pan control to support clients who self-monitor via mobile app.
• Caravan Parks and Campgrounds: Large open sites spread across multiple hectares where running cable between amenities blocks, entry points, and parking areas is not economical and coverage priorities shift seasonally.
• Mining and Resource Site Operators: Access point monitoring on operational sites or temporary camps where grid power does not extend to the perimeter and the camera needs to hold up against dust and weather under IP66 protection.

Honest Assessment

The DS-2XS3Q47G1-LDW(H)/C18S40 solves a real problem: deploying a capable, repositionable camera at a location where running power cable is the main barrier. The solar-plus-battery combination, 25x optical zoom, ColorVu full-colour night imaging, and 340-degree pan range are a genuinely useful combination for large outdoor areas. The 4MP sensor gives enough resolution to be useful at various zoom levels, and H.265+ keeps bandwidth manageable over cellular connections. This is one of the more practical off-grid PT options available through Security Australia for installers working on remote or infrastructure-limited sites. Where this kit has limits: battery-backed solar cameras are sensitive to extended overcast conditions, and the 30-metre IR range is modest for a camera capable of 25x zoom - if pure long-range IR night coverage without colour is the priority, a wired bullet or PTZ with a longer IR throw may serve better. This camera is not a substitute for a full PTZ in a high-security live-monitoring environment.

Complete Package Contents

• 1 x Hikvision DS-2XS3Q47G1-LDW(H)/C18S40 - 4MP ColorVu Pan-Tilt Camera Unit with built-in battery
• 1 x Solar Panel - 18W solar charging panel (included as part of kit configuration)

Before You Buy

Quick Fit Check

• Good match if: You are mounting surveillance at a site with no mains power access and need a remotely repositionable camera that captures full-colour footage day and night - the solar battery system and ColorVu PT combination handle exactly that scenario.
• Good match if: Your site covers a large area where a single camera needs to cover multiple zones at different distances - the 25x optical zoom and 340-degree pan range allow one unit to monitor a wide sweep and still pull in detail when needed.
• You may need a different model if: You have reliable mains power available and need continuous 360-degree rotation or high-speed auto-tracking - a wired PTZ camera with full 360-degree continuous pan and higher-speed preset response will outperform a solar PT unit in a live-monitored or fast-moving target environment.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation site has no mains power access and you need a remotely steerable, colour-capable camera with optical zoom - there is no wired fixed camera that matches this use case.
• You may need a different model if: Mains power is available at the mounting point - a wired outdoor PTZ camera will give continuous 360-degree pan capability, faster motor response, longer IR range, and no dependence on solar charge conditions.
• Pairs well with: A 4G-capable NVR or cloud storage subscription with H.265+ compatibility to keep data costs manageable over a cellular link at remote sites.

Common Questions

1. Does this camera work without any mains power connection at all?

   Yes. The DS-2XS3Q47G1-LDW(H)/C18S40 is designed to operate entirely off-grid using the included solar panel and built-in battery. There is no requirement for a mains power connection at the installation point. The battery sustains operation during overnight hours and through short periods of overcast weather, though extended low-sunlight conditions will affect battery charge levels over time.

2. Will this camera still show colour footage at night or does it switch to black and white?

   It stays in colour. ColorVu technology uses a high-sensitivity sensor and supplemental warm light to maintain full-colour imaging in low-light and near-dark conditions, rather than switching to monochrome IR night vision. This is the core night-time imaging difference between a ColorVu camera and a standard IR camera - clothing colour, vehicle colour, and skin tone remain visible in the recorded footage.

3. How far can the pan-tilt mechanism actually move?

   The camera pans 0° to 340° and tilts from -5° to 105°. The 340-degree pan covers a near-full horizontal sweep with a small blind spot behind the mounting bracket - this is typical of PT cameras as the cable entry point prevents full 360-degree rotation. The tilt range allows the camera to angle downward slightly below horizontal and steeply upward, which suits pole or elevated wall mounting.

4. What does 25x optical zoom actually mean for monitoring a large outdoor area?

   25x optical zoom means the lens magnifies the subject 25 times without using digital upscaling, so image sharpness is maintained at high magnification levels. In practice on a large rural or industrial site, this means you can frame a wide overview scene at low zoom and then pull in tight on a vehicle at the far end of a driveway or access road with enough resolution to read a plate or identify a person - from a single fixed mounting point.

5. How do I access and control this camera remotely?

   The camera supports P2P connectivity, which means you can access live video and pan-tilt control through Hikvision's mobile app or via a web interface without requiring complex network port configuration. A stable internet connection at the camera location - typically via a 4G router on remote sites - is required for remote access to function. The Security Australia team can advise on compatible 4G routers and data plans if needed.

6. Is the 30-metre IR range enough given the 25x optical zoom capability?

   The IR range and optical zoom serve different functions. The 30-metre IR illumination is the maximum distance at which the camera's built-in IR provides usable night illumination in monochrome mode. ColorVu full-colour imaging relies on the camera's warm-light supplemental illumination rather than standard IR, and is effective at shorter ranges. The 25x optical zoom magnifies whatever the sensor sees - it does not extend the IR illumination range. For sites where the primary monitoring distance exceeds 30 metres after dark, consider supplemental external lighting at the target zone.

7. Does H.265+ compression matter if I am using this camera on a remote 4G connection?

   Yes, significantly. H.265+ can reduce file size and bandwidth consumption compared to H.264 by 50% or more in typical outdoor scenes. On a 4G data plan where every gigabyte has a cost, the difference between H.264 and H.265+ over a full month of continuous recording is meaningful. It also reduces the latency hit when streaming live footage over a mobile connection, which improves the usability of the pan-tilt control from a remote app.

Downloads & Resources

No downloads available for this product.
