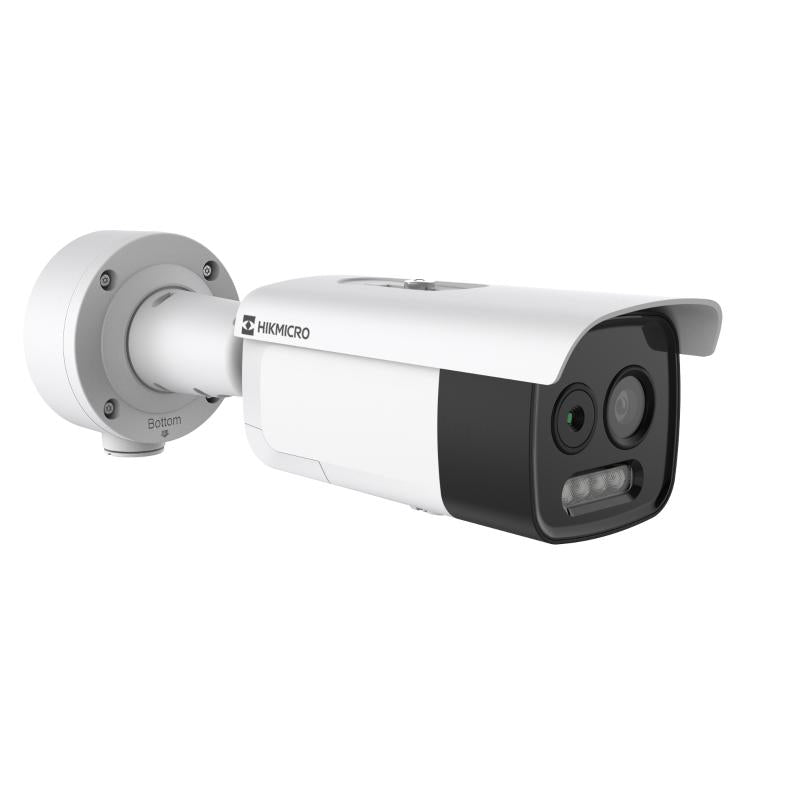

Hikvision HM-TD2618-7/G0/T1A HeatPro Thermal & Optical Bi-Spectrum Network Bullet Camera

Model: HM-TD2618-7/G0/T1A

Who This Is For

For security integrators and site managers who need detection that does not stop when lighting does, the Hikvision HeatPro HM-TD2618-7/G0/T1A is a bi-spectrum bullet combining a thermal imaging channel with a standard optical channel in a single outdoor housing. This makes it well suited to perimeter protection on industrial sites, utility yards, substations, rural properties, and logistics compounds where the absence of lighting or the presence of smoke, dust, and fog would render a conventional camera unreliable. The thermal channel detects heat signatures regardless of ambient light conditions, while the optical channel provides contextual colour detail when light is available. The T1A suffix confirms this variant includes radiometric temperature measurement to ±1°C accuracy, which also supports fire and hot-spot detection use cases in storage and processing environments where early heat anomaly detection is operationally important.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Security Teams: Warehouses, manufacturing yards, and chemical storage facilities where early fire or hot-spot detection is a compliance or insurance requirement alongside perimeter intrusion monitoring.
• Utility and Infrastructure Operators: Substations, water treatment plants, and communications sites that are unmanned after hours and require reliable perimeter alerts without lighting infrastructure.
• Rural and Agricultural Properties: Large landholdings where running perimeter lighting across hundreds of metres of fence line is impractical and conventional cameras fail to detect intruders in the dark.
• Security Integrators Specifying High-End Perimeters: Professionals installing monitored alarm systems where they need a dramatic reduction in false alarm call-outs compared to standard motion-triggered optical cameras.
• Logistics and Freight Facilities: Loading dock perimeters and yard entries where vehicle heat signatures and pedestrian detection need to function through dust, diesel exhaust haze, and overnight darkness.

Honest Assessment

The HM-TD2618-7/G0/T1A does a specific job well: it detects heat-generating targets in conditions that stop optical cameras entirely, and its radiometric capability adds a genuine fire and hot-spot monitoring function that most site cameras cannot offer. The bi-spectrum design means one device provides both the detection trigger and the optical verification image, which simplifies mounting positions and reduces cabling runs compared to pairing separate thermal and optical cameras. The thermal resolution of 256x192 is appropriate for perimeter detection at practical distances, though it will not produce the identification detail an HD optical camera can at close range. This camera is not the right tool for licence plate capture, face recognition, or high-detail forensic review - those applications require high-resolution optical cameras. For general home security or retail CCTV, the cost-to-application ratio does not make sense. Supplied by Security Australia, this model is suited to professional installations where thermal detection and temperature measurement justify the investment.

Before You Buy

Quick Fit Check

• Good match if: You are protecting an unlit perimeter fence line where conventional cameras produce constant false alarms from lighting changes, insects, and vegetation movement, and you need thermal-based intrusion detection to generate reliable alarm events.
• Good match if: Your site requires surface temperature monitoring for fire prevention - such as a waste storage facility, timber yard, or electrical substation - where the ±1°C radiometric measurement and configurable temperature threshold alarms provide an early warning layer.
• You may need a different model if: Your primary requirement is face identification, licence plate capture, or high-resolution forensic detail - in those cases, a high-megapixel optical camera with ANPR or deep-learning recognition capability is the appropriate product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires perimeter detection in zero-light conditions, has environmental interference that defeats optical cameras, or has a fire prevention requirement where surface temperature monitoring needs to run continuously alongside video surveillance.
• You may need a different model if: Your primary need is identification-quality video, licence plate capture, or face recognition - high-megapixel optical cameras with AI analytics are the appropriate product type for those specific outcomes and will deliver far more useful forensic detail per dollar.
• Pairs well with: A compatible Hikvision NVR with thermal event handling support, and a high-resolution optical PTZ camera covering the same zone for identification follow-up when thermal alerts are triggered.

Common Questions

1. Will this camera detect people in total darkness with no lighting at all?

   Yes. The thermal channel on the HM-TD2618-7/G0/T1A detects heat radiated by people, vehicles, and animals and does not require any ambient light, infrared illumination, or artificial lighting to function. The thermal image quality and detection capability are not affected by whether it is day or night. The optical channel requires light to produce a usable image, but the thermal channel operates independently of lighting conditions at all times.

2. What does the T1A suffix mean and what temperature accuracy does it provide?

   The T1A designation identifies this as a radiometric temperature measurement variant with ±1°C measurement accuracy. This means the camera can measure actual surface temperatures across the scene - not just detect heat signatures - and can be configured to trigger alarms when any point in the scene exceeds or drops below defined temperature thresholds. This makes it suitable for fire prevention, equipment monitoring, and hot-spot detection applications in addition to perimeter security.

3. How far away can the thermal channel detect a person?

   Detection distance depends on the DORI metric being applied. The 7mm thermal lens on a 256x192 sensor is suited to human detection at approximately 30-80m under practical conditions, with detection (D) range being the furthest and recognition (R) and identification (I) ranges being shorter. Confirm the published DORI table for this specific lens before planning camera spacing - attempting to cover fence runs longer than the confirmed detection distance will result in gaps in coverage.

4. Does this camera work as a fire detection system?

   Partially - and that distinction matters. The radiometric temperature measurement allows the camera to alert when surface temperatures exceed a threshold, which can indicate early-stage combustion or overheating well before visible fire. However, it is not a certified fire detection or suppression system and should not be treated as a substitute for compliant fire detection equipment. It is best understood as a supplementary early-warning layer for operations where heat anomalies are a known risk, used alongside appropriate fire safety systems.

5. Does the thermal channel produce false alarms from animals, vehicles, or environmental conditions?

   Significantly fewer than optical cameras, but not zero. The AI perimeter analytics on the thermal channel are designed to classify heat signatures and filter out common environmental triggers - rain, foliage, headlight wash - that cause frequent false alarms on standard cameras. Animal heat signatures can still trigger alarms if they enter a defined intrusion zone, so zone placement and sensitivity tuning during commissioning are important to getting the false alarm rate where your monitoring station requires it.

6. What NVR or VMS do I need to record and manage both the thermal and optical streams?

   You need an NVR or VMS that supports dual-channel recording from a single bi-spectrum device and that handles thermal event metadata - temperature alarms, intrusion alerts, and thermal stream configuration. A compatible Hikvision NVR with firmware that supports HeatPro devices is the most straightforward path. Confirm channel licensing, decoding capacity for both streams, and thermal alarm rule support in your VMS before ordering. The team at Security Australia can assist with confirming compatible NVR options for this camera.

7. Will this camera perform better than a standard IR bullet camera in smoke, fog, or dust?

   Yes. Conventional optical cameras - including those with infrared illumination - rely on reflected light, which is scattered and absorbed by smoke, fog, and airborne dust. The thermal channel on this camera detects radiated heat, which passes through light smoke and dust without the same degradation. Performance in dense smoke is not unlimited, but in conditions where an optical camera becomes effectively blind, the thermal channel typically remains usable for detection purposes.
