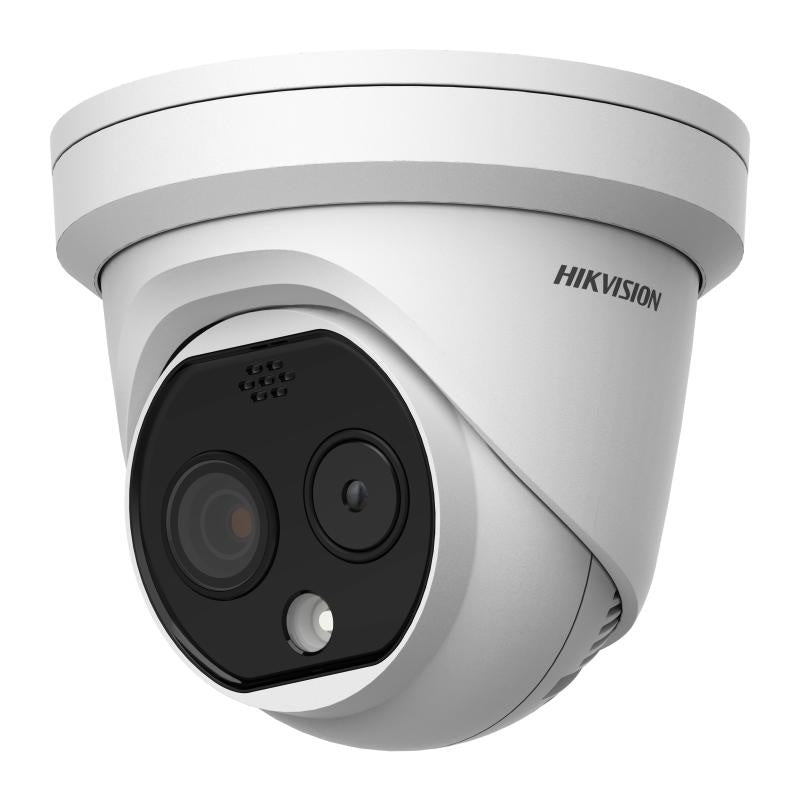

Hikvision Heat Pro DS-2TD1228-7-QA 4mp BI-SPECTRUM, Turret Camera, 6.9mm, 6.4mm, Ir 15m

Model: DS-2TD1228-7-QA

Who This Is For

For security managers and installers who need detection capability that does not rely on visible light, the Hikvision Heat Pro DS-2TD1228-7-QA is a bi-spectrum turret camera combining a 4MP optical channel with a thermal imaging channel in a single housing. This makes it suited to perimeter monitoring on industrial sites, utility infrastructure, aged care facilities, and rural properties where complete darkness, dust, smoke, or dense foliage would defeat a standard optical camera entirely. The 6.9mm thermal lens and 6.4mm optical lens work together so operators get heat-based detection alongside a usable visual image for confirmation. The 15m IR on the optical channel supports night identification within that range. If your site requires detection before a person reaches a critical zone - not just recording after they have arrived - this is the product category to evaluate.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Security Teams: Facilities protecting unmanned perimeters, storage yards, or critical infrastructure where intruders must be detected in complete darkness without relying on lighting infrastructure.
• Utility and Infrastructure Operators: Sites where substations, pump stations, or remote plant require detection capability through smoke, dust, or low-visibility conditions that would blind standard optical cameras.
• Rural and Agricultural Property Owners: Large properties where perimeter lighting is impractical and standard IR cameras lack the detection range needed to cover open paddocks or access tracks at night.
• Security Integrators Upgrading Perimeter Systems: Professionals replacing motion-sensor lighting or basic optical cameras with a thermal-first detection layer that reduces false alarm rates caused by lighting changes, shadows, or insects near IR illuminators.

Honest Assessment

The DS-2TD1228-7-QA genuinely solves detection scenarios that optical cameras cannot. The thermal channel works in total darkness, heavy shadow, through light smoke, and in conditions where IR illuminators would be useless or impractical. Pairing that with a 4MP optical channel in the same housing gives operators both early detection and visual confirmation without installing two separate cameras per position. The turret form factor is practical for wall and eave mounting on most sites. Where this product has real limits: the 6.9mm thermal lens is a fixed, relatively narrow field of view, so it is not suited to wide panoramic coverage - a longer or wider-angle thermal camera or a multi-sensor unit would be required for large open-area coverage. Thermal also does not provide facial or plate identification - the optical channel handles identification at close range only. Available through Security Australia, this camera belongs in a layered system, not as a standalone replacement for a full site camera network.

Before You Buy

Quick Fit Check

• Good match if: You need perimeter detection along a defined fence line or access path where total darkness, dust, or smoke makes optical cameras unreliable, and you want both thermal detection and a 4MP visual confirmation stream from a single mounting point.
• Good match if: You are replacing single-function optical cameras on an industrial or rural site and need to reduce false alarms triggered by lighting changes, insects on IR domes, or camera blind spots at night.
• You may need a different model if: Your application requires wide-area thermal coverage across a large open space - a thermal PTZ or multi-sensor panoramic unit would provide the field of view and optical zoom needed for that scenario, and both are available on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a single mounting point that delivers both thermal-based detection in total darkness or low-visibility conditions and a 4MP optical stream for visual confirmation, without running two separate cameras per location.
• You may need a different model if: Your site requires wide-area thermal coverage or optical zoom to identify subjects at distance - a thermal PTZ or bi-spectrum PTZ unit is the appropriate product type for that application and is available on securityaustralia.com.au.
• Pairs well with: A compatible Hikvision NVR with bi-spectrum stream support, and a dedicated alarm output or VMS platform capable of processing thermal-triggered events separately from optical motion detection.

Common Questions

1. Does this camera work in complete darkness with no lighting at all?

   Yes. The thermal channel operates entirely independently of visible light and requires no IR illuminator or external lighting to detect heat signatures. A person or vehicle in a completely unlit environment will still appear on the thermal stream. The optical channel also has a 15m IR illuminator for night vision within that range, but thermal detection is not dependent on it.

2. Will this camera work through smoke or heavy dust?

   Yes, to a degree. Thermal imaging performs through light smoke and dust that would render an optical camera unusable. The thermal channel detects heat rather than reflected light, so particulate matter in the air has significantly less impact on detection capability than it does on standard optical sensors. Dense smoke or very heavy particulates will reduce thermal performance, but it remains functional in conditions that completely blind optical cameras.

3. What is the difference between the thermal channel and the optical channel on this camera?

   The two channels are separate sensors with separate purposes. The thermal channel uses a 6.9mm lens to detect heat emitted by people, animals, and vehicles - it produces a monochrome or false-colour heat map image used primarily for detection and alarming. The 4MP optical channel uses a 6.4mm lens to produce a standard colour or night-vision video stream suited to visual identification and recording. In normal use, both channels run simultaneously and can be viewed independently or overlaid depending on your VMS or NVR capability.

4. What is the NETD rating of the thermal sensor and why does it matter?

   NETD (Noise Equivalent Temperature Difference) measures how small a temperature variation the thermal sensor can distinguish. A lower NETD value means the sensor is more sensitive and can detect smaller heat differences - which matters when detecting a person against a background at similar ambient temperature, or in warm climates where the temperature contrast between a human and the environment is reduced. The DS-2TD1228 series is part of Hikvision's Heat Pro range designed for these detection scenarios; confirm the NETD specification in the official Hikvision datasheet for this exact variant before specifying for high-sensitivity applications.

5. Can I use the thermal channel to measure surface temperatures or detect fire?

   The QA suffix in the model number indicates this variant includes temperature anomaly detection capability. This allows the camera to flag areas where detected surface temperatures exceed a configured threshold - relevant for fire risk monitoring in industrial environments or detecting overheating equipment. This is not a calibrated precision thermometry device suitable for human body temperature screening, and temperature accuracy is subject to environmental variables. Review the Hikvision datasheet for the specific temperature detection range and accuracy tolerances before applying it to any fire detection or temperature screening use case.

6. Does the DS-2TD1228-7-QA require PoE and what standard does it support?

   Confirm the exact power input specification in the Hikvision product datasheet for this model, as bi-spectrum cameras with dual sensors can require higher power budgets than standard single-sensor cameras. Some bi-spectrum turrets require PoE+ (IEEE 802.3at, up to 30W) rather than standard PoE (IEEE 802.3af, up to 15.4W). Using a switch or injector that only supports standard PoE on a camera requiring PoE+ will result in the camera either not powering on or cycling repeatedly. Check the datasheet and confirm your switch or injector output before cabling - this is a common commissioning issue with thermal bi-spectrum units. The DS-2TD1228-7-QA is stocked by Security Australia; contact the team if you need datasheet confirmation before ordering.

7. Will this camera identify faces or read number plates?

   No. Thermal imaging does not capture sufficient image detail for facial recognition or licence plate reading - it shows heat shapes, not visual features. The 4MP optical channel at 6.4mm provides a recognisable image of persons within its field of view at close range, but this camera is not designed or positioned as an ANPR or facial identification device. If plate reading or face recognition is a requirement on the same site, those functions require dedicated optical cameras positioned and configured specifically for that purpose.
