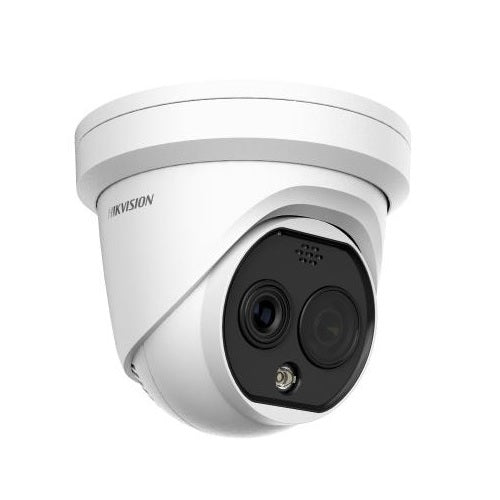

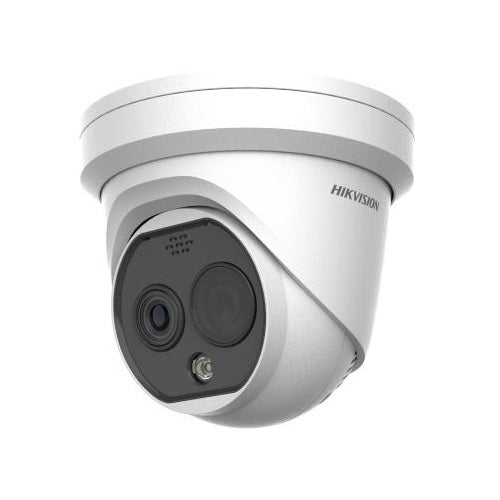

Hikvision Heat Pro DS-2TD1228-3-QA 4mp BI-SPECTRUM Fire&smoke, Turret Camera, 3.6mm, 4.3mm, Ir 15m

Model: DS-2TD1228T-3-QA

Who This Is For

When early fire and smoke detection in a fixed surveillance form factor is the priority, the Hikvision Heat Pro DS-2TD1228T-3-QA sits in a distinct category. This bi-spectrum turret combines a thermal sensor with a 4MP optical sensor in a single housing, making it suited to facilities managers, fire risk consultants, and security integrators specifying cameras for environments where heat anomalies or smoke must be caught before a fire takes hold. Warehouses storing combustible materials, electrical switchrooms, recycling facilities, and outdoor storage yards are common deployment points. The turret housing keeps the install footprint compact and familiar, while the dual-sensor design means the camera is doing far more than recording - it is actively analysing scene temperature and detecting smoke conditions. This is a specialist product for sites where standard CCTV is not enough and a dedicated thermal detection layer is required.

What This Camera Actually Does

Who Buys This Model

• Fire Risk and Safety Consultants: Specifying thermal detection for sites where conventional smoke detectors have coverage gaps - large open warehouses, high-ceiling industrial buildings, or covered outdoor yards where a point detector won't catch smoke early enough.
• Waste and Recycling Facility Operators: Sites with stockpiles of combustible material where spontaneous ignition is a real risk. The thermal channel provides continuous temperature monitoring across a stored material area without requiring physical contact sensors.
• Security Integrators on Industrial Sites: Integrators who need to consolidate thermal fire detection and standard video surveillance into a single camera run on an existing Hikvision NVR platform, reducing the total number of devices and cabling runs on site.
• Facilities Managers - Electrical and Plant Rooms: Locations containing switchboards, battery banks, or UPS systems where overheating components can be detected by the thermal channel before a fire event develops and causes irreparable damage.

Honest Assessment

The DS-2TD1228T-3-QA genuinely delivers where a site needs both a surveillance camera and a fire/smoke detection layer in one device. The bi-spectrum design means the thermal channel is working continuously regardless of visibility, which is a real advantage in dusty, smoky, or unlit environments where an optical camera alone would miss early heat anomalies. The turret housing also makes integration straightforward for installers already familiar with Hikvision network camera infrastructure.

Where this camera has limits: the 3.6mm thermal lens is a wide-angle field of view suited to closer-range detection, not long-range perimeter monitoring across hundreds of metres - a longer focal length thermal camera would serve that application better. The optical IR range of 15m is also modest, so it is not a substitute for a long-range surveillance camera on large sites. Available through Security Australia, this product suits facilities that have a genuine fire detection requirement alongside standard CCTV, not as a general-purpose outdoor camera replacement.

Before You Buy

Quick Fit Check

• Good match if: You need both thermal fire/smoke detection and standard 4MP video from a single camera position - such as a warehouse bay, plant room, or covered storage area - and want to integrate into an existing Hikvision NVR system.
• Good match if: The site has a genuine fire risk profile (combustible stock, electrical equipment, outdoor materials) and the 3.6mm thermal lens covers the required detection zone at the planned mounting distance.
• You may need a different model if: Your requirement is long-range perimeter thermal detection across open ground - a thermal camera with a longer focal length lens is a better fit for that application, and the Security Australia thermal camera range includes options suited to extended detection distances.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need thermal fire and smoke detection integrated with standard 4MP video surveillance in a single network camera that installs like a conventional turret and connects to an existing Hikvision NVR.
• You may need a different model if: Your requirement is long-range thermal perimeter detection rather than area fire monitoring - a thermal camera with a longer focal length lens (7mm, 13mm, or beyond) will cover greater distances with better thermal resolution at range.
• Pairs well with: A Hikvision NVR that supports multiple stream recording, and an alarm output device or monitoring platform capable of receiving the thermal fire/smoke alarm triggers for automated response.

Common Questions

1. Does this camera replace a fire alarm system?

   No. The DS-2TD1228T-3-QA is a detection and alerting device, not a certified fire alarm system replacement. It provides early warning of heat anomalies and smoke via thermal imaging and triggers alarms to a connected NVR or monitoring platform. For compliance with Australian fire safety codes, consult a licensed fire protection engineer about how thermal camera detection layers integrate with or supplement your existing fire detection requirements.

2. How does the thermal channel detect fire without visible flames?

   The thermal sensor detects infrared radiation emitted by objects as heat - it does not rely on visible light. When materials begin heating before ignition, or when a heat source is obscured by smoke, the thermal channel still registers the temperature anomaly and triggers an alarm based on the detection rules configured in the camera or NVR. This is the core advantage over optical cameras for early fire detection.

3. Will this camera work on a standard Hikvision NVR?

   Yes, in most cases - but with a key consideration. The bi-spectrum design produces 2 network streams (thermal and optical), so your NVR must have 2 available channels to record both. Confirm your NVR's channel capacity and that it supports the camera's stream parameters before installation. Contact the team at Security Australia if you need advice on compatible NVR models.

4. What area does the 3.6mm thermal lens cover, and what does that mean for detection distance?

   The 3.6mm thermal lens provides a wide field of view suited to area coverage at relatively short to medium range rather than long-range narrow detection. In practical terms, this lens is appropriate for room-sized spaces, bays, and storage areas rather than monitoring across open ground at distances of 100m or more. If your site requires thermal coverage over a large open area or long approach, a thermal camera with a longer focal length lens is more appropriate for that specific scenario.

5. Does the thermal channel work in complete darkness?

   Yes. The thermal sensor operates independently of any light source. It detects heat radiation rather than reflected visible light, so total darkness has no effect on its ability to identify heat anomalies or trigger fire detection alarms. The optical IR channel provides visible-light supplementary footage up to 15m when illumination is required for identification purposes.

6. Can the alarm outputs from this camera be connected to an external monitoring system?

   Yes. The fire and smoke detection alarms generated by the DS-2TD1228T-3-QA can be configured to output via the connected NVR to monitoring platforms, email notifications, or integrated alarm systems depending on your NVR's output capabilities. For sites that require the thermal alarm to connect directly to an external fire or security monitoring panel, confirm your integration requirements with your integrator before finalising the installation design.

7. What is the difference between the thermal and optical lens focal lengths on this model, and why are they different?

   The thermal lens is 3.6mm and the optical lens is 4.3mm. Each sensor has a different physical chip size and optical requirements, so matching focal lengths between the two channels is not technically equivalent to matching fields of view. The thermal lens is optimised for the thermal sensor's array size to deliver appropriate coverage for fire detection, while the 4.3mm optical lens provides a field of view suited to the 4MP optical sensor for general surveillance. The two streams are complementary - the thermal channel for detection, the optical channel for visual assessment and recording.
