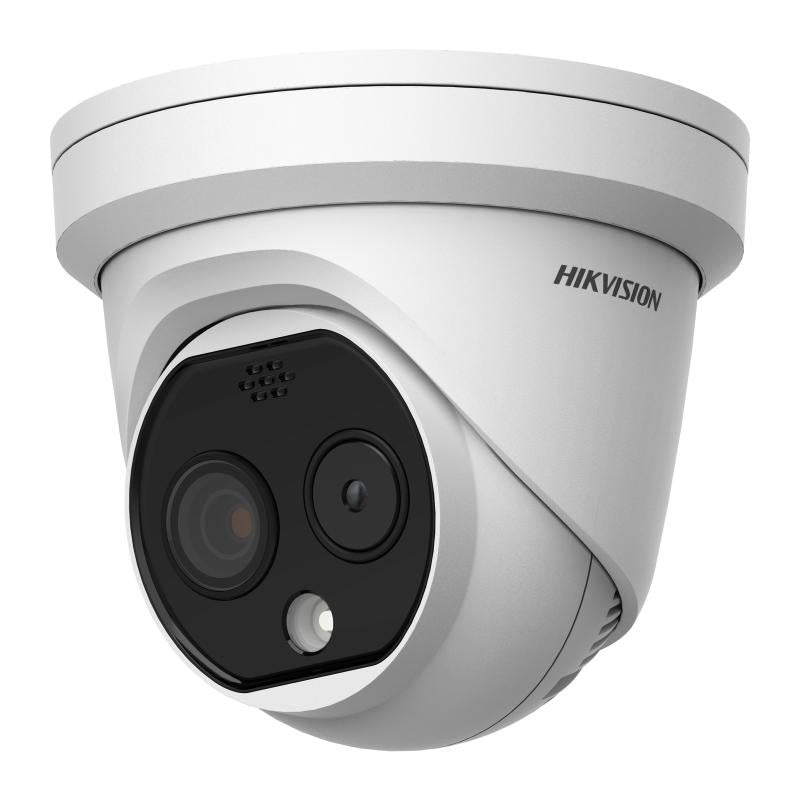

Hikvision Heat Pro DS-2TD1228-2-QA 4mp BI-SPECTRUM, Turret Camera, 2.1mm, 2.2mm, Ir 15m

Model: DS-2TD1228-2-QA

Who This Is For

For facility managers and security integrators who need detection that performs when optical cameras cannot - in smoke, dust, complete darkness, or across outdoor environments where lighting is absent or inconsistent. The Hikvision Heat Pro DS-2TD1228-2-QA pairs a 4MP optical sensor with a dedicated thermal sensor in a single turret housing, giving operators two simultaneous views from one mount point. The 2.1mm optical lens and 2.2mm thermal lens work in tandem so you're not choosing between a visual record and heat-based detection - you get both. With 15m IR and a compact turret form factor, this camera suits perimeter walls, plant room entries, server rooms, and industrial outbuildings where early-stage heat anomaly detection matters as much as video identification. It is not a general-purpose CCTV camera - it is a specialist thermal-optical tool suited to buyers who understand the distinction.

What This Camera Actually Does

Who Buys This Model

• Industrial Facility Managers: Plant rooms, switch rooms, and battery storage areas where electrical heat anomalies need to be detected before they become fire events - the thermal channel identifies overheating equipment that optical cameras cannot see.
• Perimeter Security Integrators: Fence-line and outbuilding coverage where lighting is not available and optical-only cameras produce blank footage at night - the thermal sensor detects intruder heat signatures regardless of light levels.
• Critical Infrastructure Operators: Server rooms, data centres, and communications facilities where a dual-spectrum view provides both a visual record and an early warning layer for heat-based anomalies from a single fixed camera point.
• Rural and Remote Site Owners: Sheds, pumping stations, and remote asset sites where power and cabling runs are limited - a single bi-spectrum turret covers both detection and visual recording without doubling the infrastructure.

Honest Assessment

The DS-2TD1228-2-QA does two things well: it provides a usable optical record via the 4MP sensor and 15m IR, and it delivers genuine heat-based detection through the thermal channel in conditions where optical cameras fail entirely. For buyers whose core requirement is detecting heat anomalies, fire precursors, or warm bodies in darkness or obscured environments, this is a functionally specific tool that earns its price point over a standard camera. What it will not do is replace a long-range optical camera for detailed facial or plate identification at distance - the 2.1mm and 2.2mm lenses are wide-angle, suited to close and medium-range zone monitoring rather than extended approaches. It is also not a substitute for a dedicated PTZ where pan and zoom across a large area is needed. Buyers comparing this unit can reach the team at Security Australia to confirm it matches their detection range and NVR channel requirements before ordering.

Before You Buy

Quick Fit Check

• Good match if: You need heat anomaly detection in a plant room, battery bay, or server space where equipment overheating must be flagged before optical cameras would show any visible sign of a problem.
• Good match if: Your perimeter or outbuilding coverage requires a camera that continues detecting in zero-light conditions where optical IR alone produces insufficient contrast for reliable detection.
• You may need a different model if: Your primary requirement is long-range visual identification at 30m or more - a telephoto optical camera or a PTZ with optical zoom will serve that scenario better than a 2.1mm wide-angle bi-spectrum turret.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your detection requirement goes beyond what optical cameras can deliver - specifically heat-based anomaly detection, zero-light perimeter coverage, or dual-stream monitoring from a single mounting point.
• You may need a different model if: Your core requirement is long-range visual identification or wide-area tracking with zoom - a PTZ camera with optical zoom or a telephoto bullet will cover extended approaches and provide identification detail that a 2.1mm fixed lens cannot.
• Pairs well with: A Hikvision-compatible NVR with bi-spectrum or multi-sensor stream support, and an existing optical camera system where the DS-2TD1228-2-QA fills specific thermal detection zones rather than replacing the full optical setup.

Common Questions

1. Does this camera work in complete darkness with no external lighting?

   Yes. The thermal sensor operates entirely independently of visible light. In total darkness, the thermal channel detects heat signatures from people, vehicles, or equipment without any illumination whatsoever. The 15m IR on the optical channel additionally supports the visual stream in low-light conditions, though the optical image quality will be reduced without ambient or IR light as it is with any optical sensor.

2. Will this camera detect a fire or overheating equipment before smoke appears?

   Yes, subject to the heat source being within the camera's field of view and at a temperature above ambient that the thermal sensor can distinguish. The thermal channel detects radiated heat, meaning abnormal heat build-up in electrical panels, battery banks, or motors can be visible in the thermal stream at a pre-ignition stage. This is the primary use case that differentiates a bi-spectrum thermal camera from a standard optical CCTV camera.

3. What is the effective detection range of the thermal sensor at 2.2mm?

   The 2.2mm thermal lens produces a wide field of view, suited to close and medium-range zone monitoring rather than long-range detection. At this focal length, the thermal sensor is effective for room-scale coverage and near-perimeter detection. Buyers requiring thermal detection across an extended approach of 30m or more should review Hikvision's longer focal length thermal options, which carry a narrower FOV but greater working range. The 2.2mm variant is deliberately optimised for enclosed spaces and short-range outdoor zones.

4. Does the DS-2TD1228-2-QA produce a colour image or only a thermal image?

   Both. The camera produces 2 simultaneous streams: a 4MP optical image (colour in sufficient light, IR-assisted monochrome in darkness) and a separate thermal stream. These are independent channels that display simultaneously on a compatible recorder or monitoring interface. The thermal image is a false-colour heat map, not a photographic representation - it shows temperature differentiation rather than visual detail.

5. What NVR is needed to record both the optical and thermal streams?

   Your NVR must support bi-spectrum or dual-stream input per camera and have at least 2 available channels to allocate to this unit. Not all standard NVRs display or record both streams from a bi-spectrum camera simultaneously. Confirm your recorder's compatibility with Hikvision bi-spectrum devices before installation. Security Australia can assist with confirming NVR compatibility if you contact the team prior to ordering.

6. How does the thermal sensor perform in rain or fog compared to the optical channel?

   Meaningfully better than optical in light fog and rain. The thermal sensor detects infrared radiation emitted by warm objects, which passes through light moisture and thin fog more effectively than visible light. In heavy rain or dense fog, performance of both channels will degrade, though the thermal channel maintains detection capability at shorter ranges where optical contrast has been lost entirely. This is one of the key operational advantages of a bi-spectrum camera over optical-only systems in outdoor Australian environments with morning fog or seasonal mist.

7. Is the thermal sensor on this camera suitable for body temperature screening?

   No. The DS-2TD1228-2-QA is a detection and security thermal camera, not a medical-grade or fever-screening device. Accurate human body temperature measurement requires a dedicated thermometric camera with a calibrated blackbody reference unit and specific NETD ratings. This camera detects relative heat differences for security and fire-precursor detection purposes only.

Downloads & Resources

No downloads available for this product.
