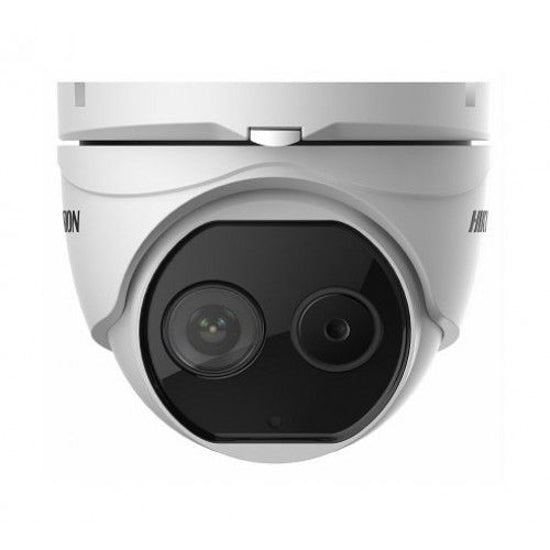

Hikvision DS-2TD1217-6/V1 Thermal & Optical Network Turret Camera 6mm

Model: DS-2TD1217-6/V1

Who This Is For

For security professionals and site managers who need detection capability that does not depend on lighting conditions, the Hikvision DS-2TD1217-6/V1 is a dual-sensor thermal and optical turret camera built for perimeter-critical environments. The 6mm thermal channel detects heat signatures across a 25.0° × 18.7° field regardless of darkness, smoke, or shadow, while the 4.8mm to 120mm optical channel with 25x zoom delivers 2560 × 1440 colour detail for identification and evidence. IP66 and IK10 ratings suit exposed installations - fencelines, rooftop mounts, industrial yards, and critical infrastructure sites where both environmental toughness and accurate AI-based intrusion detection matter. This is a specialist tool for sites where standard IR cameras produce too many false alarms, or where lighting cannot be relied on to deliver consistent optical image quality throughout the night.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Operators: Utilities, water treatment facilities, and substations where perimeter intrusion must be detected in complete darkness and adverse weather, and where false alarms have operational consequences.
• Industrial Site Security Teams: Mining, logistics, and port facilities needing long-range thermal detection along fencelines and in areas where lighting infrastructure is absent or impractical to install.
• Defence and Government Precinct Installers: Projects requiring IK10 vandal resistance, wide operating temperature tolerance, and dual-sensor verification for access-controlled perimeter zones.
• Large Rural Property Managers: Agricultural and rural properties where unlit boundary detection at 300 metres matters more than high-resolution colour imaging, and where long cable runs favour the PoE power option.
• Integrators Designing Alarm Verification Systems: The combination of thermal-triggered AI alerts and a 25x optical zoom channel supports two-step verification workflows - thermal detects, optical confirms - reducing security guard dispatch on nuisance events.

Honest Assessment

The DS-2TD1217-6/V1 does one thing that standard optical cameras cannot: it detects intruders in complete darkness, smoke, and heavy shadow through heat signature alone, at distances up to 300 metres. Combined with a 25x motorised optical zoom for identification, AI line crossing and intrusion analytics, and an IK10-rated housing that operates from -40°C to 70°C, this is a purpose-built perimeter detection tool for demanding environments. The 120 dB WDR optical channel adds daytime credibility that pure thermal cameras lack. What it will not do: the 384 × 288 thermal resolution does not provide identification-quality images on its own - it detects presence, not faces or plates. At approximately 5 kg and 430mm in length, this is not a discreet installation. Sites needing wide-area coverage from fewer positions should compare multi-sensor panoramic options available through Security Australia. For standard residential or retail monitoring, the cost and complexity are not justified.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring an unlit perimeter, fenceline, or access road where intruder detection must work in complete darkness or heavy shadow, and the 300-metre thermal detection range aligns with your site geometry.
• Good match if: Your site generates excessive false alarms from standard motion-detection cameras and you need AI-based thermal intrusion detection combined with 25x optical zoom for event verification before dispatching a response.
• You may need a different model if: Your primary requirement is wide-area coverage with identification-quality imagery across multiple directions simultaneously - a multi-sensor panoramic camera type would deliver more coverage positions from a single install point without the weight and mounting demands of this unit.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires perimeter detection that works in complete darkness or compromised visibility, and you need a 25x optical zoom channel on the same unit for alert verification without deploying a second camera.
• You may need a different model if: Your priority is wide-area situational awareness across multiple directions from a single mount point - a multi-sensor panoramic camera type covering 180° or 360° would provide broader coverage without the directional limitations of this dual-sensor turret design.
• Pairs well with: A compatible NVR or VMS with AI event management capability, so thermal intrusion alerts are routed to monitoring channels rather than treated as generic motion events. Also pairs logically with active deterrent devices - speakers or strobes - triggered by the thermal detection output.

Common Questions

1. Will this camera detect intruders in complete darkness with no IR illumination?

   Yes. The thermal channel operates on heat signature detection and requires zero ambient light. Unlike IR cameras that project infrared light and can be blinded by reflective surfaces, the vanadium oxide uncooled focal plane thermal sensor detects temperature differences with a 25.0° × 18.7° fixed field of view at ranges up to 300 metres. The optical channel also extends to 0 Lux when the onboard IR assist is active.

2. Does the thermal sensor provide enough resolution to identify a person's face or read a licence plate?

   No. The thermal sensor resolves at 384 × 288 pixels and is designed for detection and classification - confirming a heat-generating object is present and moving - not identification. Facial recognition or plate reading from the thermal channel alone is not achievable. The 25x optical zoom on the 2560 × 1440 optical channel is the appropriate tool for identification once a thermal alert has been generated.

3. Does the thermal lens zoom to match the optical channel's telephoto range?

   No. The 6mm thermal lens is fixed at a 25.0° × 18.7° field of view and does not zoom. Only the optical channel uses a motorised lens, covering 4.8mm to 120mm (25x zoom). This means your thermal coverage zone is fixed at installation - camera placement must be planned so the thermal field covers the intended detection area without relying on zoom to compensate.

4. Will this camera work on a standard PoE switch port?

   Yes, provided the switch port delivers Hi-PoE PoE. The DS-2TD1217-6/V1 accepts Hi-PoE as one of its 2 power input options (24 VAC being the other). Before deploying via PoE, verify your switch can supply sufficient wattage per port for a dual-sensor device of this class, and confirm your Cat5e or Cat6 cable run is within standard 100-metre PoE distance limits. Security Australia stocks compatible PoE switches if your existing infrastructure needs upgrading.

5. How does the thermal channel perform in heavy rain compared to a standard optical camera?

   Significantly better for detection. Rain, mist, and fog attenuate visible light, which degrades optical image quality sharply. Thermal imaging detects infrared radiation emitted by warm objects, which passes through light rain and mist more effectively than visible wavelengths. This makes the thermal channel the more dependable detection layer in wet-weather conditions where a standard optical camera may struggle to distinguish a person from background noise. Very heavy rainfall can reduce thermal range, but detection performance at typical security distances remains far more consistent than optical-only alternatives.

6. What triggers the AI line crossing and intrusion detection - the thermal or optical channel?

   The AI analytics on this camera use the thermal channel as the detection input, which is the key operational advantage over pixel-change optical motion detection. Because thermal detection is based on heat signature rather than lighting changes, it filters out false triggers from vehicle headlights sweeping across a scene, tree movement in wind, and rain on the lens surface - common causes of nuisance alarms with standard optical AI cameras. Define virtual line crossing and intrusion zones in the camera's configuration to match your actual perimeter boundaries.

7. Does the 5 kg weight require special mounting hardware?

   Yes. At approximately 5 kg and 430mm in length, standard camera mounting brackets rated for dome or turret cameras under 1 kg are not appropriate. The installation should use a heavy-duty wall bracket, pole mount, or parapet mount rated to exceed the camera's weight with appropriate safety margin, accounting for wind loading in exposed outdoor positions. Confirm mounting surface integrity - particularly for hollow-wall or lightweight cladding surfaces - before committing to a position.

Downloads & Resources

No downloads available for this product.
