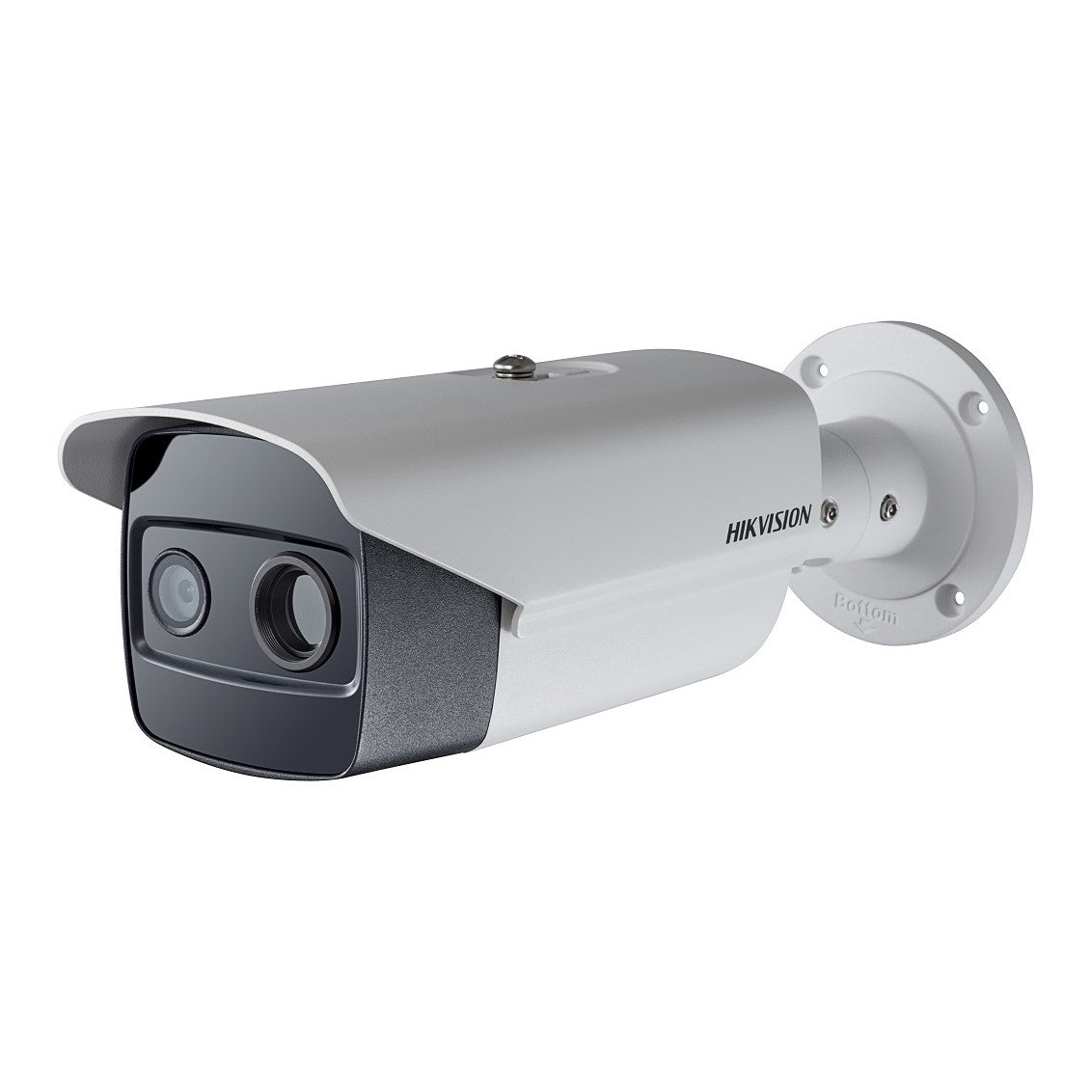

Hikvision HeatPro DS-2TD2628-3/QA Bi‑Spectrum Thermal & Optical Bullet Camera – 256×192 VOx, Smart VCA, Fire & Smoking Alarm

Model: DS-2TD2628-3/QA

Who This Is For

For site managers and security integrators who need early-warning detection of fire, smoke, or unauthorised intrusion in environments where standard optical cameras fail - think waste transfer stations, recycling yards, rooftop plant areas, fuel depots, and industrial storage facilities. The Hikvision HeatPro DS-2TD2628-3/QA is a bi-spectrum bullet camera that pairs a 256x192 VOx thermal sensor with an integrated optical imager, giving operators two simultaneous views: one for heat anomaly detection and one for visual confirmation. Its onboard Smart VCA handles fire and smoking alarms autonomously, triggering alerts before a situation escalates rather than recording it after the fact. This is a proactive detection tool, not a standard CCTV replacement, and it is well suited to installations where thermal imaging is required around the clock regardless of lighting conditions, dust, or low-visibility outdoor environments.

What This Camera Actually Does

Who Buys This Model

• Waste and Recycling Facility Operators: Combustible material stockpiles are a persistent fire risk. The fire and smoking alarm on the thermal channel provides early detection before a smouldering event becomes a structural fire, often without any visible flame for optical cameras to detect.
• Industrial Security Integrators: Sites requiring perimeter intrusion detection that does not generate false alarms from lighting changes, headlights, or animals. Thermal-based Smart VCA detects heat signatures rather than pixel movement, reducing nuisance alert rates on large open perimeters.
• Fuel Storage and Petrochemical Sites: High-consequence environments where early fire detection is a compliance and safety requirement. The 256x192 VOx sensor detects temperature anomalies across tank farms, loading areas, and pump stations where ignition risk is ongoing.
• Critical Infrastructure Managers: Unmanned substations, water treatment plant perimeters, and telecommunications sites that require overnight intrusion detection without IR illuminators that can reveal camera positions or fail in fog.

Honest Assessment

The DS-2TD2628-3/QA does two things genuinely well: it detects heat anomalies that optical cameras cannot see, and it does so autonomously via onboard Smart VCA without requiring a constantly monitored control room. The fire and smoking alarm capability is particularly useful on unmanned sites where delayed detection has serious consequences. The 256x192 thermal resolution covers meaningful detection distances for personnel and vehicles, and the wide operating temperature range makes it a practical choice for Australian outdoor conditions year-round. What it will not do is provide the sharp, identifiable footage that an investigation or prosecution typically requires - the thermal sensor produces a heat map, not a recognisable image. For sites needing both early detection and high-resolution identification, this camera should be paired with dedicated optical cameras at key access points. It is also not suited to replace standard CCTV on a general surveillance budget - thermal bi-spectrum cameras sit in a specialist category, and Security Australia stocks this model as part of a targeted industrial and fire-risk detection range.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring an unmanned industrial or waste site for fire or smoke risk and need autonomous alarm triggering - the onboard Smart VCA fire and smoking detection handles this without requiring continuous operator oversight.
• Good match if: Perimeter intrusion detection is failing with optical cameras due to lighting changes, animal movement, or fog - the VOx thermal sensor detects heat signatures and is unaffected by these conditions that drive false alarms in optical-based motion detection.
• You may need a different model if: Your primary requirement is high-resolution identification footage for evidentiary or facial recognition purposes - a dedicated high-resolution optical camera or an ANPR-capable camera would serve that need more effectively than a thermal imager.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site has a genuine fire, smoke, or heat-anomaly detection requirement and standard optical cameras cannot provide reliable overnight or all-weather intrusion detection due to lighting, fog, or dust conditions.
• You may need a different model if: Your primary goal is high-resolution identification of individuals or vehicles - a standard 4K optical bullet camera or a dedicated ANPR camera will deliver far more usable identification detail than a thermal imager at a lower cost per camera.
• Pairs well with: High-resolution optical bullet or turret cameras at access points and entry gates, combined with an NVR that supports bi-spectrum thermal camera streams and alarm input/output connectivity for response integration.

Common Questions

1. Will this camera work on a standard PoE switch?

   No. The DS-2TD2628-3/QA requires PoE+ (IEEE 802.3at), which delivers up to 30W per port. A standard 802.3af PoE switch provides a maximum of 15.4W and will not supply sufficient power to operate this camera reliably. Check that your NVR's built-in PoE ports or your external switch are explicitly rated 802.3at before purchasing. If your existing infrastructure is 802.3af only, a PoE+ injector on each camera run is the simplest upgrade path.

2. What does NETD ≤40mK actually mean in practice?

   It means the thermal sensor can reliably distinguish temperature differences as small as 0.04 degrees Celsius between adjacent pixels. In a real installation, this translates to the camera being able to detect a person's body heat against a cool background at useful distances, and to identify subtle heat variations in equipment or material that indicate a developing fire well before visible flames or smoke are present. A lower NETD figure indicates a more sensitive sensor - 40mK is a capable specification for industrial fire detection and perimeter intrusion use.

3. Does this camera produce footage that can be used to identify a person?

   Not reliably. The thermal channel produces a 256x192 heat map image - it will show that a person-shaped heat signature was present and where it moved, but it will not produce an identifiable facial or clothing image. The optical channel (4MP) provides a recognisable visual image under adequate lighting, but thermal cameras are fundamentally detection tools rather than identification cameras. For evidentiary identification purposes, supplement this camera with high-resolution optical cameras at key choke points.

4. Will this camera work for fire detection if the fire is behind a physical barrier or wall?

   No. The 256x192 VOx thermal sensor detects infrared radiation in the same way that an optical camera detects visible light - it requires line-of-sight to the heat source. It cannot see through walls, closed containers, solid roofing, or dense material stockpiles. Place the camera with a clear sightline to the area at risk. For stockpiles with layered material, consider multiple camera positions covering different angles or faces of the pile.

5. How does the Smart VCA fire alarm differentiate between a genuine fire and a warm vehicle engine or hot surface?

   The Smart VCA fire detection algorithm analyses the thermal stream for heat signatures that match the size, shape, and temperature behaviour pattern of fire rather than triggering on any elevated temperature point. Configuration of detection zones, sensitivity thresholds, and alarm rules through the camera's interface allows integrators to tune the system for the specific thermal environment of a site - excluding known hot surfaces like engine exhaust areas while remaining sensitive to fire-consistent anomalies. Proper commissioning and zone configuration by an experienced integrator is important to minimise false alarms in thermally complex environments. Security Australia recommends consulting with a qualified installer during the VCA setup phase for industrial applications.

6. Does this camera perform better than optical cameras in fog and rain?

   Yes, significantly. The 256x192 VOx thermal sensor detects infrared heat radiation, which passes through light rain, mist, and moderate fog far more effectively than visible light. In conditions where an optical camera's image degrades to a white-out or near-zero visibility, the thermal sensor continues detecting personnel and vehicle heat signatures. In very heavy rain or dense steam environments, thermal performance also degrades, but the operational envelope in typical Australian outdoor fog and rain conditions is substantially wider than optical imaging alone.

7. What NVR is compatible with the DS-2TD2628-3/QA?

   The camera streams via standard H.265+ and H.264 protocols over IP, making it compatible with Hikvision NVRs that support bi-spectrum or multi-channel thermal camera input, as well as third-party VMS platforms with ONVIF compatibility. For full Smart VCA alarm integration - including fire and smoking alarm event handling - a Hikvision NVR or VMS that natively supports Hikvision thermal VCA event types will provide the most complete functionality. Confirm channel licensing and thermal stream support with your NVR vendor before deployment.
