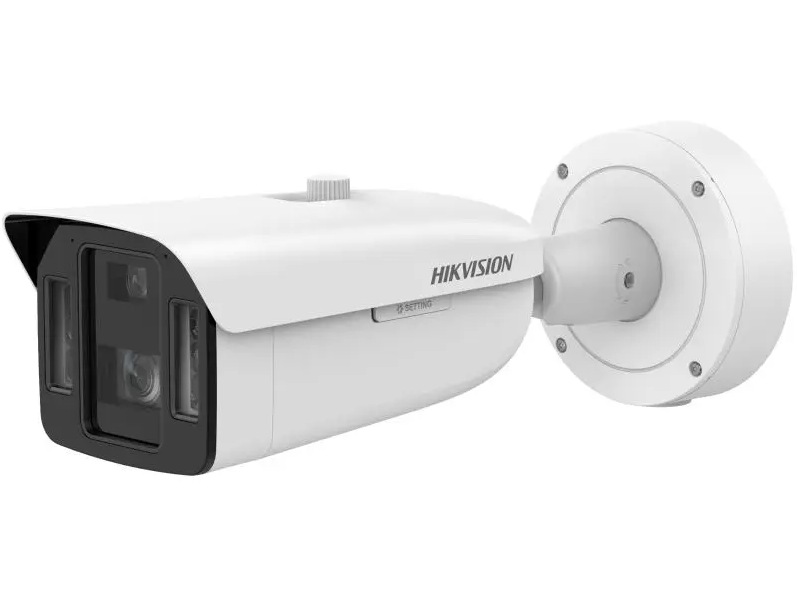

Hikvision iDS-2CD8A46G2-XZHS(Y) 4 MP Dual-Channel DeepinView Multi-Sensor Bullet Camera (8-32 mm Lens Variant)

Model: iDS-2CD8A46G2-XZHS(Y)

Who This Is For

For integrators and site managers who need automated number plate capture alongside a full-scene overview from a single mounting point, the Hikvision iDS-2CD8A46G2-XZHS(Y) is a purpose-built dual-channel DeepinView bullet camera designed around real-world vehicle monitoring demands. The dual-sensor architecture means one channel is dedicated to sharp plate capture using the 8-32mm motorised varifocal lens, while the second channel records the broader scene context simultaneously - giving investigators both the plate and the vehicle in one event. Applications include car park entry and exit control, commercial and industrial site access lanes, logistics and distribution facilities, and traffic enforcement installations where deep learning ANPR accuracy and continuous outdoor operation are non-negotiable requirements.

What This Camera Actually Does

Who Buys This Model

• Car Park and Facility Managers: Specifying automated entry and exit lane control where number plate reads need to trigger boom gate events and be logged against vehicle records simultaneously.
• Security Integrators on Commercial Sites: Installing access-controlled driveways at office parks, logistics yards, and warehouses where a single camera position must deliver both plate data and scene context without running 2 cable drops.
• Local Government and Traffic Management Contractors: Deploying vehicle monitoring at controlled intersections, bus lanes, or restricted zones where deep learning plate accuracy and vehicle classification are required at throughput speeds.
• Industrial Site Security Teams: Monitoring heavy vehicle entry points at mining, construction, or port facilities where IK10-rated housing and continuous outdoor operation in harsh conditions are baseline requirements.

Honest Assessment

The iDS-2CD8A46G2-XZHS(Y) does the specific job of dual-channel ANPR exceptionally well - the combination of a purpose-built plate capture channel, on-board DeepinView processing, and a motorised 8-32mm lens means installers can achieve accurate plate reads at controlled entry points without a separate ANPR server or secondary overview camera. The IK10 and IP67 ratings make it a credible fit for outdoor lane environments. What this camera will not do is replace a PTZ for wide-area or multi-lane monitoring - it is designed for a fixed single-lane approach with a defined capture zone. If the site requires monitoring of uncontrolled or high-speed multi-lane traffic, a dedicated fixed-mount ANPR array or a multi-sensor panoramic system would be more appropriate. This model is available through Security Australia and is suited to planned installations rather than quick-swap retrofits, given the lens calibration and ANPR setup time required on commissioning.

Before You Buy

Quick Fit Check

• Good match if: You need automated number plate capture and scene overview from a single mounting point at a controlled single-lane entry or exit, and your NVR supports DeepinView ANPR processing.
• Good match if: The site requires continuous outdoor operation with physical impact risk - the IK10-rated housing and IP67 sealing suit boom gate adjacent and exposed lane installations where standard cameras fail prematurely.
• You may need a different model if: You need to monitor multiple uncontrolled lanes simultaneously or require pan-and-follow of vehicles across a wide open area - a multi-sensor panoramic camera or PTZ with ANPR capability would serve that scenario better. The Security Australia range includes options across both product types.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need on-board deep learning ANPR with dual-channel capture (plate plus scene overview) in a single outdoor-rated bullet housing at a controlled single-lane access point.
• You may need a different model if: Your site requires monitoring of uncontrolled or multi-lane approaches simultaneously - a multi-sensor panoramic camera or a PTZ with ANPR capability covers wider and more dynamic capture zones that a fixed dual-channel bullet cannot match.
• Pairs well with: A compatible DeepinView NVR for full on-board AI event management, and a PoE+ managed switch with sufficient per-port wattage to power the camera reliably across longer cable runs.

Common Questions

1. Does this camera read number plates without a separate ANPR server?

   Yes. The DeepinView engine processes plate characters on-board the camera itself, so a dedicated ANPR server is not required for basic plate capture, allowlist matching, and event triggering. Full event data management, advanced analytics, and large-scale database integration will still benefit from a compatible Hikvision DeepinView NVR or HikCentral platform, but the processing load does not depend on server-side computation for each plate read.

2. Will this camera read plates on vehicles travelling at normal road speeds?

   Yes, at controlled access speeds. The iDS-2CD8A46G2-XZHS(Y) is designed to capture plates on vehicles moving at up to 120 km/h under the right installation conditions - approach angle within approximately 30 degrees off-axis, correct mounting height, and lens focal length set to the appropriate capture distance. At boom gate or car park entry speeds the read rate under well-configured conditions is high, but free-flow highway applications require careful lane geometry and supplemental strobe lighting assessment before assuming full accuracy.

3. What does the 8-32 mm lens range mean for installation distance?

   The 8-32mm motorised varifocal covers a 4x zoom range, allowing installers to calibrate the plate capture zone for mounting distances roughly between 3 and 20 metres depending on plate size and capture angle requirements. The motorised drive means focal length and focus are adjusted remotely via the NVR interface during commissioning, avoiding repeated physical repositioning. Confirm your site's mounting point and approach geometry before locking in the installation position, as the lens cannot compensate for fundamentally poor approach angles.

4. Does this camera work on a standard PoE switch?

   No. The iDS-2CD8A46G2-XZHS(Y) requires PoE+ (IEEE 802.3at), which delivers up to 30W per port. Standard IEEE 802.3af PoE switches max out at 15.4W and will not power this camera reliably or at all. Check that your switch or midspan injector is rated for 802.3at before installation - this is one of the most common cause of field commissioning failures with dual-sensor and DeepinView cameras.

5. Can the ANPR data trigger an access control system like a boom gate or door controller?

   Yes, through integration. The camera can output ANPR event data including plate strings and vehicle classifications to a compatible NVR or VMS, which then triggers relay outputs connected to boom gate controllers, electric strikes, or access control panels. Direct integration complexity depends on the access control platform - Hikvision-native systems via HikCentral support this most directly, while third-party systems require API or SDK integration. Confirm your access control platform's compatibility with Hikvision DeepinView event data before specifying this camera for automated gate triggering.

6. What is the difference between the 2 channels and why does it matter?

   Each channel is an independent 4MP image stream from a separate sensor. Channel 1 is the ANPR capture channel - it is optimised for the tight field of view and exposure settings needed to read plate characters clearly. Channel 2 is the scene overview channel, recording a wider view of the vehicle and surrounding area. Both streams are timestamped and linked in a single event record, meaning an investigator reviewing an ANPR alert has both the plate close-up and the vehicle context image without cross-referencing a second camera. This is particularly valuable as evidence when a plate read alone is disputed. This product is stocked by Security Australia for integrators working on access lane and enforcement projects.

7. How does the horizontal angle of approach affect ANPR accuracy on this camera?

   Significantly. ANPR accuracy degrades as the horizontal angle between the camera axis and the vehicle's direction of travel increases beyond approximately 30 degrees. At wider angles, plate characters become foreshortened and the AI engine struggles to resolve characters reliably regardless of resolution or IR intensity. This camera is designed for a near-head-on capture geometry - lane designs that force vehicles to pass at oblique angles relative to the camera position will underperform compared to straight-approach configurations. Site layout assessment before mounting position selection is essential for deployments where high capture rates are required.

Downloads & Resources

No downloads available for this product.
