  • Sku: DS-2TD2617-10/QA
  • Vendor: SecurityAustralia

Hikvision DS-2TD2617-10/QA Thermal HeatPro Cameras Dual lens 10mm

$696.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING
  • 160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
  • High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F), ± 8 °C (±14.4 °F)
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
QUICK START GUIDE USER MANUAL DS-2TD2617-10 QA

CURRENTLY NOT IN STOCK - 4-6 WEEKS LEAD TIME

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

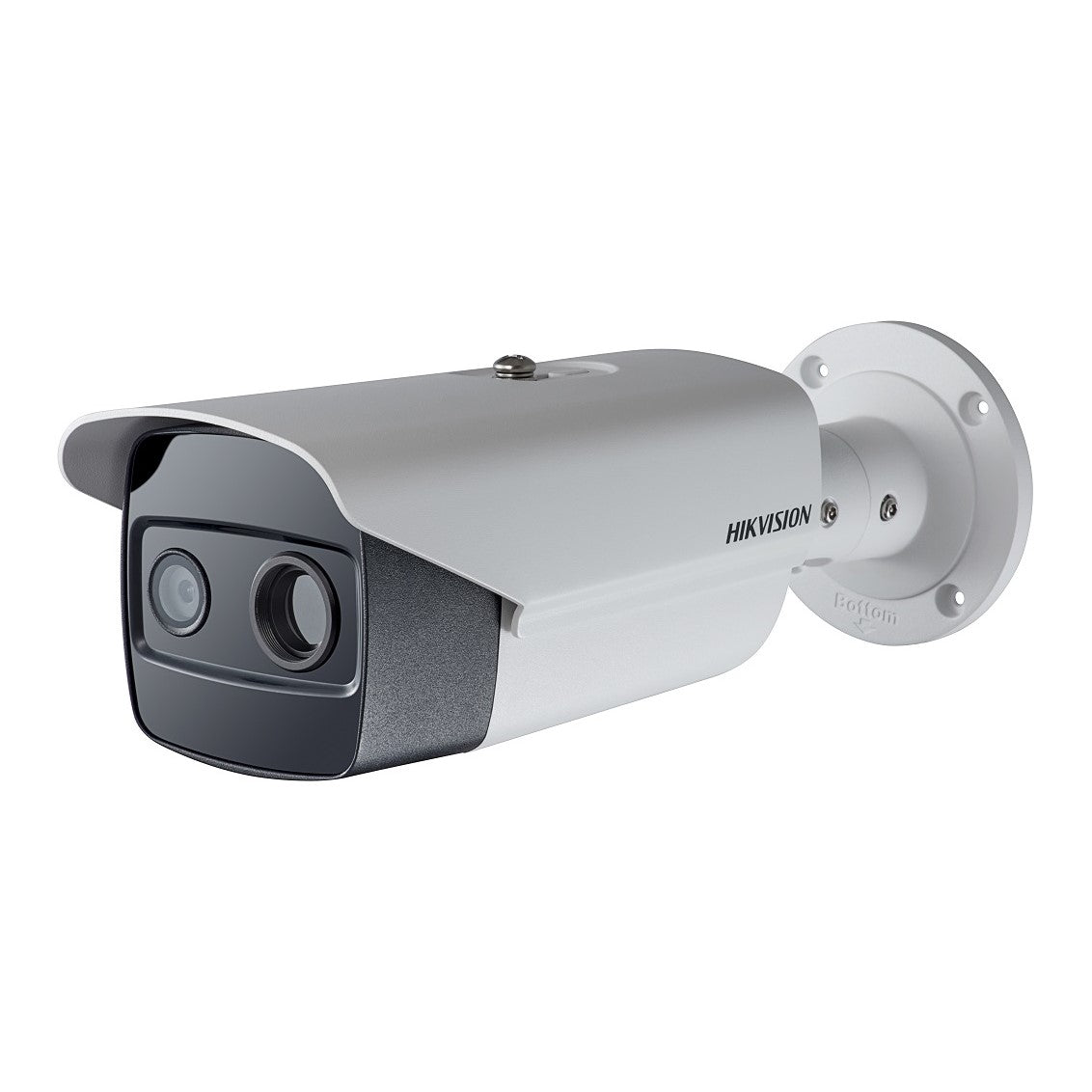

Hikvision DS-2TD2617-10/QA Thermal HeatPro Cameras Dual lens 10mm

$696.00 AUD
 per

Thermal and Optical Dual-Spectrum Network Camera

Explore the cutting-edge capabilities of our Thermal and Optical Dual-Spectrum Network Camera, designed for robust surveillance in challenging environments. This advanced camera integrates thermal and optical sensors to deliver unparalleled performance in detection and monitoring.

Key Features:

Thermal Module: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 160 × 120
Pixel Pitch: 17 μm
Spectral Range: 8 μm to 14 μm
NETD: < 40 mK (@ 25 °C, F# = 1.1)
Focal Length: 9.7 mm
IFOV: 1.75 mrad
Field Of View: 15.96° × 12.00° (H × V)
Min. Focusing Distance: 1.2 m
Aperture: F1.1
Digital Zoom: × 2, × 4
Optical Module: 1/2.7" Progressive Scan CMOS
Resolution: 2688 × 1520
Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Shutter Speed: 1s to 1/100,000s
Focal Length: 8 mm
Field Of View: 39.42° × 22.14° (H × V)
Aperture (Range): F1.6
WDR: 120 dB
Target Coloration: Supported in white hot and black hot mode
Illuminator: IR Distance: Up to 40 m
IR Intensity And Angle: Automatically adjusted
White Light Range: Up to 40 m
Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
Audio Alarm: Yes, for two types of audible alarm (VCA and Temperature Exception)
Smart Function:
  • 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
  • 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line).
  • Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy: ± 8 °C (± 14.4 °F)
Video And Audio:
  • Main Stream: Thermal - 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240); Optical - 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: Thermal - 25 fps (704 × 576, 352 × 288, 320 × 240); Optical - 50 Hz: 25 fps (704 × 576, 352 × 288), 60 Hz: 30 fps (704 × 480, 352 × 240)
  • Video Compression: Main Stream - H.265/H.264; Sub-Stream - H.265/H.264/MJPEG
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network:
  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 GB) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T)
  • Simultaneous Live View: Up to 20 channels
  • User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Security: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
  • Client: iVMS-4200, Hik-Connect
  • Web Browser: Live view (plug-in allowed) - Internet Explorer 11; Live view (plug-in free) - Chrome 57.0 +, Firefox 52.0 +; Local service - Chrome 57.0 +, Firefox 52.0 +
Interface:
  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Audio Input: 1, 3.5 mm Mic in/Line in interface; Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%
  • Audio Output: Linear level, impedance: 600 Ω
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface; 1, RS-485 interface (half duplex); Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC
General:
  • Web Client Language: 32 languages supported
  • Power Supply: 12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
  • Power Consumption: 12 VDC ± 25%: 0.5 A, Max 6 W; PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
  • Working Temperature
