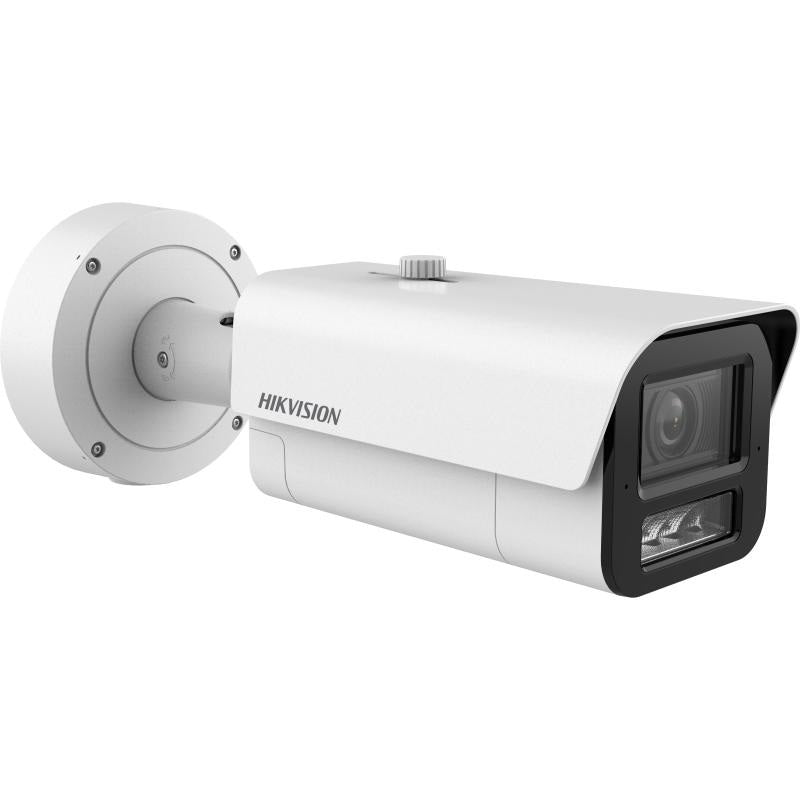

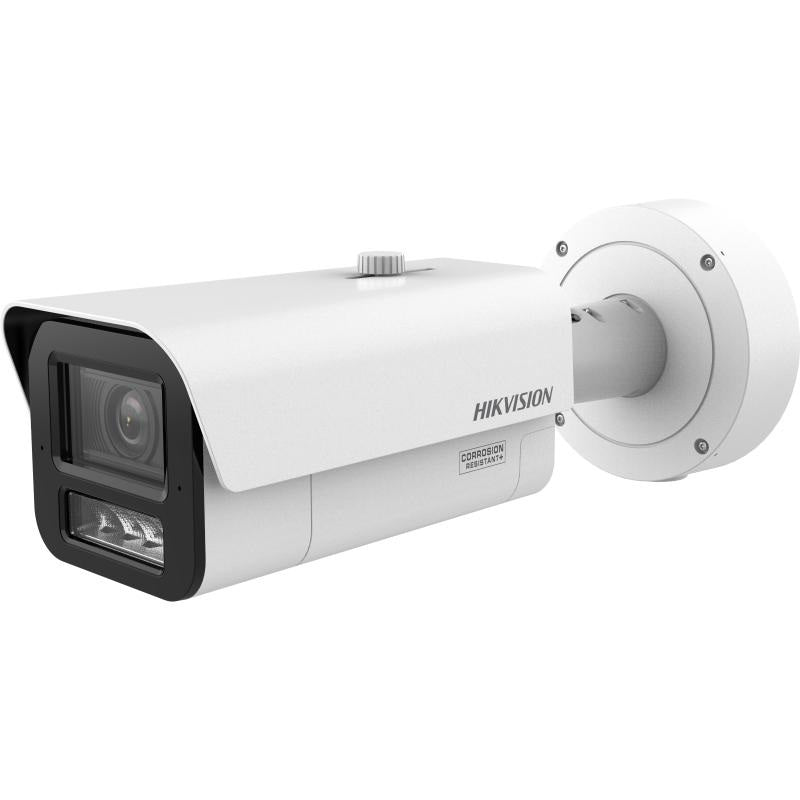

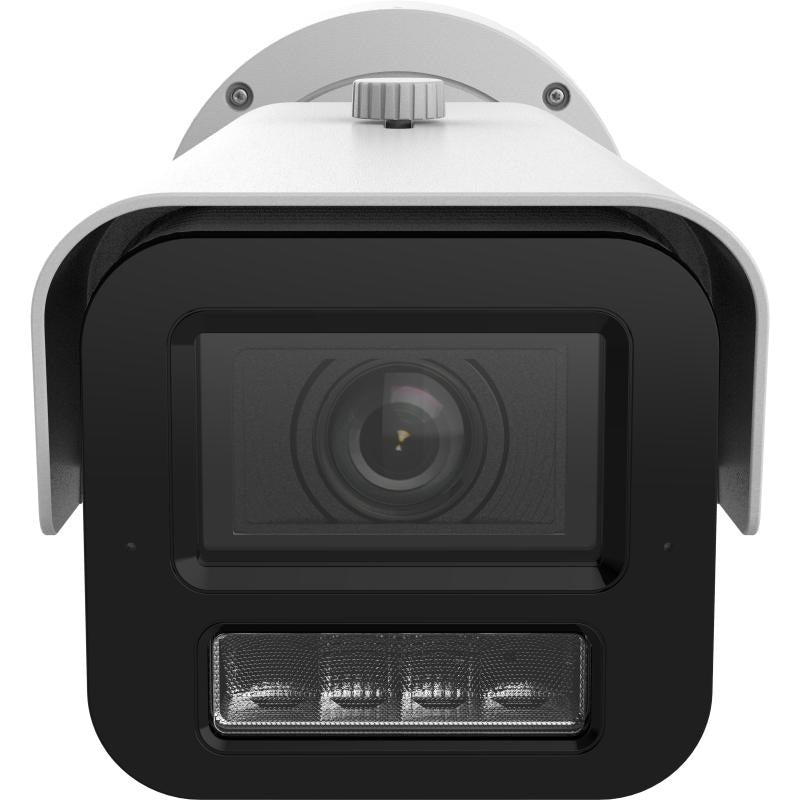

Hikvision 4MP DeepinView iDS-2CD7A46G2/V-XZHSY Bullet Camera with DarkFighter AI Perimeter Protection, 2.8-12mm Motorised Varifocal Lens, IR 100m

Model: iDS-2CD7A46G2/V-XZHSY

Who This Is For

For security integrators and site managers who need a high-accuracy perimeter camera on long outdoor approaches where false alarms from wind, animals, or foliage constantly undermine operator confidence. The Hikvision DeepinView iDS-2CD7A46G2/V-XZHSY pairs DarkFighter low-light performance with deep learning AI perimeter protection, meaning the camera classifies moving objects as humans or vehicles before triggering an alert - not simply anything that moves. The 2.8-12mm motorised varifocal lens lets installers dial in the exact field of view from ground level after mounting, which matters when the camera is positioned high on a pole or wall covering a 40-80 metre run. IR reach to 100m makes it usable across large yards, fenced perimeters, and remote entry points where ambient lighting is minimal or non-existent.

What This Camera Actually Does

Who Buys This Model

• Industrial facility managers: Covering loading dock entry points, yard perimeters, and gate approaches where a 100m IR bullet camera with human/vehicle AI filtering replaces unreliable passive IR beam detectors.
• Security integrators on commercial projects: Specifying cameras for alarm-verified monitoring where deep learning classification dramatically reduces the volume of nuisance events logged and dispatched to a monitoring centre.
• Rural and agricultural property owners: Installing perimeter coverage across long unsealed driveways or paddock fence lines where 100m IR reach and DarkFighter performance in low ambient light are necessary, not optional.
• Construction site operators: Deploying after-hours perimeter detection on sites where vehicle and pedestrian movement both need to trigger alerts, but tool sheds, portable fencing, and site machinery create constant movement that standard motion detection cannot filter.
• Logistics and transport depots: Monitoring truck entry lanes, container yards, and vehicle marshalling areas overnight where accurate vehicle-type classification on a long approach is operationally important.

Honest Assessment

The iDS-2CD7A46G2/V-XZHSY does two things particularly well: it cuts perimeter alarm noise through genuine deep learning classification, and it covers long distances in darkness that most standard 4MP bullet cameras cannot match. The motorised varifocal lens is a practical time-saver on high or awkward mounts where returning to adjust optics manually wastes installation hours. For sites where nuisance alerts are eroding operator response rates, this is a measurably different camera to a standard motion-triggered bullet. What it will not do is provide wide-area coverage - the bullet form factor and varifocal lens are purpose-built for defined corridors, not broad sweeping views. If your application needs 180-degree coverage or multi-direction perimeter monitoring from a single mount point, a panoramic or multi-sensor camera available through Security Australia will serve better. This camera is also overkill if there is no active monitoring or alert response process in place to make use of the AI classification output.

Before You Buy

Quick Fit Check

• Good match if: You are covering a defined outdoor approach, fence line, or entry point where long IR range (100m) and AI human/vehicle filtering are both required to make perimeter alerts actionable.
• Good match if: The camera will be mounted at height or in a position where physically adjusting the lens after installation is impractical - the motorised varifocal allows remote optical adjustment once power and network are live.
• You may need a different model if: You need wide-area or multi-directional perimeter coverage from a single mounting point - a panoramic or multi-sensor camera type will provide better coverage geometry than any single-lens bullet camera at this range.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need long-range outdoor perimeter coverage with AI-filtered alerts that distinguish humans from vehicles, combined with a motorised varifocal that can be adjusted remotely after installation at height.
• You may need a different model if: Your site requires active deterrence with visible light strobes or audio warnings on detection - a TiOC-series camera type with built-in strobe and speaker is purpose-built for that response mode.
• Pairs well with: A Hikvision DeepinView-compatible NVR with onboard AI processing, which allows centralised management of perimeter rules and event filtering across multiple camera positions from a single interface.

Common Questions

1. Does this camera filter out animals and vegetation from perimeter alerts?

   Yes. The DeepinView deep learning engine classifies detected objects as humans or vehicles before generating an alert. Motion caused by animals, blowing vegetation, insects near the lens, or site equipment does not meet the classification threshold and does not trigger a configured line-crossing or intrusion event. This is the core operational difference between this camera and a standard motion-detection bullet camera.

2. Will this camera work on a PoE NVR or PoE switch without a separate power supply?

   Yes. The iDS-2CD7A46G2/V-XZHSY supports IEEE 802.3af/at PoE, so a single Cat5e or Cat6 cable carries both power and data from a PoE switch or PoE NVR port to the camera. No separate 12V DC power run is needed in most installations. Confirm your PoE switch or NVR port budget per port if running multiple high-resolution cameras from the same device.

3. How does the motorised varifocal lens work during installation - do I need to adjust it at the camera?

   No physical lens adjustment at the camera is required. The 2.8-12mm motorised varifocal is controlled remotely via the camera's web interface, Hikvision iVMS-4200 software, or a compatible Hikvision NVR's PTZ/lens control menu. An installer can mount and cable the camera first, then dial in zoom and focus from ground level once the camera is live on the network. This is particularly useful on pole mounts or high wall brackets where repeated physical access adds significant time to the installation.

4. What is the actual zoom ratio of the 2.8-12mm motorised varifocal lens?

   The 2.8-12mm range gives approximately a 4.3x optical zoom ratio. At 2.8mm the camera captures a wide field of view suited to covering the breadth of an entry area or yard. At 12mm the narrower field of view concentrates pixel density along a defined corridor or long approach, which is where the 4MP sensor delivers the most useful detail at distance. There is no digital zoom applied - the adjustment is entirely optical within the motorised mechanism.

5. Does this camera work in complete darkness?

   Yes, via IR illumination. The built-in IR illuminator reaches up to 100 metres in zero-light conditions, producing a monochrome image. DarkFighter technology also extends colour imaging into very low ambient light levels before the IR cut filter switches - meaning the camera captures usable colour detail at dusk and in partially lit environments that a standard camera would render in grainy monochrome. In total darkness with no ambient light, the image will be IR monochrome at up to 100m range.

6. Will this camera work as a standalone unit or does it need a Hikvision NVR?

   It operates as a standalone IP camera accessible via web browser or ONVIF-compatible software. However, AI perimeter protection rules - line crossing zones, intrusion detection areas, and classified alert outputs - are configured either in the camera's own web interface or through a compatible Hikvision NVR or VMS. To get the full benefit of the DeepinView AI filtering and alert management across multiple cameras, a Hikvision DeepinView-compatible NVR is the practical choice. The camera is part of the Security Australia range and is compatible with current Hikvision NVR platforms supporting deep learning analytics.

7. Does this camera have face recognition or ANPR plate reading built in?

   No. The iDS-2CD7A46G2/V-XZHSY is confirmed for human and vehicle classification within AI perimeter protection rules - line crossing and intrusion detection. Face recognition and automatic number plate recognition (ANPR) are separate deep learning functions found in dedicated Hikvision DeepinView models with those specific capabilities. Do not assume those features are present on this model based on the DeepinView product family name alone.

8. How should detection zones be drawn for accurate AI perimeter results?

   Draw zones tightly within the property boundary and avoid including public footpaths, roads, or areas with regular legitimate traffic. The AI classifies objects that enter the drawn zone - if the zone overlaps a pedestrian footpath, a person walking past legally will be classified as a human intrusion and trigger an alert. For long fence-line coverage, a narrow corridor zone aligned to the fence itself is more accurate than a large rectangular zone that captures surrounding movement. Incorrect zone geometry is the most common reason AI-filtered cameras still generate high false alert volumes after deployment.

Downloads & Resources

No downloads available for this product.
