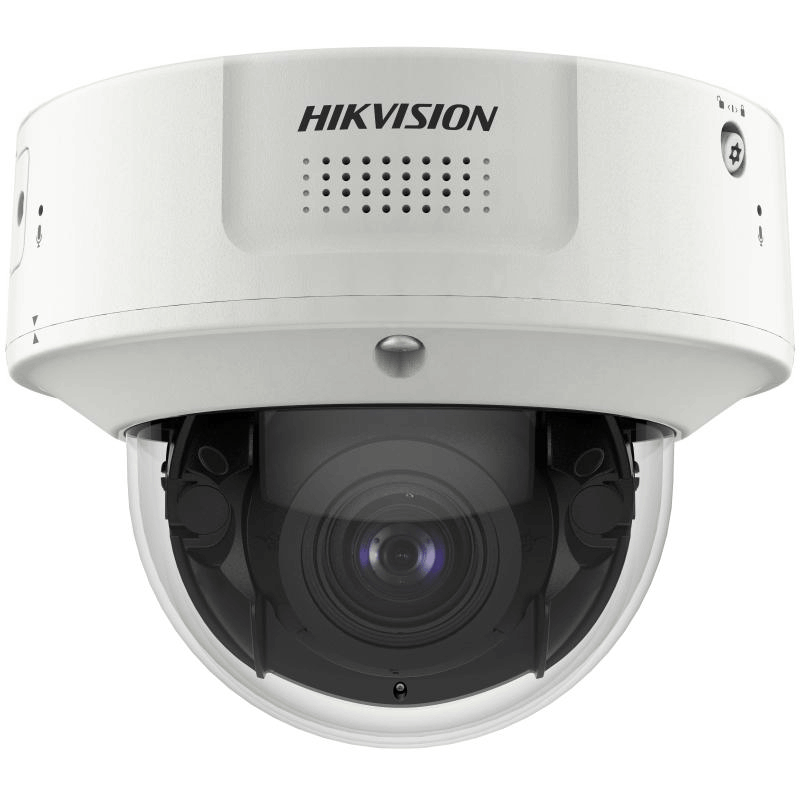

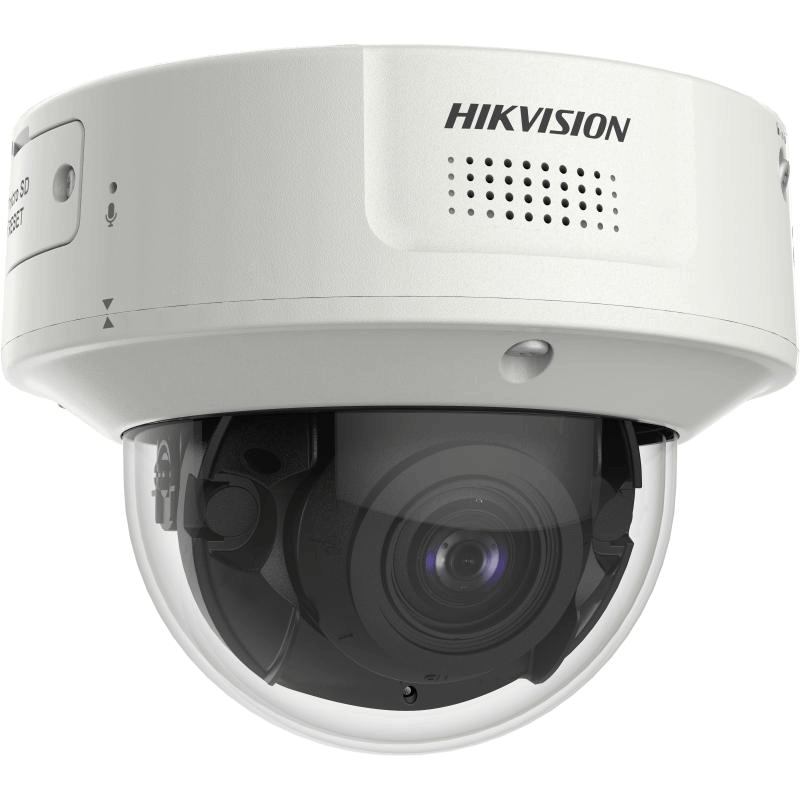

Hikvision iDS-2CD7146G2-IZS 4MP DeepinView Motorized Varifocal Dome Camera Darkfighter 2.0 Face Capture

Model: iDS-2CD7146G2-IZS

Who This Is For

Property managers specifying security for high-footfall environments where face capture accuracy and low-light coverage are both non-negotiable will find the Hikvision iDS-2CD7146G2-IZS a serious working tool. This 4MP DeepinView motorized varifocal dome combines DarkFighter 2.0 low-light technology with deep learning face capture and a motorized 2.8-12mm varifocal lens - giving installers remote zoom and focus adjustment without returning to the ceiling. It suits controlled entry corridors, lobby areas, casino floors, aged care reception points, and retail store entrances where identifying who is present matters as much as simply recording movement. The IK10-rated dome housing handles vandal-prone environments, while IR illumination and the DarkFighter 2.0 sensor maintain usable image quality well into darkness. If your brief includes face attribute extraction, watchlist integration, or audit-grade identity logging, this is the model that addresses those requirements at the hardware level.

What This Camera Actually Does

Who Buys This Model

• Corporate Security Managers: Specifying controlled entry points - reception desks, lift lobbies, and access-controlled doors - where face capture logs need to integrate with visitor management or watchlist systems.
• Aged Care and Healthcare Facilities: Monitoring entry and exit points where identifying individuals (staff, residents, visitors) is a compliance and duty-of-care requirement, particularly during low-light overnight hours where DarkFighter 2.0 holds image quality.
• Retail Loss Prevention Teams: Deploying face capture at store entrances to build records of repeat incidents, with the motorized lens allowing field-of-view adjustment post-installation to capture face angles correctly as foot traffic patterns are understood.
• Professional CCTV Installers: Working on high-specification commercial briefs where the client requires deep learning analytics from the camera hardware itself, not reliant on NVR-side processing alone, and where remote lens adjustment reduces commissioning time on multi-camera sites.
• Casino and Gaming Venues: Where regulatory requirements demand face-level image quality of patrons at entry points and gaming floors, and where the DarkFighter 2.0 sensor handles the mixed and often dim lighting conditions common in these environments.

Honest Assessment

The iDS-2CD7146G2-IZS does two things well that most dome cameras do not: it captures face images as structured data objects using onboard deep learning, and it maintains colour imaging in very low light through the DarkFighter 2.0 sensor. The motorized varifocal lens is a genuine time-saver on multi-camera commercial installs. The IK10 and IP67 ratings mean it works in environments that would rule out a standard dome. These are confirmed hardware capabilities, not marketing positions. Where this camera will not serve you: it is not a wide-area coverage tool - a 4MP dome with a 2.8-12mm lens covers a defined corridor or entry zone, not a broad outdoor perimeter. If your requirement is panoramic coverage of an open space, a multi-sensor or fisheye camera available through Security Australia would be a more appropriate starting point. This camera earns its position on a face-capture brief, not a general-surveillance brief.

Before You Buy

Quick Fit Check

• Good match if: You are covering a defined entry corridor, reception desk, or controlled access point where capturing face images of individuals passing through is the primary requirement - the DeepinView engine handles this at the camera level.
• Good match if: Your site has unreliable or low ambient lighting and standard cameras have failed to produce usable face-level images - the DarkFighter 2.0 sensor and 1/1.8-inch CMOS hold colour detail in conditions that push smaller sensors into monochrome.
• You may need a different model if: Your requirement is wide-area coverage of an open space, car park, or outdoor perimeter - a panoramic multi-sensor or fisheye camera type would provide the field of view this dome cannot match from a single mounting point.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your brief requires face capture as structured data - not just general recording - and your environment involves low or variable lighting where the DarkFighter 2.0 sensor needs to carry the image quality load.
• You may need a different model if: Face capture is not a requirement and you need wide-area outdoor coverage - a bullet or turret camera type with longer IR range would cover approaches and perimeters more effectively than this dome at a lower price point.
• Pairs well with: A compatible DeepinView NVR or server that unlocks face search, watchlist management, and attribute filtering - the camera generates the face data, but the NVR is what makes it searchable and actionable at scale.

Common Questions

1. Does this camera actually perform face capture onboard, or does it rely on the NVR to do the processing?

   The iDS-2CD7146G2-IZS performs face detection and capture onboard the camera itself using the DeepinView deep learning engine built into the camera hardware. It detects faces in the scene, crops and saves face images as structured capture events, and extracts attribute data independently of the NVR. However, to search those face records, run watchlist comparisons, or manage face databases, you need a compatible DeepinView NVR or Hikvision server platform - the camera generates the data, the NVR is where you work with it.

2. Will this camera work for face capture if people are wearing hats or looking slightly away from the camera?

   It depends on the capture angle. DeepinView face capture is optimised for faces presented within approximately 30 degrees horizontal and 15 degrees vertical from the camera axis. Significant downward head tilt (common with hats or looking at a phone) will reduce capture reliability. Mounting position is the most important variable - placing the camera at a height and angle that naturally captures faces looking forward, such as above a turnstile, narrow entry, or desk interaction point, produces far more consistent results than mounting where face angle is unpredictable.

3. What does the motorized varifocal lens actually change compared with a standard fixed-lens dome?

   It allows remote zoom and autofocus adjustment after installation. With a fixed-lens dome, if the field of view is wrong after the camera is mounted and cabled, the only options are physical repositioning or lens replacement. With the 2.8-12mm motorized varifocal on this camera, the installer adjusts zoom and focus through the NVR interface - useful on high-ceiling installs, confined roof spaces, or sites where a return visit is costly. It also allows the field of view to be narrowed to frame a specific capture zone precisely, which directly improves face capture consistency.

4. Does this camera need PoE+ or will standard PoE work?

   Standard PoE (IEEE 802.3af) is sufficient for this camera. It also accepts 12V DC if your run length or switch configuration makes direct power more practical. A standard PoE switch or PoE NVR port will power the camera without requiring 802.3at (PoE+). This matters for budget planning - you do not need to upgrade switch infrastructure to accommodate this camera on a standard commercial installation.

5. What face attributes does the DeepinView engine capture and log?

   The DeepinView engine on the iDS-2CD7146G2-IZS captures face images and logs associated attributes including gender, age range, glasses, and mask detection alongside the face crop image. These attributes are stored with each face capture event and are searchable on a compatible DeepinView NVR. This metadata is what separates a DeepinView camera from a standard camera running basic motion detection - each face event becomes a searchable record, not just a video timestamp.

6. Is the iDS-2CD7146G2-IZS suitable for outdoor installation?

   Yes. The IP67 rating means the camera is fully sealed against dust ingress and water immersion, making it suitable for outdoor covered locations - eaves, soffits, undercover entry canopies, and sheltered walkways. The IK10 housing handles impact in accessible outdoor positions. The operating temperature range of -40°C to 60°C covers Australian conditions including extreme heat zones. It is not designed for fully exposed direct rain or direct mounting on an exterior wall without overhead shelter, where a bullet housing would be more appropriate.

7. How does DarkFighter 2.0 affect face capture quality compared with a standard 4MP dome?

   DarkFighter 2.0 uses a larger 1/1.8-inch CMOS sensor with higher light sensitivity to produce colour images in low-light conditions where a standard sensor would either switch to monochrome or produce heavy noise. For face capture, this matters because monochrome IR images lose skin tone, hair colour, and clothing colour detail - attributes that are useful for identification and that the DeepinView engine can also log. DarkFighter 2.0 keeps the face capture record in colour further into darkness, improving both the usability of individual captures and the attribute data logged alongside them. This camera is part of the Security Australia range and the combination of DarkFighter 2.0 with onboard face capture is the specification that separates it from a standard DeepinView model.
