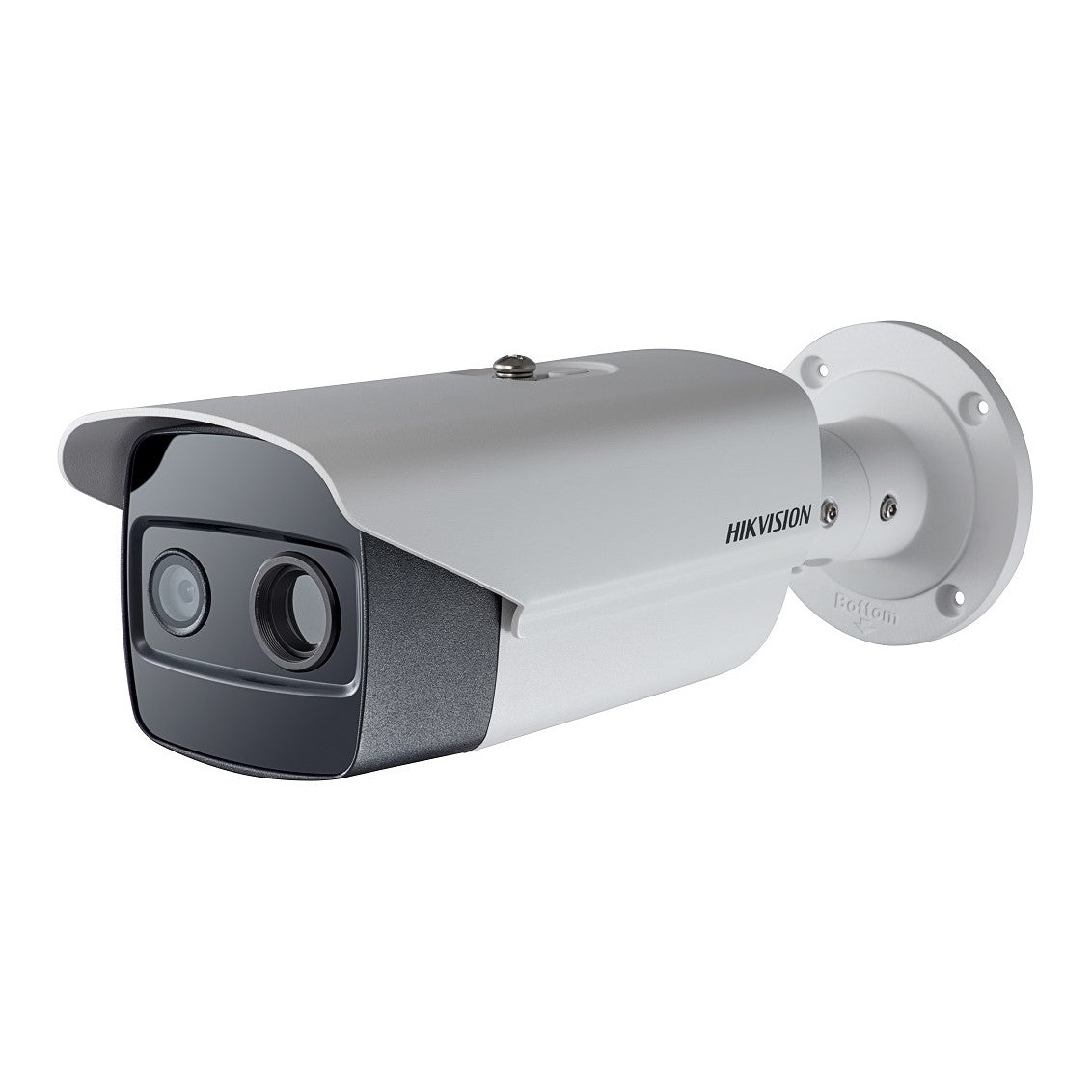

  • Hikvision DS-2TD2617-6/QA Thermal HeatPro Cameras Dual lens 6mm
  • HIK-2TD2636-15
  • Sku: DS-2TD2617-6/QA
  • Vendor: SecurityAustralia

Hikvision DS-2TD2617-6/QA Thermal HeatPro Cameras Dual lens 6mm

$596.00 AUD
In stock!
Spend $100.00 to FREE SHIPPING
  • 160 × 120 resolution, 17 μm, VOx UFPA, NETD < 40 mK (25 °C, F# = 1.1)
  • High accuracy temperature exception alarm, -20 °C to 150 °C (-4 °F to 302 °F), ± 8 °C (±14.4 °F)
  • Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
QUICK START GUIDE USER MANUAL DS-2TD2617-6_QA CURRENTLY NOT IN STOCK - 4-6 WEEKS LEAD TIME

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2TD2617-6/QA Thermal HeatPro Cameras Dual lens 6mm

$596.00 AUD

Thermal Module

  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
  • Resolution: 160 × 120
  • Pixel Pitch: 17 μm
  • Spectral Range: 8 μm to 14 μm
  • NETD: < 40 mK (@ 25 °C, F# = 1.1)
  • Focal Length: 6.2 mm
  • IFOV: 2.74 mrad
  • Field Of View: 25.0° × 18.7° (H × V)
  • Min. Focusing Distance: 0.6 m
  • Aperture: F1.1
  • Digital Zoom: × 2, × 4

Optical Module

  • Image Sensor: 1/2.7" Progressive Scan CMOS
  • Resolution: 2688 × 1520
  • Min. Illumination: 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
  • Shutter Speed: 1s to 1/100,000s
  • Focal Length: 8 mm
  • Field Of View: 39.42° × 22.14° (H × V)
  • Aperture (Range): F1.6
  • WDR: 120 dB

Image Effect

  • Target Coloration: Supported in white hot and black hot mode

Illuminator

  • IR Distance: Up to 40 m
  • IR Intensity And Angle: Automatically adjusted

Audible And Visual Alarm

  • White Light Range: Up to 40 m
  • Visual Alarm: Yes. White light alarm with adjustable flashing frequencies
  • Audio Alarm: Yes, for two types of audible alarm (VCA and Temperature Exception)

Smart Function

  • VCA: 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
  • Temperature Measurement: 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
  • Temperature Range: -20 °C to 150 °C (-4 °F to 302 °F)
  • Temperature Accuracy: ± 8 °C (± 14.4 °F)

Video And Audio

  • Main Stream: Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240); Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720), 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream: Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240); Optical: 50 Hz: 25 fps (704 × 576, 352 × 288), 60 Hz: 30 fps (704 × 480, 352 × 240)
  • Video Compression: Main Stream: H.265/H.264; Sub-Stream: H.265/H.264/MJPEG
  • Audio Compression: G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

Network

  • Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Network Storage: MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  • API: ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G, Profile T)
  • Simultaneous Live View: Up to 20 channels
  • User/Host Level: Up to 32 users, 3 levels: Administrator, Operator, User
  • Security: User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering

Interface

  • Alarm Input: 2, alarm input (0-5 VDC)
  • Alarm Output: 2, alarm output (alarm response actions configurable)
  • Alarm Action: recording/Relay output/Smart capture/FTP upload/Email linkage
  • Audio Input: 1, 3.5 mm Mic in/Line in interface
  • Audio Output: Linear level, impedance: 600 Ω
  • Communication Interface: 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
  • Analog Output: 1.0V [p-p]/75Ω, PAL/NTSC/BNC

General

  • Web Client Language: 32 languages
  • Power Supply: 12 VDC ± 25%, φ 5.5 mm coaxial power plug; PoE (802.3af, class 3)
  • Power Consumption: 12 VDC ± 25%: 0.5 A, Max 6 W; PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W
  • Working Temperature/Humidity: Temperature: -40°C to 65°C (-40°F to 149°F), Humidity: 95% or less
  • Protection Level: IP66 Standard, TVS 6000V lightning protection, surge protection, voltage transient protection
  • Dimensions: 358.3 mm × 113.5 mm × 115.2 mm (14.10" × 4.47" × 4.35"), Approx. 1.76 kg (3.88 lb)
