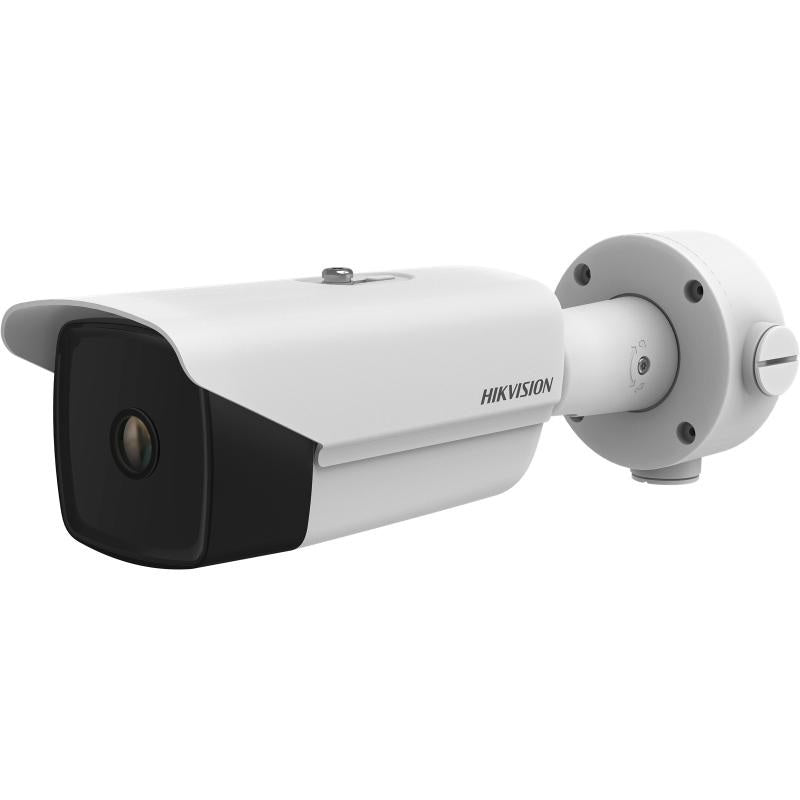

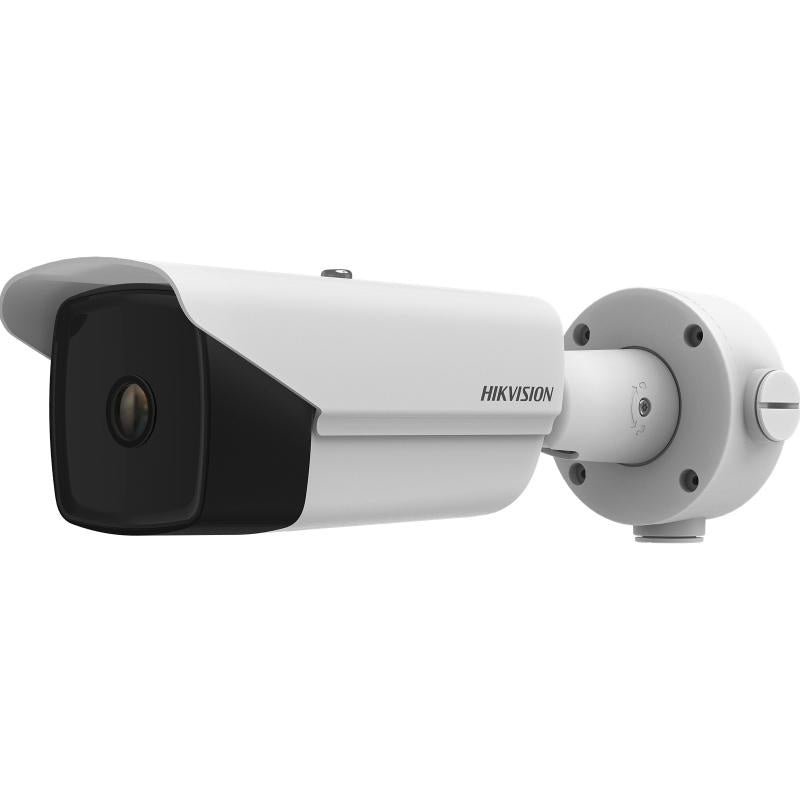

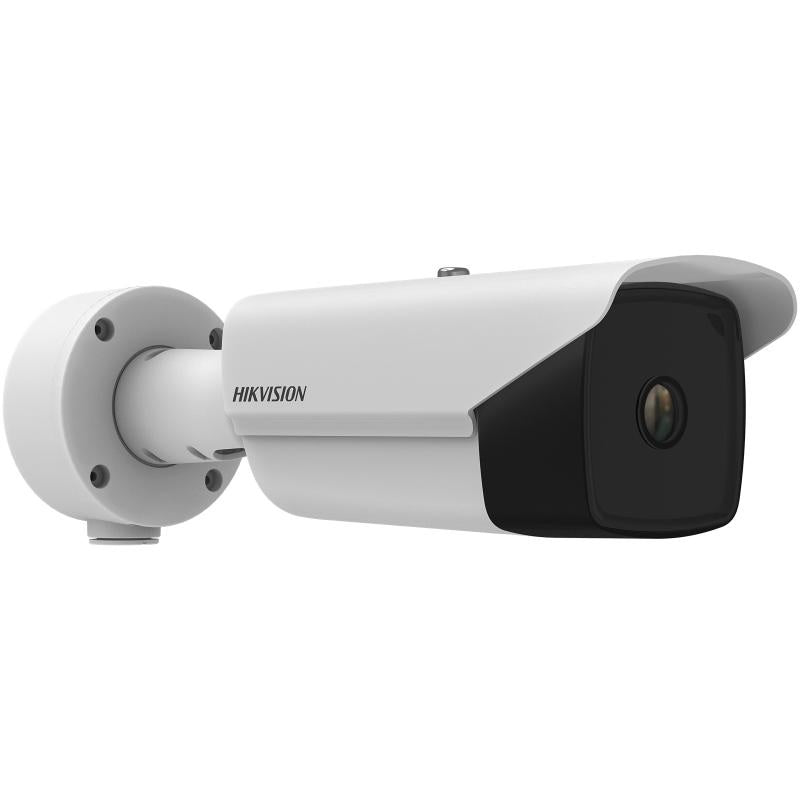

Hikvision Thermographic DS-2TD2137T-4-QY Bullet Camera, 384X288,4.4mm Fire Detection

Model: DS-2TD2137T-4-QY

Who This Is For

For facility managers, fire safety engineers, and industrial site operators who need continuous thermal monitoring rather than periodic manual inspections, the Hikvision DS-2TD2137T-4-QY delivers 384x288 thermographic imaging with built-in fire detection in a weatherproof bullet housing. This camera is aimed at sites where early-stage heat anomalies and fire risk zones need to be flagged automatically - think waste transfer stations, battery storage areas, recycling facilities, conveyor systems, and substations where optical cameras simply cannot detect a smouldering heat source before it becomes a serious incident. The 4.4mm thermal lens provides a wide enough field of view to monitor large open areas from a single fixed position, and the bullet form factor suits permanent outdoor or industrial indoor mounting where long-term unattended operation is the expectation.

What This Camera Actually Does

Who Buys This Model

• Waste and Recycling Facility Operators: Monitoring stockpiles and conveyor systems for spontaneous combustion hot spots using the camera's configurable temperature alarm zones.
• Battery Storage and EV Charging Site Managers: Deploying fixed thermal coverage over lithium battery banks or charging bays where thermal runaway events produce a heat signature well before visible flame.
• Electrical Substation and Utility Operators: Using the temperature measurement capability to monitor switchgear, transformer housings, and cable trays for abnormal heat that indicates fault conditions.
• Industrial Fire Safety Engineers and Integrators: Specifying this camera as part of a layered early-warning fire detection system at sites where conventional smoke detectors have coverage limitations in open or high-ceiling spaces.
• Timber Yards and Bulk Materials Sites: Positioning the wide 4.4mm lens to cover large open storage bays continuously without lighting infrastructure, relying on the thermal sensor's independence from darkness or dust haze.

Honest Assessment

The DS-2TD2137T-4-QY does two things well: it detects heat anomalies in environments where optical cameras are blind to early fire risk, and it does so continuously without any lighting dependency. The 384x288 thermal resolution is workable for area monitoring and fire alarm triggering, and the 4.4mm lens gives broad coverage from a single mounting point. For sites that need to detect a smouldering hot spot at 2 a.m. on an unlit yard, this is a well-matched tool. What it will not do is replace an optical camera where visual identification of people, vehicles, or licence plates is required - thermal imaging produces heat maps, not detail-rich video. It also will not deliver the detection range or the temperature accuracy of higher-resolution or cooled thermal sensors used in critical industrial measurement applications. Buyers who need both thermal alarming and colour video evidence from a single unit should consider paired thermal-optical camera solutions available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You need continuous automated fire detection across a large open outdoor or indoor area - waste bays, battery storage, timber yards - and require alarms that trigger on heat anomalies before visible smoke develops.
• Good match if: Your site operates in complete darkness, heavy dust, or light smoke haze and you need thermal imaging that is unaffected by those conditions without any IR illumination infrastructure.
• You may need a different model if: Your primary requirement is visual identification of people or vehicles alongside thermal detection - a bi-spectrum thermal-optical camera would serve that need more effectively. Browse the thermal and specialist camera range on securityaustralia.com.au for paired-sensor options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site needs continuous automated fire detection and temperature monitoring in an environment where optical cameras cannot detect early heat signatures - industrial storage, battery banks, recycling, or electrical infrastructure.
• You may need a different model if: You need thermal detection combined with visual identification in the same unit - bi-spectrum thermal-optical cameras serve that requirement and are worth reviewing for sites where both outputs are needed.
• Pairs well with: A compatible Hikvision NVR or VMS platform with thermographic alarm integration, alongside optical cameras at access points and entries where visual identification of people and vehicles is still required.

Common Questions

1. Will this camera detect a fire before visible flames appear?

   Yes - that is the core purpose of the DS-2TD2137T-4-QY's fire detection function. The thermal sensor detects elevated surface temperatures within configured alarm zones and triggers an alarm when the threshold is exceeded. Smouldering materials, overheating batteries, and developing electrical faults all produce a detectable thermal signature well before any visible flame or smoke detector activation.

2. Does this camera work in complete darkness?

   Yes. The thermal sensor detects infrared radiation emitted by objects based on their temperature, not reflected visible light. The DS-2TD2137T-4-QY requires no IR illuminators, no ambient lighting, and no supplemental light source. It produces the same quality of thermal imagery in total darkness as in full daylight.

3. What does 384x288 thermal resolution mean in practice for area coverage?

   It means the sensor produces a grid of 110,592 independent temperature measurement points across the scene. At the wide field of view produced by the 4.4mm lens, this resolution is appropriate for detecting significant heat anomalies - a hot spot on a battery bank, a smouldering pile, or an overheating machine component. It is not a high-magnification inspection sensor; the 4.4mm lens is optimised for broad area surveillance rather than precision measurement of small targets at long range.

4. Can I use this camera for both fire detection and predictive maintenance monitoring?

   Yes. The temperature measurement capability supports both applications from the same camera. You can configure fire alarm zones for fire risk areas while also using temperature data from equipment such as motors, bearings, or electrical panels to identify developing faults before they cause failure or ignition. Both functions operate simultaneously through your connected VMS or NVR platform.

5. Does this camera produce identifiable video footage of people or vehicles?

   No. The DS-2TD2137T-4-QY produces a thermal image - a heat map of the scene - not a colour or monochrome optical video image. It will show the presence and movement of people or vehicles as heat signatures, but it cannot produce footage suitable for facial identification, licence plate recognition, or evidential identification purposes. For sites that need both thermal alarming and visual evidence, a separate optical camera positioned at the same zone is required.

6. What NVR or VMS platform does this thermal camera require?

   It requires a Hikvision-compatible NVR or VMS platform that supports thermographic camera integration and can receive and display temperature alarm events. Not all generic NVRs handle thermal metadata - the recording platform needs to support Hikvision thermal alarm inputs to enable fire detection alerts and temperature zone monitoring. Confirm your NVR or VMS compatibility before purchase. The Security Australia team can assist with specifying a compatible recording solution for this camera.

7. How does a 4.4mm thermal lens perform compared to longer focal length thermal lenses?

   The 4.4mm lens produces a wide field of view - broad coverage, fewer camera positions needed to monitor a large area. The trade-off is that detection range for small heat sources is reduced compared to a longer focal length thermal lens such as 7mm, 13mm, or 25mm. For the fire detection and area hot spot monitoring applications this camera is designed for, the 4.4mm lens is well suited to open indoor bays, outdoor stockpile areas, and equipment rooms. Sites requiring detection of small targets at distances beyond 30-40 metres should evaluate longer focal length thermal options to confirm the detection range is sufficient for their specific hazard geometry.

8. Does temperature accuracy degrade in outdoor wind or rain conditions?

   Yes, to a degree. Environmental factors including wind, rain, humidity, and emissivity variation of different surface materials affect absolute temperature measurement accuracy in any uncooled thermographic camera. For fire detection applications where the alarm threshold is set well above ambient temperature variation, this is generally not a significant operational concern. For precision temperature measurement applications where accuracy within 1-2 degrees matters, the installation environment and emissivity calibration settings need to be reviewed carefully during commissioning to ensure measurements are reliable.
