Hikvision 8MP AcuSense DS-2CD2T86G2-2I Bullet 10 Camera Kit with DS-7616NI-M2/16P 16CH PoE 8K NVR, 50m IR, NO HDD INCLUDED

Model: DS-2CD2T86G2-2I Bullet / DS-7616NI-M2/16P - NO HDD - 10 Camera Kit

Who This Is For

For installers and security-conscious site owners who need a structured, high-resolution system covering long outdoor approaches without the complexity of mixing incompatible components. This kit pairs 10 Hikvision DS-2CD2T86G2-2I 8MP AcuSense bullet cameras with the DS-7616NI-M2/16P 16-channel PoE NVR, giving you a single-brand, PoE-powered system capable of recording at up to 8K. The AcuSense deep learning engine on each camera classifies humans and vehicles separately, cutting false alerts caused by animals, wind-blown objects, or lighting changes. With 50m IR range on every camera and 6 spare NVR channels built in for future expansion, this kit suits light industrial sites, warehouses, larger residential properties, commercial yards, and transport depots where perimeter coverage at 4K resolution is the priority and a no-HDD configuration lets the buyer source storage independently.

What This System Actually Does

Who Buys This Model

• Warehouse and logistics operators: Need 50m IR coverage across long loading dock approaches and yard perimeters, with AcuSense cutting false alerts from forklift vibration and wildlife after hours.
• Commercial property managers: Specifying a single-brand 8MP system across car parks, access roads, and building exteriors where image detail is required for incident review and insurance documentation.
• Security integrators building scalable systems: Start with 10 cameras and use the 6 spare PoE NVR channels to expand coverage progressively without replacing core infrastructure.
• Rural and semi-rural residential properties: Long driveway runs and unlit boundary lines where 50m IR and 8MP detail cover distances that smaller residential camera kits cannot.
• Small industrial sites choosing their own storage: The no-HDD configuration suits buyers who want to specify their own NAS-grade or surveillance-rated hard drives separately rather than accept whatever comes bundled.

Honest Assessment

This kit does outdoor perimeter coverage well. The combination of 8MP resolution, 50m IR, and AcuSense on every camera gives you image quality and alert accuracy that entry-level 2MP kits cannot match. The DS-7616NI-M2/16P NVR has genuine headroom - 16 PoE ports, 8K recording support, and dual HDD bays - so the recorder will not limit you as the system grows. All components are from a single Hikvision ecosystem, which simplifies firmware management and remote access setup considerably. What this kit will not do: it does not include full-colour night vision, so after dark you get monochrome IR footage rather than colour. If colour night detail is a hard requirement, a full-colour or TiOC camera kit serves that need better. It also ships without a hard drive - you need to budget for and source surveillance-rated HDDs separately before the system records anything. Available through Security Australia, this kit suits buyers who have already made that HDD decision and want a system that is ready to wire and configure from day one.

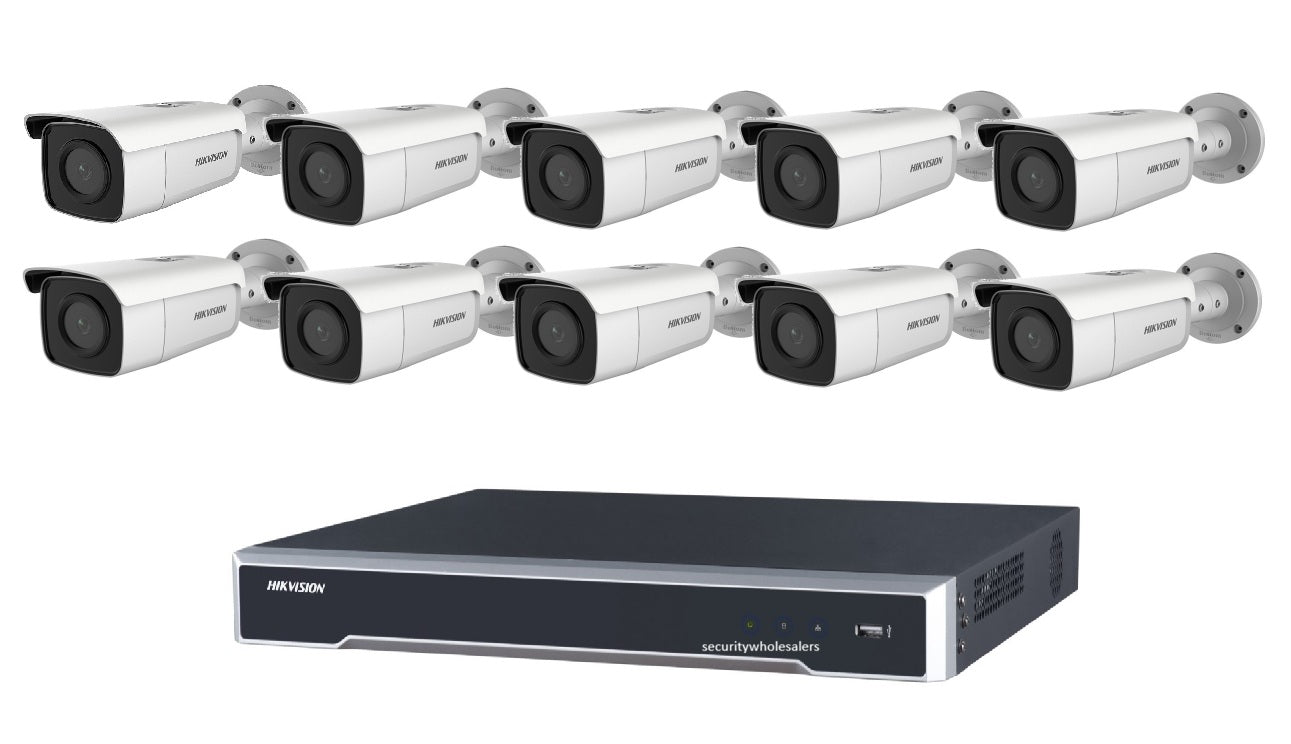

Complete Package Contents

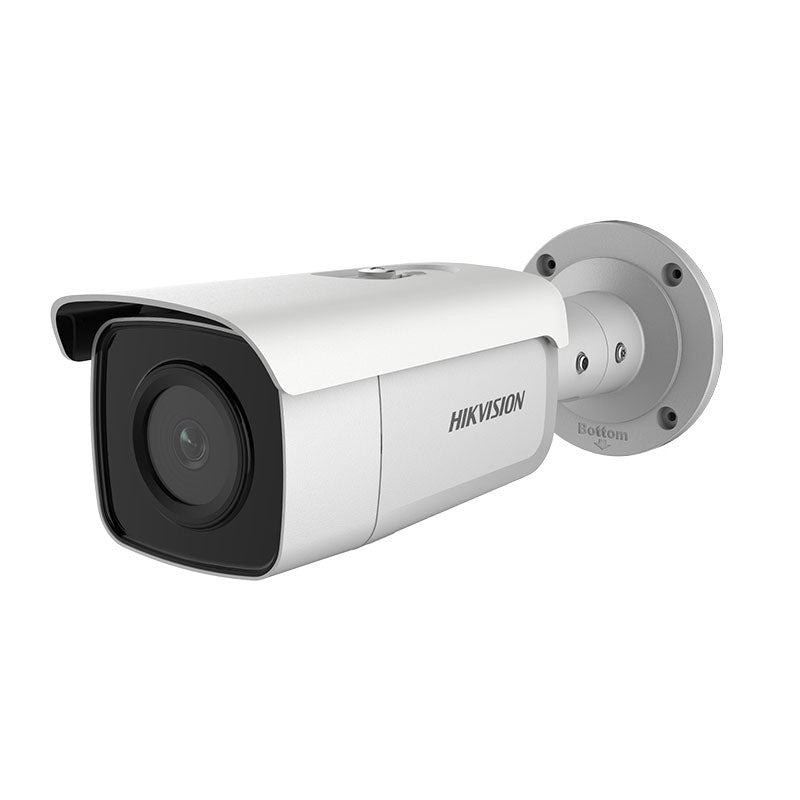

• 10 x Hikvision DS-2CD2T86G2-2I - 8MP AcuSense bullet camera, 50m IR, IP67, PoE

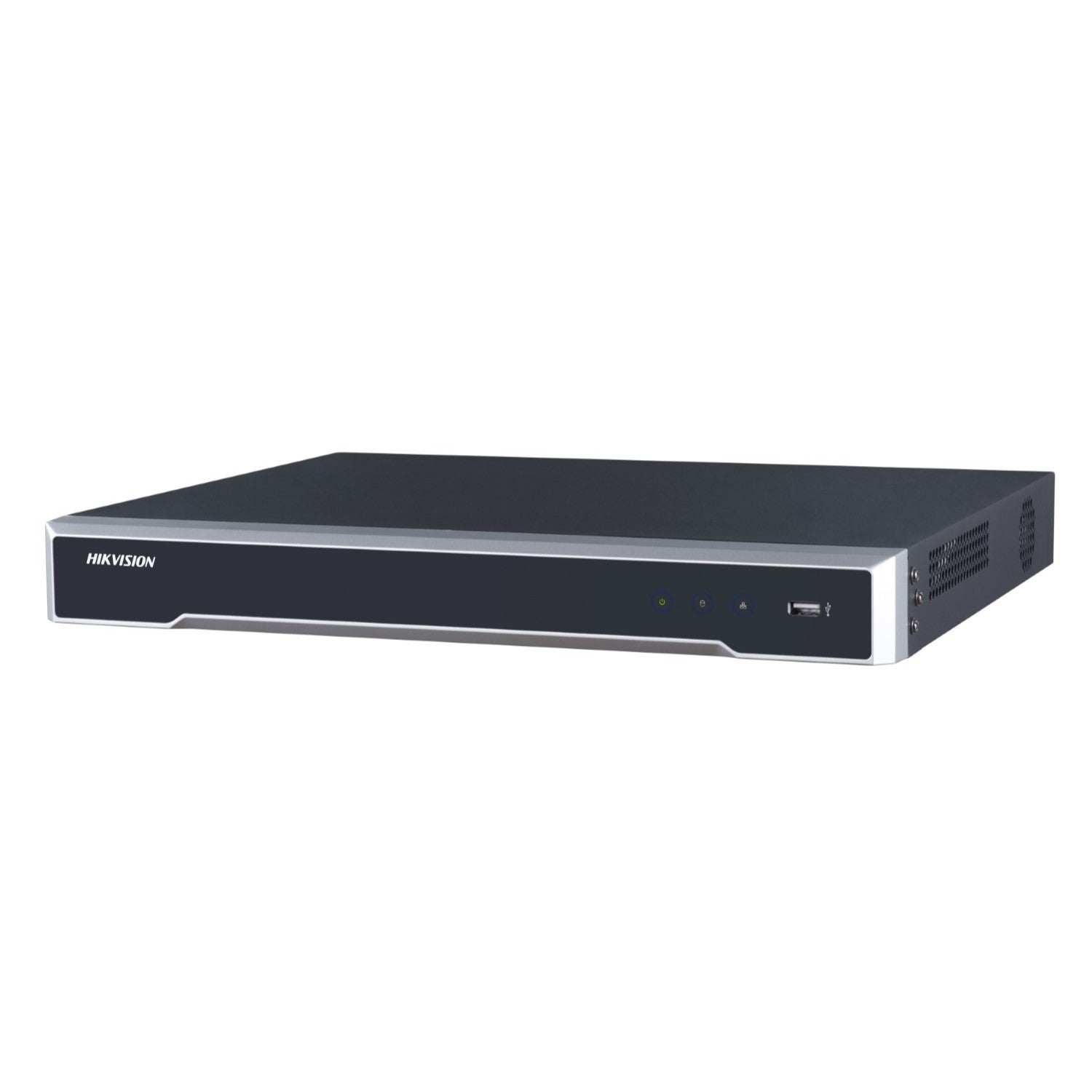

• 1 x Hikvision DS-7616NI-M2/16P - 16-channel PoE NVR, 8K support, 2x HDD bays, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You are covering long outdoor approaches, driveways, or yards where 50m IR range and 8MP resolution are needed to capture usable detail at distance, and you want room to add up to 6 more cameras later without changing the NVR.
• Good match if: You want AcuSense human-and-vehicle filtering to reduce false alerts at a site that has background motion from wind, animals, or variable lighting, and you are sourcing your own surveillance-rated HDDs.
• You may need a different model if: Full-colour night footage is a core requirement - a kit built around full-colour or TiOC cameras will deliver colour imagery after dark rather than the monochrome IR output this kit produces. Browse the full-colour camera kit range on securityaustralia.com.au for alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 8MP outdoor bullet cameras with AcuSense AI filtering, 50m IR night range, and a 16-channel PoE NVR that leaves 6 ports free for future camera additions - all without sourcing a compatible recorder separately.
• You may need a different model if: Your site requires full-colour night footage rather than monochrome IR - a kit built around full-colour or TiOC cameras delivers colour images in low light and complete darkness, which this kit does not. Browse full-colour camera kits on securityaustralia.com.au to compare options.
• Pairs well with: Surveillance-rated 3.5-inch SATA hard drives (WD Purple or Seagate SkyHawk series) sized to your required retention period, installed into the NVR's 2 available HDD bays before commissioning.

Common Questions

1. Does this kit include a hard drive?

   No. This kit ships with no hard drive installed. The DS-7616NI-M2/16P NVR has 2 SATA bays and will not record until at least one compatible surveillance-rated HDD is installed. You need to purchase drives separately - use surveillance-grade HDDs rated for 24/7 operation, such as WD Purple or Seagate SkyHawk. Desktop-class drives are not suitable for continuous CCTV recording workloads.

2. Will these cameras work in complete darkness?

   Yes, using infrared night vision up to 50 metres. The DS-2CD2T86G2-2I has built-in IR illuminators that activate automatically in low light, producing clear monochrome footage. Note that this is IR night vision, not full-colour night vision - after-dark footage will be in black and white, not colour. If colour night imagery is a requirement, a different camera type is needed.

3. What does AcuSense actually do on these cameras?

   AcuSense uses deep learning processing on the camera itself to distinguish between human figures and vehicles versus other motion triggers. This means the camera generates alerts and pushes recordings specifically when a person or vehicle is detected, filtering out irrelevant triggers like animals, insects, wind-blown vegetation, and changing light conditions. The result is fewer false notifications and faster review of meaningful events in recorded footage.

4. Can I add more cameras to this kit later?

   Yes, directly. The DS-7616NI-M2/16P has 16 PoE ports and this kit uses 10, leaving 6 ports available. You can connect up to 6 additional Hikvision IP cameras to those spare ports without purchasing an additional NVR or PoE switch. The NVR's 8K recording capability also means it has resolution headroom to handle higher-specification cameras added in future.

5. Does this system work with a single cable run to each camera?

   Yes. Each DS-2CD2T86G2-2I camera is powered over Ethernet - a single Cat5e or Cat6 cable from the NVR's PoE port carries both network data and power to the camera. There is no requirement for a separate power cable or local power outlet at each camera position. Maximum recommended cable length per run is 100 metres.

6. Is the DS-7616NI-M2/16P NVR compatible with non-Hikvision cameras?

   Yes, it supports ONVIF-compliant cameras from other manufacturers, though full AcuSense AI functionality - including human and vehicle filtering and smart search - is only available when paired with compatible Hikvision cameras. The cameras in this kit are fully native Hikvision, so all intelligent features are active from the outset. If you add third-party cameras to the spare channels, standard motion-based recording remains available. Check the current compatibility list via Security Australia if you need to mix brands.

7. Are these cameras suitable for outdoor installation in Australian conditions?

   Yes. The DS-2CD2T86G2-2I carries an IP67 ingress protection rating, meaning it is fully sealed against dust ingress and rated for sustained water immersion. This makes it suitable for exposed outdoor positions including eaves, exterior walls, fence lines, and building corners in coastal, tropical, and high-rain environments. The bullet housing also provides a degree of sun shading over the lens compared to dome or turret form factors.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for runs approaching 80-100 metres or in environments with electrical interference.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera. Beyond this distance, signal and power delivery degrade - plan runs carefully on larger sites before pulling cable.
• PoE Notes: Each camera draws PoE power from the NVR's internal PoE switch. The DS-7616NI-M2/16P has a shared PoE power budget across all 16 ports. With 10 cameras connected, confirm that individual camera power draw does not exceed the per-port allocation or total budget. The DS-2CD2T86G2-2I operates within standard IEEE 802.3af PoE.
• Wiring Tips: Terminate all cables with RJ45 connectors and test continuity before mounting cameras. Pull cables to final camera positions before installing junction boxes or mounting hardware. Outdoor runs should be installed in conduit or UV-rated cable management to protect sheathing from long-term sun exposure.
