Hikvision 10 Camera 6MP ColorVu DS-2CD2367G3-LIS2UY/SL Turret Kit with DS-7616NI-M2/16P 16CH PoE 8K NVR - no HDD

Model: DS-2CD2367G3-LIS2UY-SL / DS-7616NI-M2-16P-NO-HDD-10-CAM-KIT

Who This Is For

For installers and property owners who need a complete, camera-ready surveillance system without the compromises of entry-level kits, this 10-camera ColorVu bundle is built around the DS-2CD2367G3-LIS2UY/SL turret and the DS-7616NI-M2/16P 16-channel PoE NVR. It suits commercial premises, small industrial sites, childcare facilities, and multi-dwelling residential builds where full-colour night footage, AI-driven false alarm filtering, and active deterrence all need to work together from day one. The 16-channel NVR leaves 6 ports open for future expansion, so sites that may grow beyond 10 cameras do not need to re-specify the recorder later. Each camera ships PoE-ready, keeping cabling clean and install times predictable. If you are comparing systems at the 6MP full-colour tier and need strobe-light deterrence built into the camera body rather than added separately, this kit is the primary configuration to evaluate.

What This System Actually Does

Who Buys This Model

• Commercial property managers: Specifying a full-colour, AI-filtered system across car parks, building entries, and common areas where night-time colour detail and reduced false alert volume are both operational requirements.
• Security integrators on light commercial sites: Looking for a 10-camera starting point on a 16-channel recorder so the client retains room to expand without a recorder swap - particularly on sites expecting staged fit-outs.
• Childcare and education facility operators: Where AcuSense filtering reduces nuisance alerts from playground activity, and full-colour night footage provides usable footage during early-morning and after-hours periods.
• Retail business owners: Deploying cameras across internal aisles and external entrances, where 6MP resolution allows cropping for product-level or face-level detail during theft investigations.
• Small industrial and warehouse sites: Where active deterrence - strobe and audio triggered on human or vehicle detection - is required at perimeter points without a separate siren or deterrent device per location.

Honest Assessment

This kit is strong on night-time colour performance and AI classification. Full-colour footage across all 10 cameras - without relying on IR - and AcuSense filtering genuinely reduces the operational burden of managing alerts on a busy site. The 16-channel NVR with 6 spare PoE ports is a practical choice for sites that are likely to add cameras in the second or third year, and the 8K decoding capacity provides meaningful headroom. Active deterrence built into the camera body removes the cost and cabling of separate siren units at each position.

Where this kit has limits: it ships without a hard drive, so storage must be budgeted and fitted before the system is operational - factor this into your total project cost. The turret form factor works on eaves, soffits, and walls but is not the right choice for long-distance approaches where a varifocal bullet or PTZ would provide better reach. Sites needing pan-tilt-zoom coverage or wide-area single-point coverage should look at a different camera category available through Security Australia.

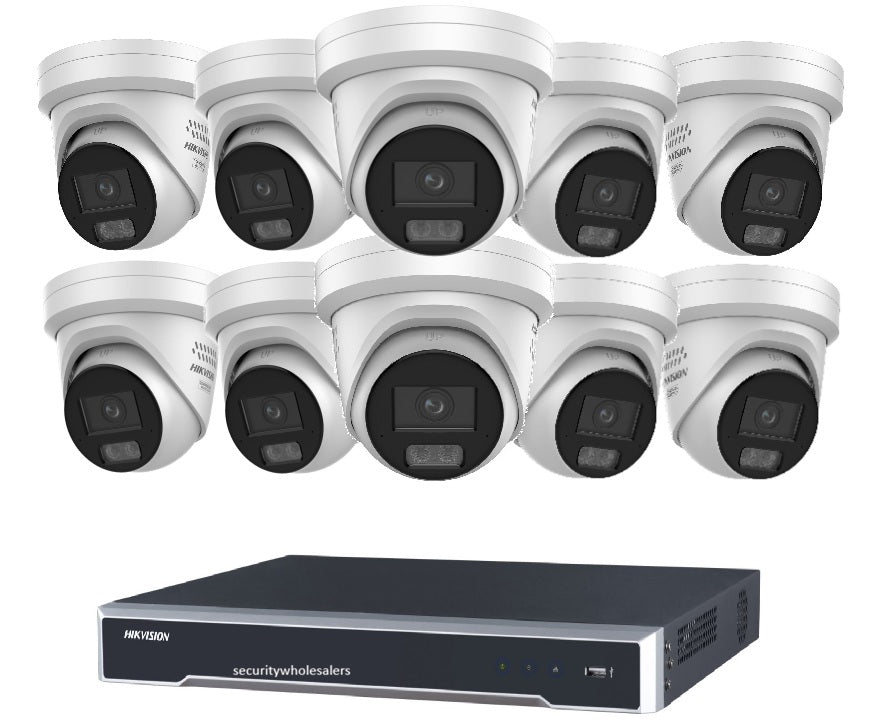

Complete Package Contents

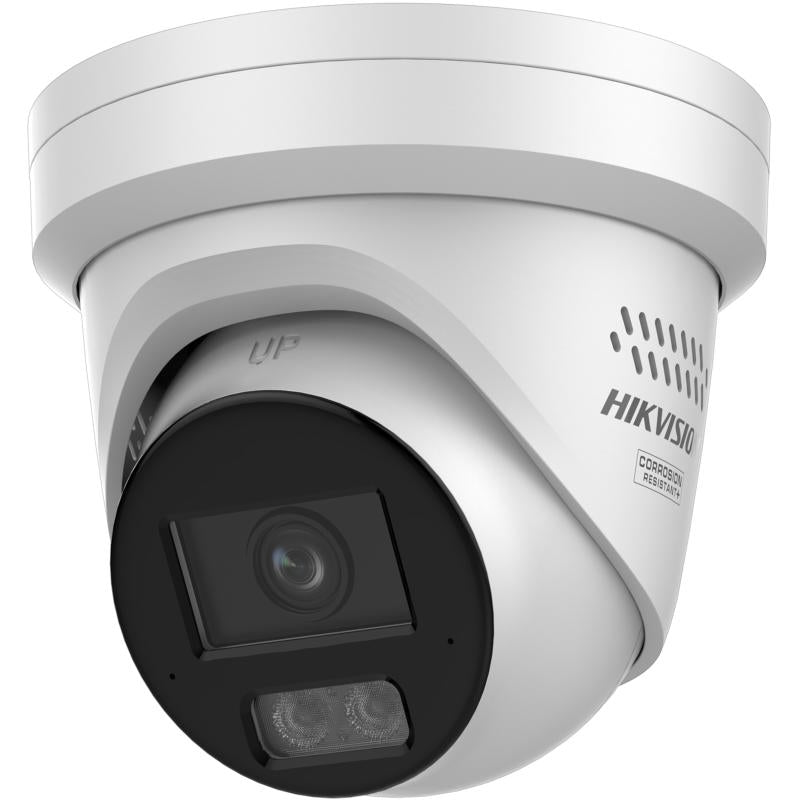

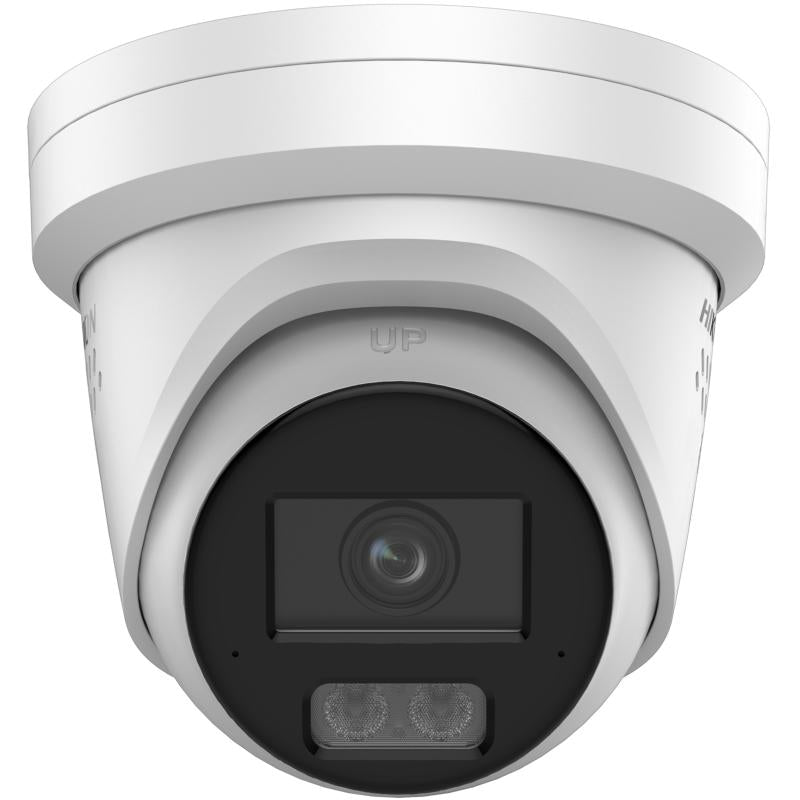

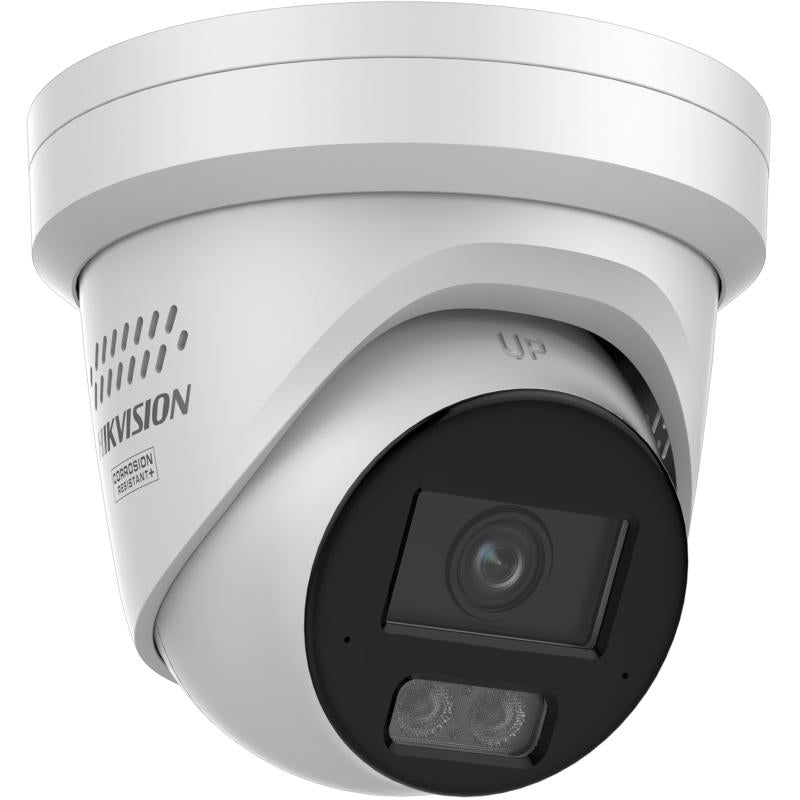

• 10 x Hikvision DS-2CD2367G3-LIS2UY/SL - 6MP ColorVu AcuSense TiOC turret camera, built-in mic, strobe light, PoE, IP67

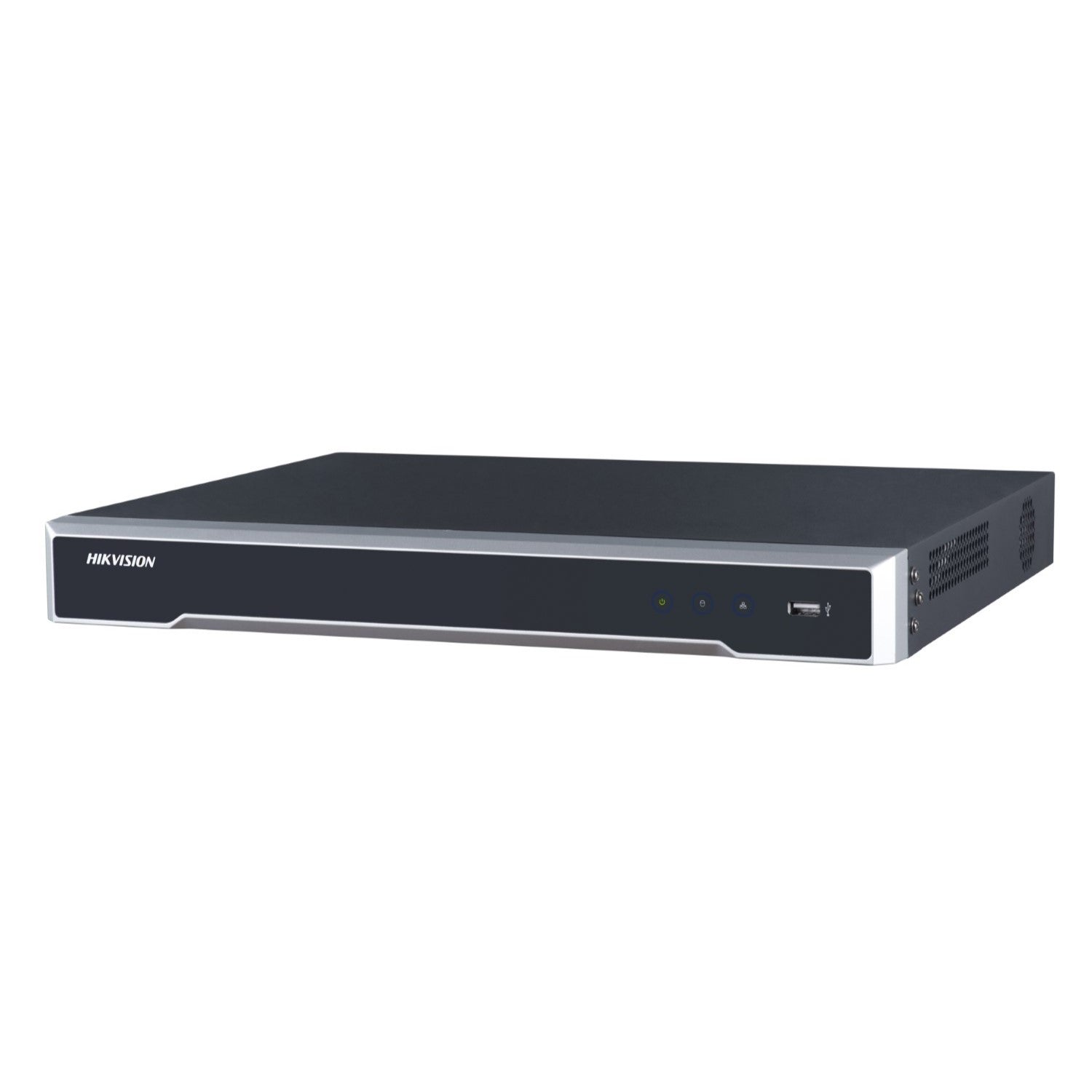

• 1 x Hikvision DS-7616NI-M2/16P - 16-channel PoE NVR, 8K decoding, 2 HDD bays, no HDD included

Before You Buy

Quick Fit Check

• Good match if: You need full-colour night footage and AI-filtered alerts across 10 positions, with room to add up to 6 more cameras to the same NVR without hardware changes.
• Good match if: Active deterrence - strobe and audible alert on confirmed human or vehicle detection - is a requirement at multiple external points and you want it built into the camera rather than wired separately.
• You may need a different model if: Your site has long driveways or approach roads where identification distance beyond the fixed-lens range of a turret is needed - a varifocal bullet or PTZ system will serve that application better.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 10 cameras delivering full-colour night footage, AcuSense AI filtering, and built-in active deterrence - all on a single 16-channel PoE NVR with room to expand.
• You may need a different model if: Your site requires long-range identification across open approaches - a varifocal bullet camera system with motorised zoom will cover that scenario more effectively than a fixed-lens turret kit.
• Pairs well with: Surveillance-grade hard drives (2 x SATA required before recording begins), a network switch for any IP-connected monitoring workstation, and a UPS for the NVR to maintain recording through brief power interruptions.

Common Questions

1. Does this kit include a hard drive?

   No. The DS-7616NI-M2/16P ships with no HDD installed. The recorder has 2 x SATA bays, and you will need to install surveillance-grade hard drives before the system can record locally. Factor drive capacity into your total budget - at 6MP across 10 cameras with H.265+ compression, storage consumption is considerably lower than uncompressed equivalents, but a capacity calculation before purchase is recommended.

2. Will the strobe light and alarm activate automatically, or does someone need to trigger it?

   It can do both. The DS-2CD2367G3-LIS2UY/SL cameras support automatic deterrence triggered by AcuSense detection of a confirmed human or vehicle target, or manual deterrence activated by an operator through the NVR or Hik-Connect app. Automated triggering requires detection zones and schedules to be configured during commissioning - they are not active out of the box.

3. Do all 10 cameras produce colour footage at night, or does it switch to black and white?

   All 10 cameras produce colour footage at night. ColorVu technology uses a built-in white supplement light and a large-aperture lens to capture colour in near-total darkness. There is no automatic switch to monochrome - the output remains in colour regardless of ambient light level. This is the key distinction between ColorVu cameras and standard IR cameras, which produce greyscale footage in low-light conditions.

4. How many more cameras can I add to this system after install?

   Up to 6 additional cameras. The DS-7616NI-M2/16P has 16 PoE ports and 16 recording channels. With 10 cameras connected, 6 ports remain available for expansion. Additional cameras can be connected directly to spare NVR PoE ports without an external switch, provided they are within cable distance of the recorder location.

5. Does this system work with the Hik-Connect app for remote viewing?

   Yes. The DS-7616NI-M2/16P supports Hik-Connect remote access via smartphone or tablet. Live view, playback, and push notifications for AI-classified events can all be managed through the app. Remote access requires the NVR to have an active internet connection and the device to be registered to a Hik-Connect account.

6. Will this system work for a site that already has Hikvision cameras installed?

   Yes, in most cases. The DS-7616NI-M2/16P is compatible with Hikvision IP cameras across a range of resolutions. Existing cameras can be added to the spare PoE ports alongside the 10 included turrets, provided they are ONVIF-compatible or native Hikvision protocol. AI features such as AcuSense filtering and active deterrence triggering will only function with cameras that support those capabilities - older or non-AcuSense cameras will record normally but will not benefit from the same alert classification. The full specification and compatibility detail for this kit is available through Security Australia.

7. Are the cameras in this kit suitable for outdoor installation?

   Yes. Each DS-2CD2367G3-LIS2UY/SL carries an IP67 weatherproof rating, making it suitable for outdoor installation including wall, eave, and soffit mounting. IP67 means the housing is protected against dust ingress and temporary water immersion. The turret form factor is appropriate for sheltered outdoor positions - for fully exposed locations subject to driving rain or harsh industrial environments, an IP67-rated bullet camera housing may provide a more suitable profile.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all camera runs and for the NVR uplink to your network switch or router.
• Max Cable Run: 100 metres per camera from NVR PoE port to camera. Runs beyond 90 metres should be tested before locking in camera positions - signal degradation near the limit can affect PoE reliability.
• PoE Notes: The DS-7616NI-M2/16P powers all 16 ports internally - no external PoE switch is required for cameras connected directly to the NVR. Check the total PoE budget of the NVR against the combined draw of all connected cameras, particularly when adding non-standard cameras to spare ports.
• Wiring Tips: Run a single Cat cable per camera from the NVR location to each camera position - power and data travel on the same cable. Terminate with RJ45 connectors rated for outdoor or in-wall use depending on the run path. If conduit is required by the site (industrial or commercial builds), confirm conduit sizing before cameras arrive on-site.

Downloads & Resources

No downloads available for this product.
