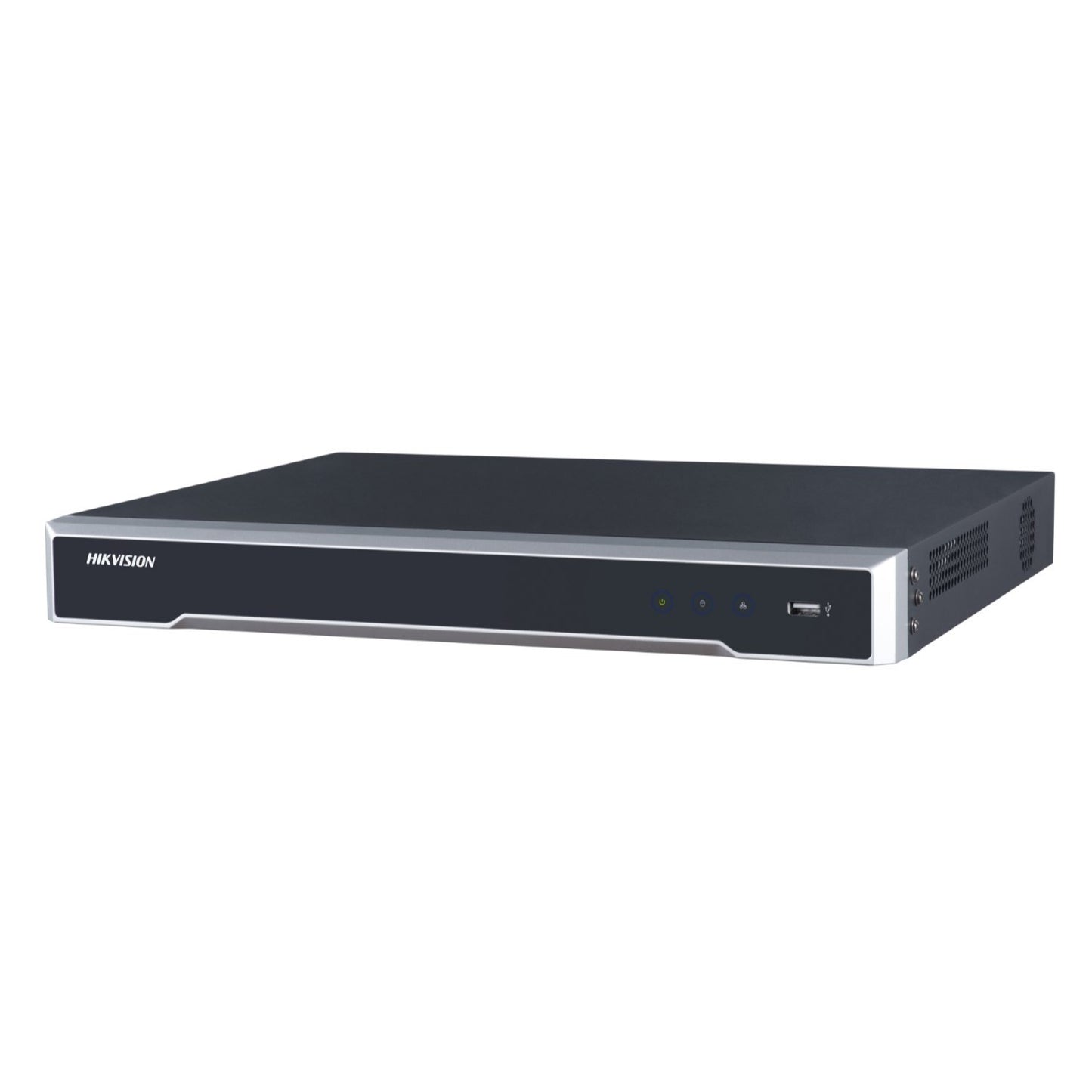

Hikvision DS-7616NI-M2/16P 16CH Ultra Series NVR No HDD

Model: DS-7616NI-M2/16P-NOHDD

Who This Is For

For integrators and facilities managers who need a high-channel, high-resolution recording platform that can power an entire camera array from a single unit, the Hikvision DS-7616NI-M2/16P is built around that exact brief. With 16 PoE ports delivering a combined 200W budget, this NVR eliminates the need for separate injectors or PoE switches across a full 16-camera deployment. HDMI output reaches 8K at 30Hz, making it a genuine fit for installations where large-format displays or video walls are part of the monitoring setup. The 4 SATA bays support significant on-site storage expansion, and the 256 Mbps incoming bandwidth handles high-resolution streams across all channels without bottlenecking. This is a rack-compatible unit suited to control rooms, server rooms, and commercial equipment cabinets - not a plug-and-play consumer recorder.

What This NVR Actually Does

Who Buys This Model

• Security integrators building commercial systems: The 16 self-adaptive PoE ports and 200W budget allow a full camera deployment to be wired back to a single unit, reducing hardware count and simplifying commissioning on mid-to-large commercial sites.
• Facilities managers at large premises: Warehouses, manufacturing facilities, or multi-building campuses that need 16 continuous-recording channels with enough storage expandability across 4 SATA bays to retain footage for extended periods.
• Control room operators requiring high-resolution display output: Sites running 4K or 8K monitors for live monitoring benefit directly from the NVR's HDMI output capability rather than being bottlenecked by the recorder's display resolution.
• IT or security managers in compliance-sensitive environments: The TLS stream encryption and double verification for playback access address environments where footage integrity and access auditing are requirements rather than optional features.

Honest Assessment

The DS-7616NI-M2/16P earns its place in commercial and institutional installations through a combination of high-resolution support, integrated PoE at real-world power headroom, and a 256 Mbps bandwidth ceiling that avoids the throughput constraints that undermine lesser recorders when all channels are active simultaneously. The independent HDMI and VGA outputs give operators display flexibility, and H.265+ compression does meaningful work in reducing long-term storage costs across 4 HDD bays. Available through Security Australia, this unit ships without HDDs - storage planning is required before deployment, and the cost of 4 compatible drives should be factored into project budgets. If your installation needs fewer than 16 channels, a lower-channel model will cost less without sacrificing meaningful capability. For sites that need more than 16 cameras or require advanced AI analytics beyond VCA events such as motion detection and line crossing, a higher-tier NVR or a VMS platform is more appropriate.

Before You Buy

Quick Fit Check

• Good match if: You are deploying 16 IP cameras and want to consolidate PoE power delivery and recording into a single unit - the 16 integrated PoE ports with a 200W budget eliminate the need for a separate PoE switch in many standard deployments.
• Good match if: Your monitoring setup uses a 4K or 8K display and you need a recorder whose HDMI output can feed it at full resolution - the 8K HDMI output at 30Hz meets that requirement without an intermediate scaling device.
• You may need a different model if: Your site requires more than 16 camera channels or needs deep AI analytics such as facial recognition, ANPR, or heat mapping - a higher-channel NVR or a dedicated video management server will be a better fit; both are available at Security Australia.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 16 channels of IP recording with integrated PoE at 200W, 32MP recording capability, and 8K HDMI output - all in a single 1U form factor without requiring a separate PoE switch.
• You may need a different model if: Your site will exceed 16 cameras or requires deep AI analytics such as ANPR, facial recognition, or perimeter protection with classified object detection - a higher-channel NVR or a VMS-based system is a better fit for those use cases.
• Pairs well with: Hikvision 4K or higher-resolution IP dome, turret, or bullet cameras that can take full advantage of the 32MP recording ceiling and onboard PoE without requiring separate power infrastructure.

Common Questions

1. Does this NVR come with hard drives included?

   No. The DS-7616NI-M2/16P ships with no HDDs installed. The unit has 4 SATA interfaces that accept surveillance-grade hard drives, but these must be purchased and installed separately. Storage capacity planning should be completed before ordering drives - factors include channel count, recording resolution, frame rate, and required retention period. H.265+ compression will reduce storage consumption compared to H.264 across the same camera set.

2. Will this NVR power all 16 cameras directly without a separate PoE switch?

   Yes, in most standard deployments. The 16 self-adaptive RJ-45 PoE ports have a combined budget of 200W. Standard IP cameras drawing 7 to 12W each will sit well within that budget across all 16 ports. If your deployment includes higher-draw devices such as PTZ cameras or cameras with integrated heaters, calculate total port draw against the 200W aggregate ceiling before assuming all 16 ports can be loaded simultaneously.

3. What is the maximum recording resolution this NVR supports?

   32MP per channel. The NVR accepts IP video input at up to 32MP resolution. In standard mode all 16 channels record at up to 32MP. When ultra HD resolution mode is enabled, up to 8 channels can record at 32MP or 24MP simultaneously. The 256 Mbps incoming bandwidth supports high-resolution streams across multiple channels, though available bandwidth per channel decreases as more cameras run at peak resolution.

4. Does this NVR work with non-Hikvision IP cameras?

   Partially. The NVR operates natively with Hikvision IP cameras via the Hikvision protocol, which unlocks the full feature set including VCA event support and H.265+ compression. Third-party ONVIF-compliant cameras can connect, but AI analytics, advanced compression modes, and some recording features may not be available depending on the camera's ONVIF profile. For full functionality across all 16 channels, Hikvision cameras are the confirmed-compatible choice.

5. How many users can access this NVR remotely at the same time?

   Up to 128 simultaneous remote connections are supported. Remote access is available via the Hik-Connect app, which allows live view and playback from mobile devices or desktop clients. The 256 Mbps outgoing bandwidth is the practical ceiling across all concurrent remote streams, so sub-streams are typically used for remote viewing to reduce bandwidth load while the main stream is preserved for local recording and playback.

6. What does the double verification feature actually require in practice?

   It requires a second authentication step before footage can be played back or downloaded. Once enabled, a user initiating playback or a download export must complete a secondary verification - this creates an auditable access control layer for footage retrieval. It is primarily relevant for sites with compliance requirements around evidence chain-of-custody or data access logging. The feature is configurable and does not affect live monitoring or standard camera operation.

7. Is the DS-7616NI-M2/16P rack-mountable?

   Yes. At 385 x 315 x 52mm and a 1U profile, the unit is designed for rack installation. At under 3kg without HDDs it handles standard rack tray or shelf mounting without issue. The form factor makes it suited to server rooms, communications cabinets, or dedicated security equipment racks in control rooms. Rack ears or mounting hardware should be confirmed as part of the installation planning, as included accessories are not detailed in the specification data for this unit.
